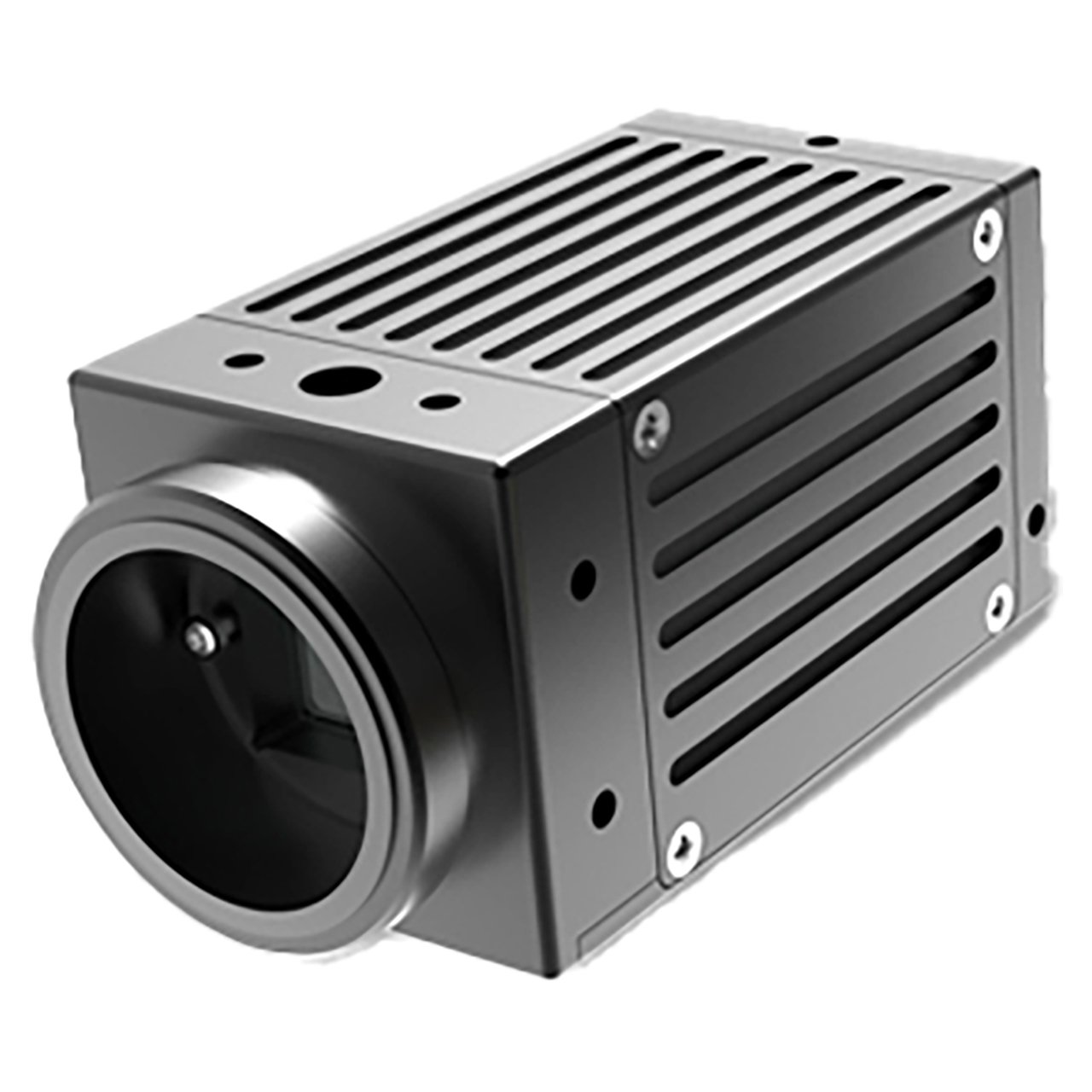

Dream Chip DC-001-00023-8-K Atom One 4K Mini16 Global Shutter Camera with Fixed C-Mount 8mm Lens 2SDI Output Genlock

DC-001-00023-8-K - Overview

• Features:

  • Low Latency (<100 ohms/microseconds)
  • Defect Pixel Correction (auto/manual)
  • Black Level, White Level, Master Black
  • White Balance / Auto White Balance
  • Flare Compensation
  • Lens Shading Correction
  • High Quality Color Interpolation (debayer)
  • Color Matrix / Color Correction
  • Color Temperature Settings / Profiles
  • Multi-Matrix Color Correction (12/24/32 Angles)
  • RGB LUT Programmable
  • Knee Function
  • Denoise Filter
  • Detail Filter
  • Color Post Processing (lumi, contr, sat, hue)
  • SDI Range Adjustable (black/white)
  • Mirror/Flip
  • Image Statistics (white balance, exposure)
  • Auto Exposure / Auto Gain


• Specifications:

  • Overview
  • Resolution: 4K 4096 x 2160
  • Mount: C Mount + CS Mount
  • Size: 36mm x 36mm x 79mm
  • Weight: 0.26 lbs
  • Mount Points: 2x 1/4inch, 5x M3
  • Microphone: Stereo Mic

    Sensor
  • Type: 1inch
  • Pixel Size: 3.45um
  • Diameter: 16.1mm
  • Filter: IR Cut
  • Shutter Type: Global
  • Dynamic: 10 bit / 72 dB
  • Sensitivity ISO: Analog 115 - 1840 / Digital 12800
  • Sensitivity 2000 Lx 50Hz: F6.7
  • Maximum FOV (H): 98° @ 6mm Lens

    Electric

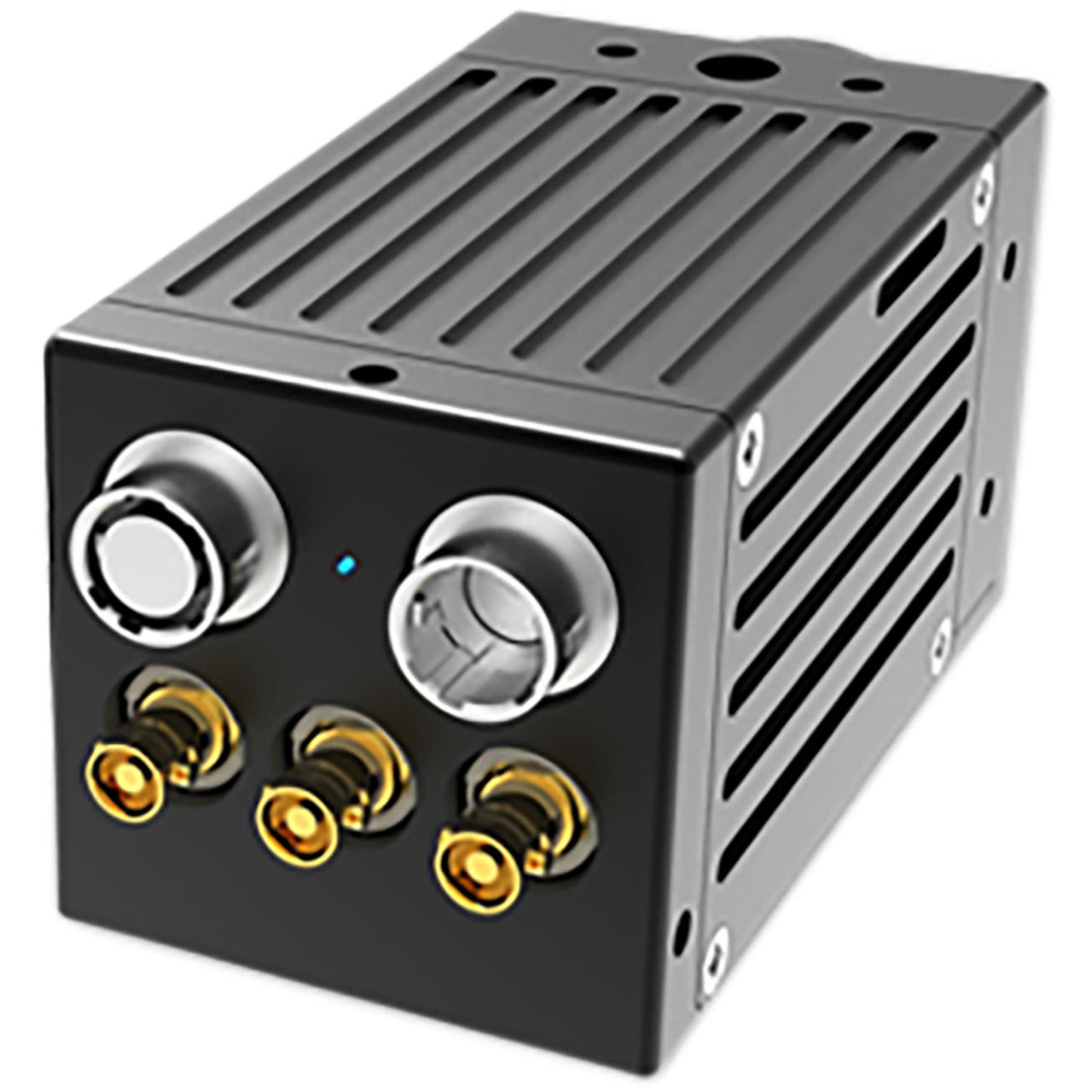

  • SDI Output: 2x HD-BNC / 12G SDI
  • Control: RS485
  • Genlock: Trilevel Sync in / out
  • Embedded Time Code: Yes
  • Voltage Range: 9V-36V
  • Power: 8.3watt 680mA@12V
  • Power Supply: 9V-36V
  • Cooling: Active

    Camera Features
  • Color Control Unit: Yes
  • 4K to 2K down-scale with oversampling: Yes
  • Independent LUT: Yes

    Video Formats
  • 10 bitYUV422: Yes
  • RAW: Yes
  • 1920x1080 Full HD Framerates: No (can downscale to 1080 i/p)
  • 3840x2160 UHD: 23.98, 24, 25, 29.97, 30, 48, 47.96, 50, 59.94, 60, 50i, 59.94i, 60i
  • 4096x2160 4K Framerates: 23.98, 24, 25, 29.97, 30, 48, 47.96, 50, 59.94, 60, 50i, 59.94i, 60i
