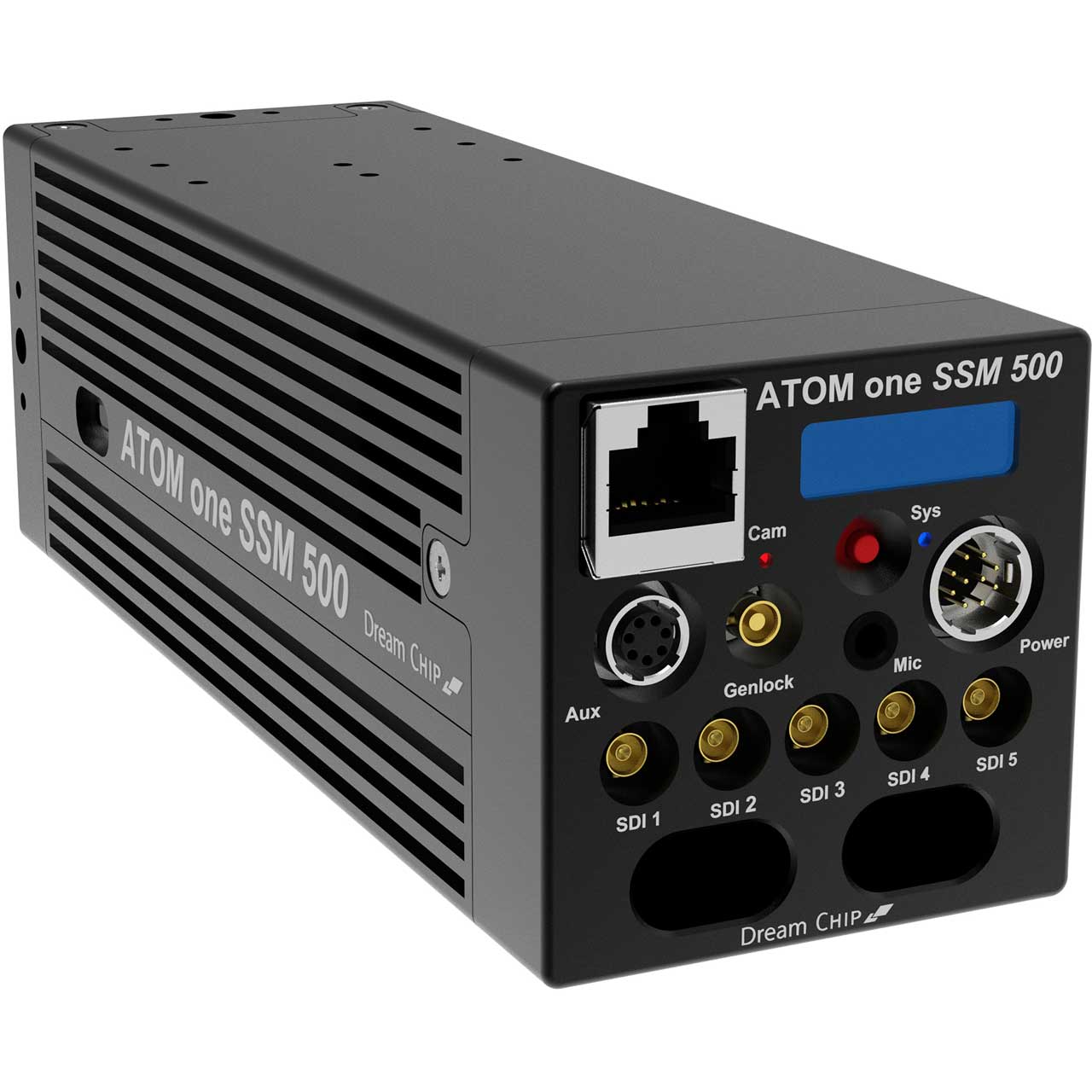

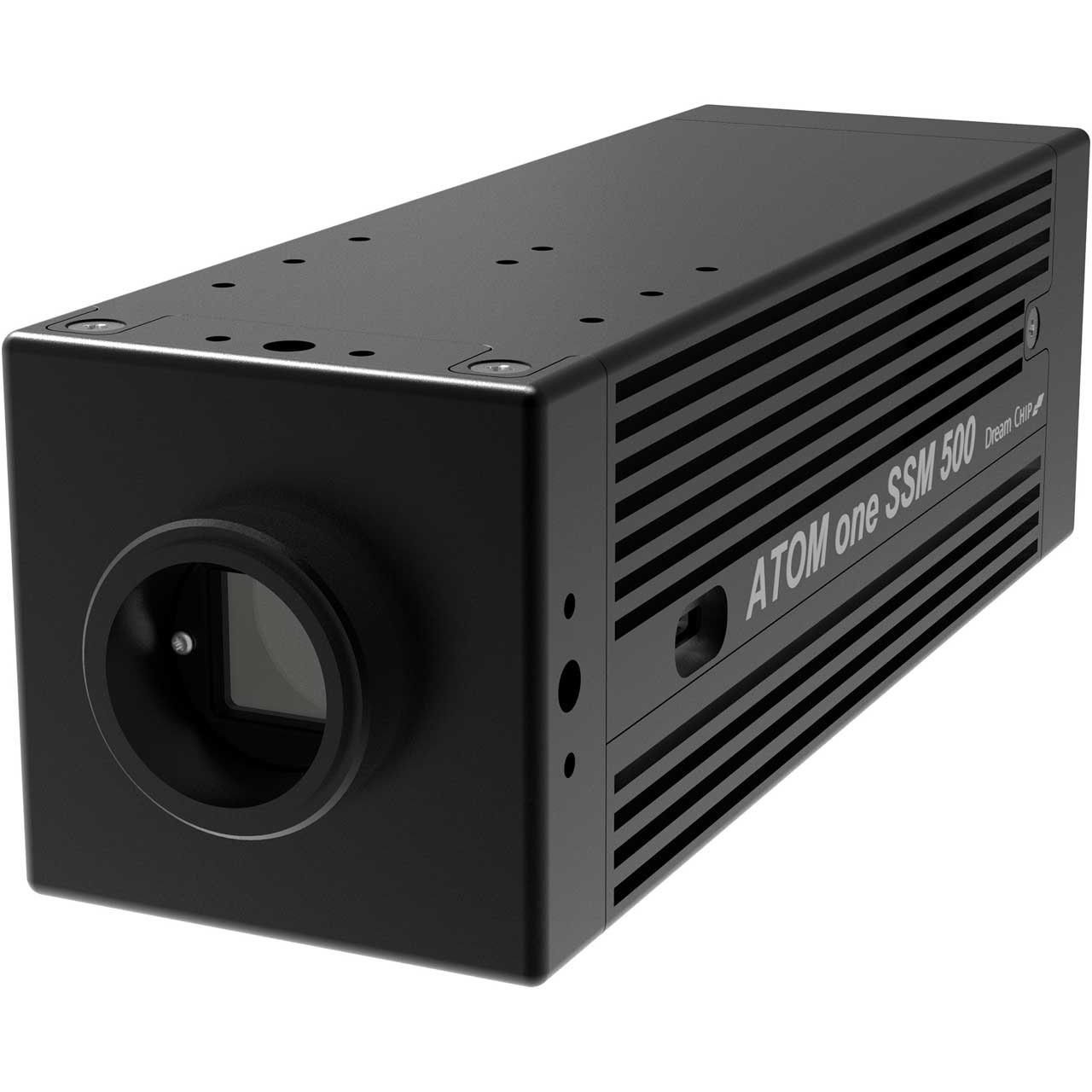

Dream Chip DC-001-10024 Atom One SSM500 High Speed Full HD C-Mount Global Shutter Camera with Genlock - No Lens

ITEM #: DC-001-10024 MFG #: DC-001-10024

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,576.00

Our Price:

$9,343.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DC-001-10024 - Overview

The Dream Chip Atom One SSM500 is a full HD digital high-speed camera system for the Broadcast Television Industry. The system is specifically targeted towards sports. The camera weighs just under one pound and it features a C Mount for attaching compatible lenses. The SSM500 uses a 2/3 inch CMOS sensor with a global shutter.

Conventional wisdom tells us that to shoot at a high frame rate, you need optimum lighting conditions. Well, at Dream Chip, when it comes to technology, they're not so keen on 'conventional wisdom'. The exceptionally sensitive sensors of the SSM500 means that they capture crystal clear, super-slow-motion images even in low-light conditions. Atmospheric concerts, moonlit events, hidden corners, terrible weather- there's no escaping the eye of an SSM500.

  • Features:

    • 2/3" CMOS Sensor
    • Full HD Resolution of 1920 x 1080
    • Supports shutter speeds from 1/25-10000s
    • Small and compact
    • Lightweight

  • Specifications:

    • Shutter Type: Global shutter
    • Sensor Size: 2/3"
    • Sensor Frame Rates: 50 - 500 fps
    • Progressive Frame Rates: 23.98, 24, 25, 29.97, 30, 47.96, 48, 50, 59.94, 60
    • Interlaced Frame Rates: 50i, 59.94i, 60i
    • HDR: HLG, PQ and SLOG3
    • Dynamic: 300 fps 12 bit - 500 fps 10bit
    • Color: multi matrix support
    • Control: RS 485
    • Video Output: SSM mode (4x60p) or Trigger mode
    • SDI Output: 4x HD-SDI output
    • Genlock Input
      Mount: C Mount
      Lens Control: Motor Drive from Dream Chip
    • Dimensions: 2.36 x 2.36 x 7.44" (60 x 60 x 189mm)
    • Weight: 1.98Lbs (900g)
