Delvcam DELV-12GSDI15 4K HDMI 12G-SDI Quad View IPS 6RU Rack Mountable Broadcast Monitor in Case - 15.6 inch

ITEM #: DELV-12GSDI-15 MFG #: DELV-12GSDI-15

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,650.00

Our Price:

$1,599.00

Availability: In Stock
iAvailability Description Popup


DELV-12GSDI-15 - Overview

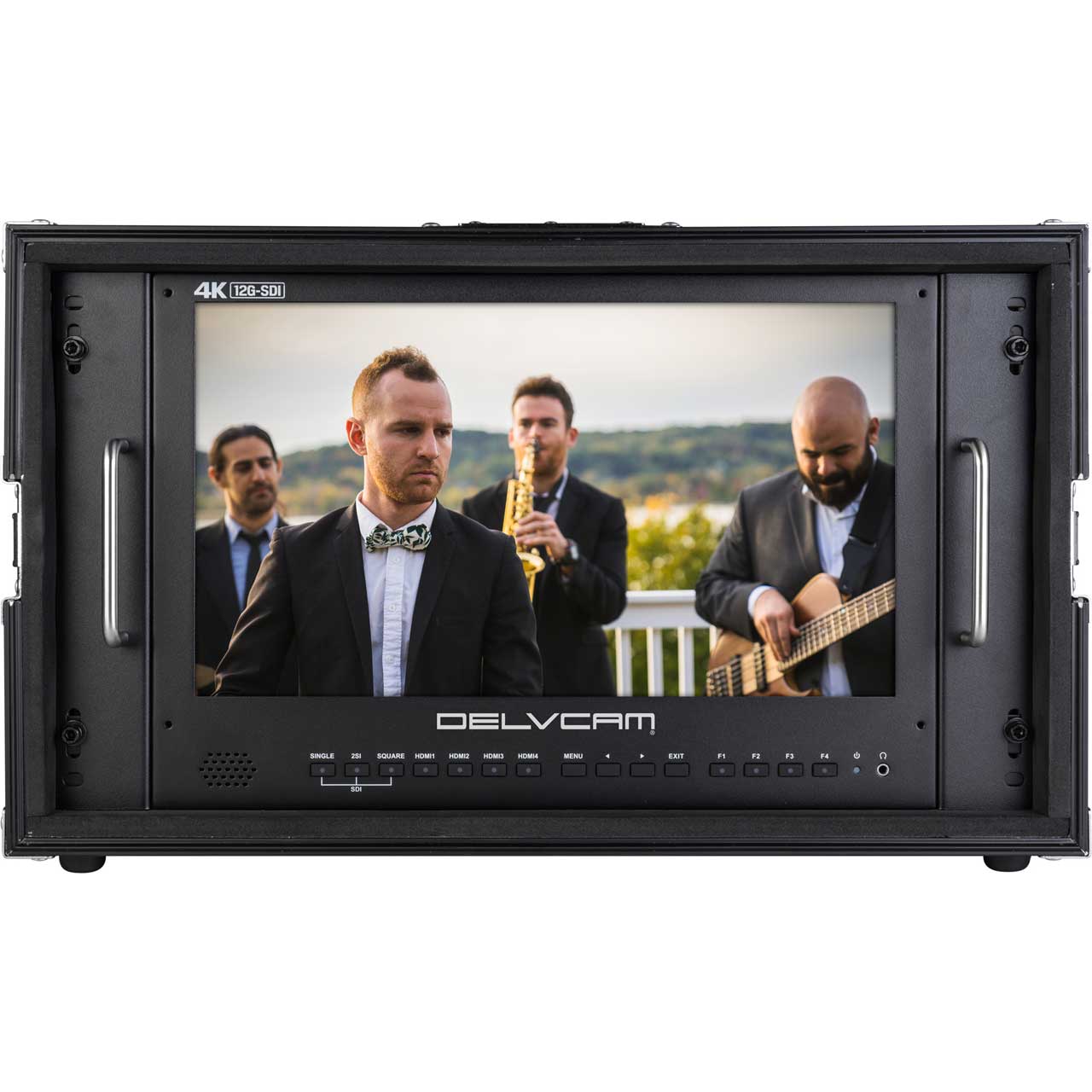

The clear choice for field directors in critical 12G-SDI / Ultra HD 4K monitoring is the DELV-12GSDI15 broadcast monitor from Delvcam. This monitor is ready for on-location and post production applications featuring a 15" screen and rackmount housing for easy integration into film and video flypacks. The future-ready design supports all broadcast formats from 12G to SD ensuring compatibility with all sources.

Among the many convenient features of the DELV-12GSDI15 is Split View and Quad View for monitoring multiple sources simultaneously between its dual 12G, dual 3G and HDMI inputs. Its 3840 x 2160 panel resolution delivers pixel perfect viewing from angles up to 176°. The unit can be powered via Anton Bauer or V-Mount batteries or XLR input so it's ready to go wherever you need it. With a 6RU rack frame and Tally light, it's also the perfect choice for monitor wall application in trucks and small production vehicles.

  • Features:

    • Rack Mountable - fits standard 19" 6RU equipment rack

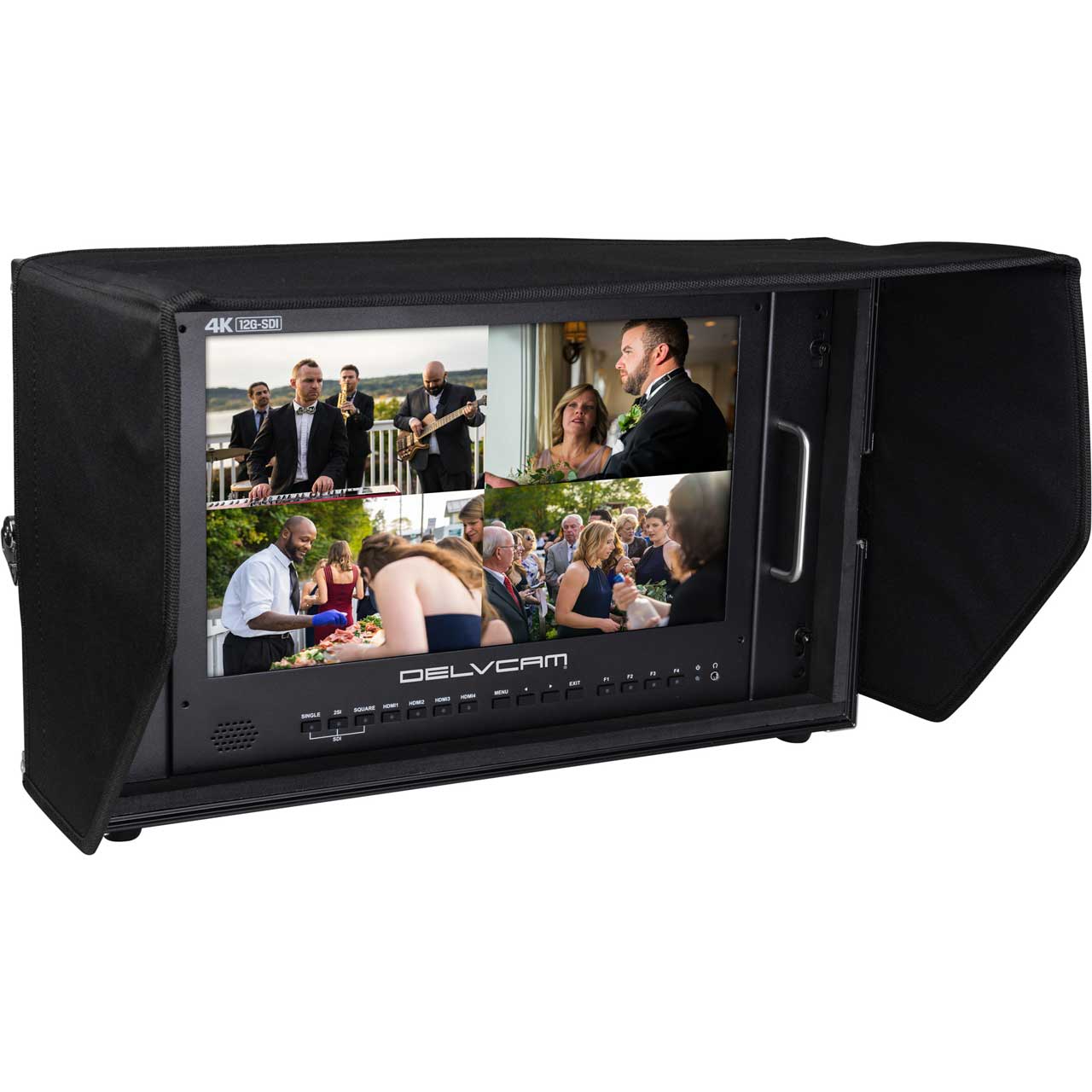

    • Multiple Viewing Options - Full Screen, Split, Quad
    • Supports Quad Link Square Division and Quad Link 2 Sample Interleave (2SI)
    • Supports 12G/6G-SDI(4K) 2 Channel, 3G/HD-SDI (Level A/B) 2 Channel
    • 4K HDMI Formats: HDMI 2.0 4K 60HZ & HDMI 1.4 4K 30Hz
    • SDI Equalization and Re-Clocking
    • Embedded Audio Meter (SDI only)
    • High Contrast & Easy to View from Any Angle
    • Rugged Metal Housing

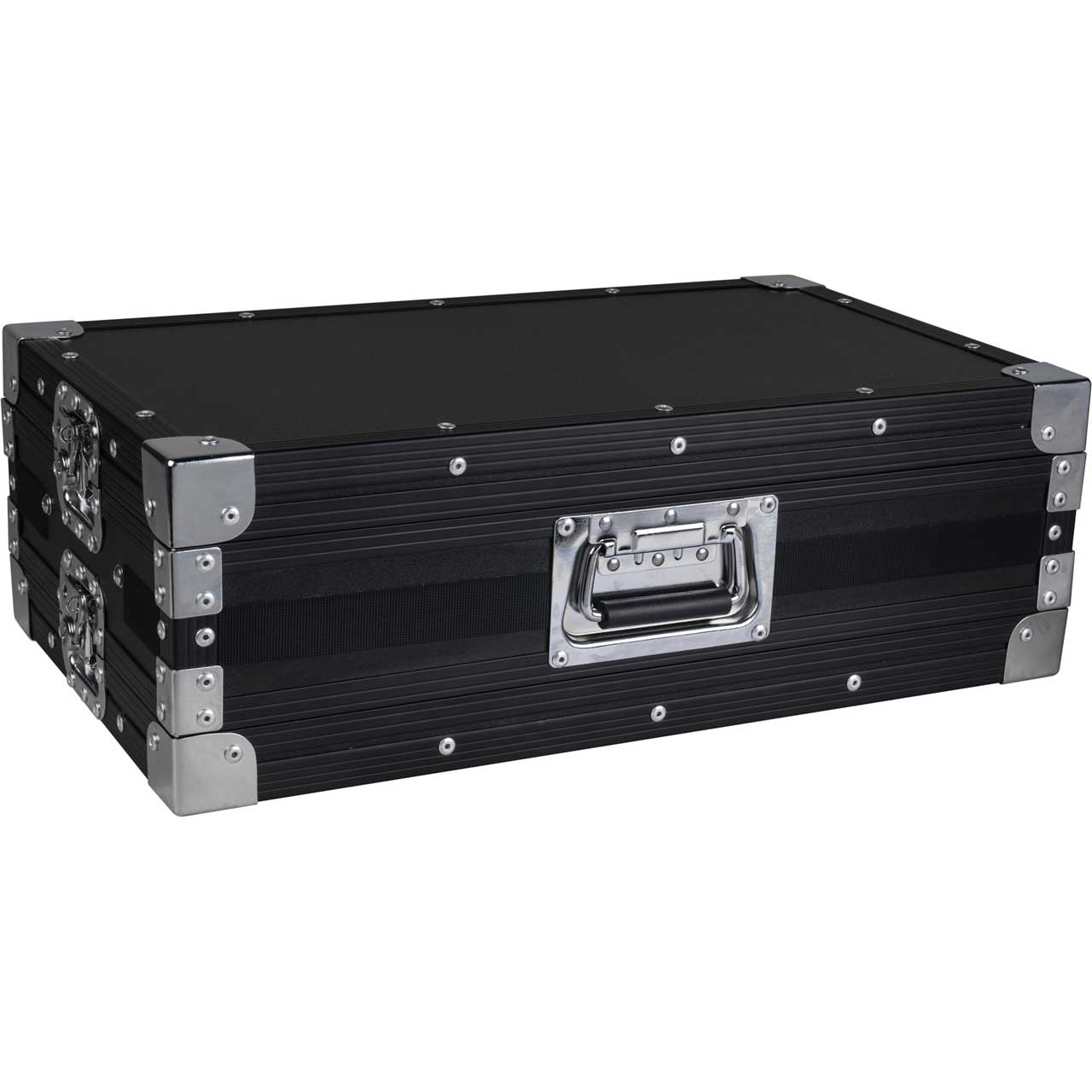

    • Removable Rugged Carrying Case for Transportation

  • Specifications:

    • Complies with: ST2081-10 & ST2082-10 Single-Link / ST425-3 Dual/Quad-Link & ST425-5 Quad-Link
    • Aspect Ratio: 16:9
    • Brightness: 330cd/m²
    • Contrast: 1000:1
    • Resolution: 3840x2160
    • Viewing Angle: 176°/176°(H/V)
    • Special Functions: Tally Interface, Peaking, PIP, False Color, Check Field, Image Flip, Pixel to Pixel, Overscan, Underscan, Image Freeze, Center Marker, Screen Marker, Color Temperature, User Definable Function Buttons
    • Image Control: Split Screen, Quad View from different input signals simultaneously, User Adjustable Markers

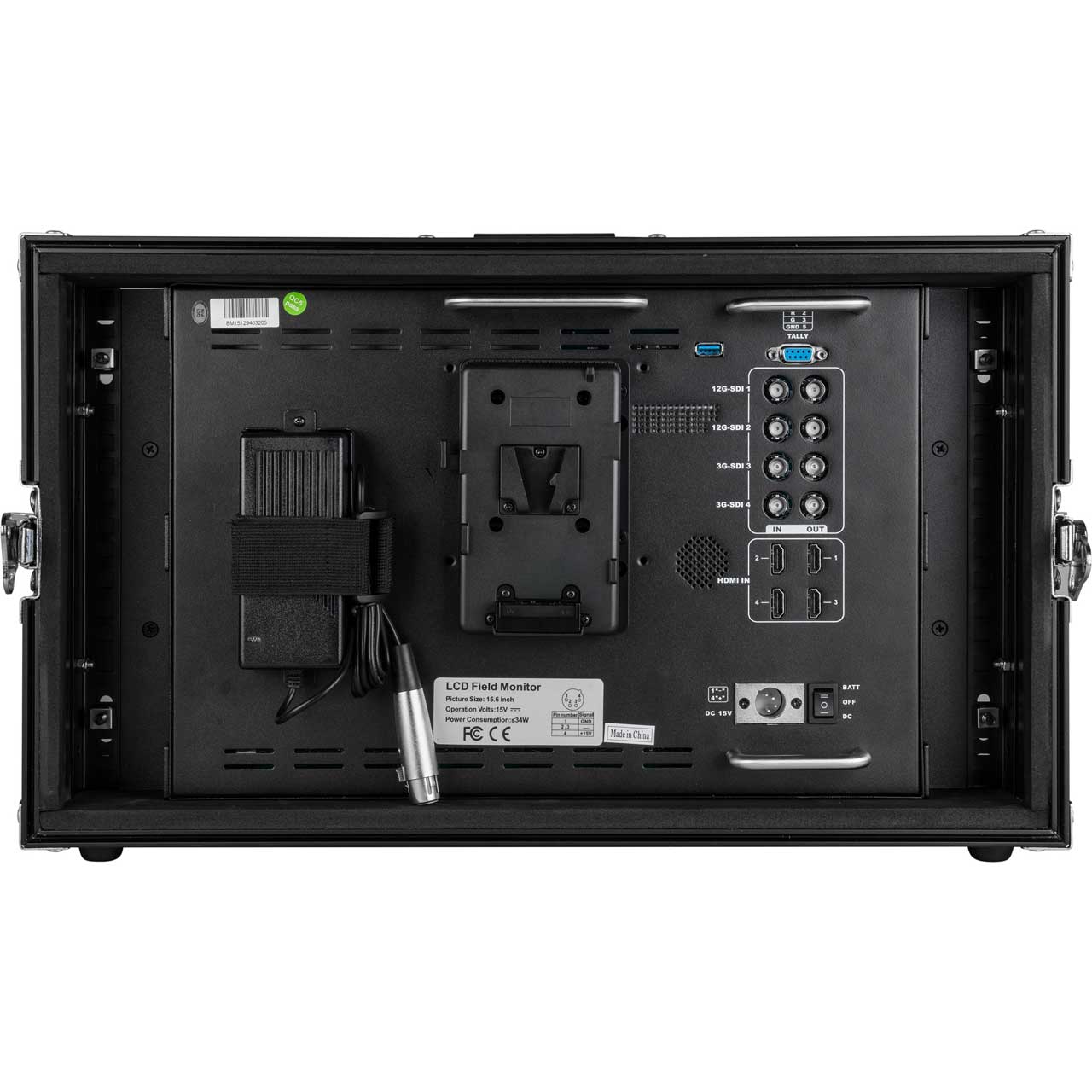

    • Input: 2 12G-SDI, 2 3G-SDI, 1 HDMI 4K 60Hz, 3 HDMI 1.4 4K 30Hz, Tally
    • Output: 2 12G-SDI, 2 3G-SDI
    • Backward compatible with: 6G-SDI, 3G-SDI, HD-SDI, & SDI input signals
    • Screen/Size: 15.6 inch 8bit IPS LCD Display
    • Audio: 1-Speaker, 1-Earphone Jack
    • Battery Plate: V-Mount/Anton Bauer
    • Power Consumption: 34W
    • Input Current: 2.8A (15VDC)
    • Input Voltage: 12/24VDC (XLR)
    • Dimensions: 15.3x10.5x1.5 in/20.6x12x6.7 in with case
    • Weight: 7.1 lb/ 26.5 lb with case

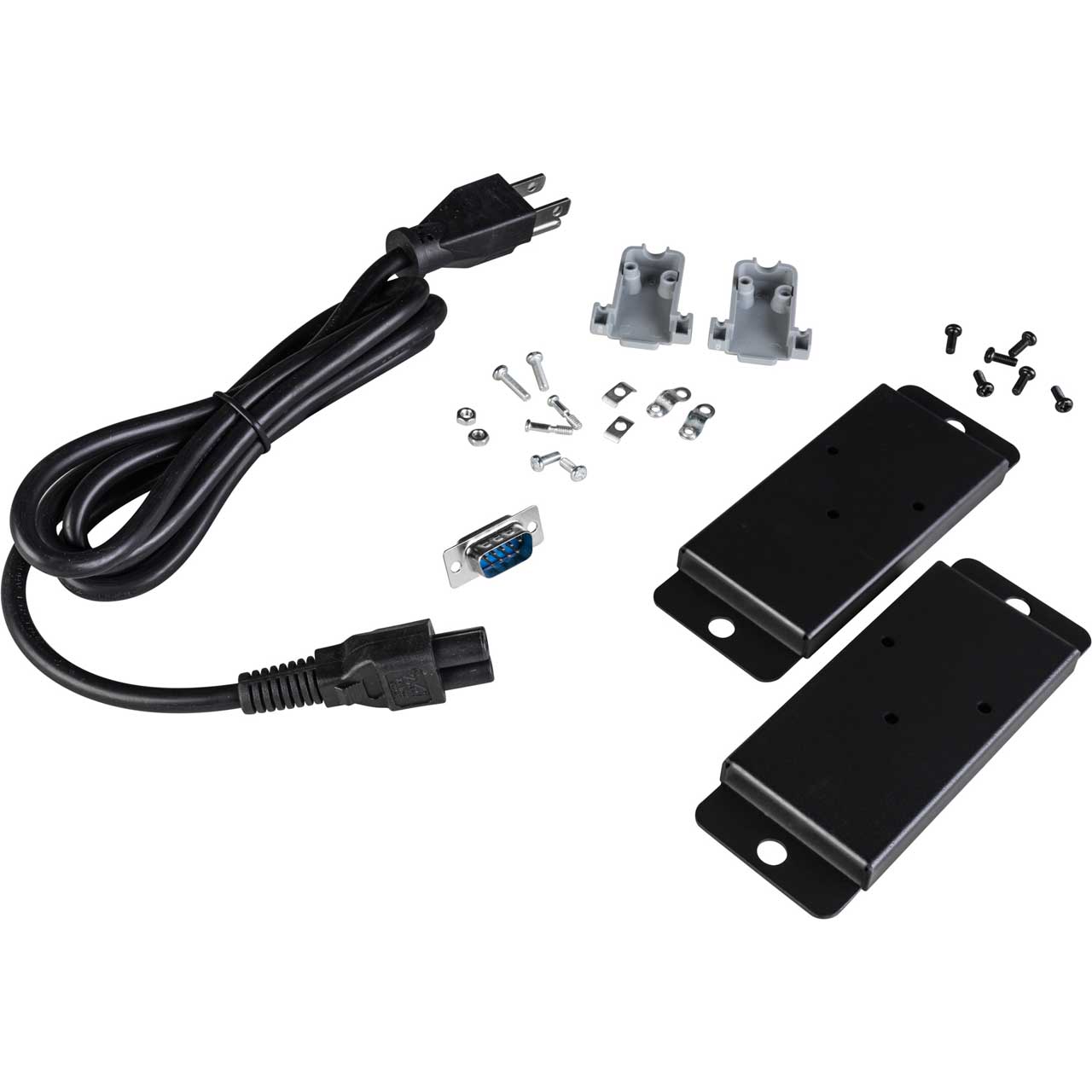

  • Item Includes:

    • Collapsible Sunshade
    • Carrying Case
    • 15V 4-Pin XLR Power Cable
    • Battery Plate Bracket
    • V-Mount Battery Plate
    • Tally Connector Kit

  • Warranty:

    • 1 Year
