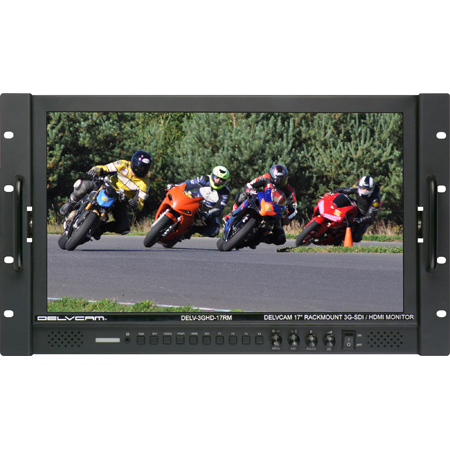

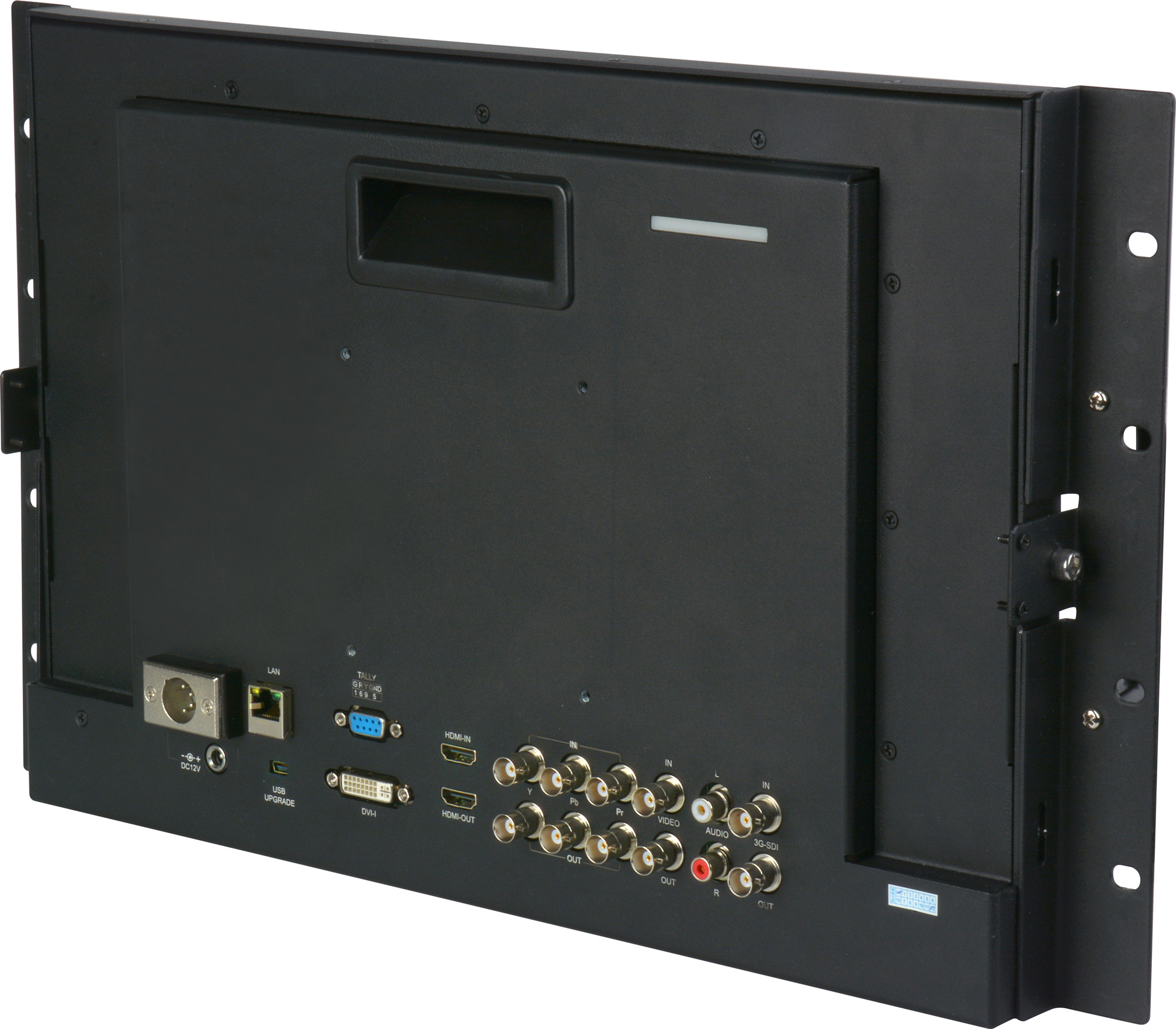

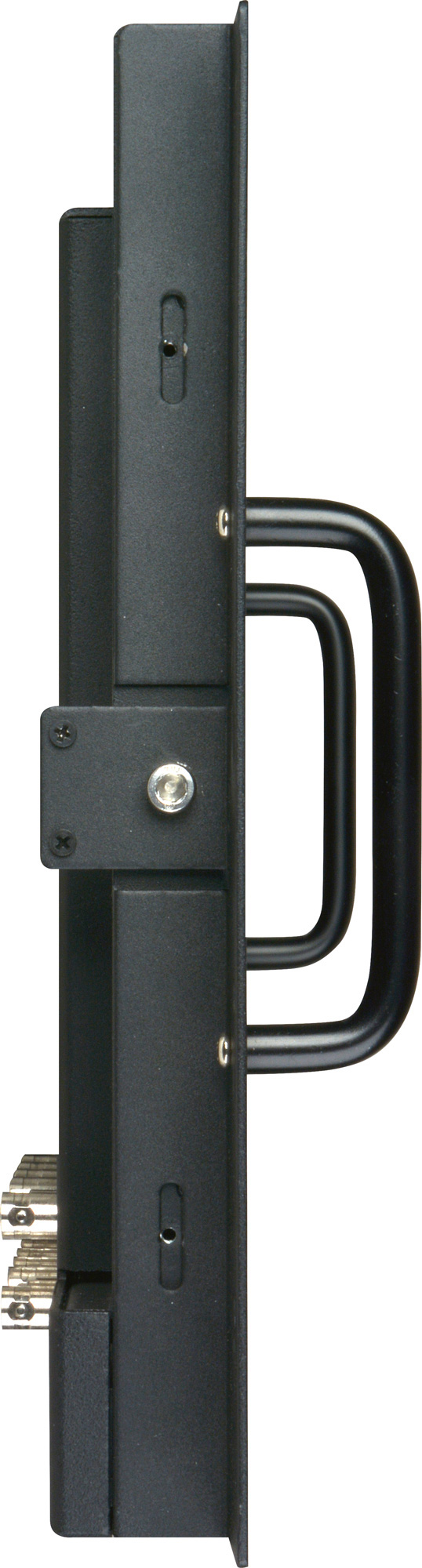

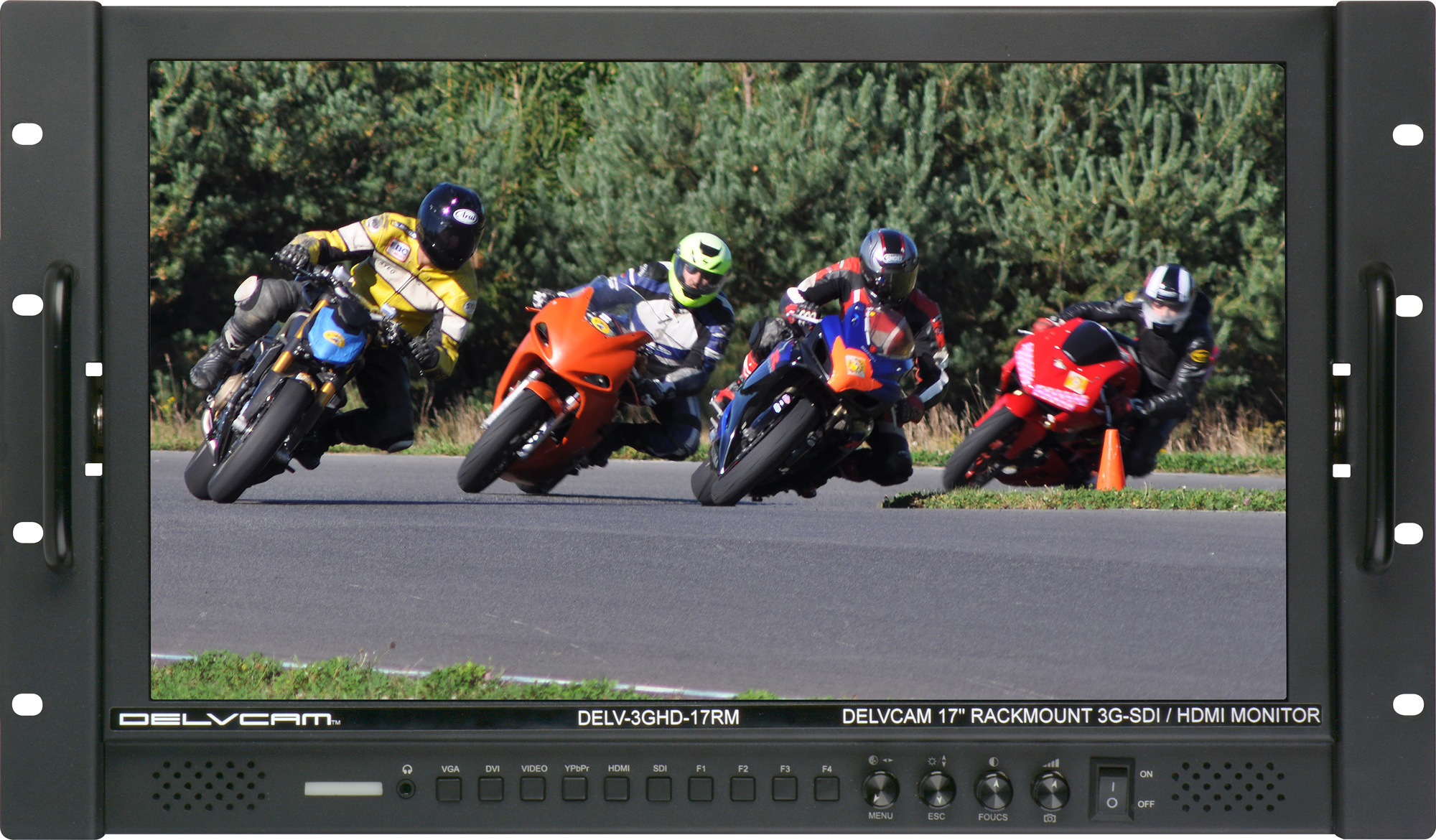

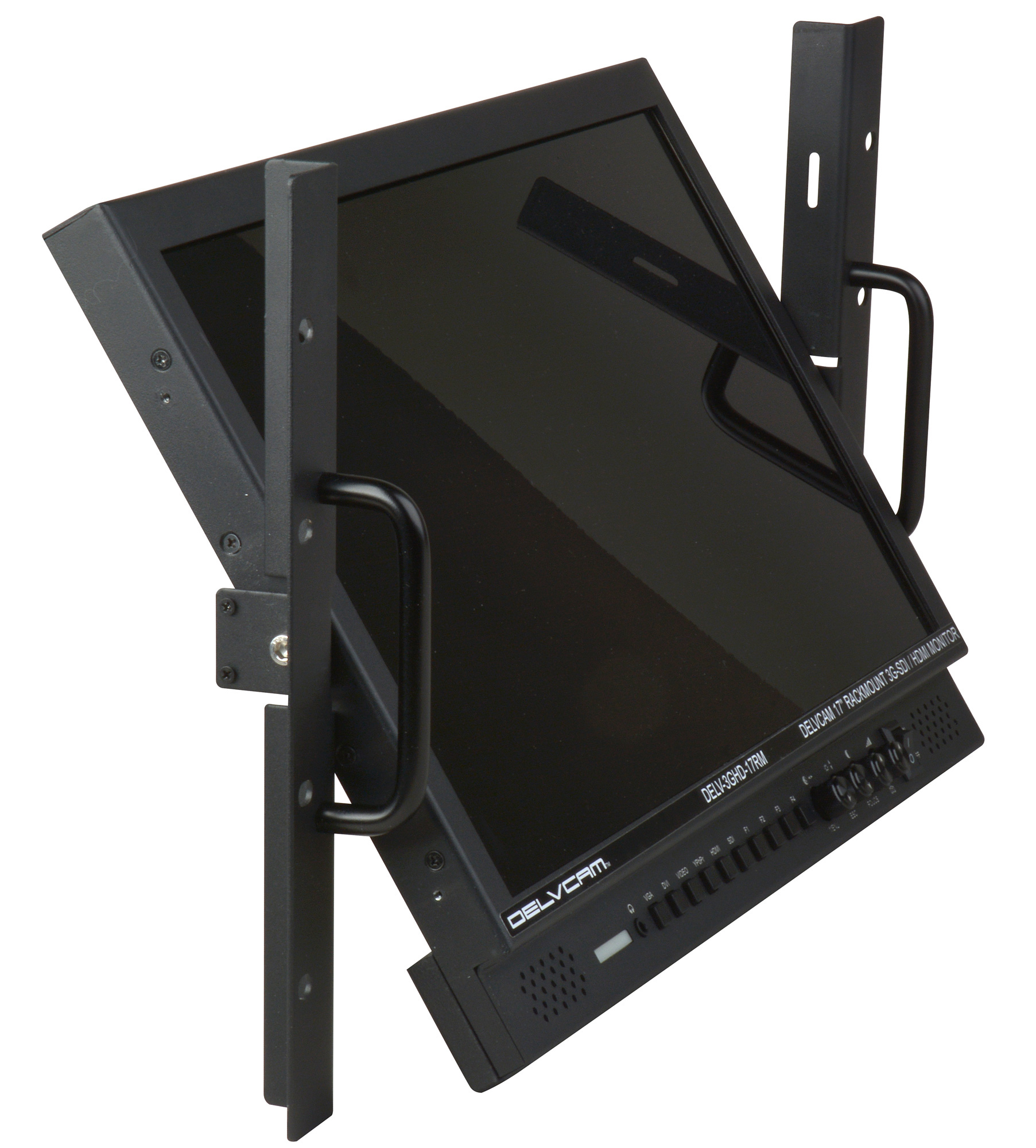

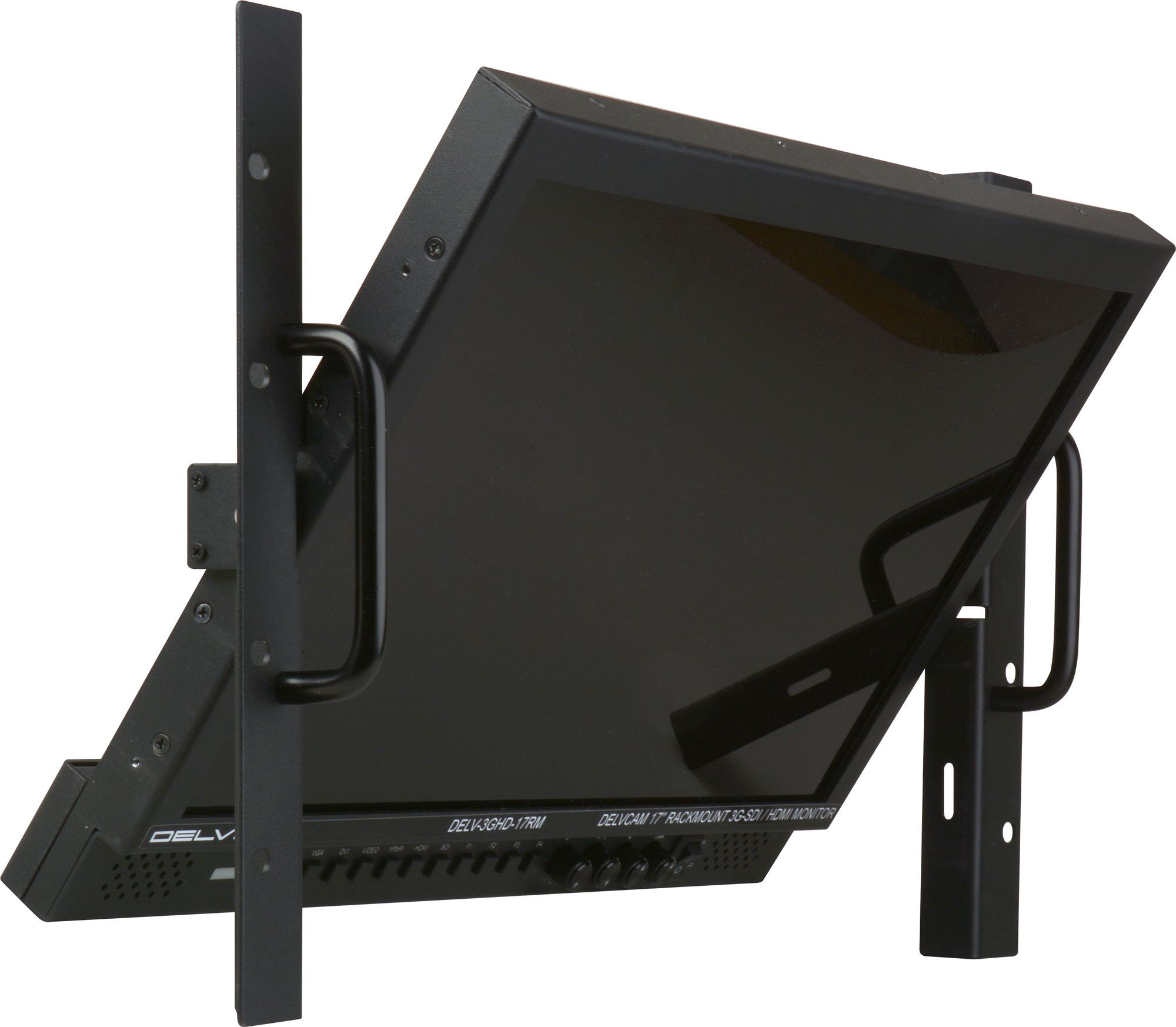

Delvcam DELV-3GHD-17RM 17.3-Inch High Resolution 3G-SDI - HDMI Rackmount LCD Monitor

ITEM #: DELV-3GHD-17RM MFG #: DELV-3GHD-17RM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-3GHD-17RM

DELV-3GHD-17RM - Overview

The DELV-3GHD-17RM from Delvcam is the perfect solution when you need crystal clear broadcast quality imagery and format flexibility but don't need to break the bank! This 3G SDI Rack Mounted 17.3 inch TFT LCD Broadcast Quality Monitor was engineered tough enough for the road with its slimly designed black powder coated steel housing and ergonomic grip style handles. It's ideal for ENG/News Vehicles, Sports Production Trucks, Emergency Response Trailers and Live Event Vehicles as well as a great addition to your studio rack.

The DELV-3GHD-17RM is loaded with user friendly features like adjustable tilt to change the screens viewing angle in difficult lighting, Customizable Function Buttons to keep you in control, a Tri-Color Tally Indicator, Built in speakers and a stereo headphone jack.

Digital or Analog - the format flexible DELV-3GHD-17RM accepts 3G-SDI, HDMI, DVI, YPbPr Component and Composite Video along with Stereo Audio. Every input features a looping output as well! The Broadcast Quality 1920 x 1080 Resolution completes the package and all for a lot less than you'd expect to pay! More features, more reliable, more affordable, That's Delvcam!

  • Features:

    • Adjustable Tilt
    • 17.3-inch LCD screen
    • Slim design with grip handles
    • Durable black powder-coated steel housing
    • Multiple signal outputs
    • Stereo earphone jack
    • 3 color Tally indicator
    • Customizable function buttons
    • USB for software upgrade
    • Built-in speakers

  • Specifications:

    • Display Screen: 17.3 inch TFT LCD screen
    • Resolution: 1920 x 1080
    • Brightness: 400cd/m²
    • Contrast: 600:1
    • Aspect Ratio: 16:9
    • Viewing Angle: 80°/80°(L/R) 60°/80°(U/D)
    • Input Signal: 3G-SDI, HDMI, YPbPr, Video, Audio(L/R), DVI-I
    • Output Signal: 3G-SDI, HDMI, YPbPr, Video
    • Compatibility: SDI A, SDI B limited to1080i60
    • Color Format: NTSC 480i, PAL 576i
    • Power Input: 4-pin XLR DC
    • Input Voltage: 7V-18VDC
    • Power Consumption: 15W
    • Backlight: LED
    • Dimensions (LxHxD): 16.3 x 11.0 x 1.4in/414 x 280 x 35.1 (mm)
    • RU: 6.3 RU (under 7RU)
    • Weight: 6 lb./2.71kg

  • Item Includes:

    • 12VDC/3A Power Cable
    • Tally Interface Board
    • Tilting Rackmount Kit

  • Warranty:

    • 1 year

  • GTIN:

    0854554007035
