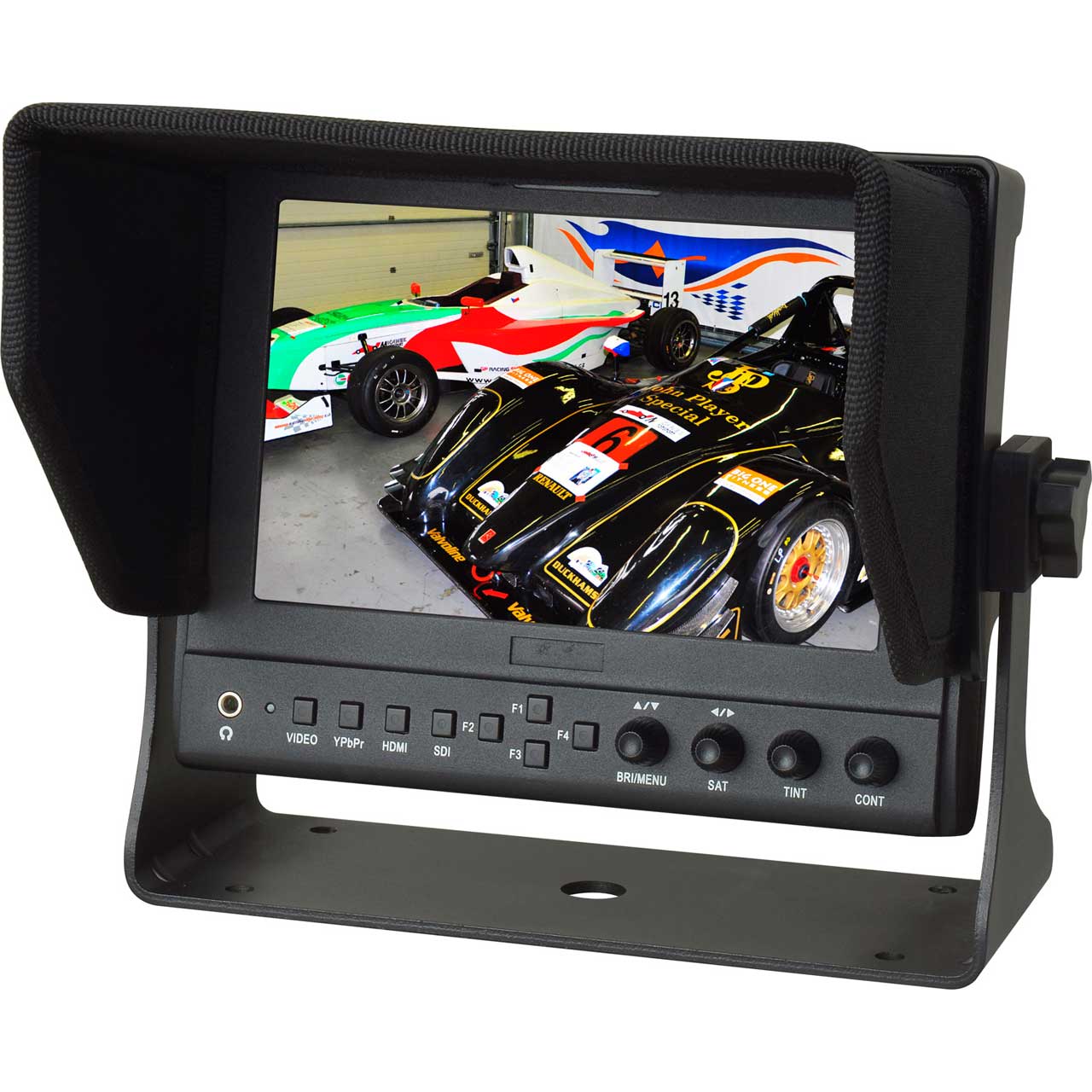

Delvcam DELV-WFORM-7 7 Inch Camera-top SDI Monitor with Video Waveform

DELV-WFORM-7SDI - Overview

• Features:

  • Color/RGB histogram, waveform, vector scope & audio level meter
  • IPS panel 178° wide viewing angles
  • High contrast: 800:1
  • 3G-SDI input
  • Metal housing
  • POP-UP shortcut menu.3G-SDI, HDMI, and component and composite, via BNC Connectors
  • Foldable sunhood and smart screen protector helps prevent screen scratches, and saves space in camera bags
  • HDMI video output - no splitters needed
  • LED-backlit display panel features higher physical resolution, and higher levels of detail and image accuracy
  • 800:1 contrast ratio
  • 4 programmable function buttons for shortcut operations
  • 178 degrees viewing angle both vertically and horizontally


• Specifications:

  • Display:
  • Panel 7" IPS
  • Physical Resolution 1280x800, support up to 1920x1080
  • Aspect Ratio 16:9
  • Brightness 400cd/m2
  • Contrast 800:1
  • Viewing Angle 178°/178°(H/V)
  • Response Time (ms): SDI 1.86, HDMI 5.216, AV 1.67, YPBPR 1.4
  • Compatibility: SDI A, SDI B limited to1080i60

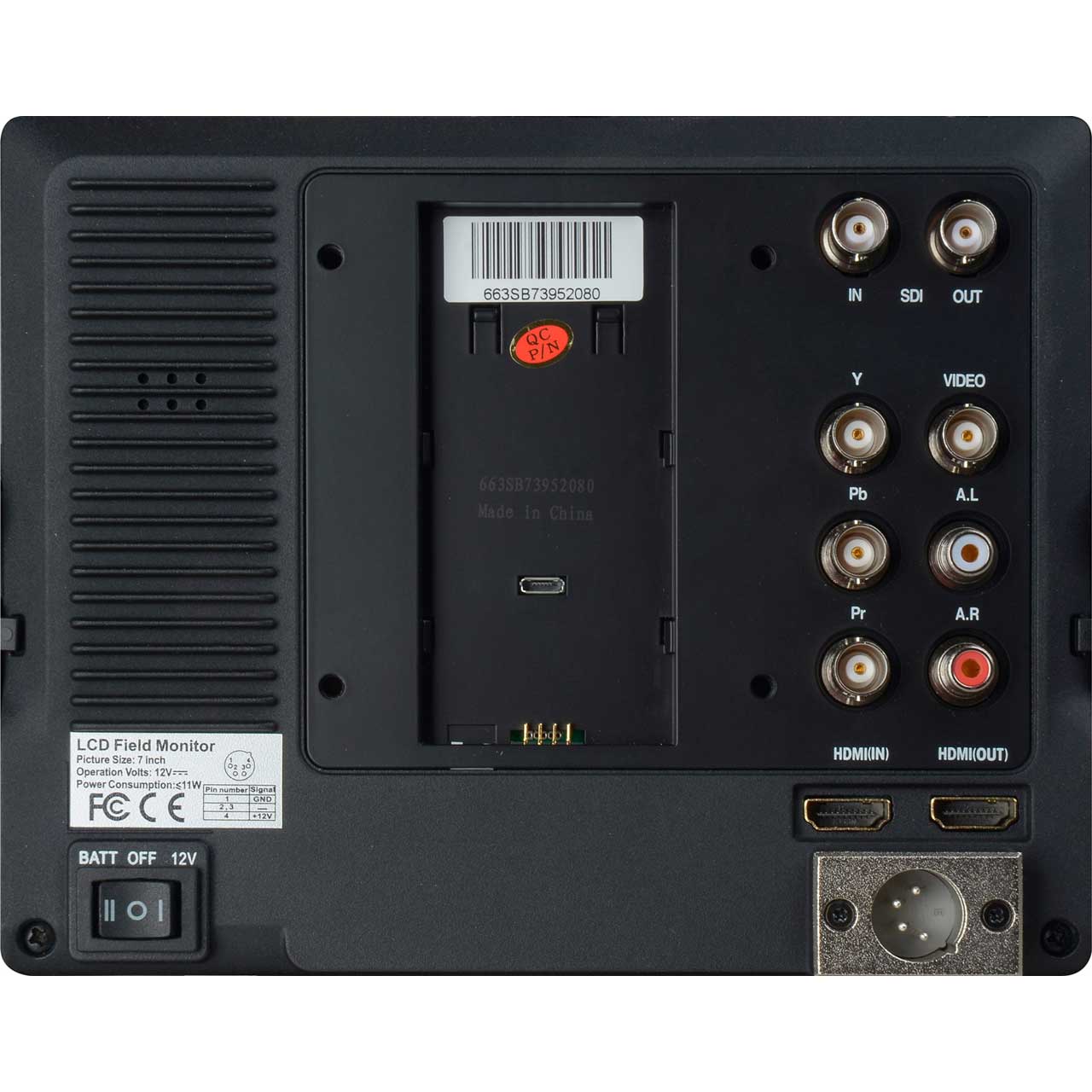

  • Input:
  • 3G-SDI 1
  • HDMI 1
  • YPbPr 3(BNC)
  • VIDEO 1
  • AUDIO 2(L/R)
  • Output:
  • 3G-SDI 1
  • HDMI 1
  • Audio:
  • Speaker 1 (built-in)
  • Ear Phone Slot 1
  • Power:
  • Current 900mA
  • Input Voltage DC 7-24V(XLR)
  • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
  • V-mount / Anton Bauer mount /
  • Power Consumption =11W
  • Environment:
  • Operating Temperature -20?~60?
  • Storage Temperature -30?~70?
  • Dimensions:
  • (LWD) 7.54 x 5.98 x 1.22 inch
  • Weight 1.68 lbs/ 2.07 lbs w cover/ 4.77 lbs w case

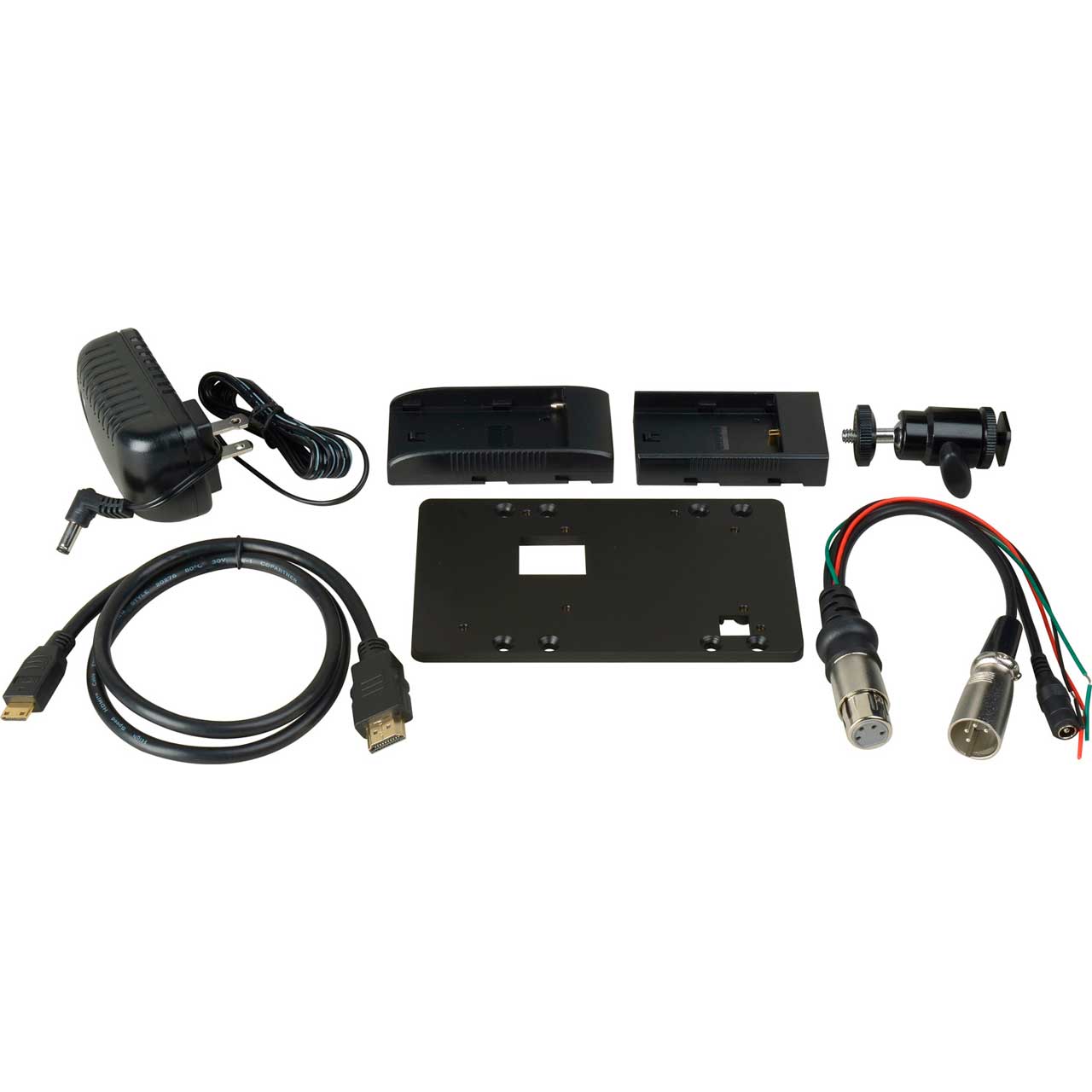

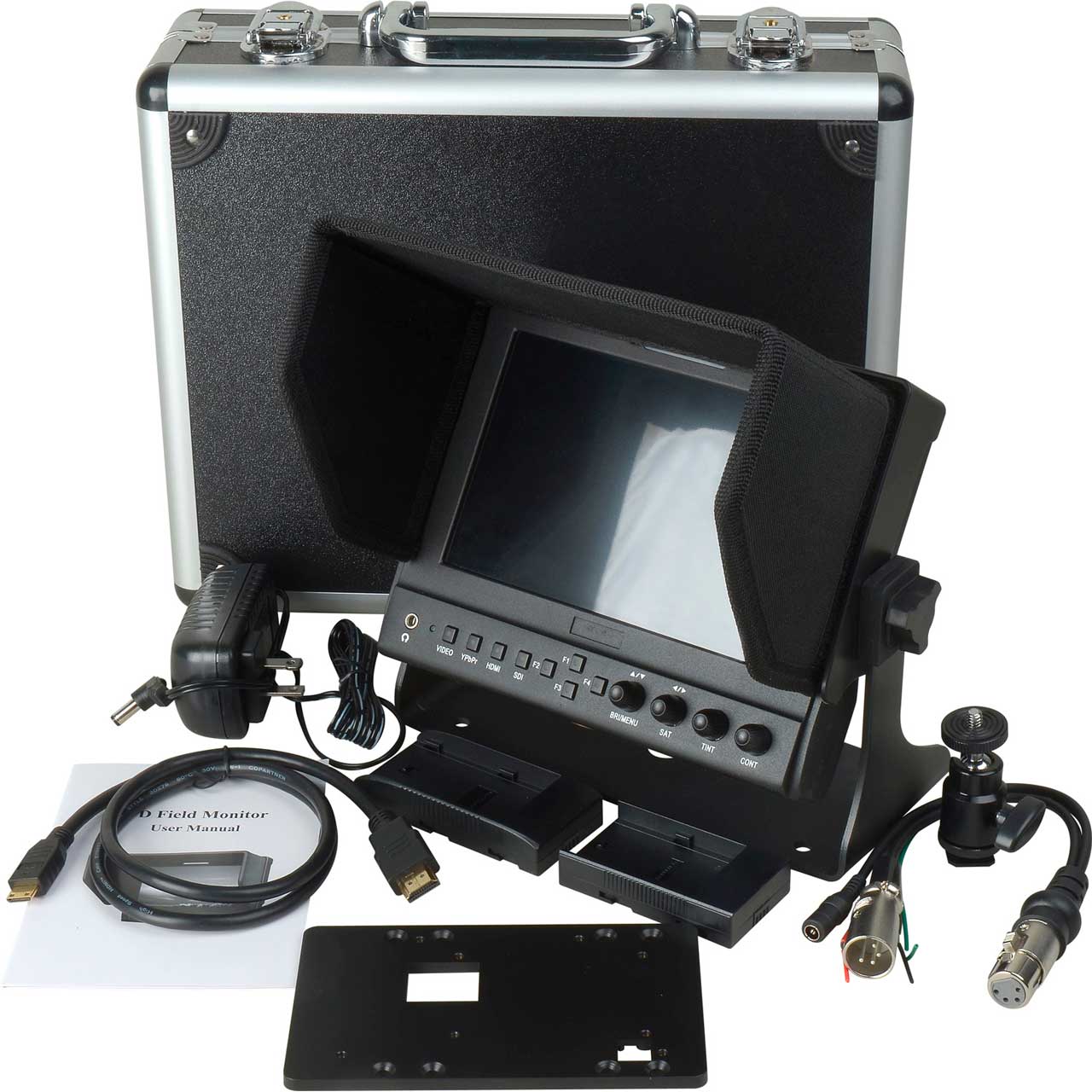

• Item Includes:

  • Sunshade
  • Gimbal Bracket
  • Cables: HDM, Power & TALLY
  • Shoe Mount
  • 12VDC Power Cable
  • Case
  • Adaptor Panel
  • Battery Plates: LP-E6. F970


• Warranty:

  • 1 Year


• GTIN:

  0854554007479
