BRIDGE1000 SH - Overview

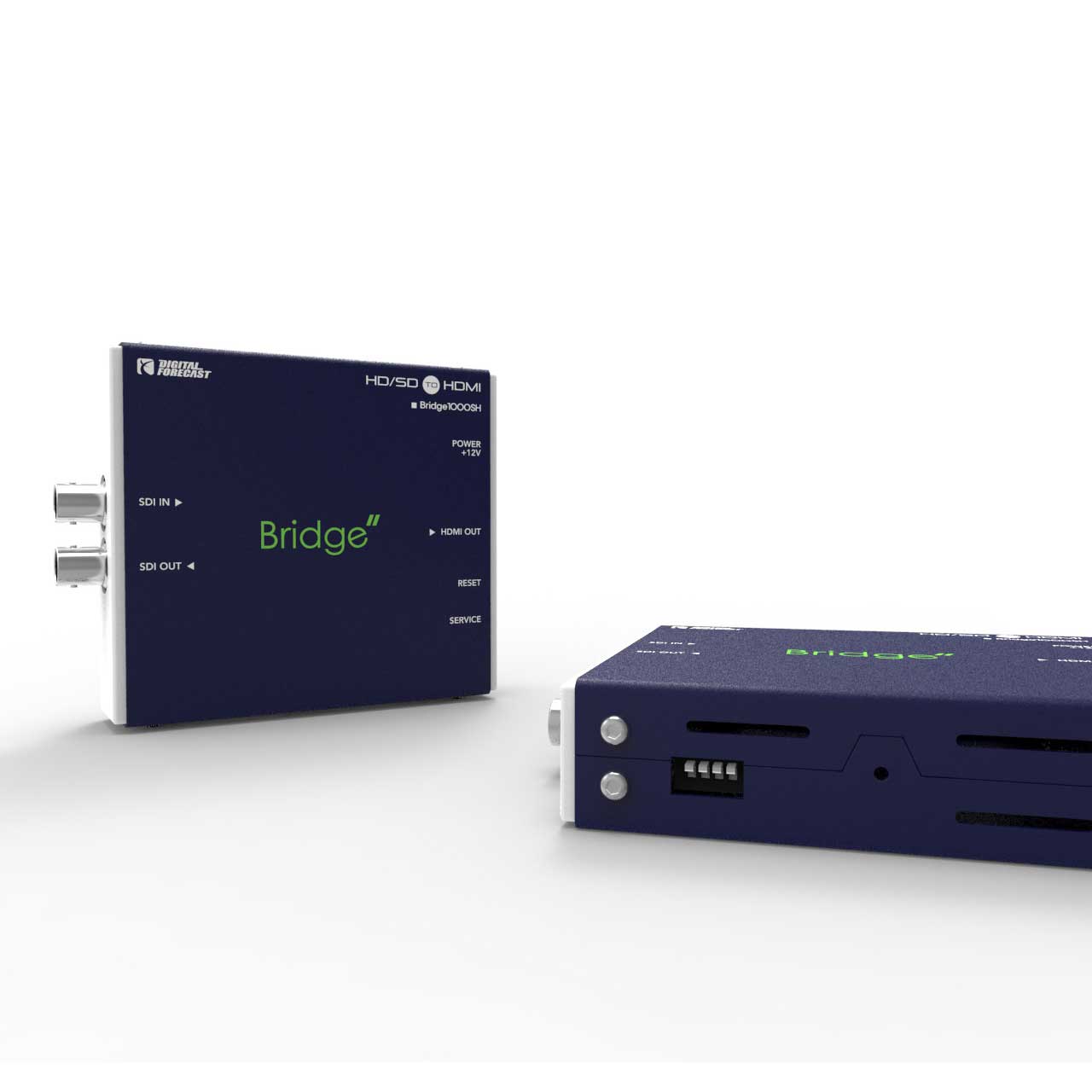

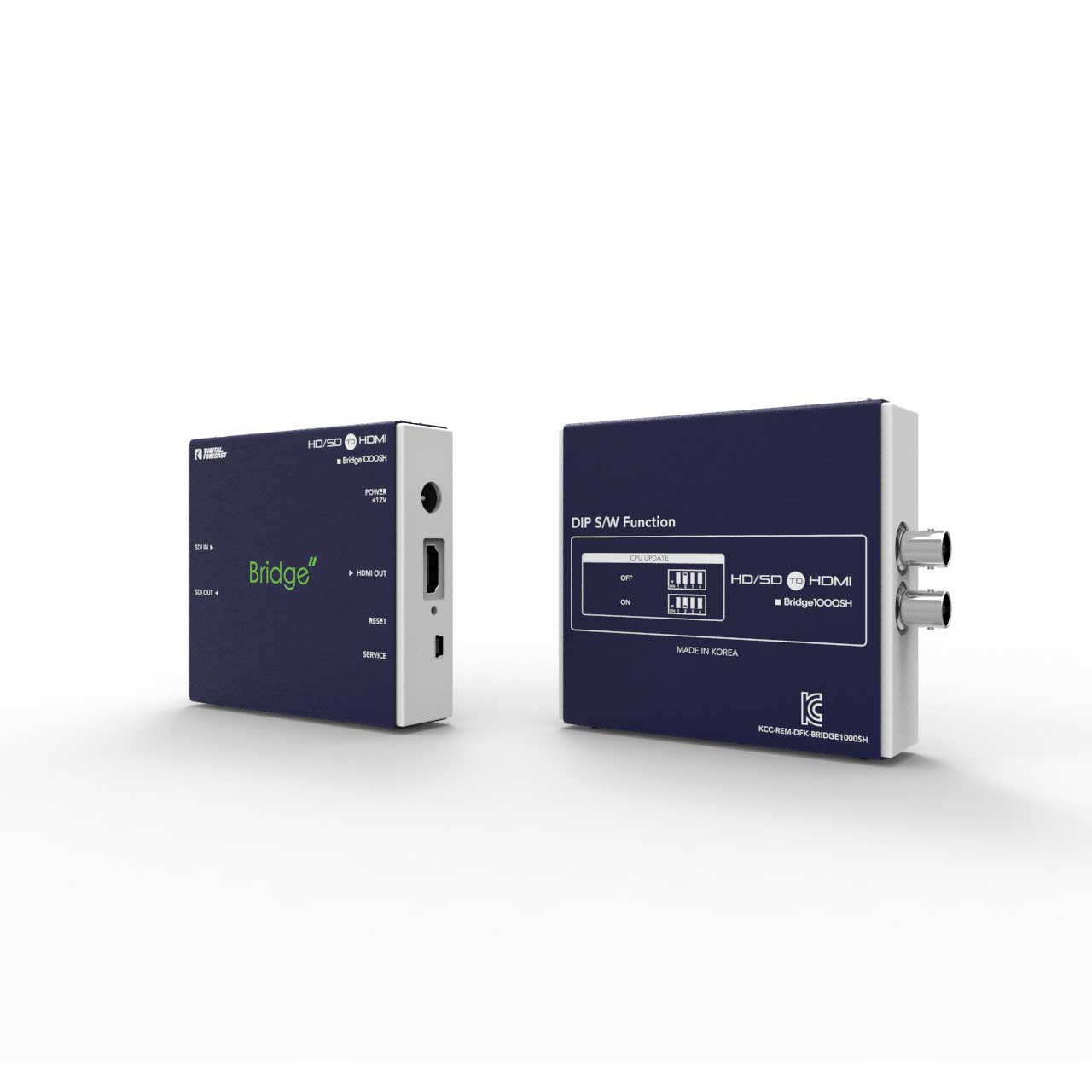

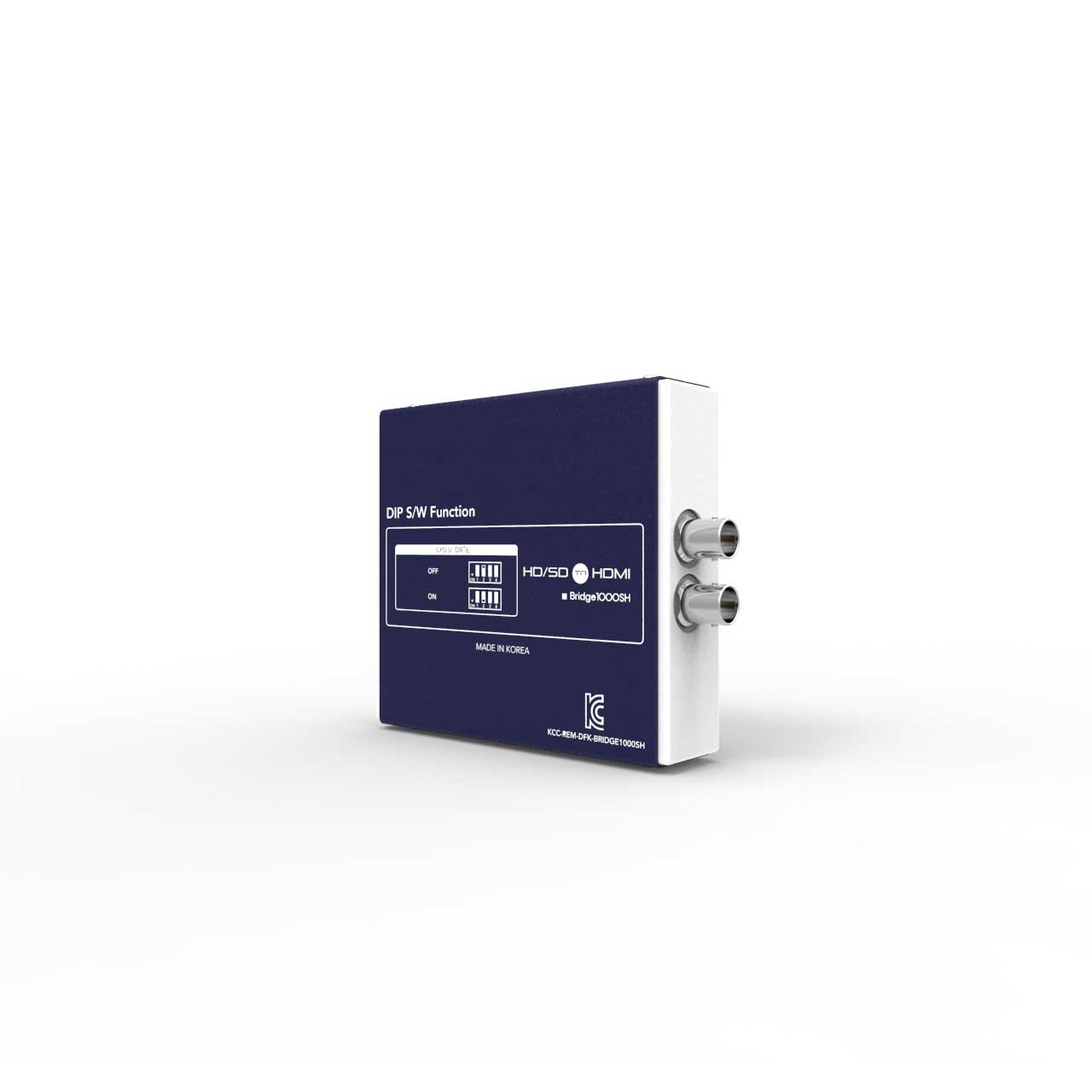

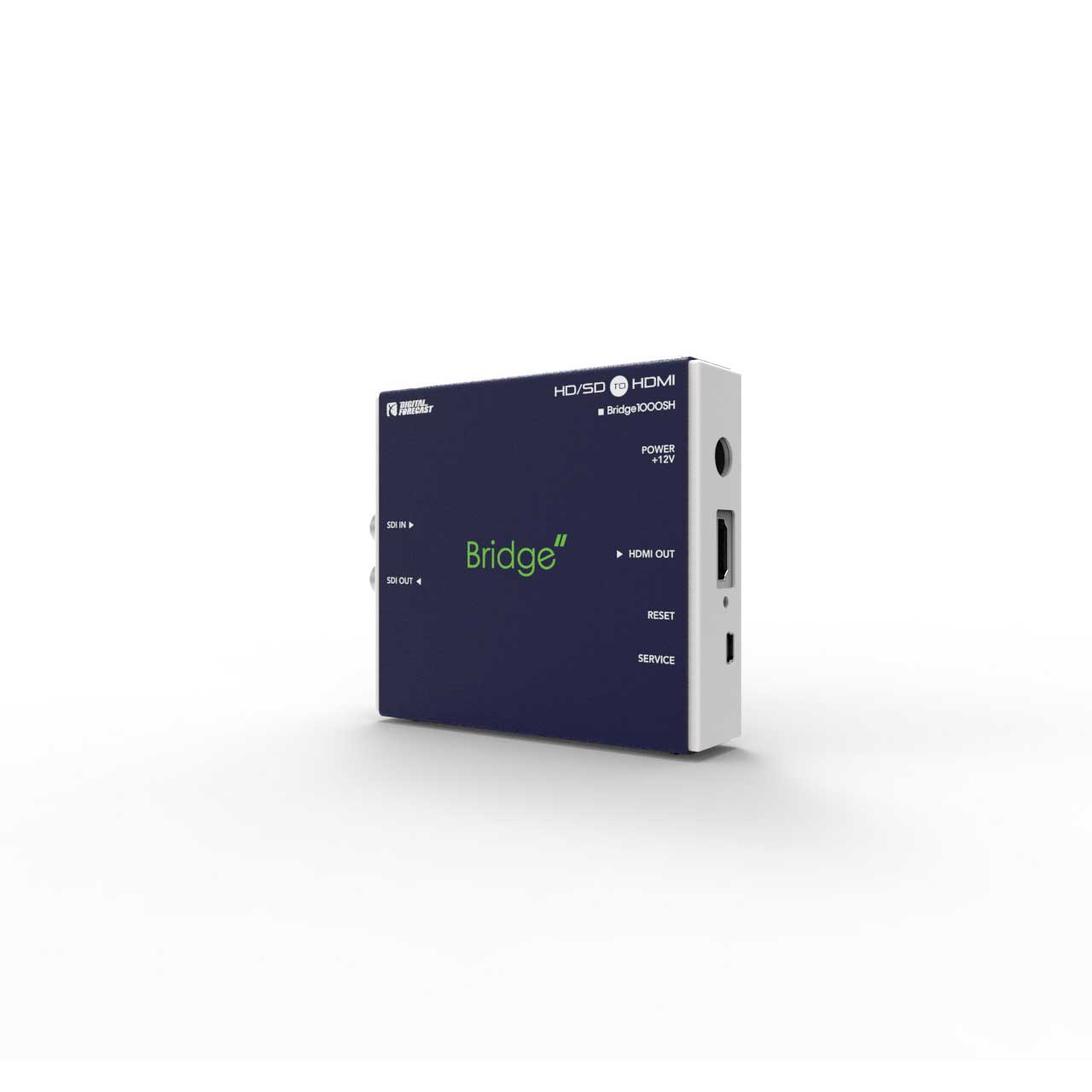

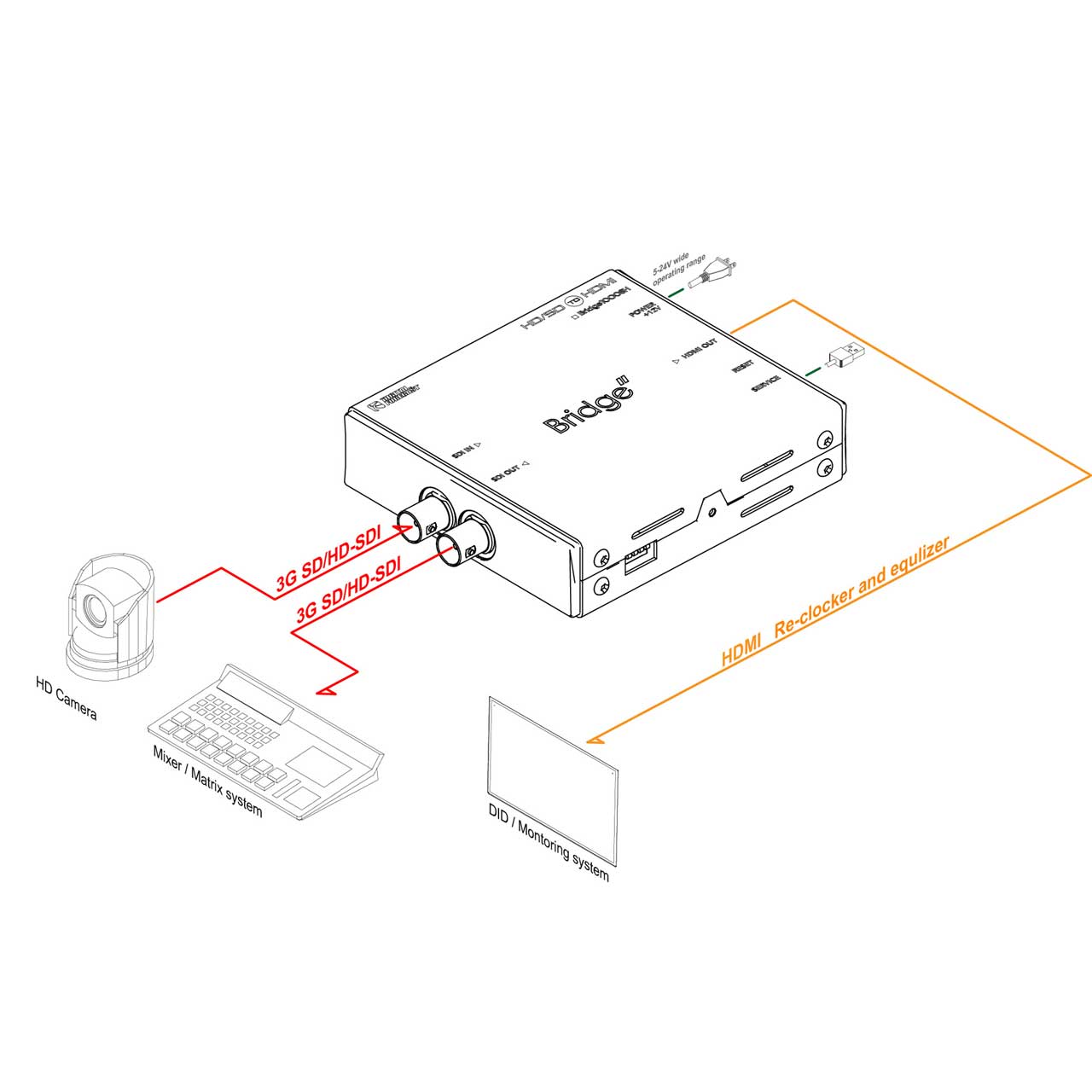

The Digital Forecast Bridge Mini 1000 SH converts a SMPTE SDI signal into HDMI supporting up to 1080p60 format and features a reclocking output for SDI signals. The Bridge 1000SH includes a looping SDI output for routing to video mixers, switchers or SDI recording devices. It supports multiple resolutions from SD SDI up to SMPTE 424M 1080p and is housed in a compact, road tough housing.

Features:
- SDI to HDMI converter
- Input Format Standard Bypass
- SDI signal monitoring for TV
- 1 SDI input ( SD/HD/3G )
- 1 SDI Re-clocking out
- 1 HDMI out ( SD/HD/3G )
- Low power consumption
- 12V DC Power supply
Specifications:
- Supports:
  HDMI v1 .3
  Multi-rate SDI formats
  SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
  SMPTE 296M: 720p (60/59.94/50)
  SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50) (1080p (30/29.97/25/24/23.98)
  SMPTE-424M: 1080p (60/59.94) 3G
- Dimension (W x H x D): 106 x 96 x 25 (mm)
- Weight: 165 g
- Power Level: 12 VDC
- Power Consumption: 5.0Watts (Max : 6Watts)
- Operating Temperature: -20°C ~ 70°C
- Humidity: 0 to 95% RH, non-condensing
Item Includes:
- Power Adaptor
Warranty:
- 2 Years
GTIN:
0704006295216
