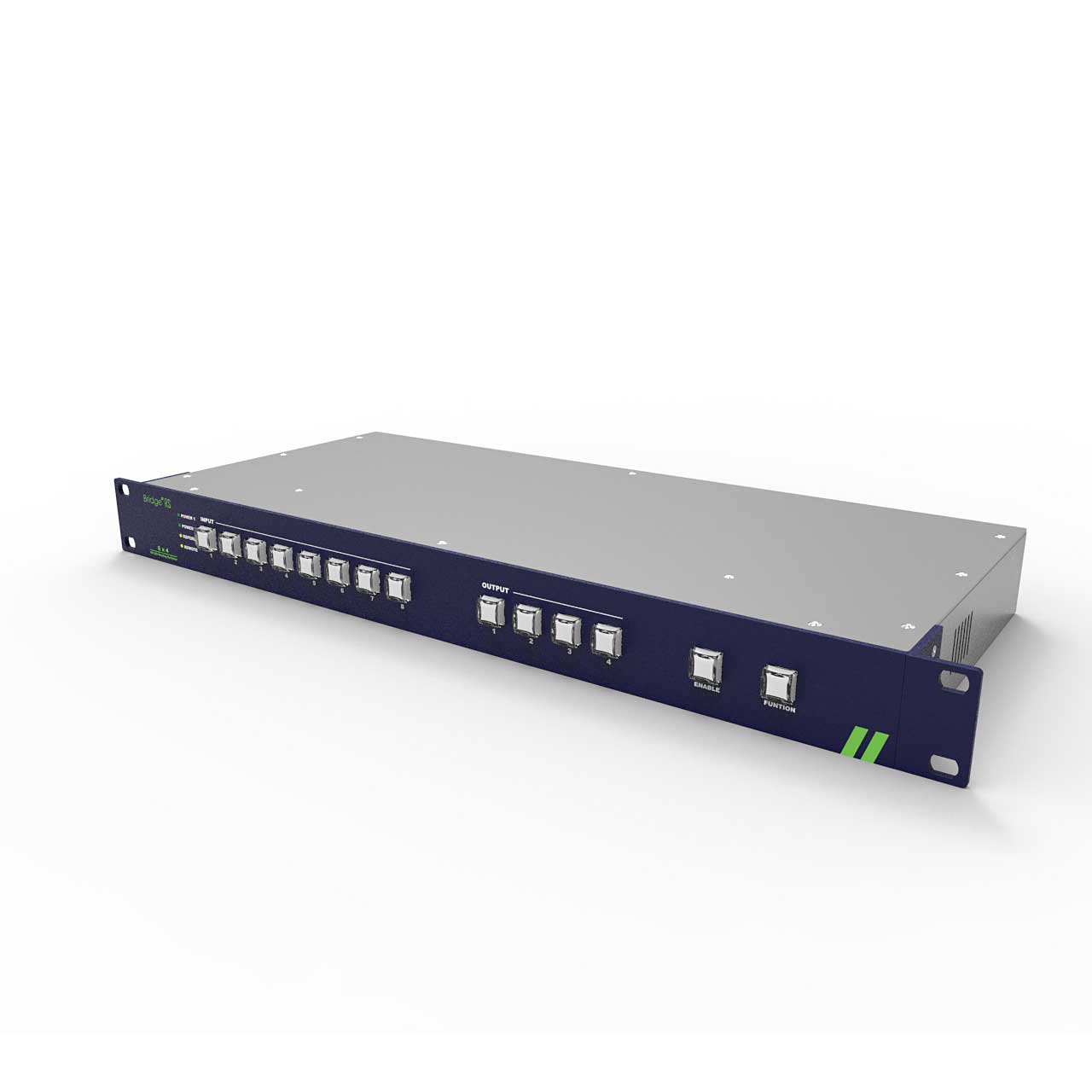

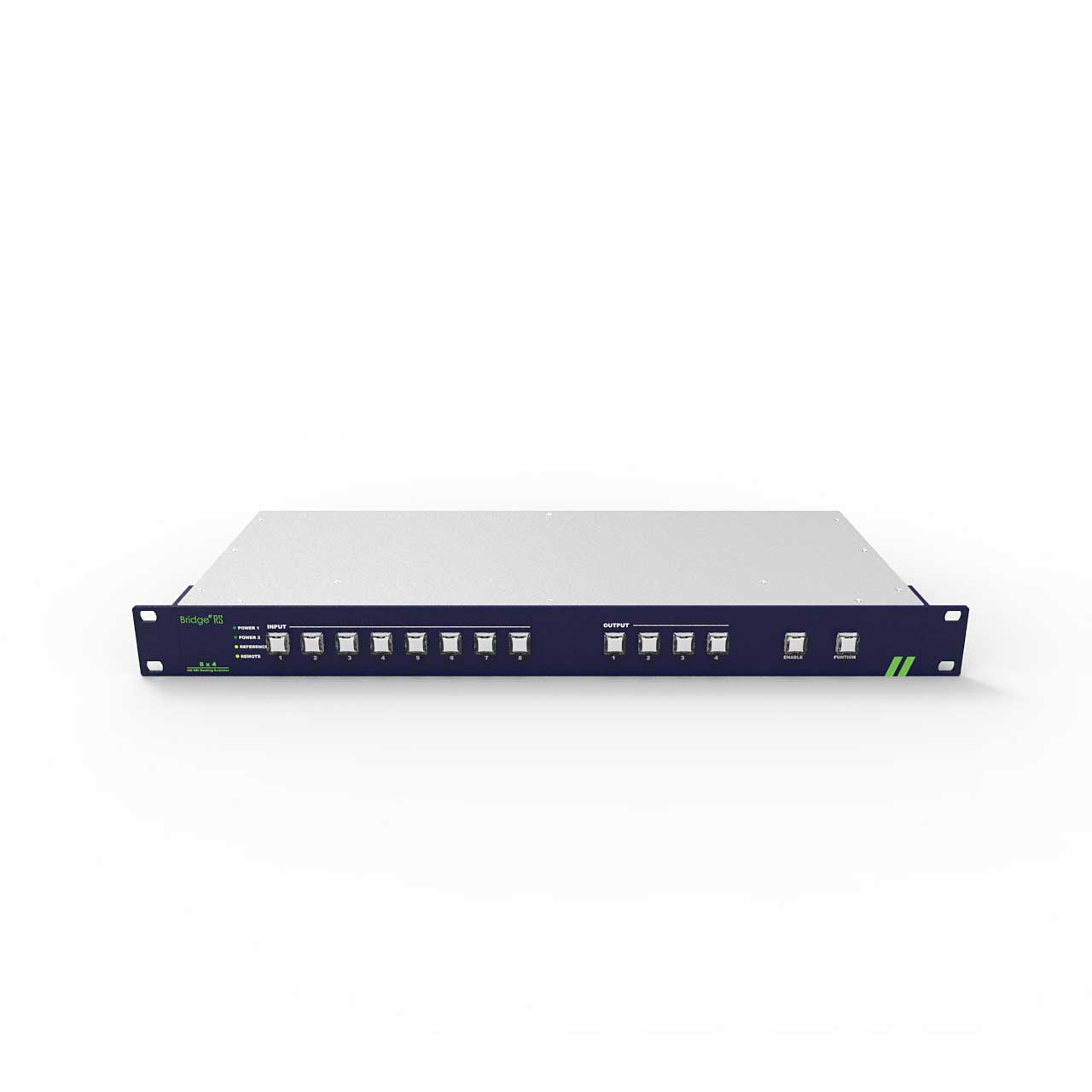

Digital Forecast RS 8X4 3G/HD/SD SDI Matrix Routing Switcher

RS 8X4 SDI - Overview

• Features:

  • Support SMPTE 292M, SMPTE 344M, SMPTE 259M, SMPTE 424M
  • Re-clocking
  • Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G, 2.97G)
  • 3G/HD/SD-SDI 8 in x 4 out
  • 1 HDMI Output
  • Auto equalizing (HD grade: compensate for up to 100m, SD: up to 300m of Belden 1694 Cable )
  • RS-422 deck control ports (RJ45)
  • DC12V 3.33A Power supply included


• Specifications:

  • Connections
  • SDI Video Input: 8x SD/HD-SDI, 3Gb/s SDI and ASI
  • SDI Video Output: 4x SD/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking
  • HDMI OUTPUT: 1x HDMI
  • Remote Control: RS-422 (RJ45)
  • Reference Input: 1x BNC B.B , TRI
  • NET: TCP/IP (RJ45)
    Standards
  • SD Format Support: NTSC (480i59.94) and PAL (576i50)
  • HD Format Support: 720p(60/59.94/50), 1080i(60/59.94/50), 1080P(30/29.97/25/24/23.98), 1080p(60/59.94)3G
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Video Rates: SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD SDI
  • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard
    Physical
  • Dimensions: WxHxD 13 x 1.5 x 4.3" (330 x 40 x 110 mm)
  • Weight: 3.3 lb (1.55 kg)
  • Power: 12V DC, 3.33A


• Warranty:

  • 2 Years
