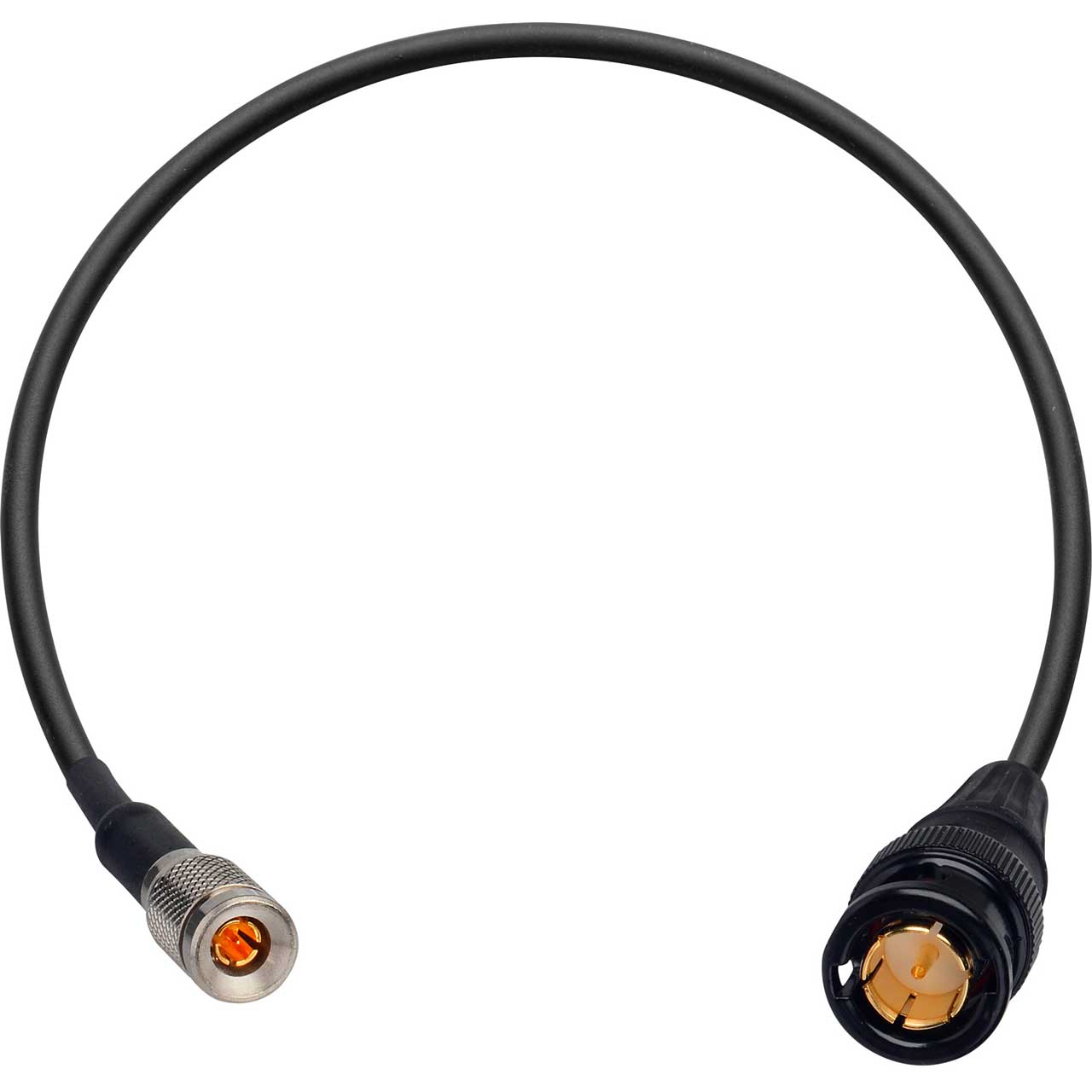

Laird Belden 179DT RG179 3G-SDI DIN 1.0/2.3 to BNC Male Video Adapter Cable - 6 Foot

ITEM #: DIN179DT-B-6 MFG #: DIN179DT-B-6

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$33.95

Our Price:

$30.95

Availability: In Stock
iAvailability Description Popup


DIN179DT-B-6 - Overview

3G SDI Amphenol DIN1.0/2.3 to Kings Black & Gold BNC Video Adapter Cable Featuring Belden 179DT Coax. DIN 1.0/2.3 cables are finding their way into the latest new products in the broadcast market whether it be on a Red One camera or a Harris/ Imagine Communications Selenio X50 and X100 broadcast up/cross/downconverter. There are many advantages to using the DIN technology for high speed and space savings. Some industry brands such as AJA, Nevion, Harris, MIRANDA, 3COM, CISCO and RED ONE to name a few have incorporated these new connectors. Our shop has designed DIN video cables for transmitting 3G-SDI using Amphenol Connex brand DIN1.0/2.3 and Kings BNC Male connectors. This series also utilizes Belden 179DT RG179 SDI Mini Coax which is perfect for large bays and ENG trucks because of its light weight and thin design. The first series are designed and function as adapter cables. Very few video monitors and other equipment include DIN type connector interfaces at this time. These simply convert the DIN to a BNC for quick-patch connection.

  • Features:

    • Belden 179DT Digital Video Coax Cable
    • Kings 2065-28-9 BNC Connectors
    • Cable weighs 60% less than standard RG-59/U type coax
    • Requires 40% less space than standard mini RG-59/U type coax
    • Crush-resistant FHDPE dielectric

  • Specifications:

    • Number of Coax: 1
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.1 in
    • Plenum (Y/N): N
    • Nominal Inductance: 0.106 µH/ft
    • Nominal Characteristic Impedance: 75Ω
    • Nominal Delay: 1.29 ns/ft
    • UL Voltage Rating: 300 V RMS
    • UL Temp Rating: 75°C
    • Operating Temp Range: -30°C To +75°C
    • UV Resistance: Yes
    • Max. Pull Tension: 14 lbs
    • Min Bend Radius/Minor Axis: 1 in
    • Environmental Space: Indoor - Riser
    • NEC/(UL) Compliance: CMR
    • CEC/C(UL) Compliance: CMG

  • Warranty:

    • 1 Year
