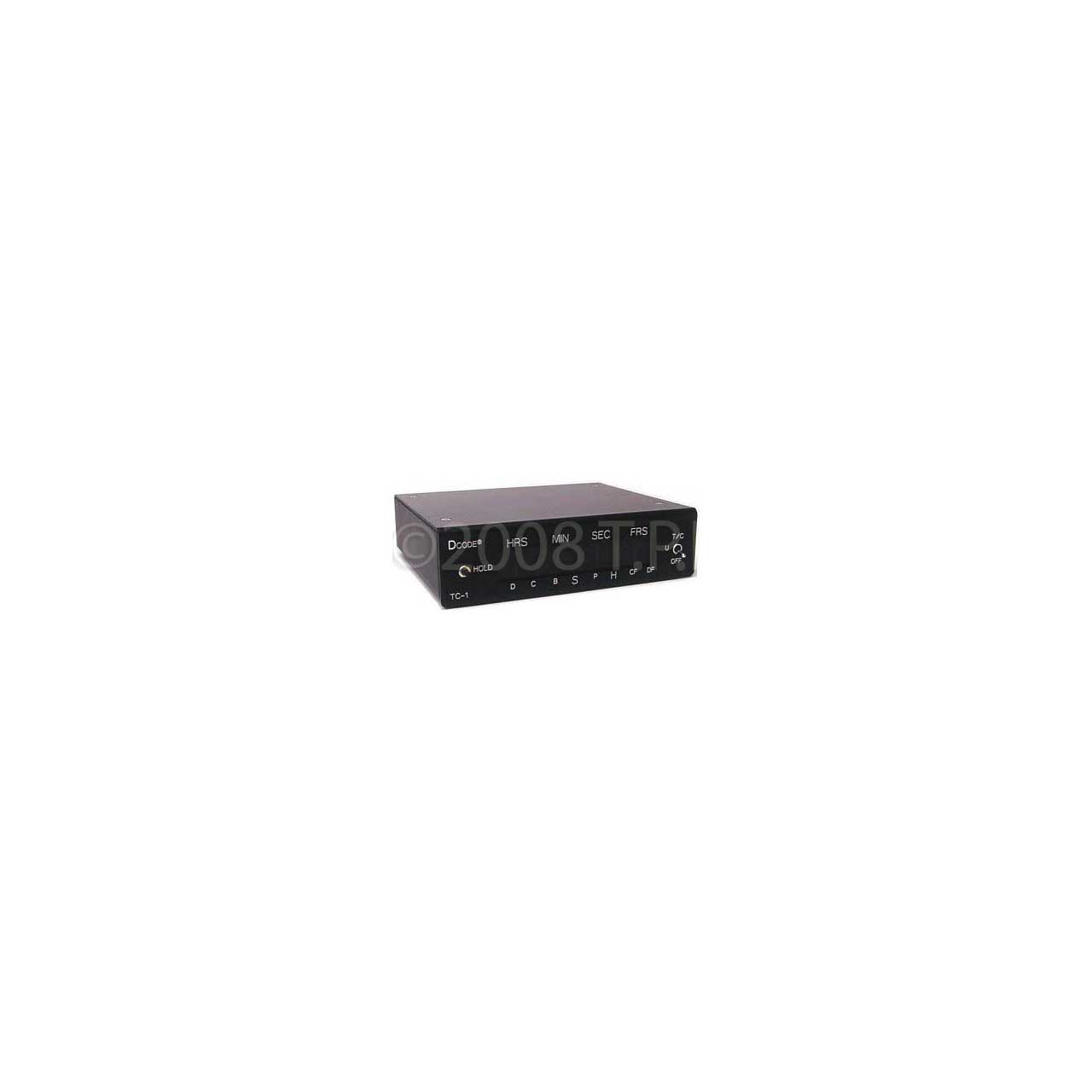

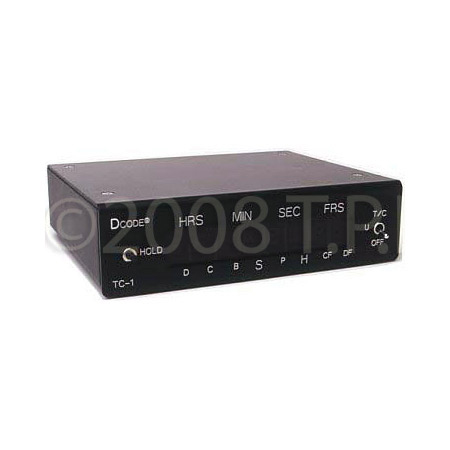

Denecke TC-1 Time Code Reader

ITEM #: DKE-TC1 MFG #: DENEKE TC-1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$425.00

Our Price:

$403.75

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DENEKE TC-1 - Overview

The Dcode TC-1 Time Code Reader opens the world of time code to film editing at a fraction of the cost of other systems. Using time coded film dailies, editors working directly with film can use the TC-1 to assist them in syncing, making high speed searches, logging, and keeping accurate time-date records of the actual production.

The TC-1 reads SMPTE and EBU time code from VTRs, videocassette recorders, film editing machines, and film synchronizers from 1/50 to 50 times speed in both forward and reverse. For transferring 1/4" tape to mag film it cleans up (reshapes) time code while generating 60Hz sync pulse from either 24 or 30fps time code. Perfect for film and television production companies, transfer houses, and music studios.

  • Features:

    • Reads SMPTE/EBU time code
    • Signal Status display
    • Displays time code in hours, minutes, seconds, and frames
    • Film resolving 60Hz from both 24 and 30fps
    • Freeze the display instantly by pressing the HOLD button
    • Reshaped code for copying is accessible through the rear output connector

  • Specifications:

    • SIZE: 6" x 5" x 1.625"
    • INPUT: -35 to +35dB at 50K ohm
    • WEIGHT: 1.5 lbs.
    • SYNC: 60Hz sine wave at 1v
    • OUTPUT: 1v square wave at 2K ohm
    • POWER: 7 - 24v, AC or DC at 180 Ma


DENEKE TC-1 - Required Accessories
