DPA 4080-DC-DB10 4080 Cardioid Microphone Lavalier - Normal SPL - Black - TA4F Mini-XLR

ITEM #: DPA-4080-DC-DB10 MFG #: 4080-DC-D-B10

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$755.00

Availability: In Stock
iAvailability Description Popup


4080-DC-D-B10 - Overview

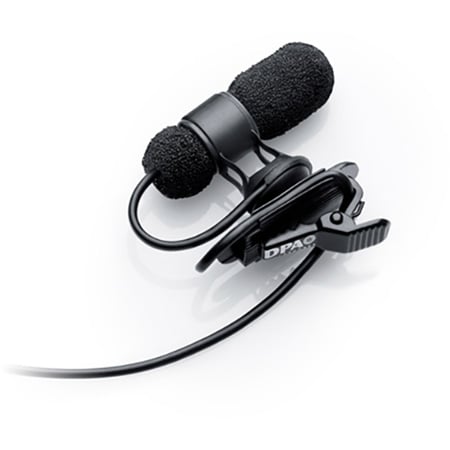

The d:screet mini 4080-DC-DB10 Miniature Cardioid Lavalier Microphone with a Microdot Termination from DPA Microphones is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ'd 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left and right buttoned shirts and includes black and white pop filters.

  • Features:

    • Designed for Speech Reproduction
    • For Broadcast, Conference, or Live Use
    • Pre-EQ'd 4dB Presence Boost
    • Fits Left- and Right-Buttoned Shirts

  • Specifications:

    • Polar Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser element with vertical diaphragm
    • Frequency Range: 250 Hz to 17 kHz with a typical 4 dB soft boost @ 4 to 6 kHz (-5 dB @ 100 Hz), +/- 2 dB
    • Sensitivity: 20 mV/Pa at 1 kHz; -34.4 dB re. 1 V/Pa (nominal, +/-3 dB @ 1 kHz)
    • Equivalent Noise Level A-Weighted: Typical: 23 dBA re. 20 æPa, Maximum: 26 dBA
    • S/N Ratio: 71 dBA, 1 kHz at 1 Pa (94 dB SPL)
    • Dynamic Range: Typical: 100 dB
    • Maximum Sound Pressure Level (SPL): Peak Before Clipping: 134 dB
    • Output Impedance: 30 to 40Ω
    • Cable Drive Capability: Up to 984' (300 m)
    • Connector: Microdot termination
    • Cable Length: 4' (1.2 m)
    • Cable Diameter: 0.06" (1.6 mm)
    • Dimensions (OxL): 0.4 x 1.2" (10 x 30 mm)
    • Weight: 0.5 oz (15 g)
    • Package Weight: 0.135 lb
    • Box Dimensions (LxWxH): 4.3 x 2.8 x 1"
