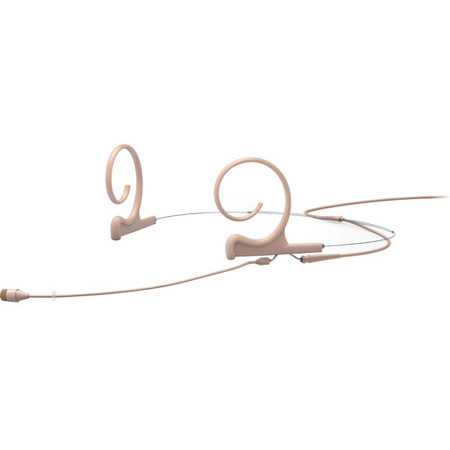

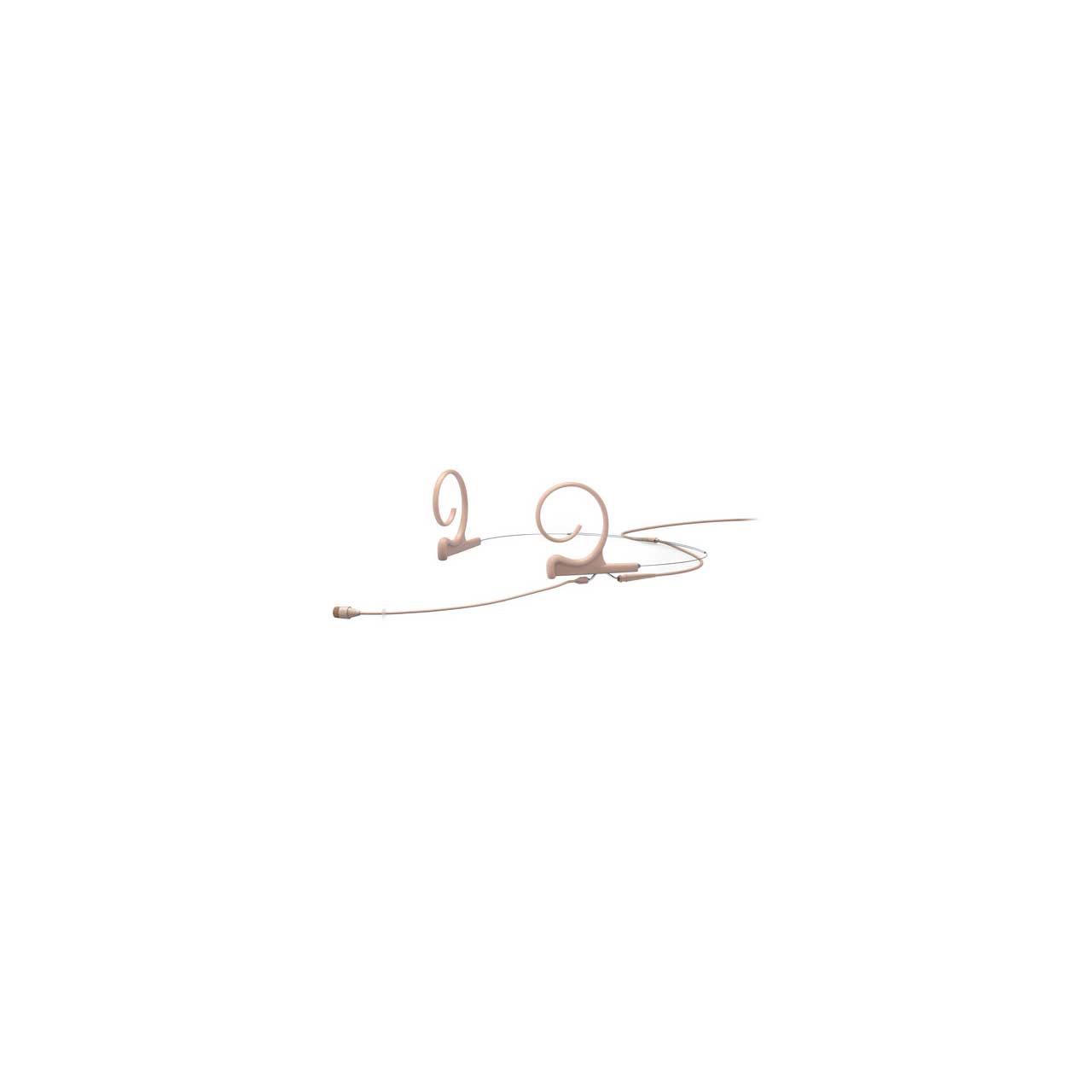

DPA 4266-OC-F-F00-MH CORE Omni Flex Headset Microphone - 90mm Boom - Beige - MicroDot Only

ITEM #: DPA-4266OCFF00MH MFG #: 4266-OC-F-F00-MH

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$855.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


4266-OC-F-F00-MH - Overview

The In-Ear Broadcast Headset Microphones series is the first broadcast solution that gives you uncompromising mic performance and convenient in-ear communication.

No more fiddling with two parallel systems – one for the mic and one for the in-ear communication. This unique line of mics was developed specifically for broadcast professionals who insist on superior voice reproduction but also appreciate ease of use and outstanding comfort. The In-Ear Broadcast Headset Microphones series is available in both omnidirectional and directional variants.

Setting new standards for the broadcast industry
Already the worldwide leader in headset mics for theater and broadcast applications, the In-Ear Broadcast Series now adds an integrated in-ear monitor to create a broadcast and communication headset with outstanding acoustic performance and feather-light comfort.

The in-ear drivers allow no audio leakage to the microphone capsule. They are easily driven due to their high sensitivity. Two sizes of ear-pads are included to fit most ears.

The cable steer, located at the headset mount, controls the cable run down the neck. You can easily adjust the headset mount size.

These innovative headsets – the first of their kind – are designed for broadcast professionals who insist on superior voice reproduction without compromising on simple setup and daylong comfort.

4266 Omni In-Ear Headset Mic
The 4266 Omni In-Ear Broadcast Headset Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with a lightweight and flexible headset system and an in-ear driver. This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom.

Like all of the microphones in the range, the 4266 Omni In-Ear Broadcast Headset Microphone offers accurate, natural voice intelligibility and very high SPL capabilities. The mics effortlessly handle up to 144 dB peak before clipping. In addition, due to their exquisite linear response, low distortion and extremely broad dynamic range, they sound great no matter what the application. The 4266 comes with a Single In-Ear earpiece and is available in black and beige.

  • Features:

    • Mic and in-ear monitor integrated in one unique solution
    • Easy to mount with minimum cable clutter
    • Legendary microphone capsule technology and sound quality
    • Lightweight and flexible
    • Minimal visual impact
    • Resistant to humidity
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional pattern: Omnidirectional
    • Principle of operation: Pressure
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range ±2 dB: Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid:
      40 Hz - 20 kHz, 10 dB boost at 12 kHz
    • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
    • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
    • Dynamic range - Legacy: Typ. 97 dB
    • Dynamic range - CORE: Typ. 111 dB
    • Max. SPL, THD 10%: 144 dB SPL peak
    • Rated output impedance: 30 - 40 Ω
    • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
    • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
    • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    • Connector: MicroDot
    • Color: Beige
    • Weight: Single Ear: 10 g (0.35 oz)
    • Microphone diameter: 5.4 mm (0.21 in)
    • Microphone length: 12.7 mm (0.5 in)
    • Cable length: 1.3 m (4.3 ft)
    • Cable color: Beige
    • Cable diameter: 1.6 mm (0.06 in)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA Microphones d:fine Core 4266 Slim Omnidirectional Flex Headset Mic, 90mm Boom with MicroDot (Beige)
    • 3x Foam Windscreens

  • Warranty:

    • Limited 2 Year Warranty

  • GTIN:

    5713055012038
