Drawmer SL22 1RU 2-Channel Speaker and Headphone Volume Level Limiter with Tamper Plate & Bracket

ITEM #: DRWM-SL22 MFG #: SL22

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$849.00

Our Price:

$769.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SL22 - Overview

Protect Your System, Regulate Live Sound Levels & Conform To Noise At Work Regulations
Whether you need to protect your speakers, your hearing whilst listening to headphones or your premises license the Drawmer SL22 Sound Level Limiter is the perfect tool for the job.

By eliminating the possibility of 'unauthorised' excessive sound pressure levels it offers strict level control and tremendous peace of mind to users in three distinct areas:

1 - Safeguard Your Hearing
Conform to Noise at Work Regulations by controlling the level of the dedicated headphone output to prevent hearing damage to anyone wearing headphones on a regular basis - DJ's, sound engineers in recording studio's, students listening to audio via various media. Additional connectors on the rear can be used for remote data logging or to trigger external warning devices.

2 - Conform To Regulations
The precise calibration and volume controlling of the SL22 allows venues, such as clubs, theatres, pubs, schools, universities etc. to conform to Local Authority Noise Regulations.

The need to conform to Local Authority Regulations is absolutely imperative, none more so than in the area of noise control. Many products are on the market that claim to do the job but these often take the form of a crude switch, either turning off the power or disconnecting the speakers, both of which are very disruptive in any event. The SL22 is different, it controls the volume, but in a transparent, unobtrusive way, that you will struggle to notice. Not only is it responsive and versatile but does so in a secure manner meaning that tampering is extremely difficult. Other features include remote dimming of the volume, as well as the connection to a fire alarm system, reducing the volume automatically during a fire and allowing the alarm to be heard more clearly.

3 - Protect Your Speakers
Prevents the damage to speaker chassis drivers and amplifier electronics by catching unwanted signals such as 'bangs' and 'pops'.

Whether in a large arena with a p.a. system and multiple speakers, or a bar or theatre, there are few things more troublesome than blowing a speaker cone or amplifier electronics. The SL22 has been specifically designed to transparently catch those unwanted SPL's and protect your gear. Not only will it save money by reducing the cost of speaker repairs, but also reduce 'call-out' costs of sound system service/repair engineers, lower sound system 'down time' and the consequential loss of income, as well as the reputation of the venue.

The SL22 Pedigree

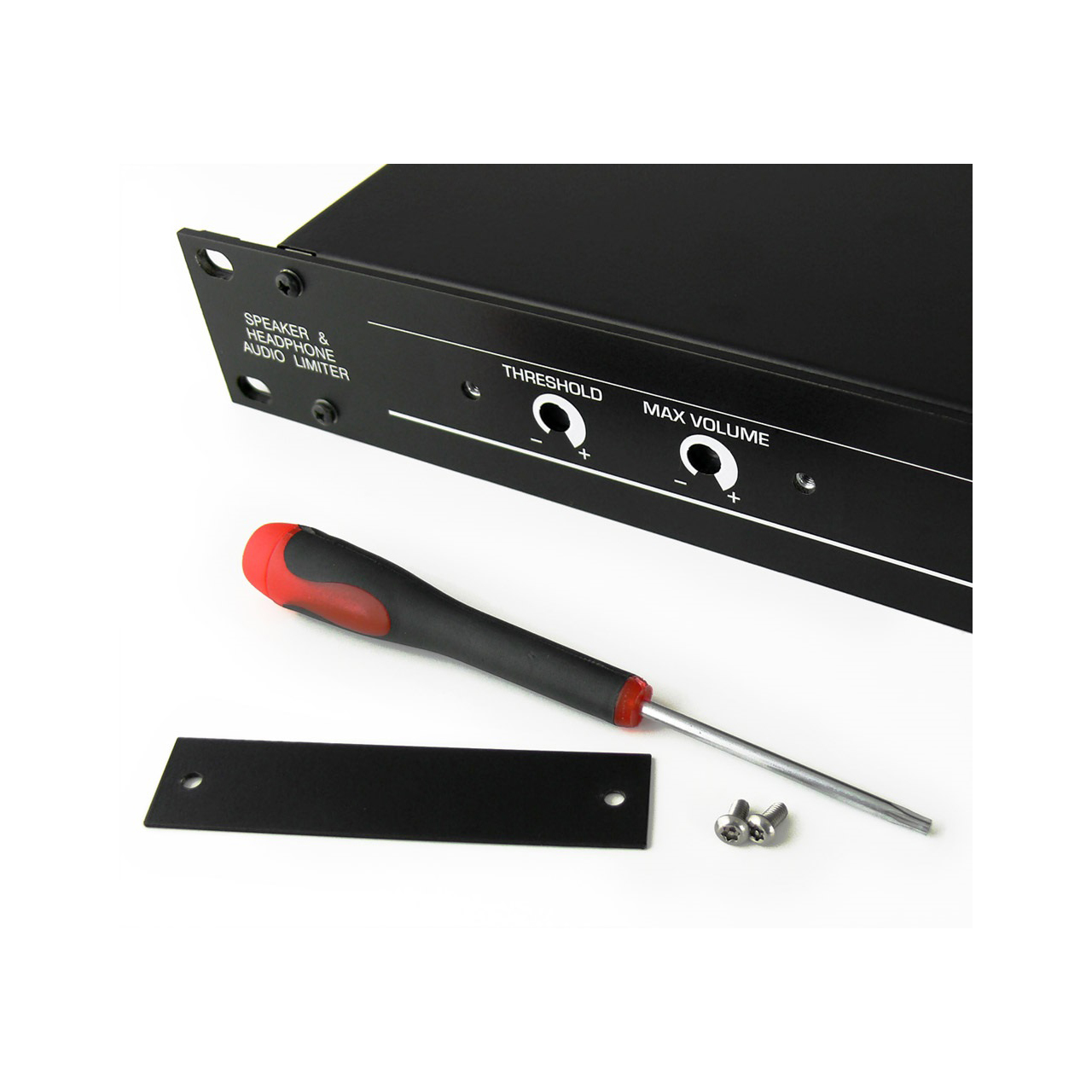

The SL22 front panel features an integral security plate to ensure that adjustments to maximum volume levels are implemented by authorised personnel only. Once removed two front panel pre-sets are exposed and available for adjustment by the installer.

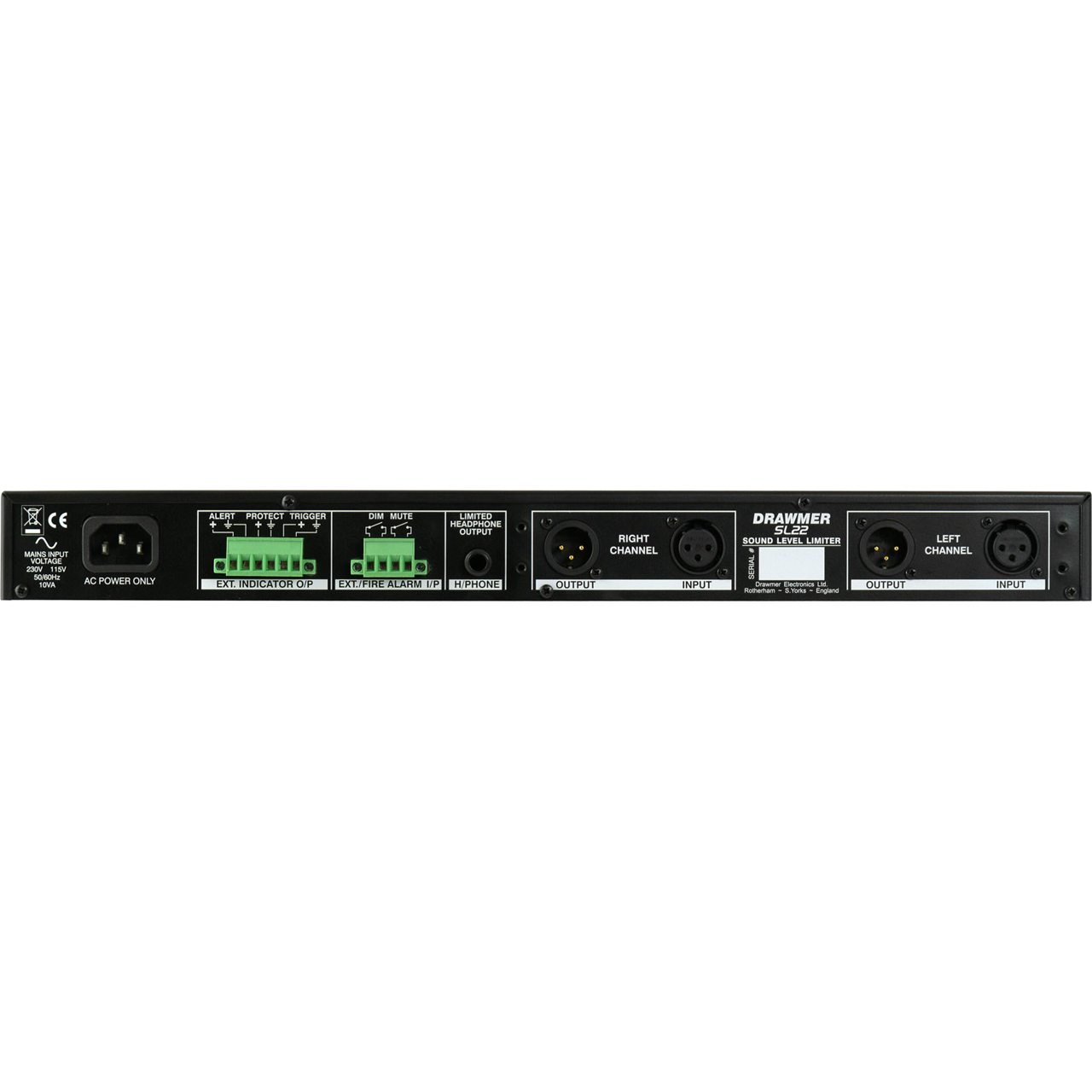

Well Connected
To the rear the difference between the SL22 and the SP2120 is just as apparent. In its development we liaised with and were approached by local authority commissioners, installation specialists and venue owners who all advised and recommended attributes to suit their own specific requirements, the result being the addition many more versatile features that so many other sound level limiters lack.

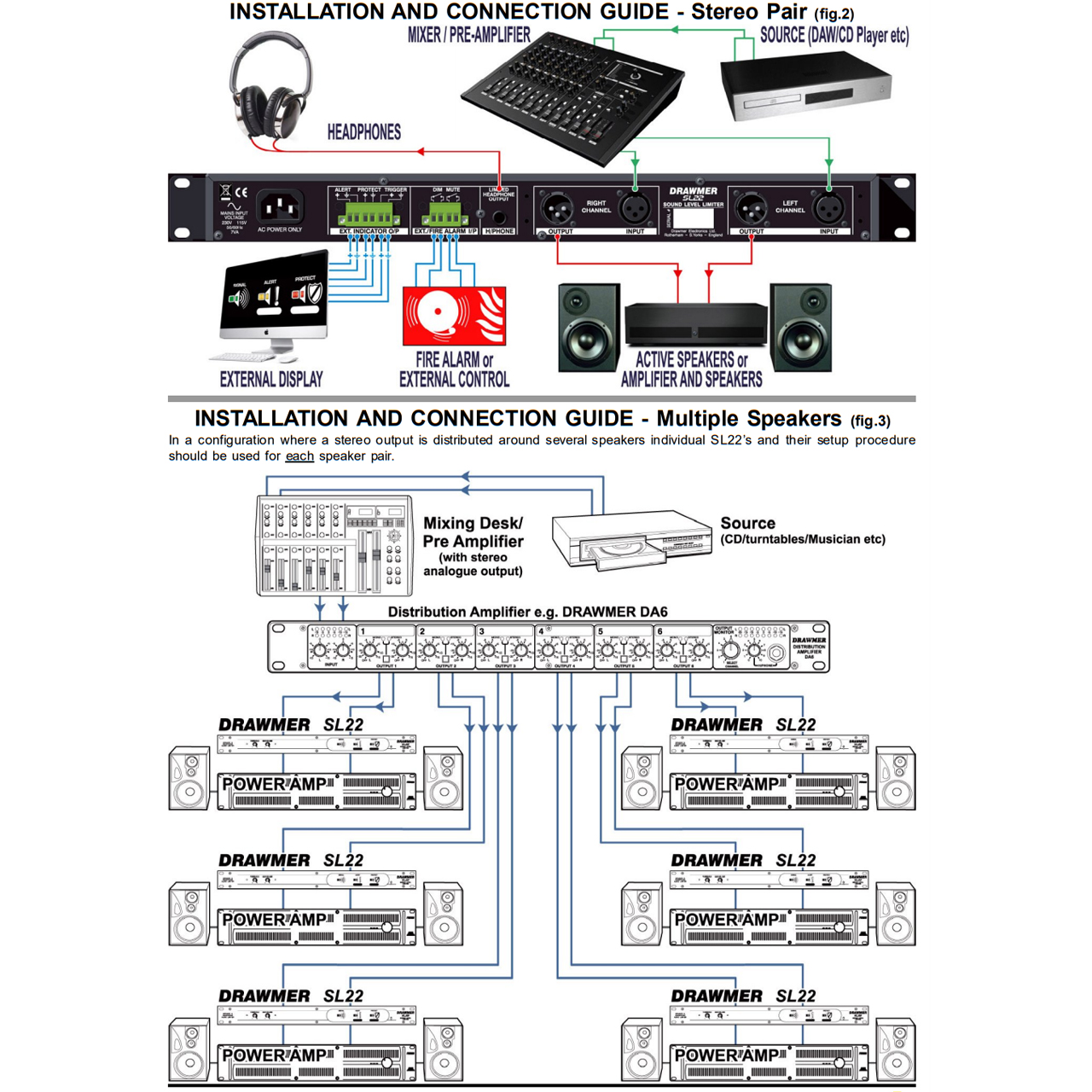

As well as the standard input and output XLRs (that can be securely locked using the optional tamperproof bracket) the SL22 also features a limited headphone output, that works in the same manner as the XLR's, plus the ability to be controlled externally via a fire alarm or operator, and also connections to allow data logging of the SL22's operation, or external visual indication via a light on a wall, for example.

  • Features:

    • Limited speaker and headphone outputs
    • Once installed and calibrated completely eliminates the possibility of 'unauthorised' volume levels.
    • No sound quality loss even during protection processing.

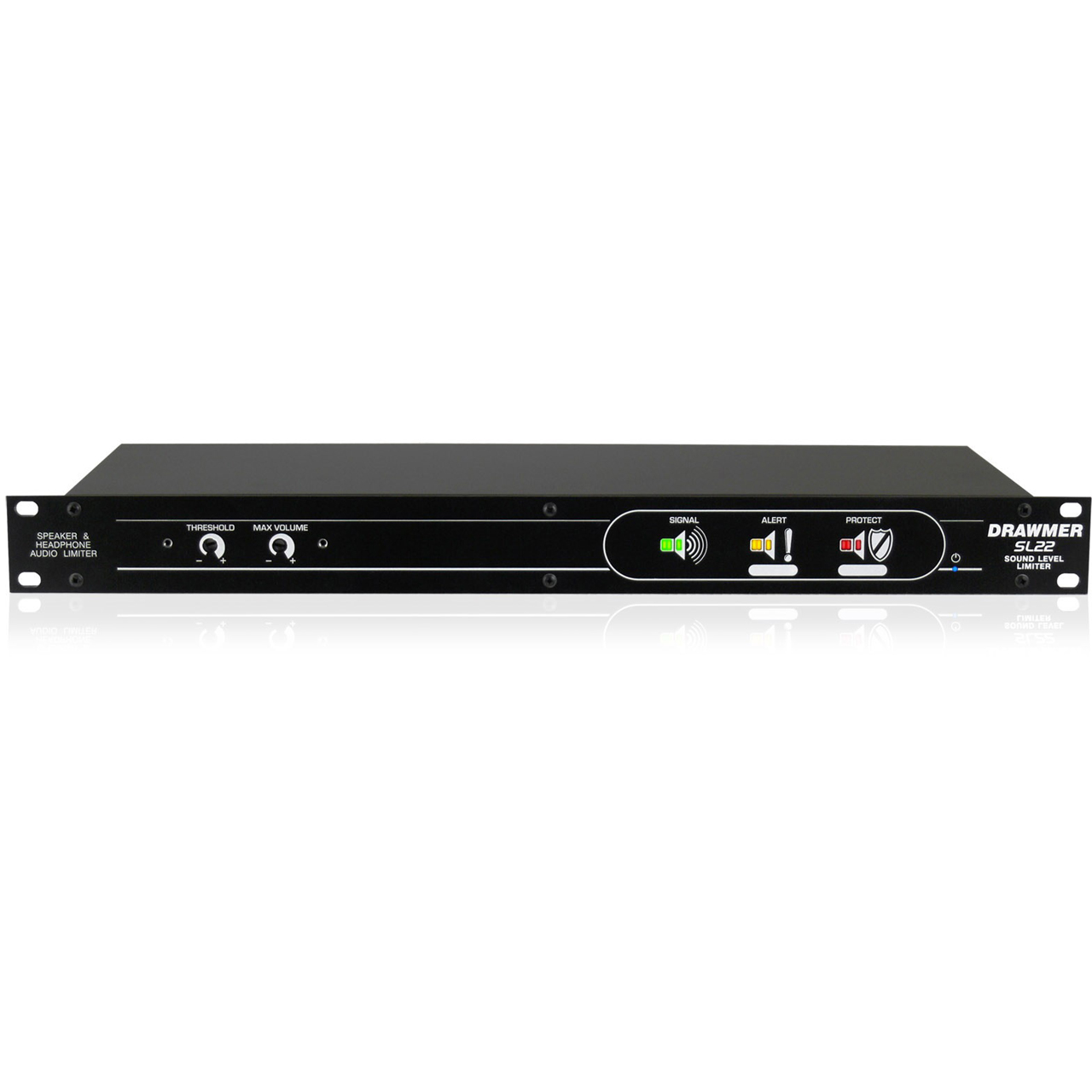

    • Large LED level indication for 'at a glance' monitoring of signals and warnings.
    • Fast, simple installation.
    • Time delay relays on outputs for clean power up/down.
    • A security label is supplied to further secure the calibration settings and show evidence of tampering.

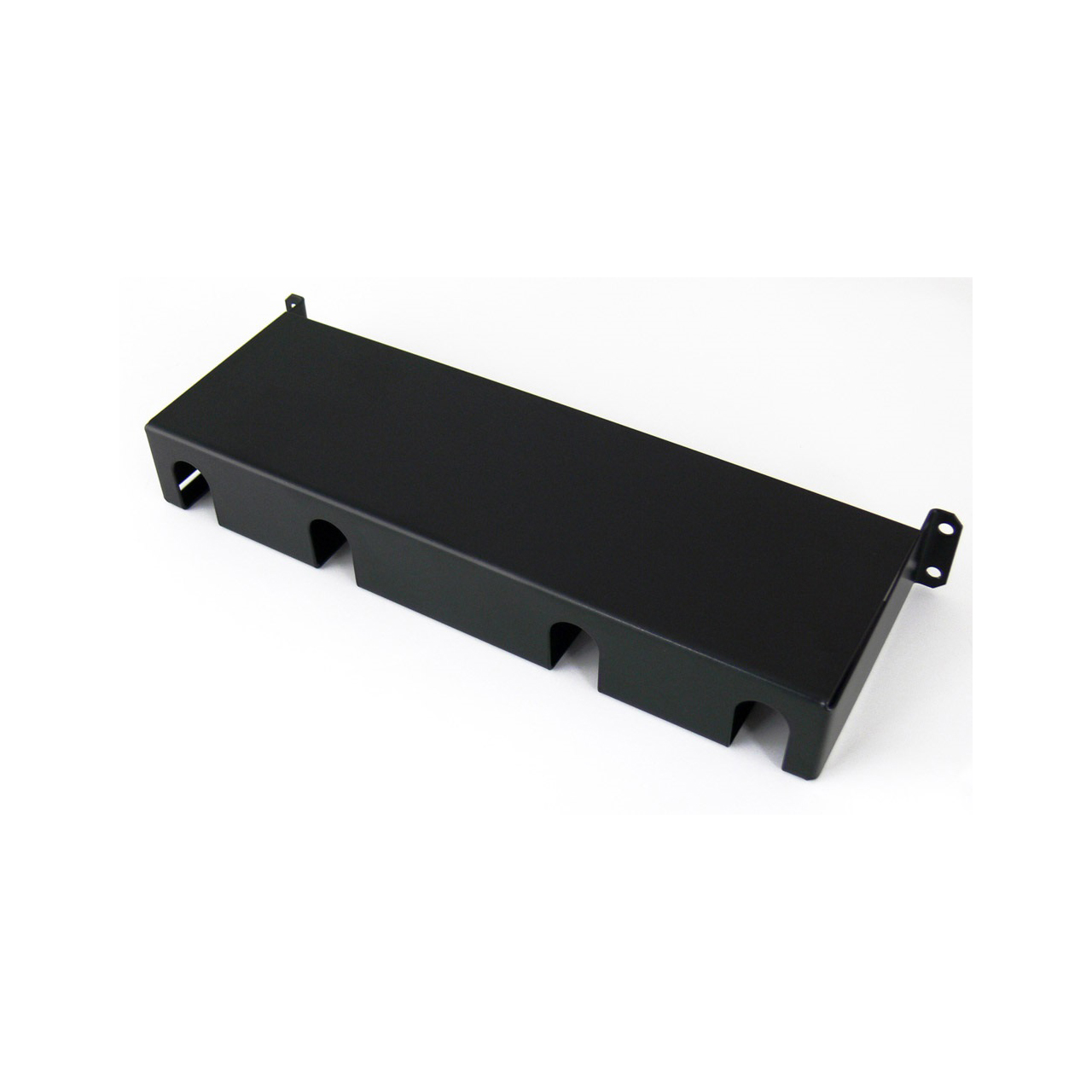

    • Tamper-Proof bracket (available separately) to lock-in the XLRs and conform to Local Authority regulations.
    • Reduces 'call-out' costs of sound system service/repair engineers, sound system 'down time' and the consequential loss of venue income, as well as the reputation of the venue.
    • External control of Dim and Mute for connection to Fire Alarms or remote operation.
    • Trigger output when in PROTECT mode.

  • Specifications:

    • Input: Input Impedance - 20k Ohms or greater
    • Output:
      - Output Impedance: 100R
      - Headphone Output Impedance: 110R
    • Gain Range @ Output: -30dBu - +44dBu
    • Recommended Output Level: 0dBu
    • Crosstalk: L/R @ 10kHz: -90dB
    • Noise: Unity Gain/22Hz - 22kHz: -93.5dB

      Power Requirements
    • 230V or 115V at 50-60Hz - 9VA
    • Fuse Rating:
      - @ 230V: T63mA
      - @ 115V: T125mA
      - Conforming to IEC 127-2
    • Fuse Type: 20mm x 5mm, Class 3 Timed-Blo, 250V working

      Physical
    • Depth: 7.48" (190mm)
    • Width: 18.97" (482mm)
    • Height: 1.73" (44mm)
    • Weight: 4.85lbs (2.2kg)
