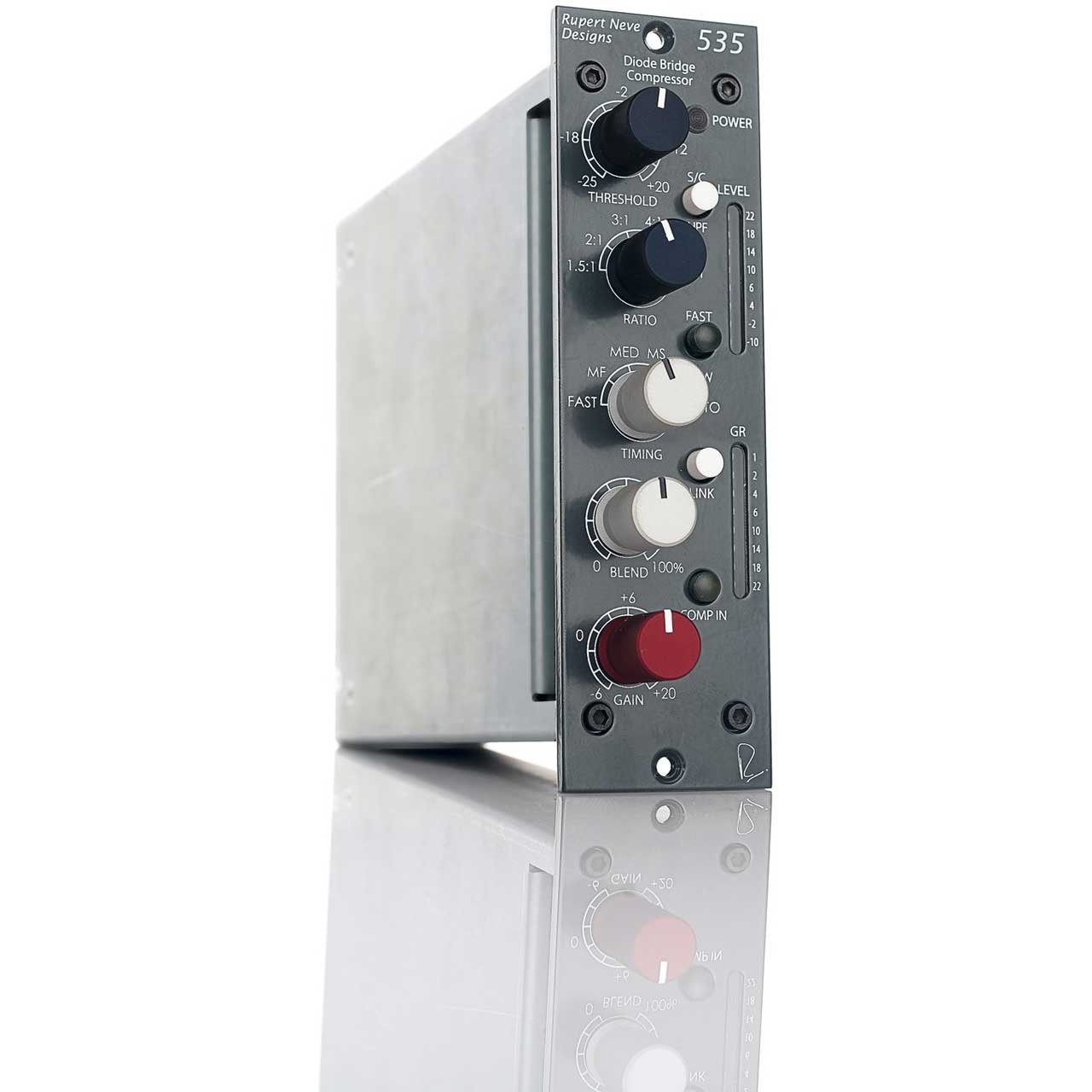

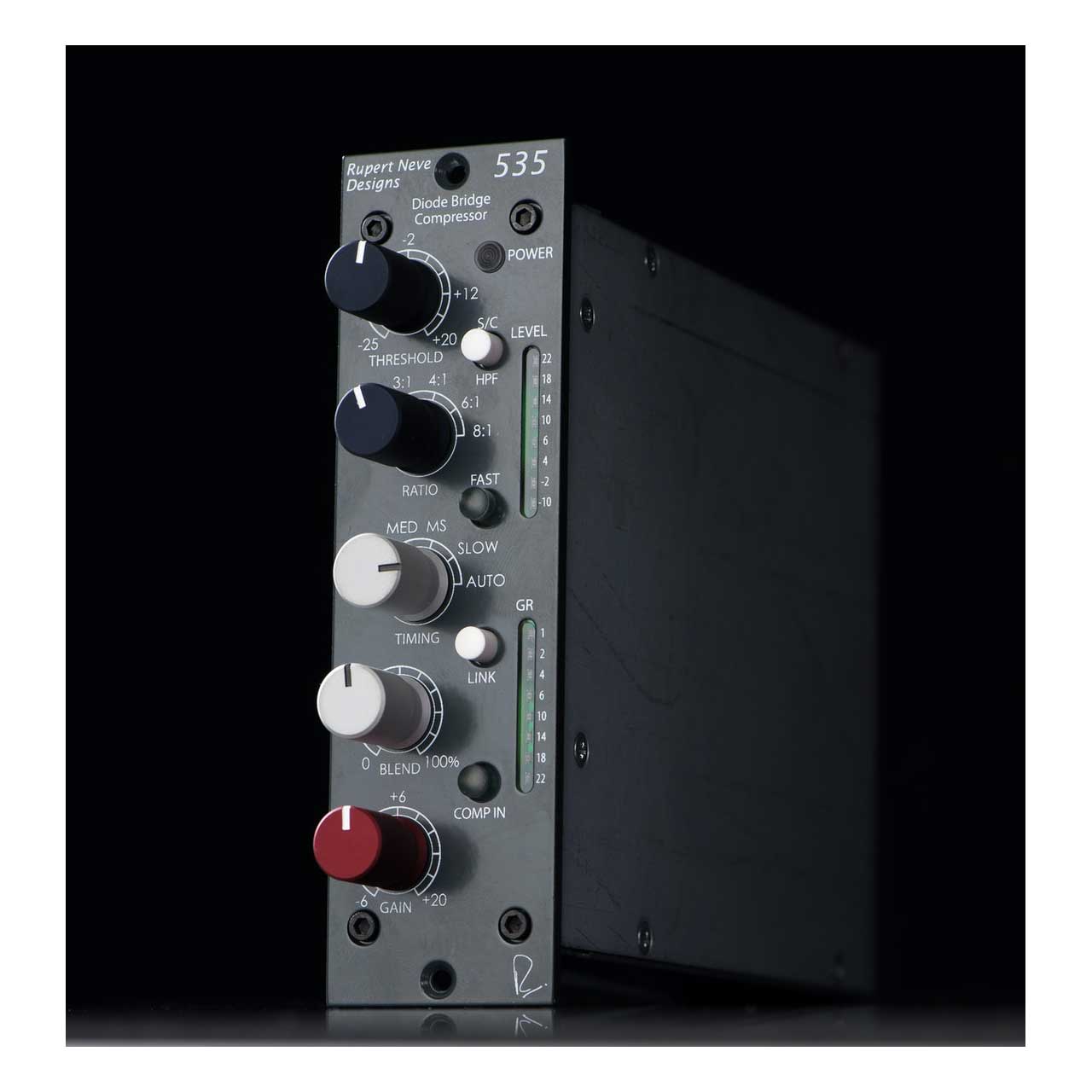

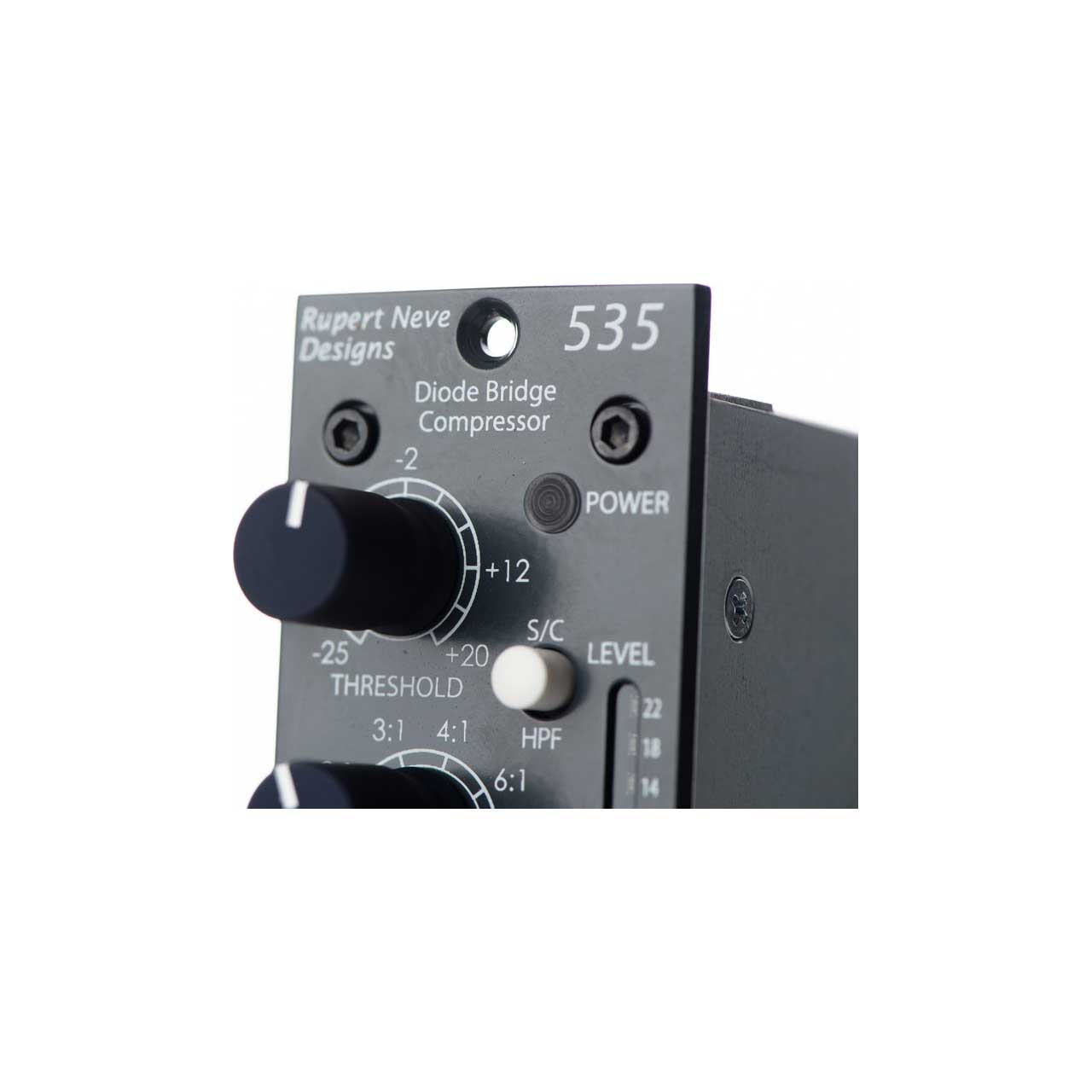

Rupert Neve Designs 535 500 Series Diode Bridge Compressor

ITEM #: RUP-535 MFG #: 535

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    535 - Overview

    Punchy, thick and versatile, the 535 Diode Bridge Compressor captures the soul of Rupert Neve’s original 2254 compressor while providing modern updates including advanced timing control, significantly lower noise, fully stepped controls throughout, and internal parallel processing capabilities. Originally developed for the dynamics circuit of the acclaimed Shelford Channel, the 535 is outfitted with Rupert Neve Designs’ custom transformers and class-A output amplifiers, all tailor-made for the popular 500-series format.

    • Features:

      • Diode bridge compressor adds weighty, harmonically rich tonality.
      • Six selectable timing constants for attack/release with a Fast switch which increases the speed on all 6.
      • Blend control to do parallel processing right in the 535.
      • RATIO, THRESHOLD, GAIN, SC HPF and LINK controls to round out the adjustability.

    • Specifications:

      • Processor Type: 500 Series Diode Bridge Compressor
      • Number of Channels: 1
      • Controls: Threshold, Ratio, Timing, Blend, Gain
      • Threshold: -25dB to +20dB
      • Ratio: 1.5:1 to 8:1
      • Side Chain Inserts: Yes
      • Bypass: Yes
      • Module Slot Size: Single

    • Item Includes:

      • 1x 535 Diode Bridge Compressor
      • 1x Manual

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      0752423657377
