Rupert Neve Designs R10 10 Space Rack Frame For The 500 Series

ITEM #: RUP-R10 MFG #: R10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


R10 - Overview

The R10 500 Series chassis features a solid steel construction with an internal power supply that delivers 200% of the power you'll ever demand. With a plethora of connections available, the R6 back panel is practically a patchbay on its own. The R10 features 10 channels of balanced I/O options including XLR and TRS that may be used interchangeably. Because the R10 is built to 500 series specifications, it will work flawlessly with any properly-designed 500 series module you wish to include in it. To help accommodate modules that are slightly out of spec, the R10 has variable-position screw holes to help make the installation process as smooth as possible.

  • Features:

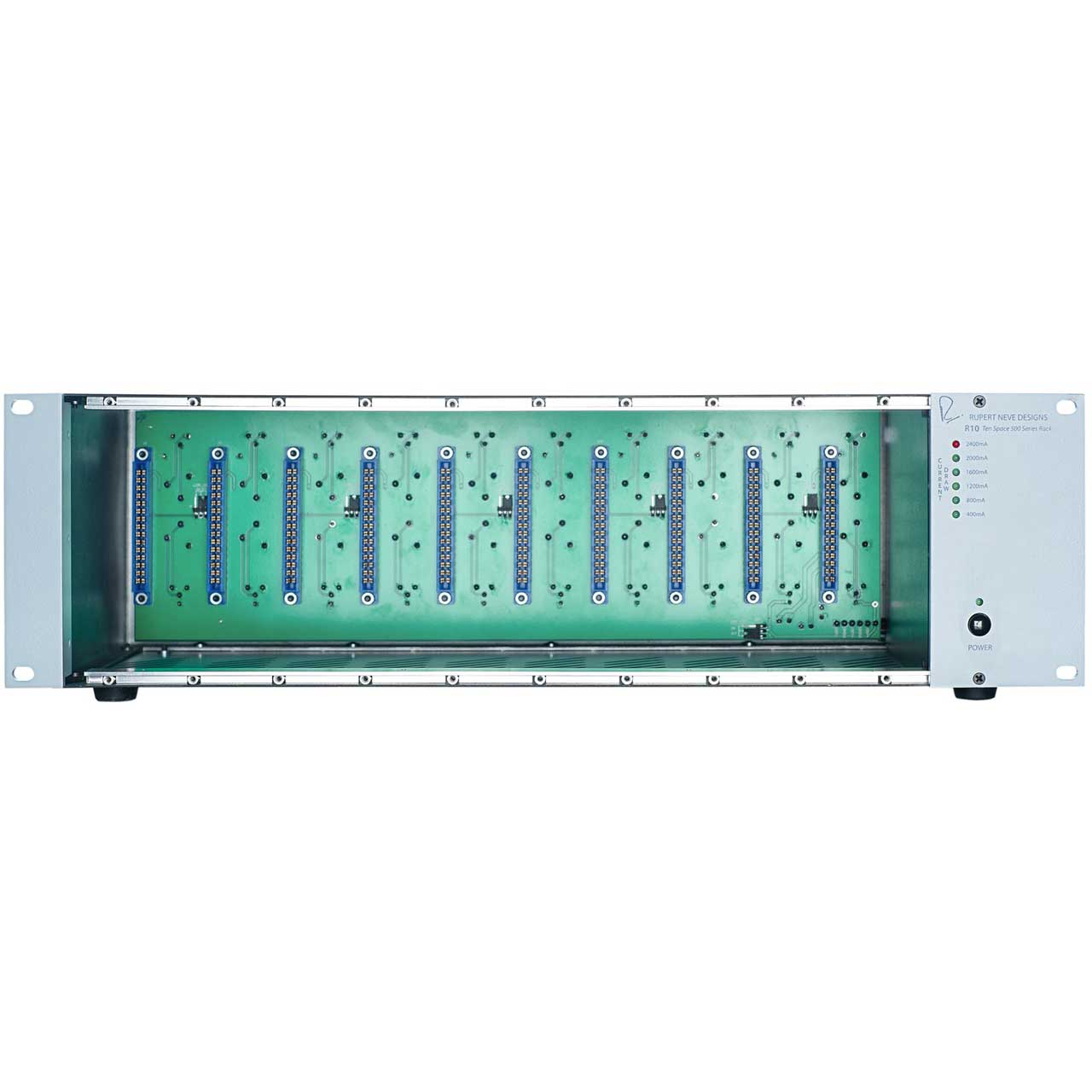

    • Ten slots that will accommodate any 500-Series module.
    • Over built PSU that has more than double the required power for the 500 series standard.

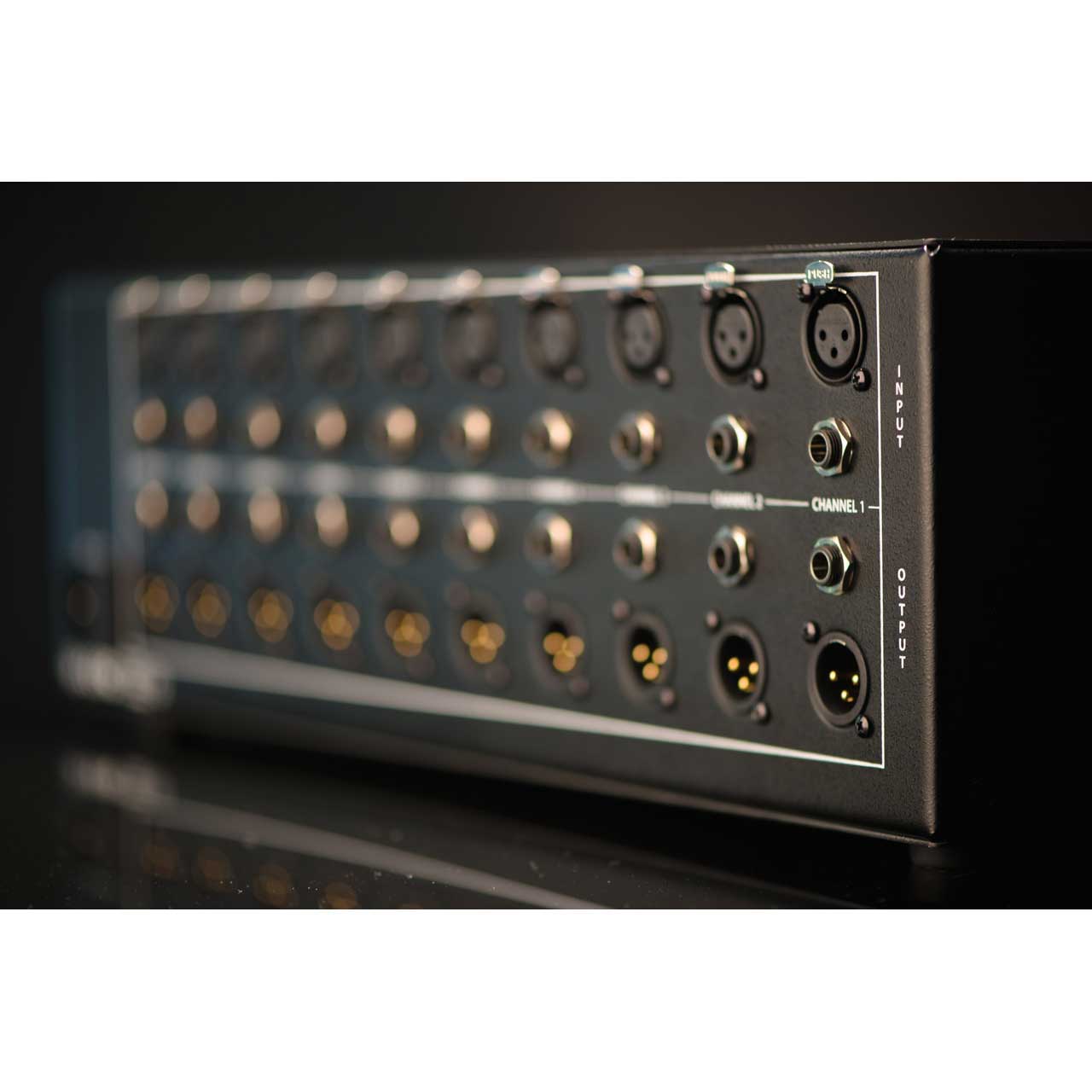

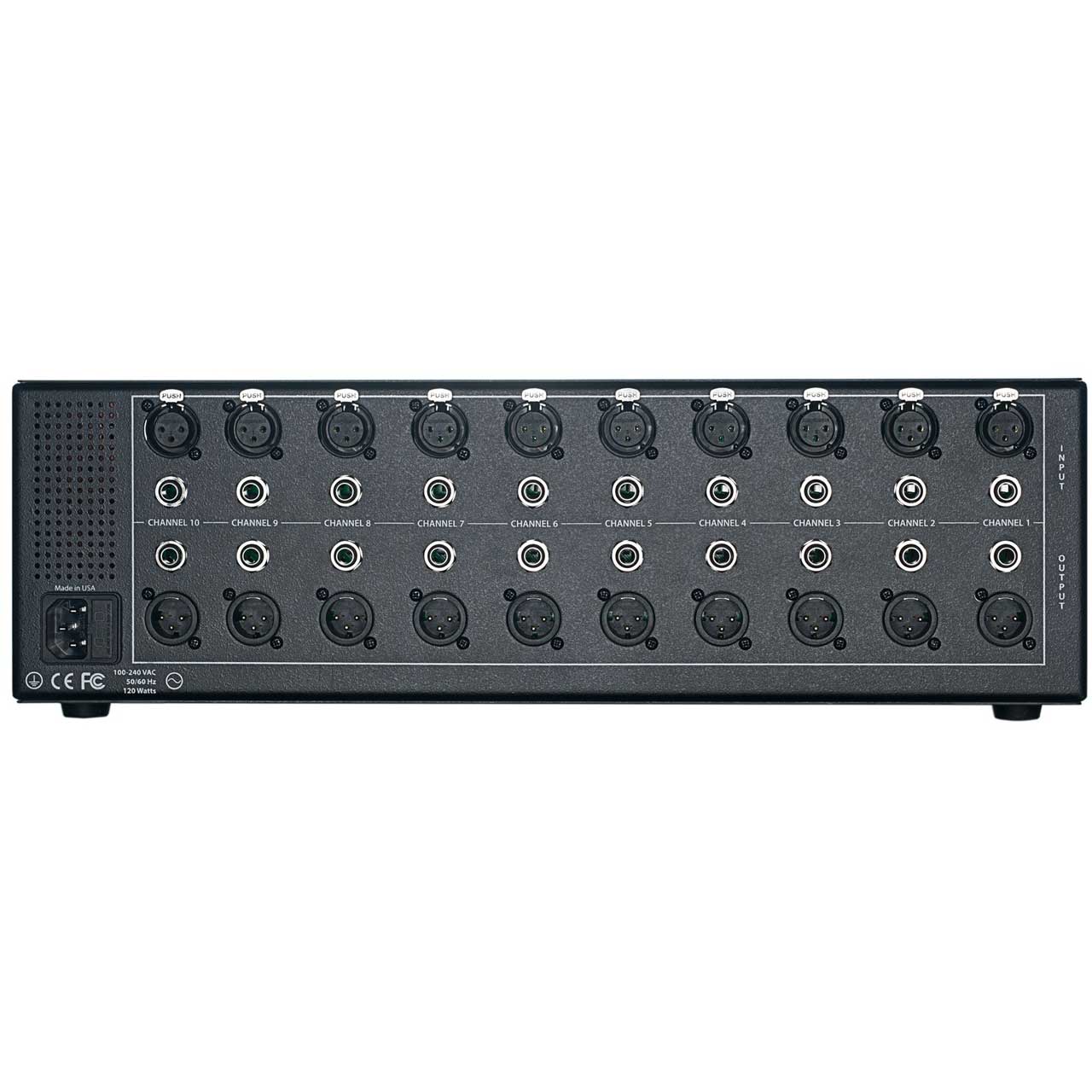

    • Interchangeable XLR and TRS I/O connections are provided to ensure that you can connect wherever you go with the backpanel patchbay.

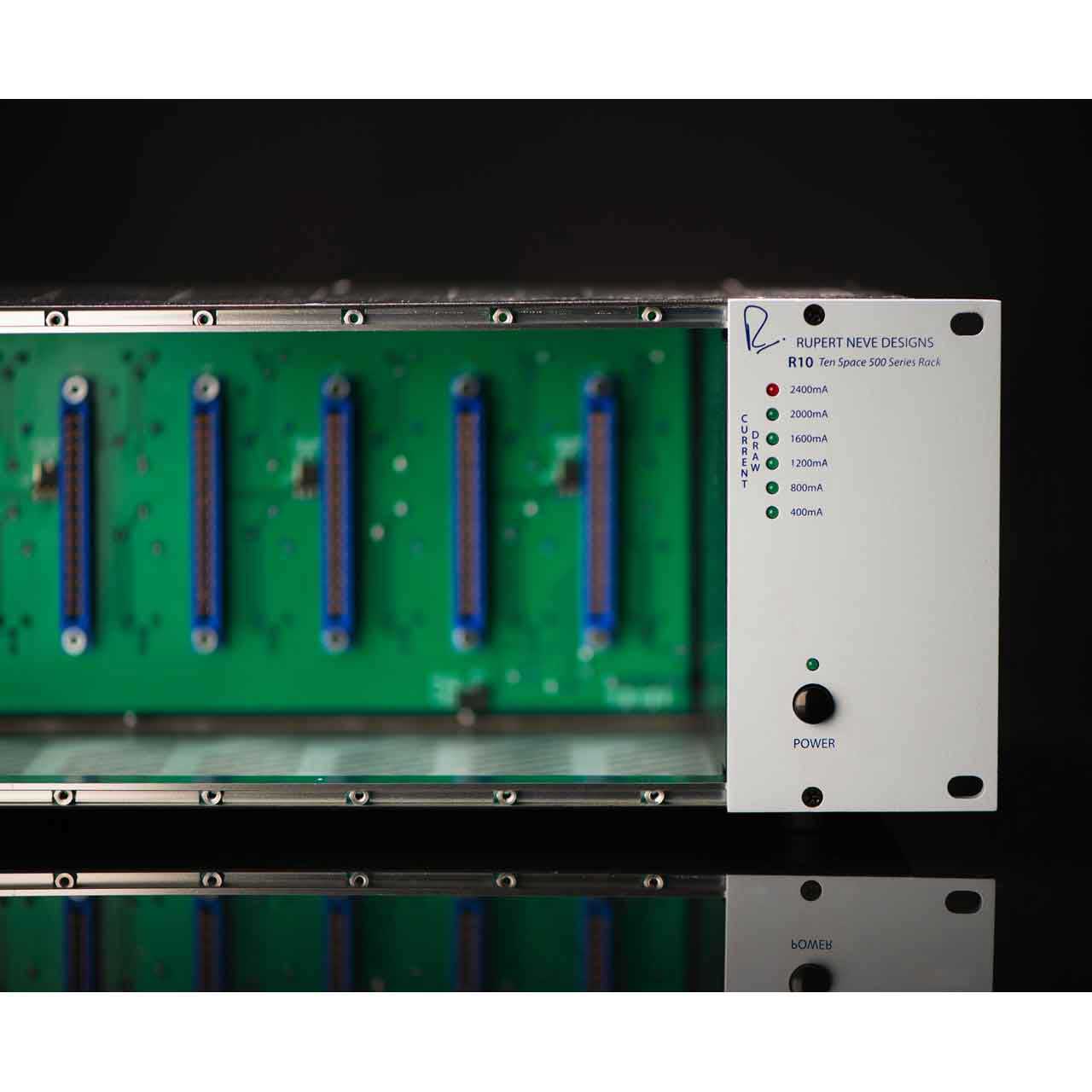

    • Current metering lets you know you'll never run out of power.
    • Rack-mountable

  • Specifications:

    • DC Voltage to Units: +/-16VDC and +48VDC for phantom power
    • Max Current: 2650mA total (2400mA modules and 250mA for phantom power)
    • Power Requirements: 100-240VAC, 50/60Hz, 50 Watts
    • Weight: 14lbs
    • Dimensions: 19” long x 7.5”wide x 5.5” high

  • Item Includes:

    • 1x R10 Space Rack
    • 1x PSU Cable
    • 1x Manual

  • Warranty:

    • 1 Year Warranty

  • GTIN:

    0752423657384
