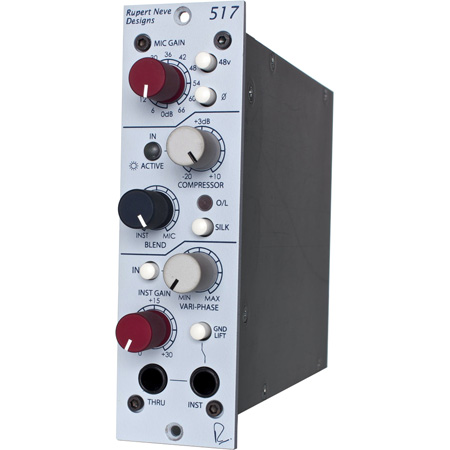

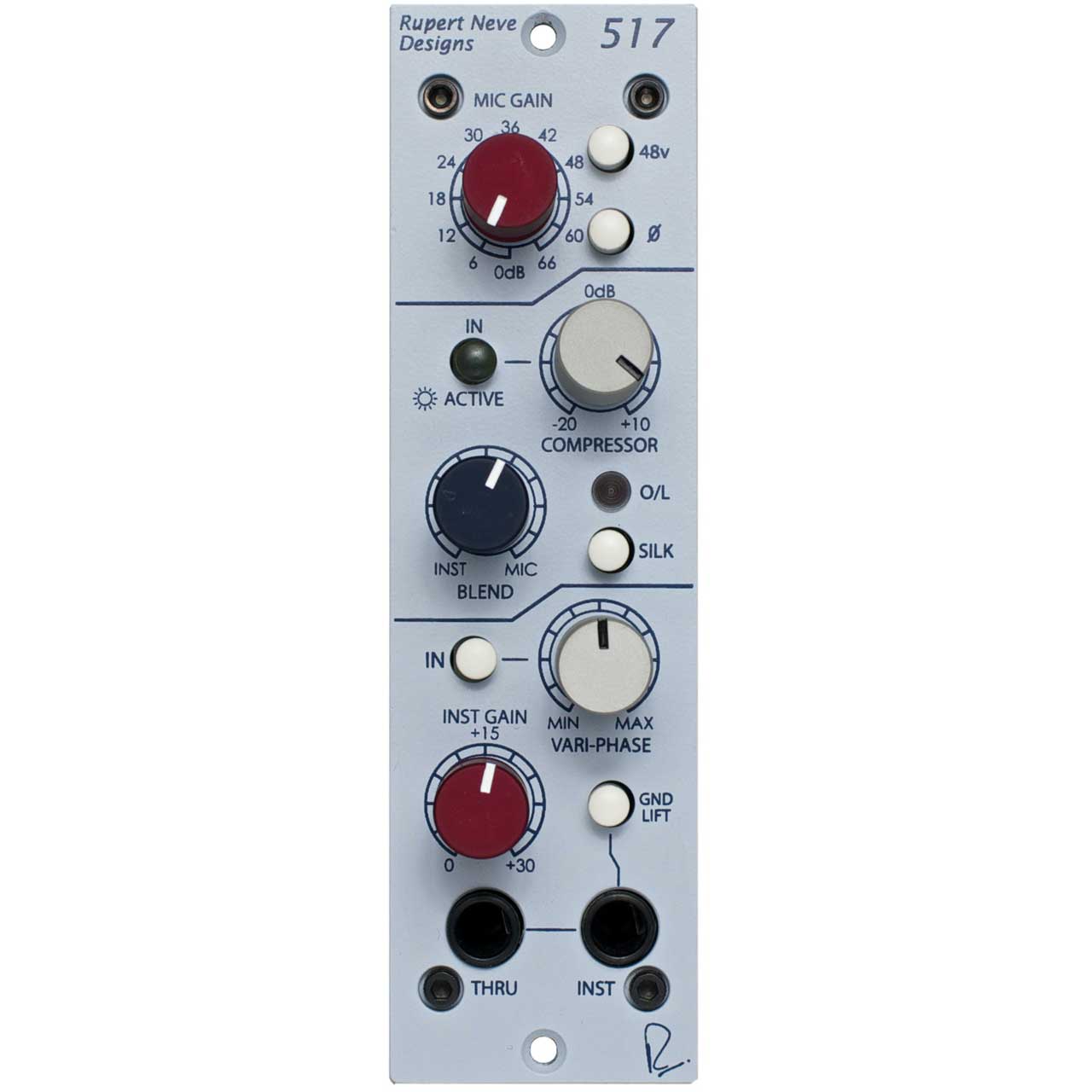

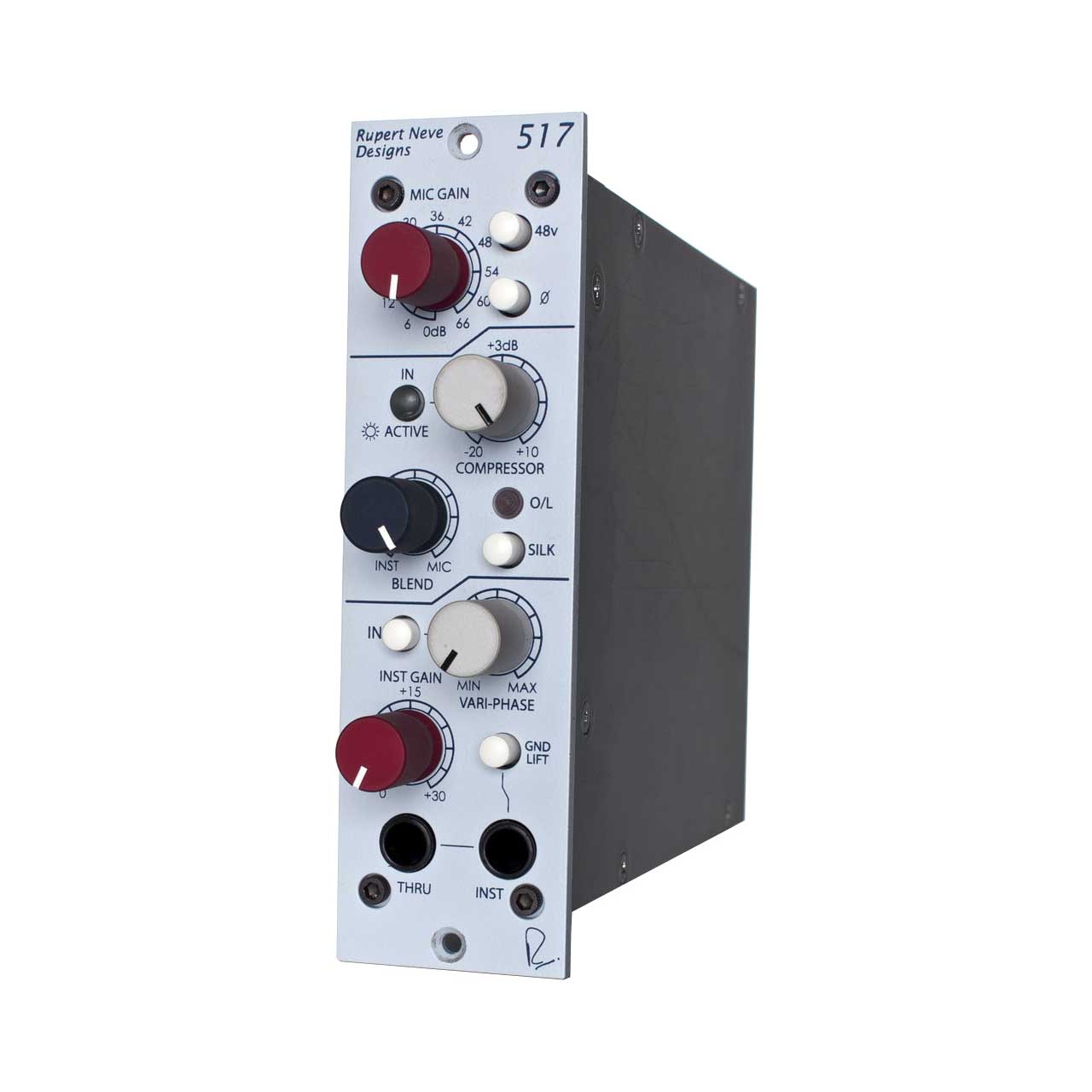

Rupert Neve Designs 517 500 Series Mic Preamp with DI and Compression

ITEM #: RUP-517 MFG #: 517

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$899.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    517 - Overview

    Based on the Portico 5017 Mobile Pre, the 517 provides world-class transformer-coupled micpreamp, compressor and DI circuitry with Vari-phase, “Silk” and DI/mic blending capabilities – all in a single 500 series module.There are countless 500 Series modules made today. These are the only ones designed by Mr. Rupert Neve

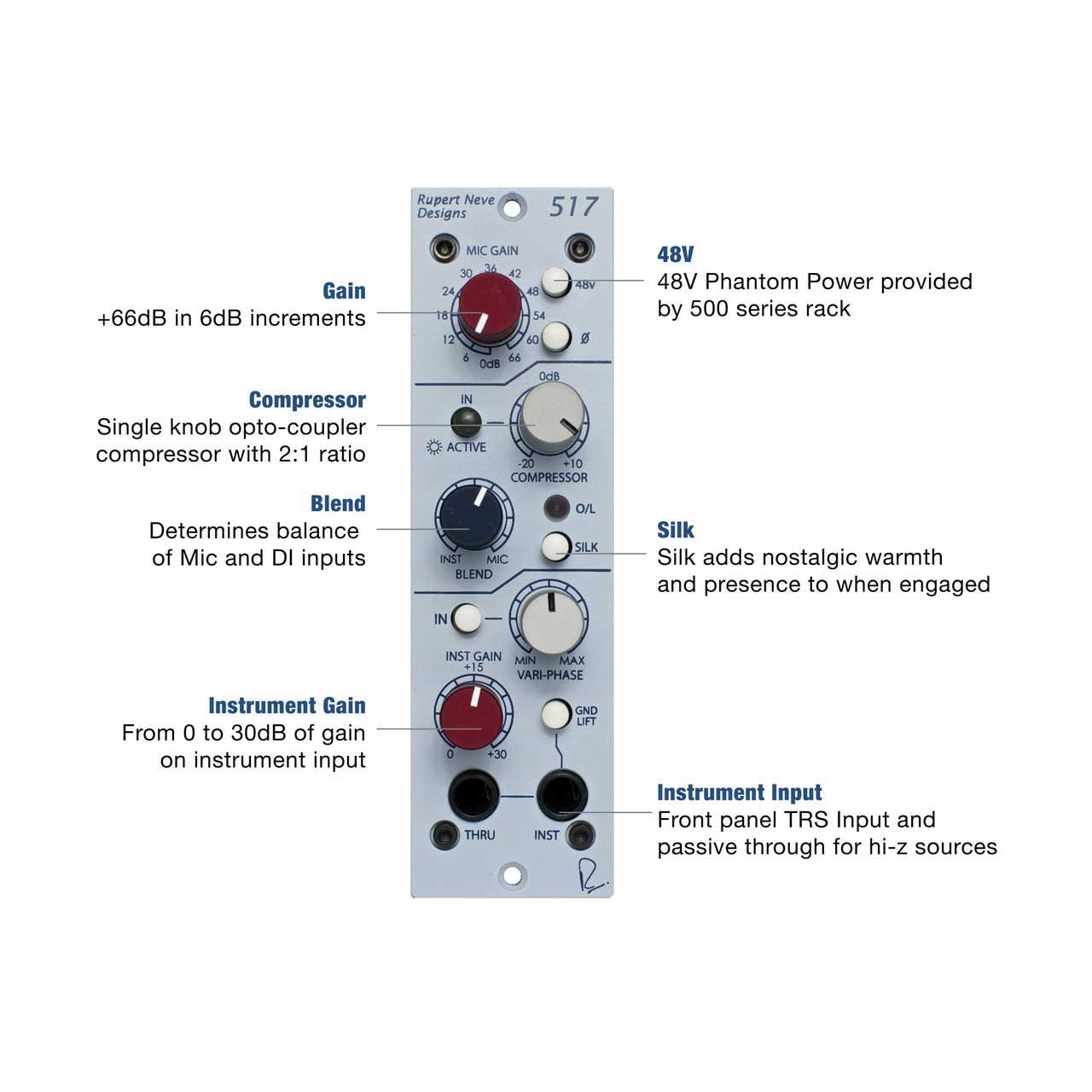

    • Features:

      • Portico mic preamp with Silk for everything from modern to vintage sounds.
      • DI Instrument input with separate gain control to handle any instrument you can throw at it.
      • Blend and Variphase circuits to blend the mic and DI input and correct the phase alignment.
      • Optical compressor for an easy way to control levels.
      • High-pass filter.
      • Classic Rupert Neve sound in a portable easy to use package.

    • Specifications:

      • Gain Range: Continuously variable from 6 dB to +20 dB.
      • Threshold Range: Continuously variable from 36 dB to +22 dB.
      • Ratio Range: Continuously variable from 1.1:1 to Limit (40:1).
      • Attack Range: Continuously variable from 20mS to 75mS
      • Release Range: Continuously variable from 100mS to 2.5 Seconds.
      • FF/FB: Feed-Forward or Feed-Back VCA control.
      • Maximum Output Level: Balanced and Floating Transformer Output, Maximum output from 20 Hz to 40 kHz
        is +23 dBu.
      • Total Harmonic Distortion and Noise: @ 1kHz, +20 dBu output level, no load. Main Output
      • Noise: Measured at Main Output, un-weighted, 22Hz-22kHz, Terminated 40 Ohms.
      • Frequency Response: Main Output, Unity Gain, @ 18 Hz, +/- .1dB, @ 150 kHz -3 dB.
      • Measured Channel to Channel: Better than 90 dB @ 15kHz.

    • Item Includes:

      • 1x 517 Mic Preamp
      • 1x Manual

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      0752423656974
