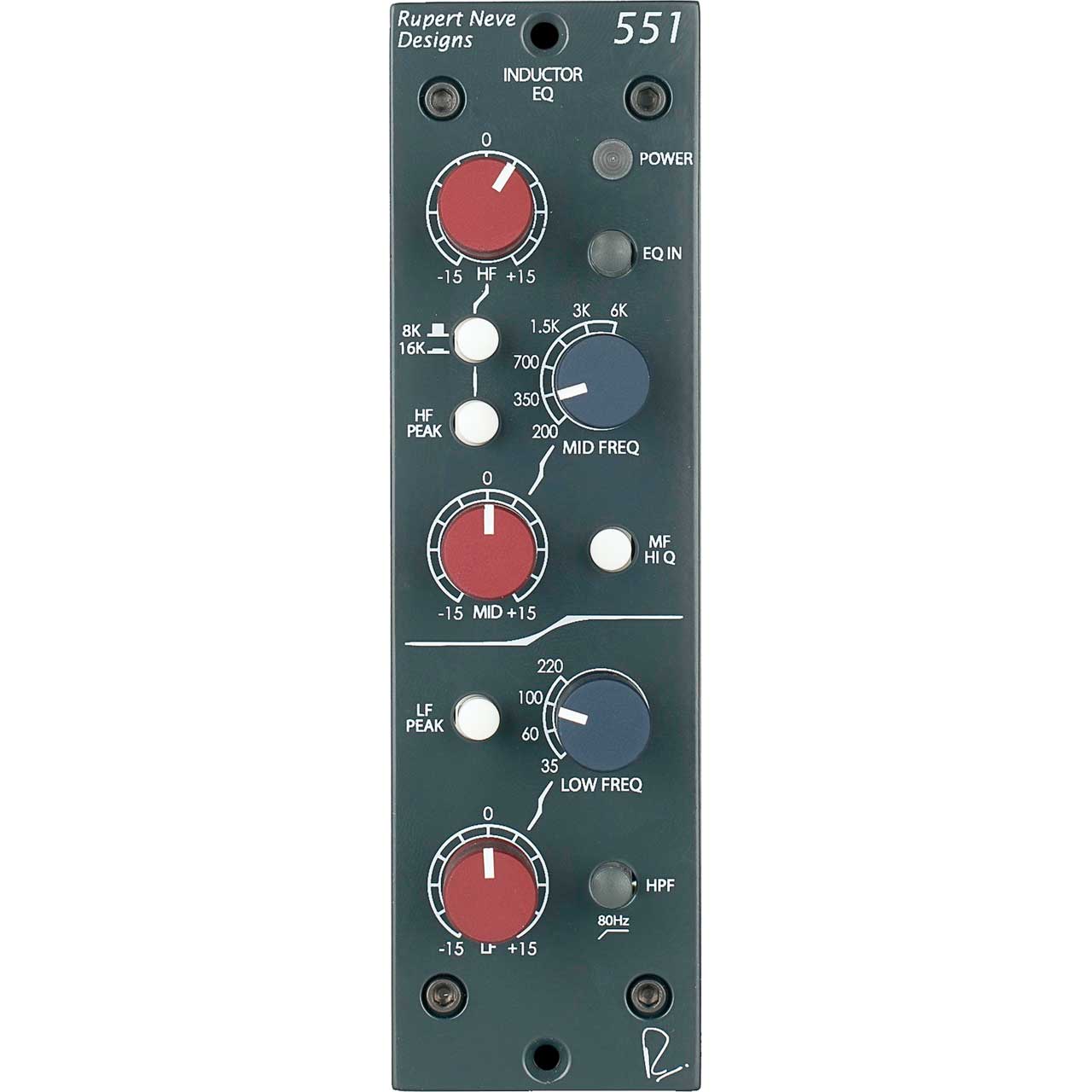

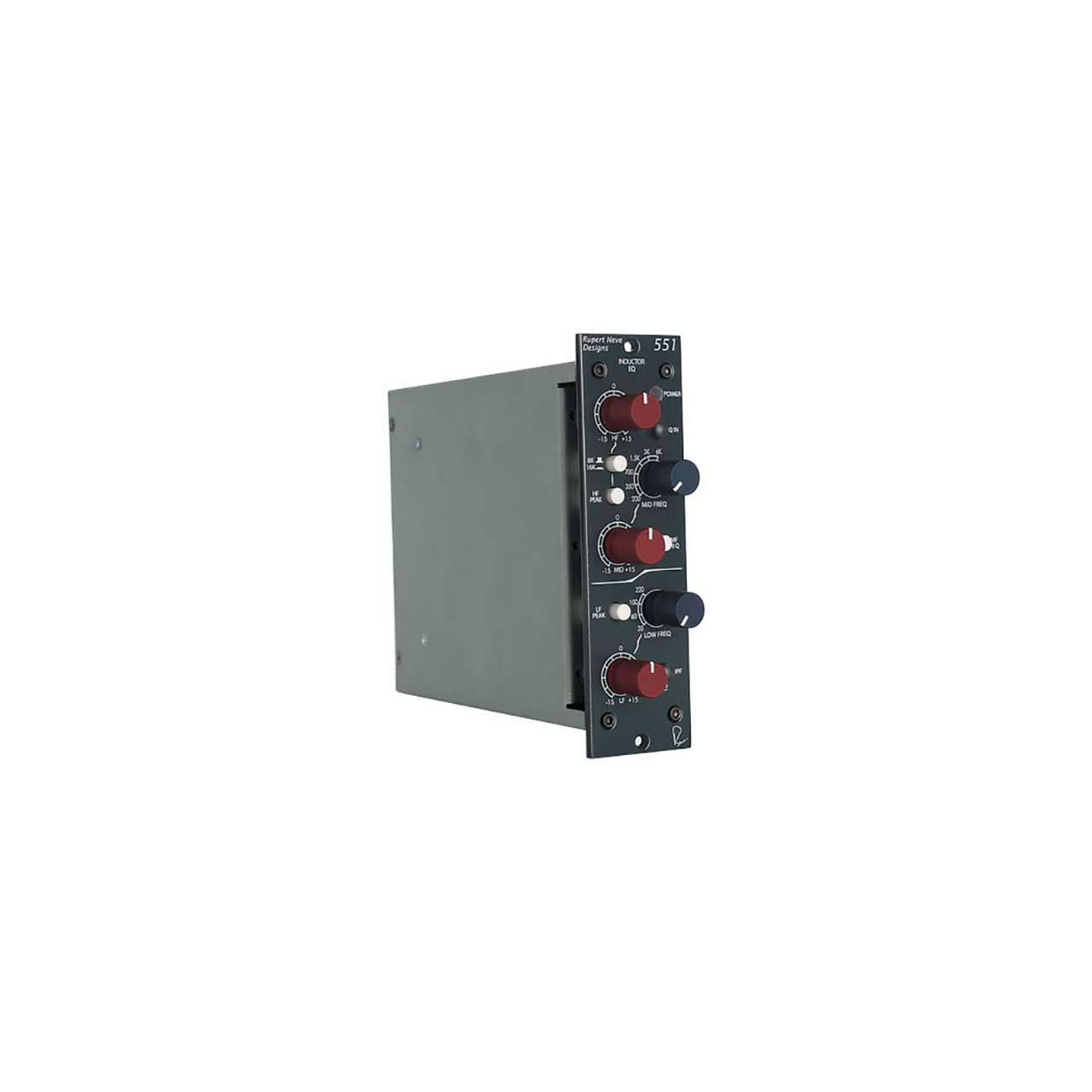

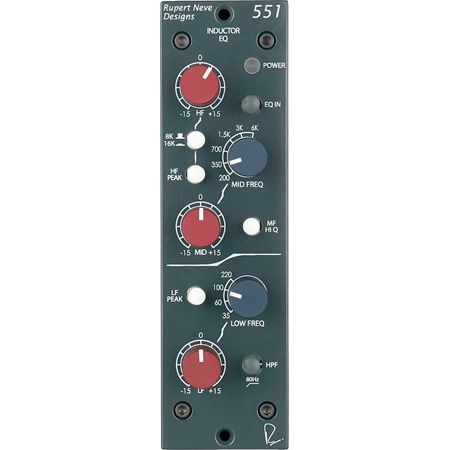

Rupert Neve Designs 551 500 Series Inductor Equalizer

551 - Overview

• Features:

  • "Best-Of"" Rupert Neve EQ.
  • Each band recalls a classic Rupert Neve EQ design.
  • Inductors bring out beautifully musical harmonics.
  • Rupert's custom transformer for enhanced presence and punch.


• Specifications:

  • Equalizer Bypassed
  • Noise: Measured at Main Output, un-weighted, 22Hz-22kHz, source impedance 40 Ohms balanced.
  • Better than -102dBV Frequency Response
  • Main output, no load +/- 0.1dBu from 20Hz to 31.5kHz, -1dB @ 120kHz
  • Maximum Output Level: 23.25dBu
  • Total Harmonic Distortion and Noise: @ 1kHz, +20dBu output level, no load. Better than 0.0025%, @ 20Hz, +20dBu output level, no load.
  • 0.13% Typical (2nd and 3rd harmonic)
  • High Pass Filter: -2.7dB @ 80Hz
  • Slope: 12dB/Octave

    Equalizer Engaged
  • Noise: Measured at Main Output, un-weighted, 22Hz-22kHz, source impedance 40 Ohms balanced.
  • Better than -94dBV Frequency Response
  • Main output, no load +/- 0.25dBu from 20Hz to 45kHz -2dB @ 120kHz
  • Maximum Output Level: 23dBu
  • Total Harmonic Distortion and Noise: @ 1kHz, +20dBu output level, no load. Better than 0.009%
  • @ 20Hz, +20dBu output level, no load. 0.13% Typical (2nd and 3rd harmonic)
  • Power Requirements: 120mA on +16VDC, 110ma on -16VDC


• Item Includes:

  • 1x 551 Inductor EQ
  • 1x Manual


• Warranty:

  • 1 Year Warranty


• GTIN:

  0752423657193
