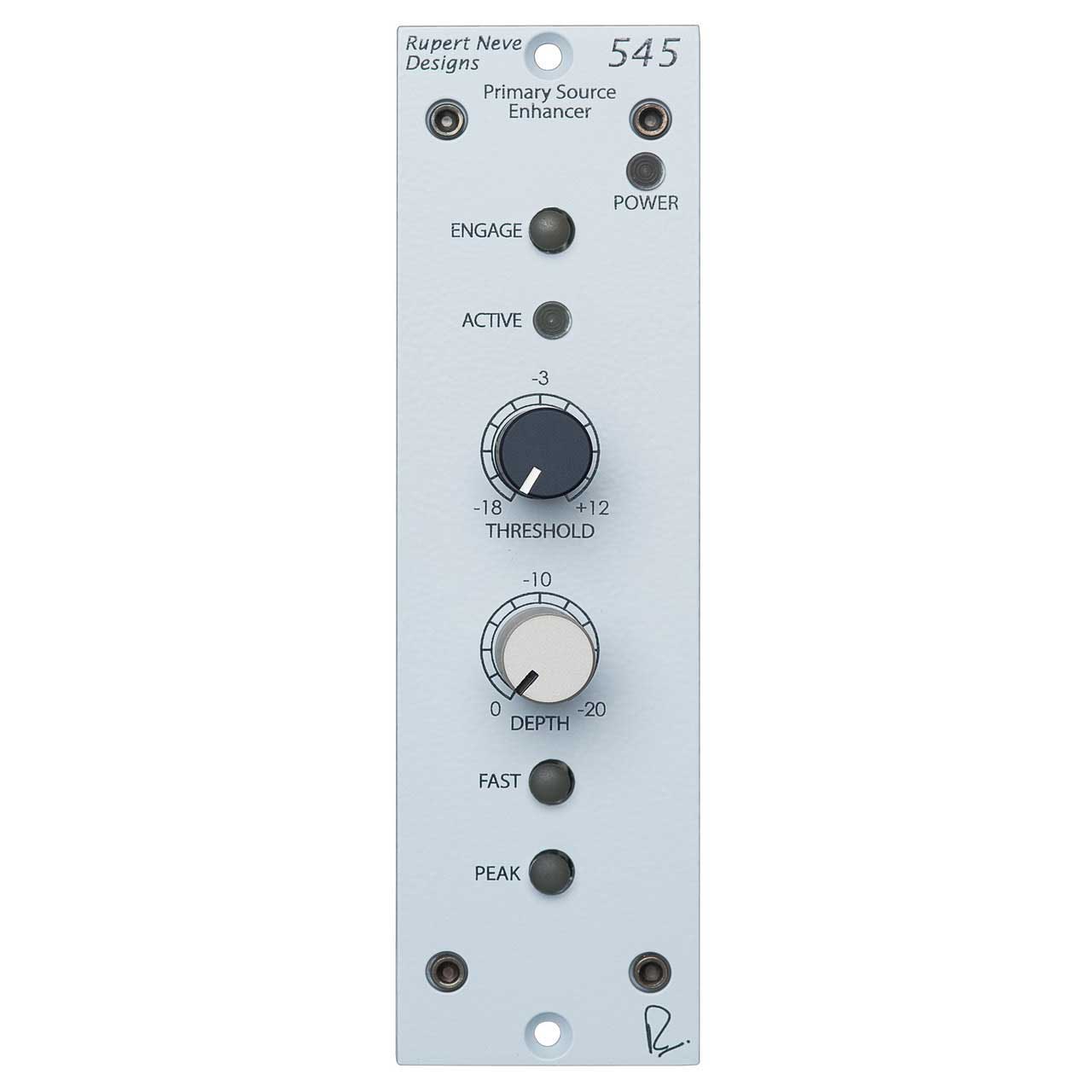

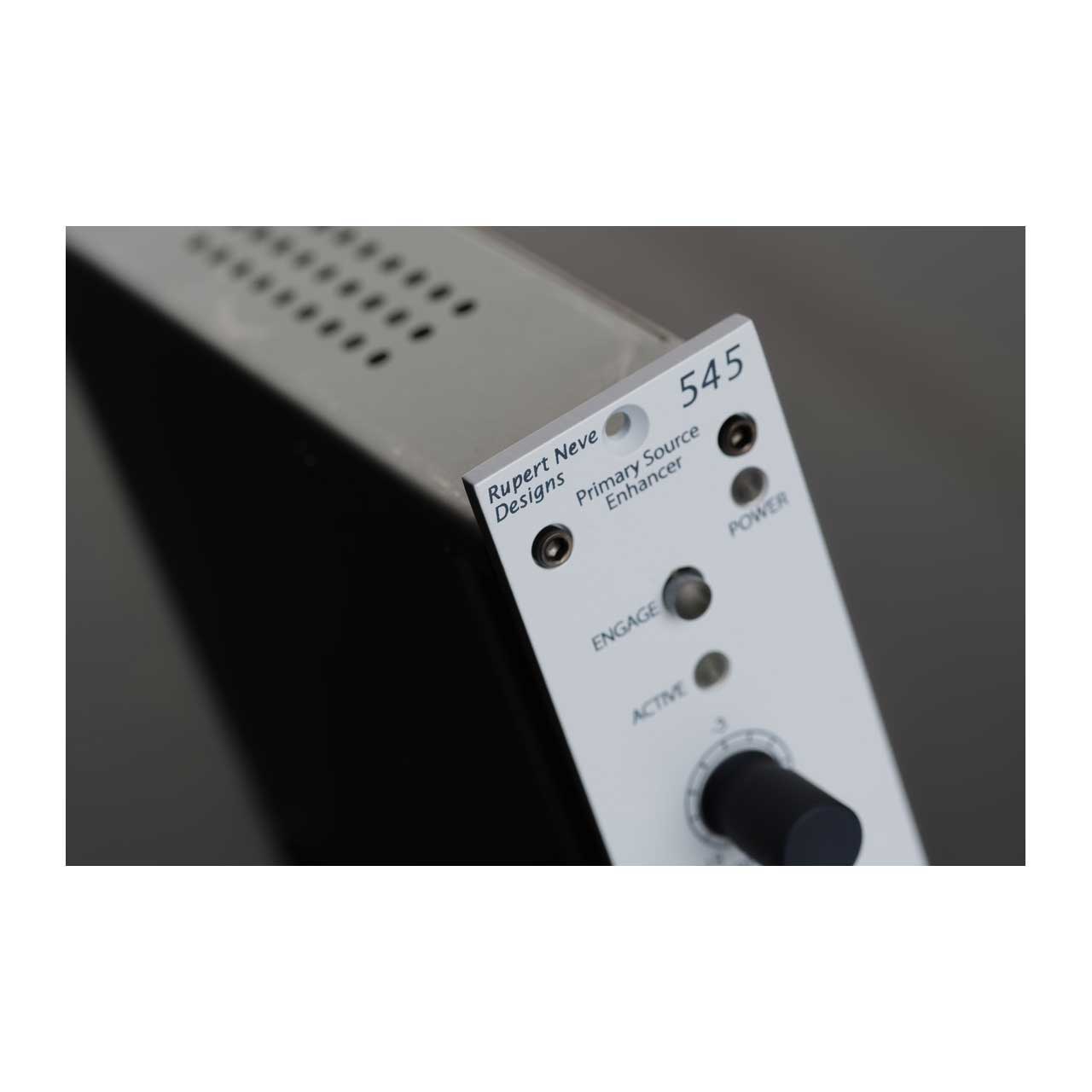

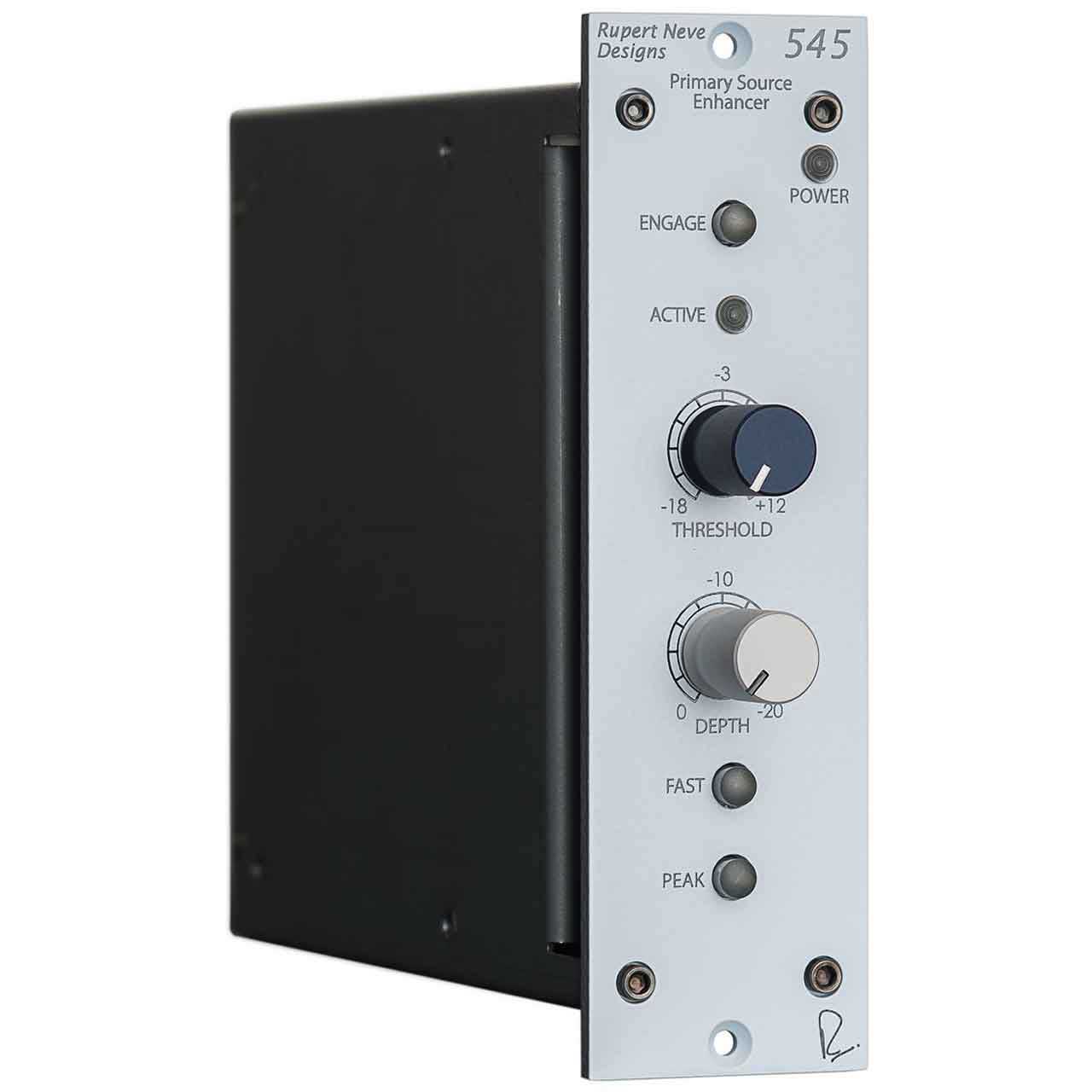

    545 - Overview

    The 545 Primary Source Enhancer is exceptionally useful at reducing feedback without negatively impacting the sonic integrity of the source signal, effectively increasing the level a microphone can be raised before feedback occurs in a live sound environment by up to 20dB. With controls that are very simply laid out and generally require minimal adjustment, the 545 is an invaluable tool for churches, stadiums, performance halls, or any venue where feedback is problematic.

    • Features:

      • Reduces feedback without negatively impacting the sonic integrity of the source signal.
      • Add up to 20dB more gain before feedback.

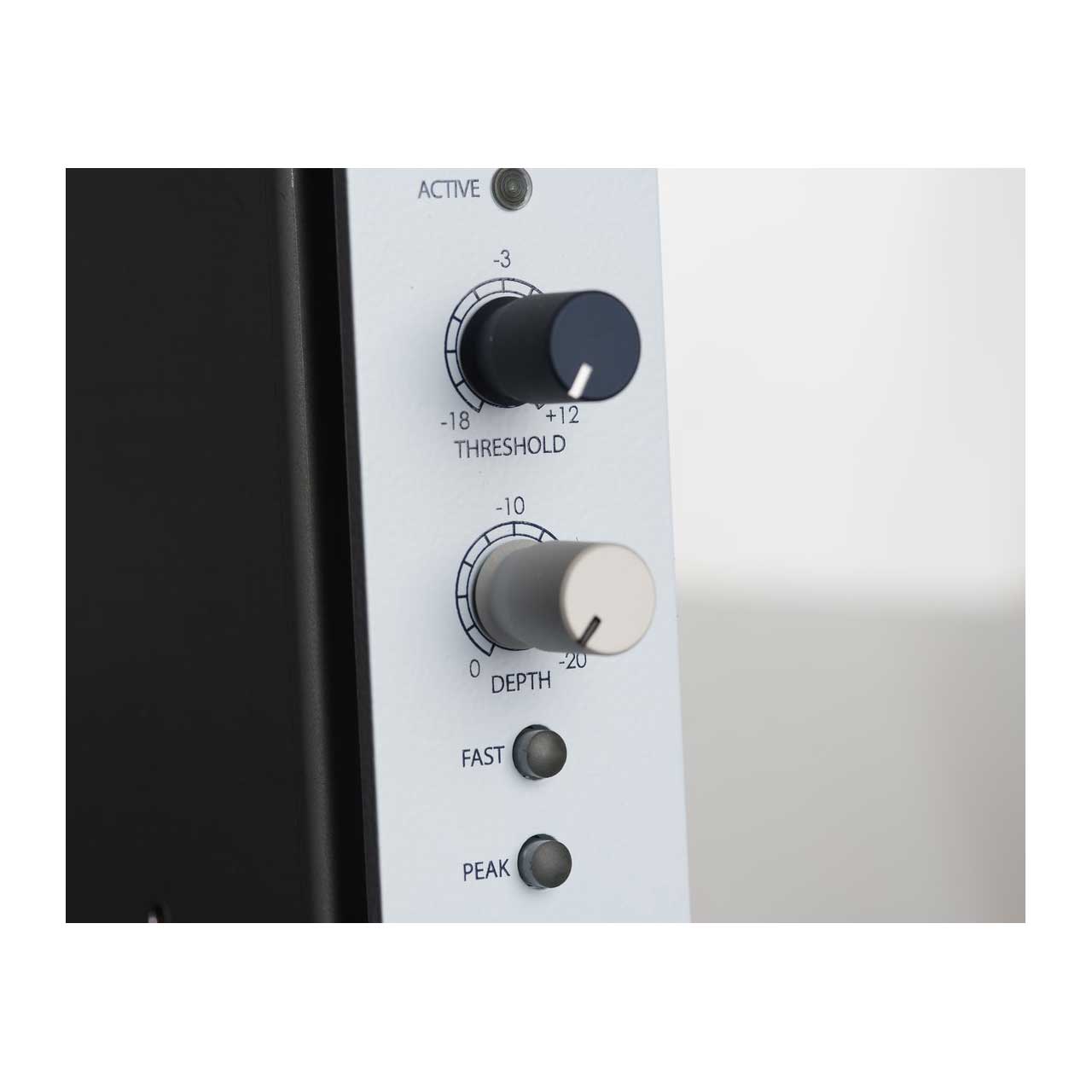

      • Simple controls that can be set and forgotten.
      • All analog design for pristine sound quality.
      • Time Constants
      • RMS Mode
      • Attack and Release
      • Peak Mode

    • Specifications:

      • Maximum Input and Output Level: +24 dBu
      • Total Harmonic Distortion and Noise: 1 kHz, +20 dBu Output Level, no load- Better than 0.001%, 20 Hz, +20 dBu Output Level, no load- 0.1% typical (2nd and 3rd Harmonic)
      • Noise: (Un-weighted, 22 Hz - 22 kHz, 40 ohm balanced source)
      • Primary Source Enhancer Bypassed: Better than -100 dBu
      • Frequency Response (30 ft. Cable on Main Output): 30 Hz to 58 kHz - +/- 0.25 dB, 18.5 Hz - -3dB
      • Threshold: Continuously variable from -18 dBu to +12 dBu
      • Depth: Continuously variable from 0 dB to -20 dB
      • Power Consumption (+/-16 VDC): 80 mA
      • Slow (FAST push-button OUT): 100 mS
      • Fast (FAST push-button IN): 200 mS
      • Attack (fixed): 20 mS
      • Slow (FAST push-button OUT): 1 S
      • Fast (FAST push-button IN): 200 mS

    • Item Includes:

      • 1x 545 Primary Source Enhancer
      • 1x Manual

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      0752423657438
