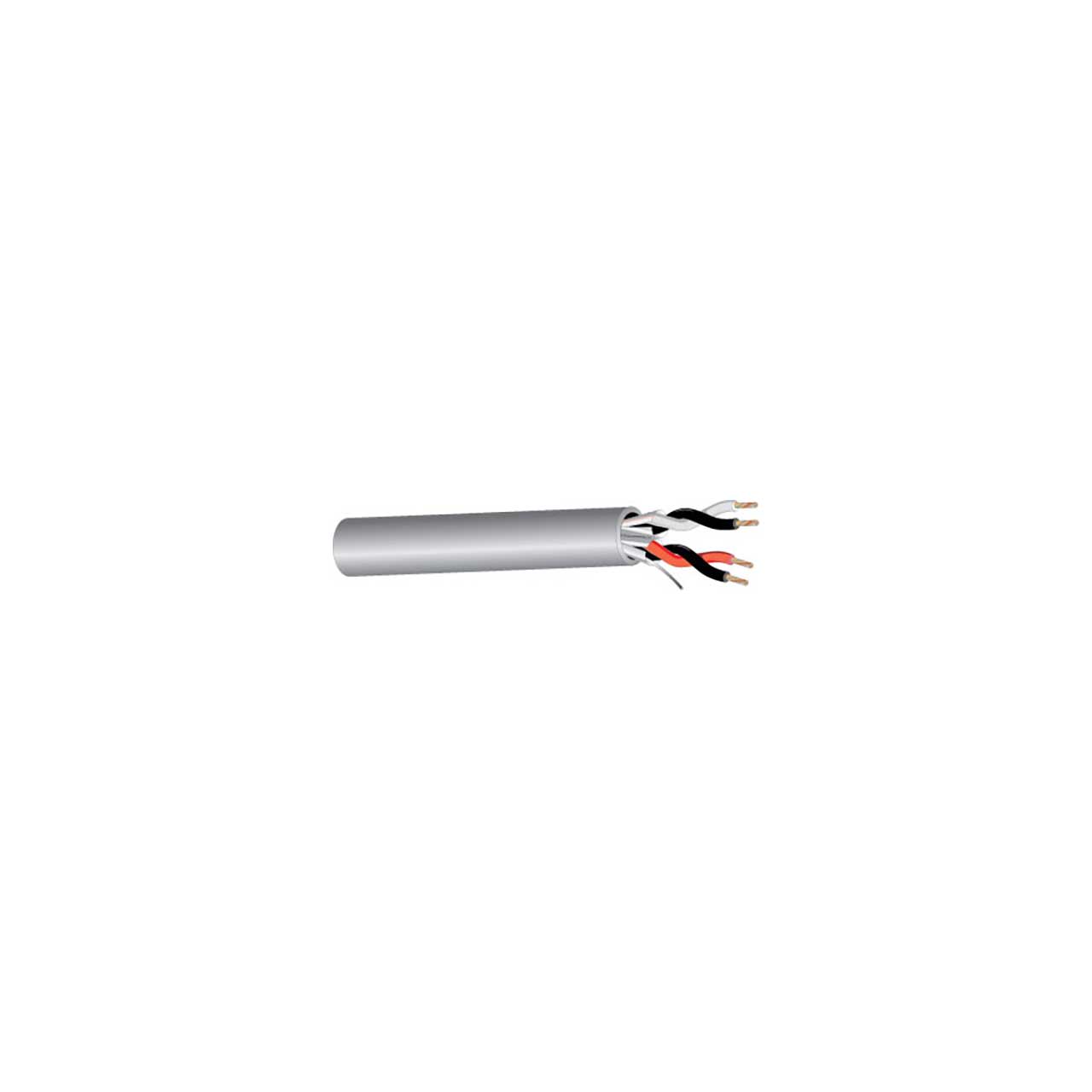

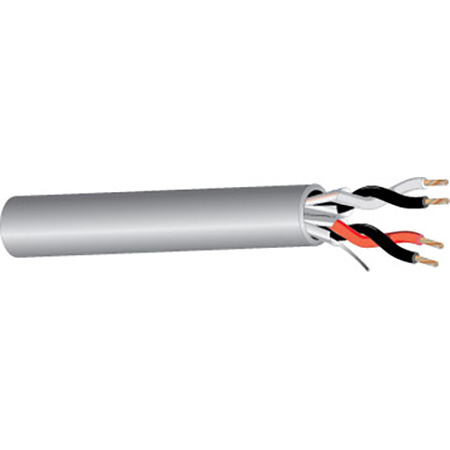

West Penn D430 2-Pair Communication and Control Cable - Grey - 500 Foot

D430GY500 - Overview

• Specifications:

  • Conductor Parameter
  • Number of Pairs: 2
  • AWG Size: 22
  • Conductor Stranding: 7x30
  • Conductor Type: Tinned Copper
  • Nominal DCR: 17 Ohm/1000ft

    Insulation Parameter
  • Insulation Type: Polypropylene - PP
  • Insulation Thickness: 0.006 in
  • Insulation Color Code: 1. Black-Red 2. Black-White

    Shielding Parameter
  • Shield Type: Individually Shielded
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG

    Electrical Characteristics
  • Nom. Cap. Between Conductors: 34 pF/ft
  • Nom. Cap. Conductor to Shield: 67 pF/ft

    Overall Construction Parameters
  • Total Number of Conductors: 4
  • Jacket Type: PVC
  • Jacket Thickness: 0.017 in
  • Nominal Cable O.D.: 0.235 in
  • Plenum: No
  • NEC UL Rating: CM
  • RoHS Compliant: Yes
  • Pull Tension: 55 lbs
  • Bend Radius: 2.115 in
  • Cable Weight: 30 lbs


• GTIN:

  0612825028543
