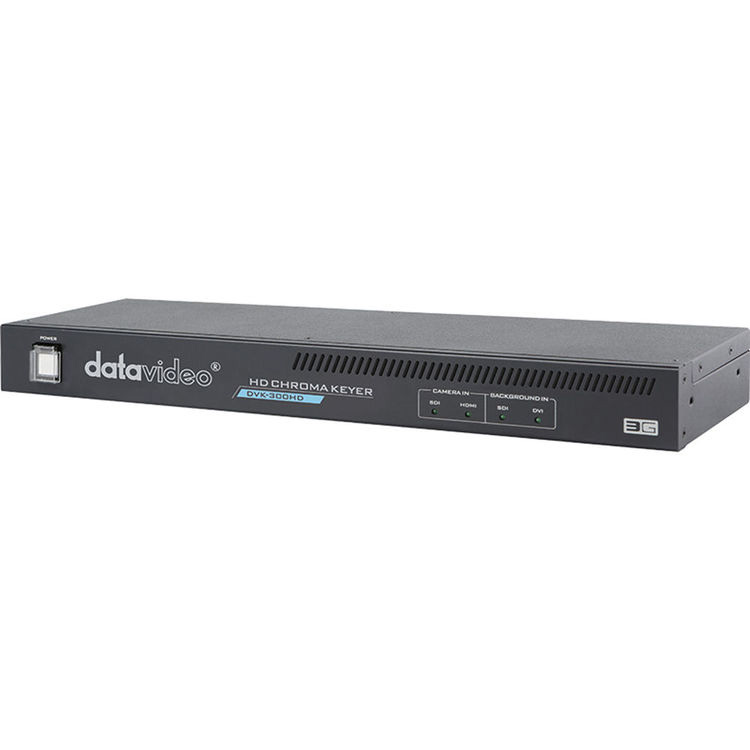

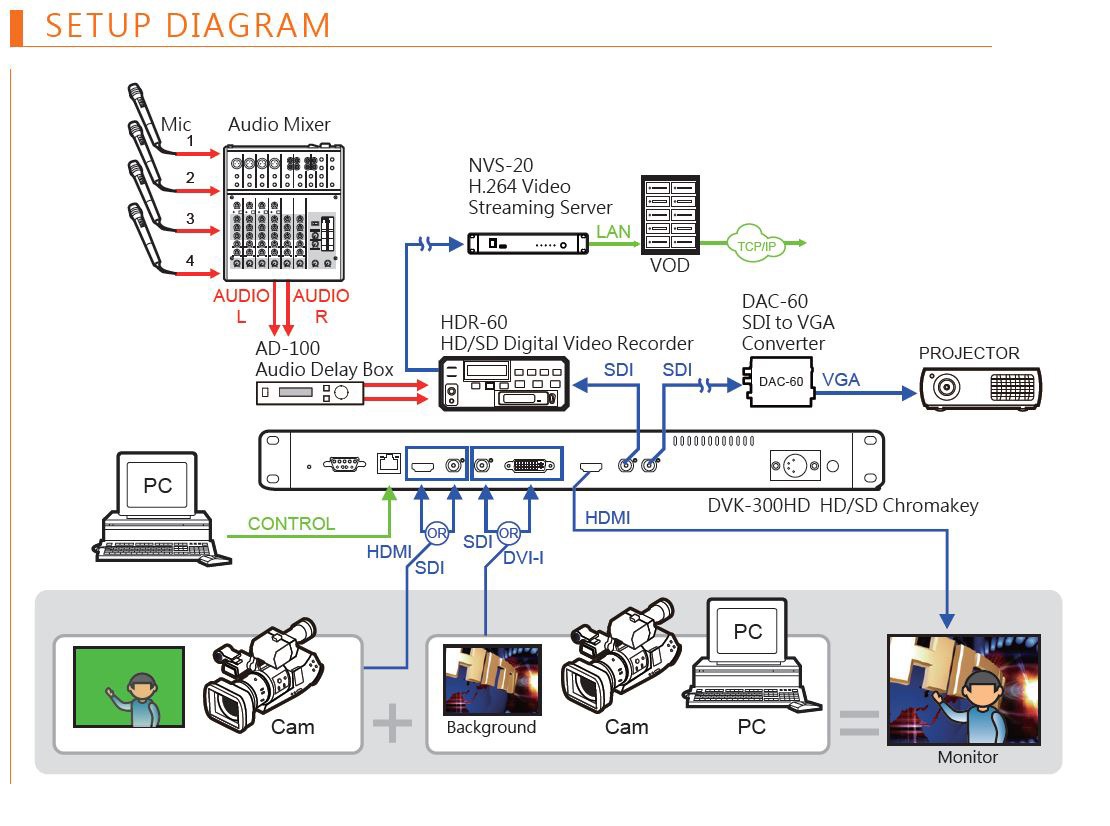

The DVK-300HD Chromakeyer from Datavideo allows you to use your PC to create real time HD or SD Chroma keying using the included DVKey HD Software designed to work with Windows 7, 8 and XP. Shoot your HDMI or SDI video and feed it into the Chromakeyer. Foreground and background are entered separately and can be layered to produce the final images you desire. Post processing features allow you to make changes to the foreground brightness, contrast and color saturation. Final productions can be output to any video output device such as a switcher, recorder, or projector.
DVK-300HD is an advanced HD chromakey device which is easy to operate and delivers excellent results with minimal user input required. The device can be controlled locally using a directly attached laptop or remotely over an IP network. Most HD chroma key systems are either complex computer-based solutions or are embedded in sophisticated vision mixers. For users that simply need accurate and affordable live keying in a portable device, the DVK-300HD is a great new option. Fitting into HDMI and SDI-based live environments, the keyer supports SD and HD resolutions up-to 1080P. High resolution backgrounds are ingested via SDI, HDMI or DVI with the resulting keyed composite picture displayed via HDMI. The Chromakeyer incorporates noise reduction, color spill processing as well as a garbage mask feature that eliminates bad edges. Signal LEDs display the your input format. And, if everything should go wrong, a reset feature restores the unit to its original factory settings. The system operates on 110/220VAC, 50/60 Hz via the included power adapter.
Basics:
Key noise reduction
Color spill processing
Edge brightness control
Post processing - correction of picture parameters (brightness, contrast, saturation) applied on foreground signal after keying process

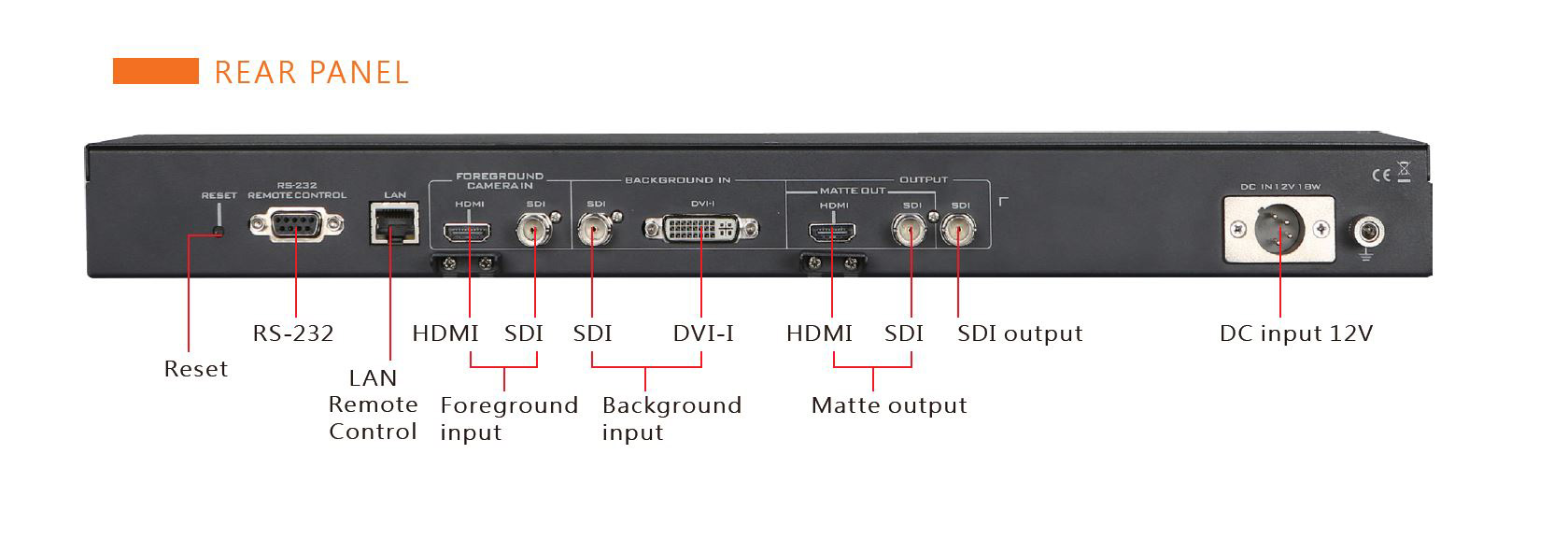

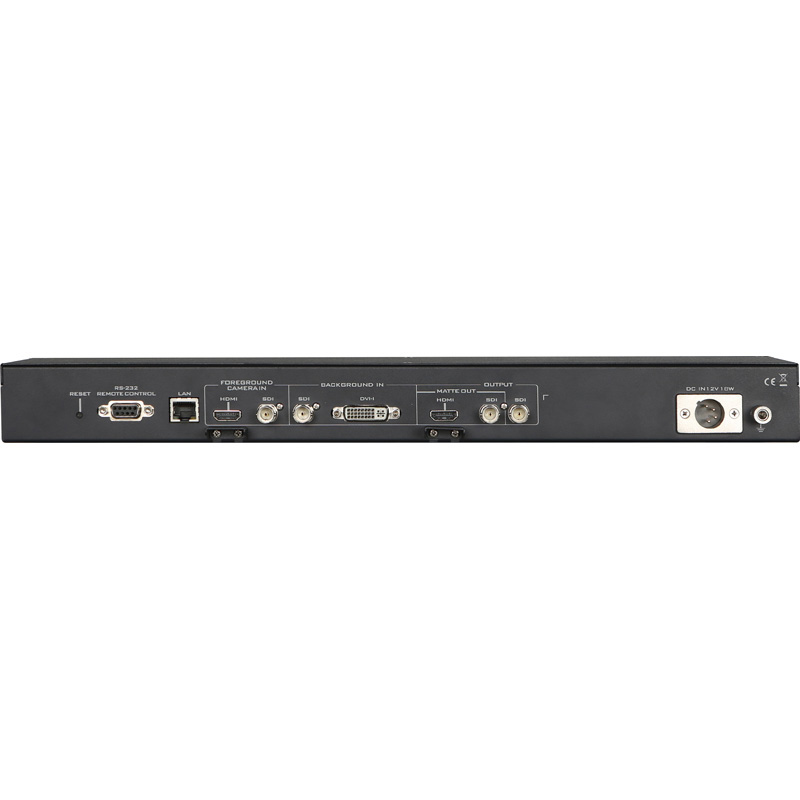

Video inputs (SD, HD, and 3G), Background inputs SDI, DVI-I (HDMI, DVI, VGA)- in case of VGA input the best quality will be available when VGA resolutions will be as close as possible to output resolution, Camera inputs (foreground): SDI, HDMI
Video outputs (SD, HD, and 3G) , Main output 1 (2xSDI) - (foreground + background) or matte view, Main output 2 (HDMI) - (foreground + background) or matte view.
Garbage mask - User can define rectangle area which will be taken as garbage mask for Chromakeying process .

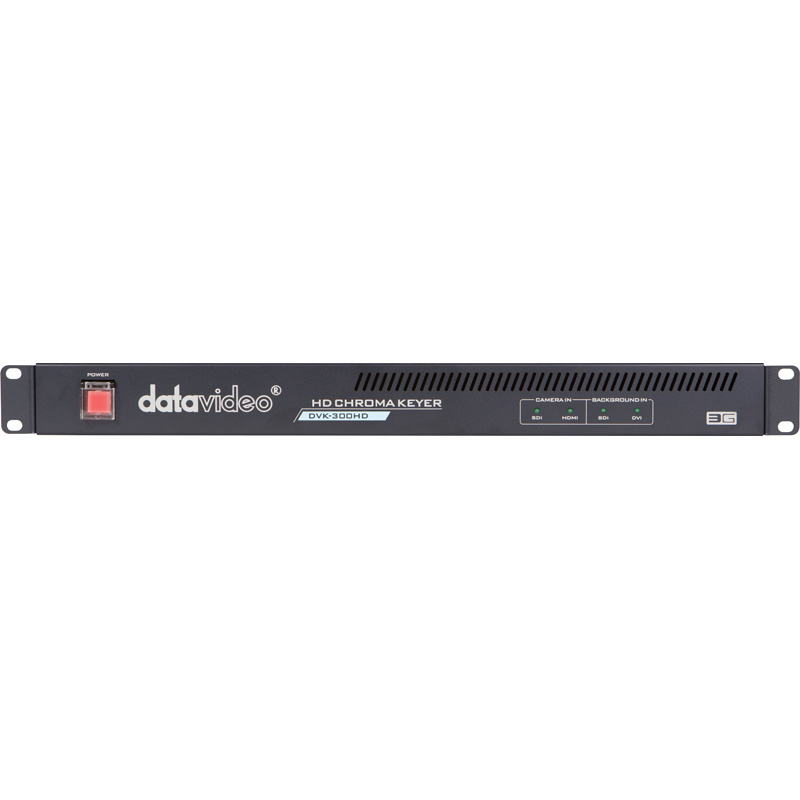

Controls: LAN: DHCP support, in case system receives IP address automatically set 192.168.1.10. User has the possibility to set his own IP address in case there is no DHCP availability so he can work in other network segment. RS 232: remote PC control port that will be functional when future firmware updates are applied. Signal LEDs: Signal detects/ inputs format present. RESET: Reset button will restore factory default.
