Kramer HDCP-OUT2-F16/STANDALONE 2-Channel DVI (HDCP) Output Card for VS-1616 Series Switchers

Name: Kramer HDCP-OUT2-F16/STANDALONE 2-Channel DVI (HDCP) Output Card for VS-1616 Series Switchers
Brand: Kramer
SKU: KR-HDCPOUT2F16ST
Price: 392.00 USD
Availability: PreSale

ITEM #: KR-HDCPOUT2F16ST MFG #: HDCP-OUT2-F16/STANDALONE

Kramer

List Price:

$490.00

Our Price:

$392.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HDCP-OUT2-F16/STANDALONE - Overview

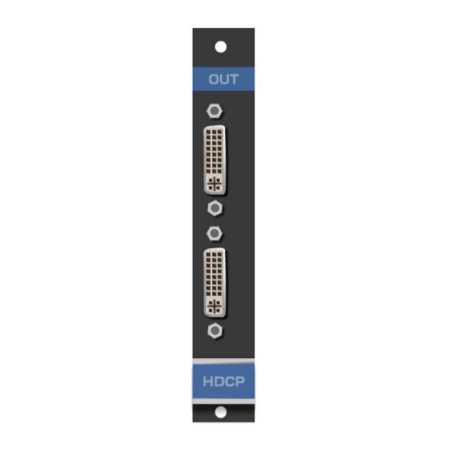

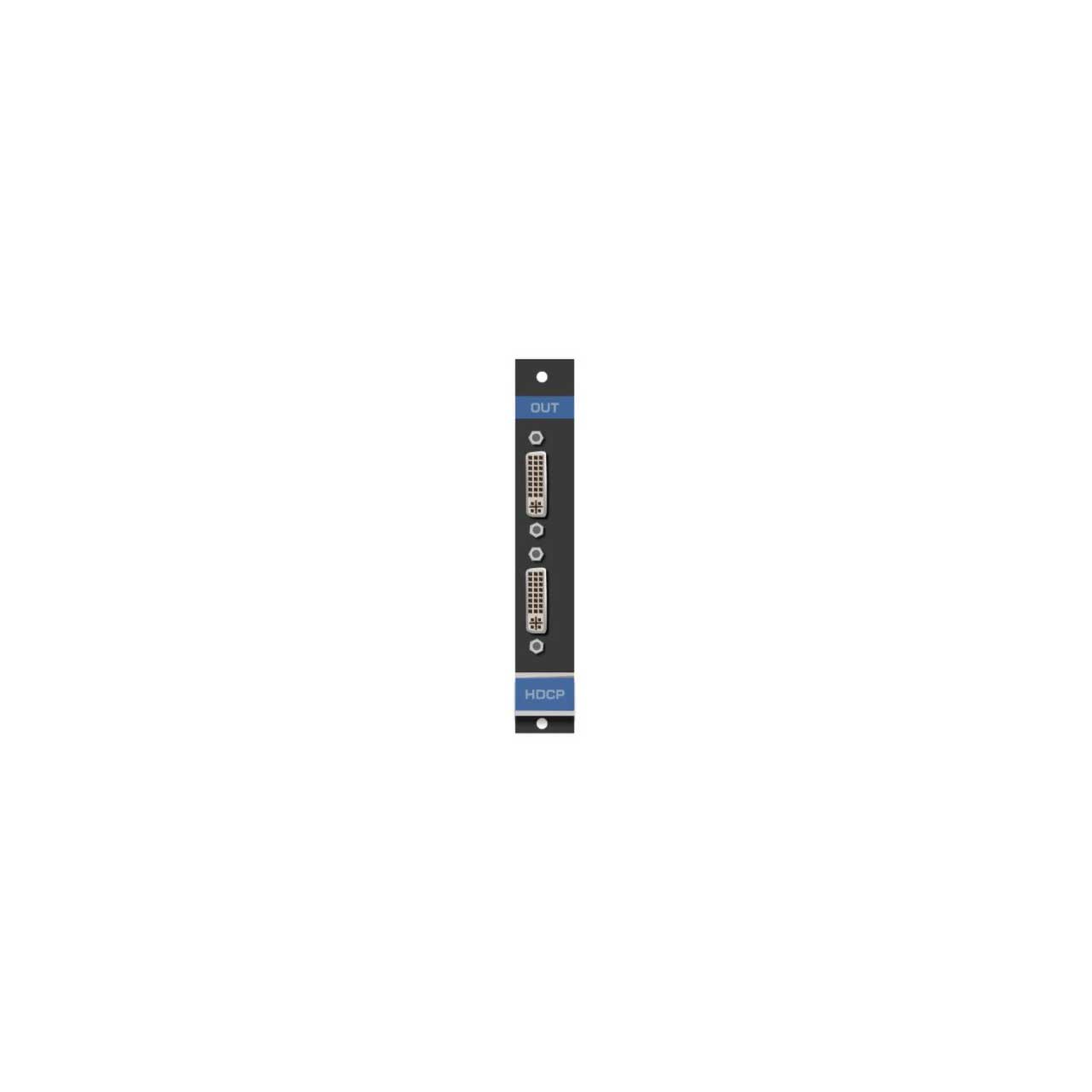

2-Channel DVI (HDCP) Output Card

The Kramer HDCP-OUT2-F16 is a two-channel HDMI over DVI (HDCP) output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The HDCP-OUT2-F16 outputs two HDMI/HDCP signals from the chassis.

Perfect for:
Conference rooms
Rental and staging

Features:
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDCP Compliant.
- HDMI Support.
- 3D Pass-Through.
- DVI Connectors.
Specifications:
- PORTS
- 2 DVI-D on DVI Molex 24-pin (F) connectors
- BANDWIDTH PER CHANNEL
- 2.25Gbps
- TOTAL BANDWIDTH
- 6.75Gbps
- 3D PASS THROUGH
- Supported
- POWER CONSUMPTION
- 5W
- OPERATING TEMPERATURE
- 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE
- -40° to +70°C (-40° to 158°F)
- HUMIDITY
- 10% to 90%, RHL non-condensing
- STANDARD COMPLIANCE
- HDCP, HDMI
- SAFETY REGULATORY COMPLIANCE
- CE, FCC
- ENVIRONMENTAL REGULATORY COMPLIANCE
- Complies with appropriate requirements of RoHs and WEEE
Item Includes:
- HDCP-OUT2-F16/STANDALONE 2-Channel DVI (HDCP) Output Card
Warranty:
- Limited 7 Year Warranty
GTIN:
7291063003753
