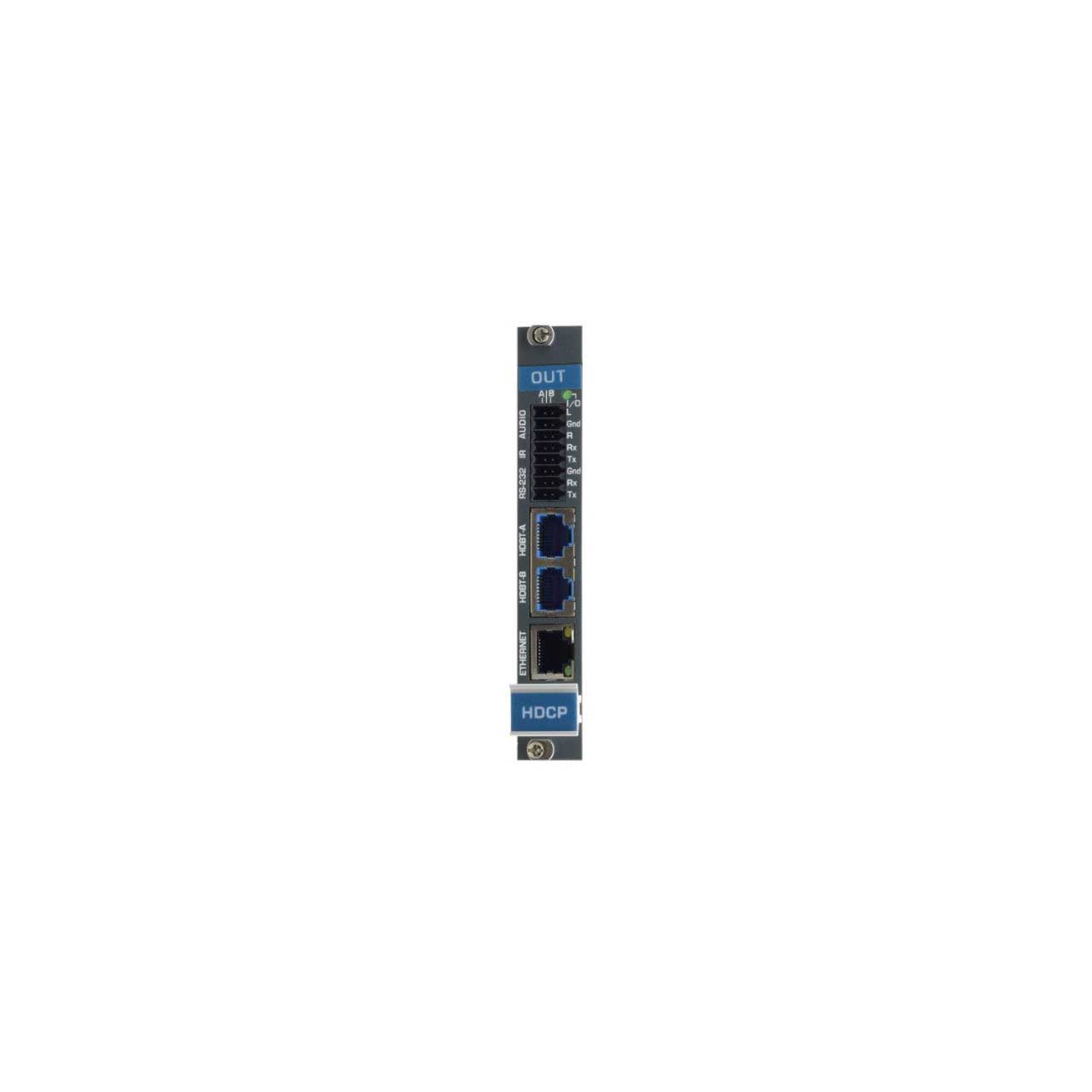

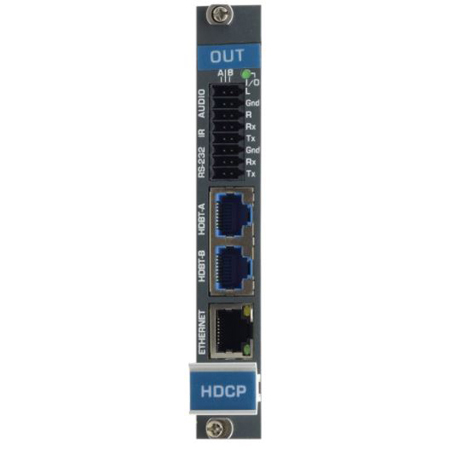

Kramer DTAxr-OUT2-F16 2-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card w/Selectable Audio for VS-1616

ITEM #: KR-DTAXR-OUT2F16 MFG #: DTAXR-OUT2-F16

Primary Image
Kramer
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,275.00

Our Price:

$1,820.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DTAXR-OUT2-F16 - Overview

HDBaseT Technology - HDTV compatible, HDCP compliant

Kramer DTAxr-OUT2-F16 is a two-channel HDMI, analog audio, bidirectional RS-232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers(sold separately). The DTAxr-OUT2-F16 outputs two extended reach HDBaseT signals with selectable embedded/de-embedded analog audio, bidirectional RS-232, IR, and Ethernet from the chassis to the line and works with the DTAXR-IN2-F16 Input card (sold separately).

Perfect for:
Professional display systems requiring video signal routing
Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
Rental and staging

  • Features:

    • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
    • Max. Resolution - 4K@60Hz (4:2:0).
    • Analog Audio Embedding/De-embedding - On the same jack
    • HDBaseT Technology - HDTV compatible, HDCP compliant.
    • System Range - Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
    • Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
    • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
    • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
    • 3D Pass-Through.


  • Specifications:

    • OUTPUTS
    • 2 HDBaseT TP on RJ-45 connectors
    • 2 Unbalanced audio on a 16 pin terminal block

    • PORTS
    • 2 RS-232 and 2 IR on a 10 pin terminal block for bidirectional RS-232 and IR extension
    • 1 Ethernet on an RJ-45 connector for bidirectional Ethernet extension

    • BANDWIDTH PER CHANNEL
    • Video: 3.4Gbps
    • Serial Data: 115200

    • TOTAL BANDWIDTH
    • Video: 10.2Gbps
    • Serial Data: 115200

    • MAXIMUM RANGE
    • Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp)
    • Note: When using Kramer HDBaseT cables

    • 3D PASS THROUGH
    • Supported

    • EXTENDED ETHERNET
    • Up to 100Mbps extended line rate bandwidth

    • EXTENDED RS-232
    • 300 to 115200 baud rate

    • POWER CONSUMPTION
    • 13W

    • OPERATING TEMPERATURE
    • 0° to +40°C (32° to 104°F)

    • STORAGE TEMPERATURE
    • -40° to +70°C (-40° to 158°F)

    • HUMIDITY
    • 10% to 90%, RHL non-condensing

    • STANDARD COMPLIANCE
    • HDCP 1.4, HDMI 1.3a, HDBaseT

    • SAFETY REGULATORY COMPLIANCE
    • CE

    • ENVIRONMENTAL REGULATORY COMPLIANCE
    • Complies with appropriate requirements of RoHs and WEEE


  • Item Includes:

    • DTAxr-OUT2-F16 2-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063084332
