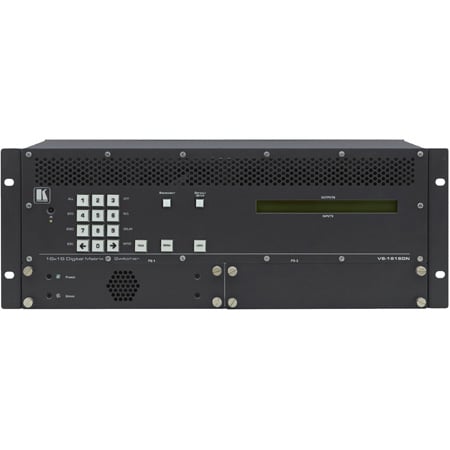

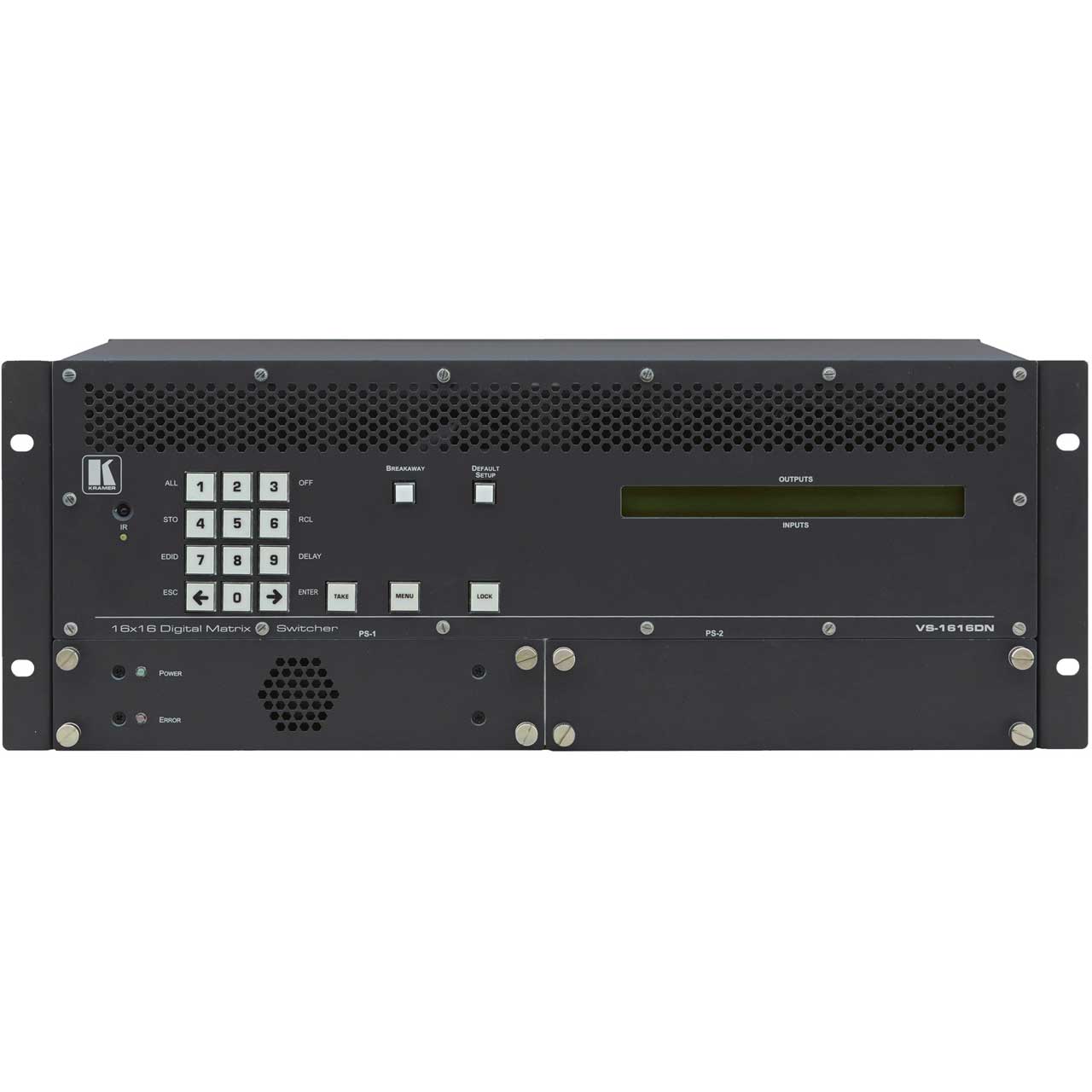

Kramer VS-1616DN-EM 2x2 to 16x16 Modular 4K60 4:2:0 Multi-Format Managed Digital Matrix Switcher

VS-1616DN-EM - Overview

HDTV Compatible & HDCP Compliant

• Features:

  • HDTV Compatible.
  • HDCP Compliant - With DVI (HDCP), HDMI, F670, HDBaseT, HDMI with audio and DGKat modules.
  • HDMI Support.
  • Cables - For optimum range and performance, use recommended Kramer cables.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Optional Fast Switching Support - For fraction of a second switching.

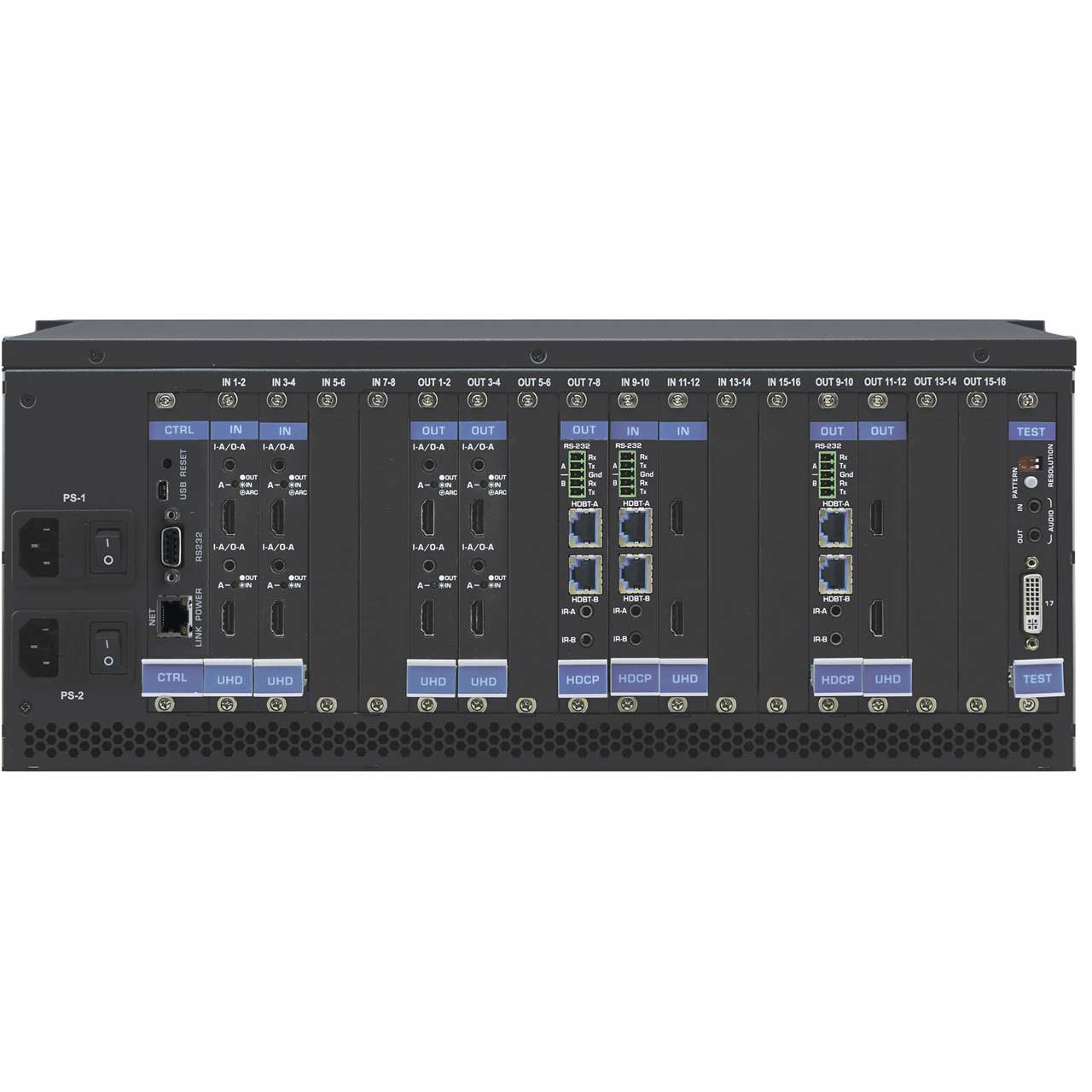

  • Modular & Easily Configurable Platform - Input or output module types can be mixed and added in increments of 2 from 2x2 up to 16x16.
  • Protocol 3000 Support.
  • Flexible Configuration - To disable HDCP support and convert between HDMI and DVI.
  • Default EDID - For each input.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Take Button - Executes multiple switches all at once.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed as needed.
  • Test Pattern Module - With 4 output resolutions for troubleshooting video problems and additional monitor port with audio embedding and de-embedding.
  • Front Panel Lockout.
  • Second Power Supply - Redundant, hot-swappable (optional).
  • Modular Cooling System - 2 easily replaceable, low-noise, hot-swappable fan racks.
  • Flexible Control Options - Front panel, IR remote (available upon request) , RS-232, Ethernet, mini USB port for communicating with unit and FW upgrade, in/out audio jacks for unit testing, and reset button for convenient unit reset (for future use).
  • Worldwide Power Supply - 100-240V AC.


• Specifications:

  • INPUTS
  • 2 to 16 (in increments of 2) of various inputs (cards sold separately)

    OUTPUTS
  • 2 to 16 (in increments of 2) of various outputs (cards sold separately)

    MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel) depending on the cards used (cards sold spearately)


  • MAX RESOLUTION
  • 4K@60Hz (4:2:0)


  • CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)


  • SWITCHING
  • Confirm or At Once for immediate switching

    OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • POWER CONSUMPTION
  • 100-240V AC, 50/60Hz, 135VA


• Item Includes:

  • VS-1616DN-EM Matrix Switcher
  • Power Cord (1)
  • Rack Ears (1 set)
  • Infrared remote control transmitter with batteries (1)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063085995
