Datavideo TC-200 HD/SD Character Generator Kit

ITEM #: DV-TC-200 MFG #: TC-200

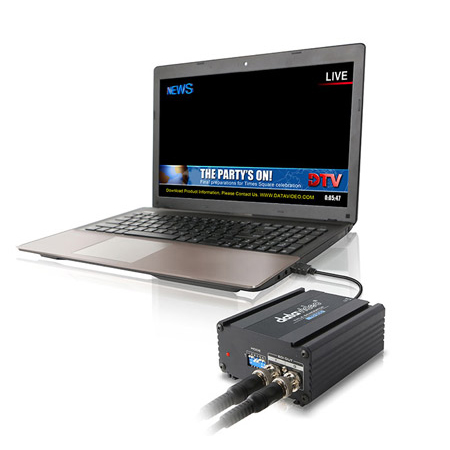

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DV-TC-200

TC-200 - Overview

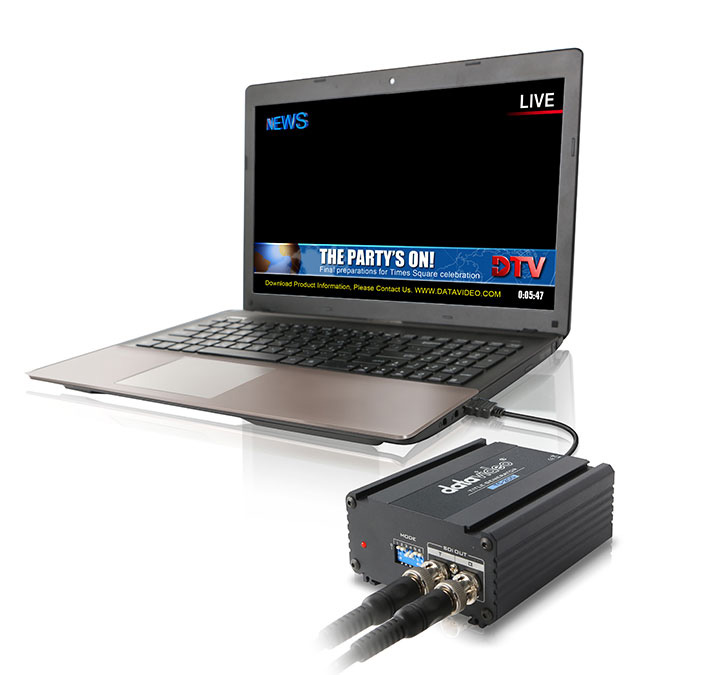

The TC-200 works as a DSK and offers Key and Fill signals to your HD switcher (720p or 1080i). Connected to your laptop via an HDMI cable, either the CG-200 starter software or the CG-300/350 full-featured software may be used. The TC-200 is packaged in the same rugged aluminum extrusion housing used for our DAC Converters. It can go anywhere your laptop goes.

Laptop not included.

  • Features:

    • DSK and Overlay: The TC-200 box supports both DSK and Key & Fill functions.
    • Simple HDMI Connection: Connect the TC-200 to your laptop via one HDMI cable.
    • 12V Supply Included: TC-200 comes with the 12V power supply needed to power itself.
    • True 1080i Output Required: TC-200 requires a Laptop/Notebook computer with a true 1920x1080i output via an HDMI or Display port.
    • MB-4 Compatible: The TC-200 box is compatible with the MB-4 battery adapter, allowing it to function with a battery instead of the supplied power adapter and cable.


  • Specifications:

    • Recommended PC Specs.
    • OS: Windows XP or Windows 7
    • CPU: 3 GHz Processor
    • RAM: 2GB
    • Monitor: Must support 1920x1080 resolution

    • TC-200 Box Specifications
    • Video Inputs: 1x HDMI (from pc), 1x HD/SD-SDI (for overlay)
    • Video Outputs: 2x HD/SD-SDI (for key/fill or dsk with overlay)


  • GTIN:

    0672255004357
