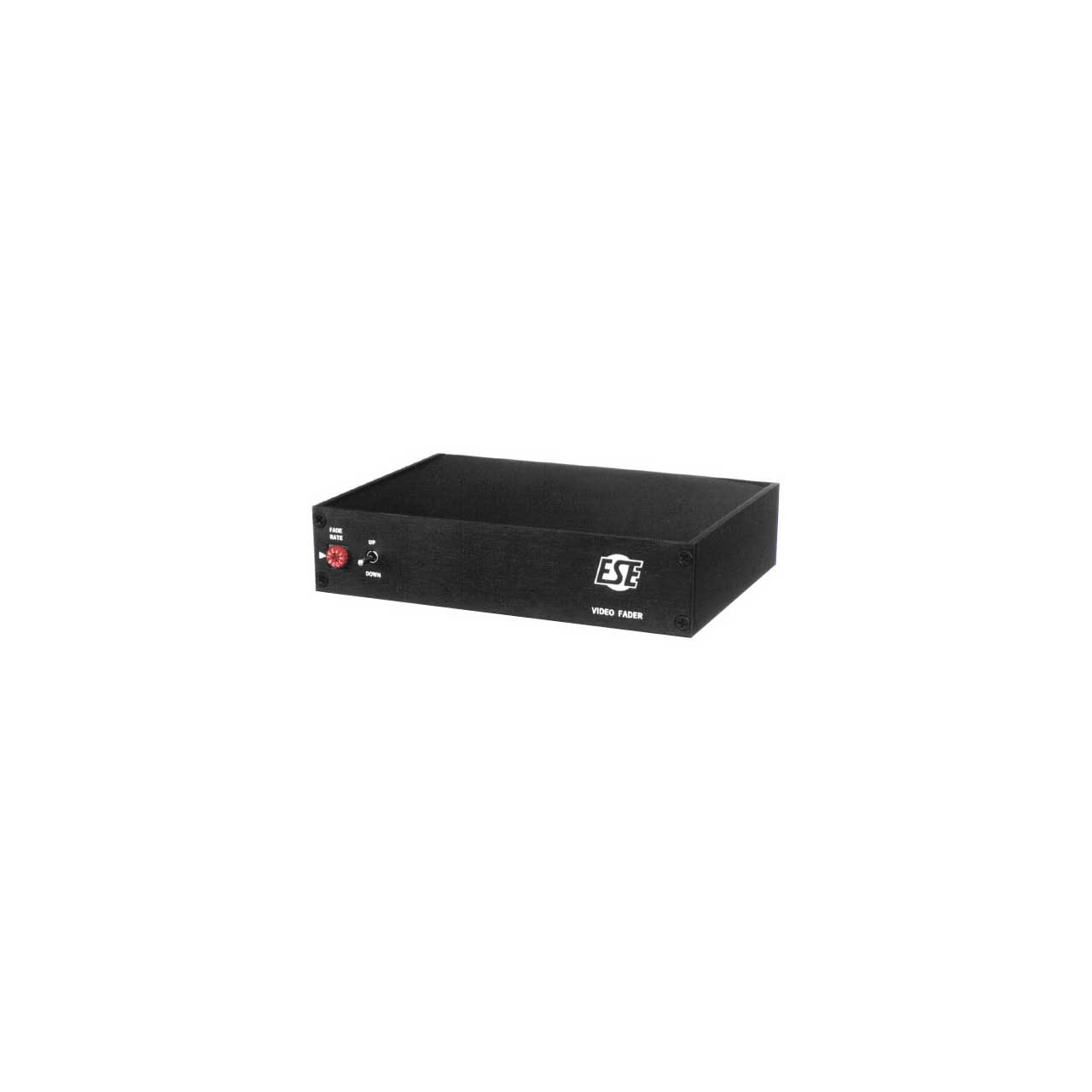

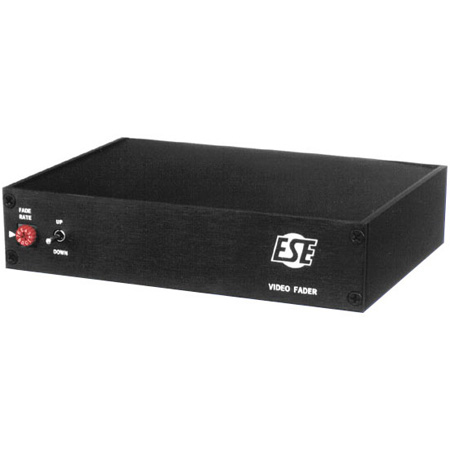

The ES-233 is an automatic video fade-to-black system. The unit uses a digital attenuator which provides an extremely linear, repeatable fade rate. Fade rates are adjustable between 1 frame and 150 frames via a front panel mounted, ten position selector switch or with Option "D". The video-fade operation is controlled by either the front panel "UP/DOWN" switch or via the remote control inputs of the rear mounted connector.
Applications Include:
"Live" Video Fades
Video Editing Systems
"Cuts-only" Systems
Duplication Systems
Options Available (not included):
D Remote Control: This option consists of a connector wired to switches on a control plate via a six-foot cable. Extra cable available.
J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
P 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
P2 Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
