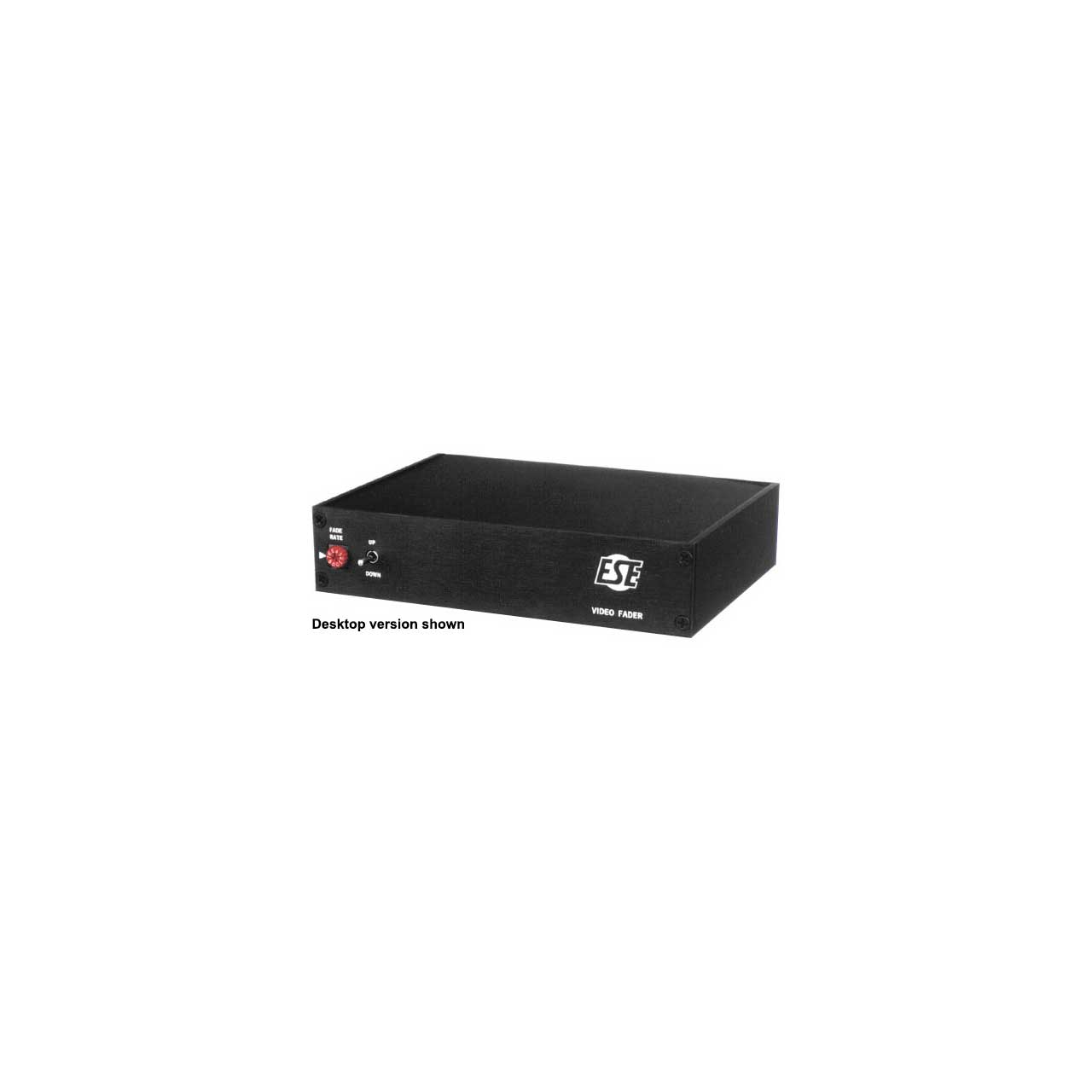

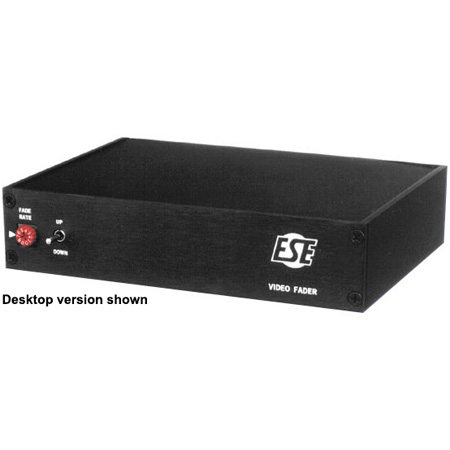

ESE ES-233 Automatic Video Fade-to-Black System with Option P - 19 inch Front Panel Rack Mount

ITEM #: ES 233P MFG #: ES 233P

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$450.00

Our Price:

$427.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 233P - Overview

Video Fader with 19inch Rack Mount

The ES-233 is an automatic video fade-to-black system. The unit uses a digital attenuator which provides an extremely linear, repeatable fade rate. Fade rates are adjustable between 1 frame and 150 frames via a front panel mounted, ten position selector switch or with Option "D" . The video-fade operation is controlled by either the front panel "UP/DOWN" switch or via the remote control inputs of the rear mounted connector.

Option included:
P 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.

  • Features:

    • NTSC Composite Video fade-to-black system
    • Digitally controlled attenuator provides extremely linear fade
    • Fade rates adjustable in 10 steps from 1 to 150 frames via front switch
    • Remote control optional
    • Optional Single or Dual (side by side) Rackmount
    • 220V & UL options available

  • Specifications:

    • Input/Output: 1 Vpp, 75 Ohm
    • Fade Rate: 1 Frame - 5 seconds
    • Electrical : 117 VAC, 50/60 Hz
    • Mechanical: 7" W x 1.6" H x 5" D
    • Options: P
