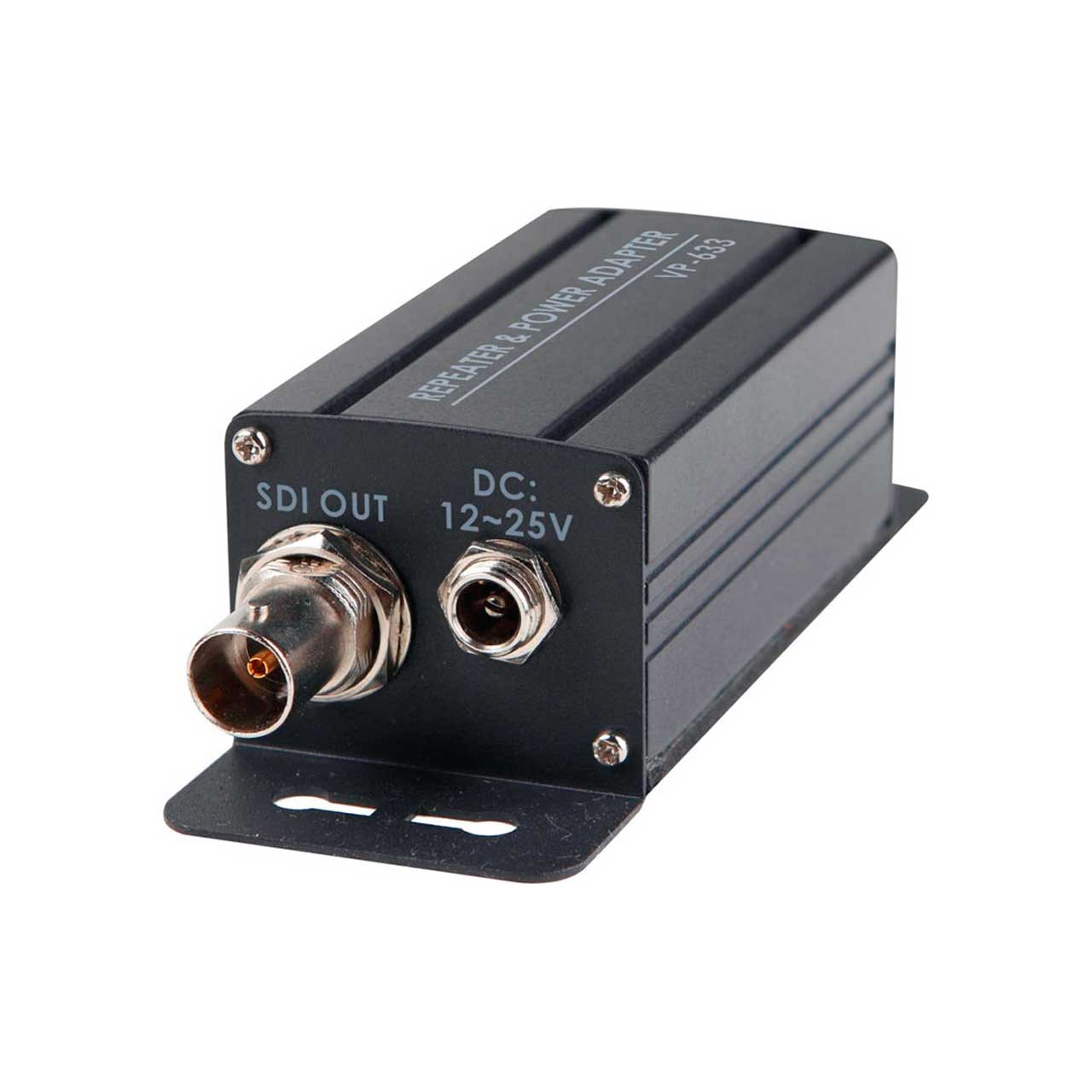

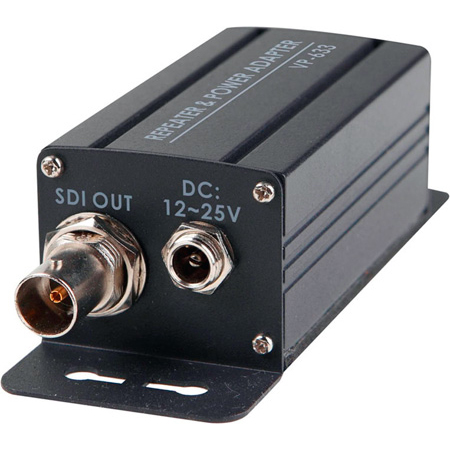

How far is too far with HD-SDI cable? Further than you'd think. Datavideo HD-SDI Repeaters/Cable Extenders make copper a cost effective solution up to at least 600 meters. For less money than fiber, you can join 100m sections of high quality 1.5Gb/s or 3.0Gb/s cable with Datavideo HD-SDI repeaters. Sports shoots - forget about fragile cable! One Day shoots - when you're done, those 100m sections can be rented again or used on other jobs. Datavideo HD-SDI Repeater/Cable Extenders are rugged little gadgets that belong in the kit of anyone who uses video cables.

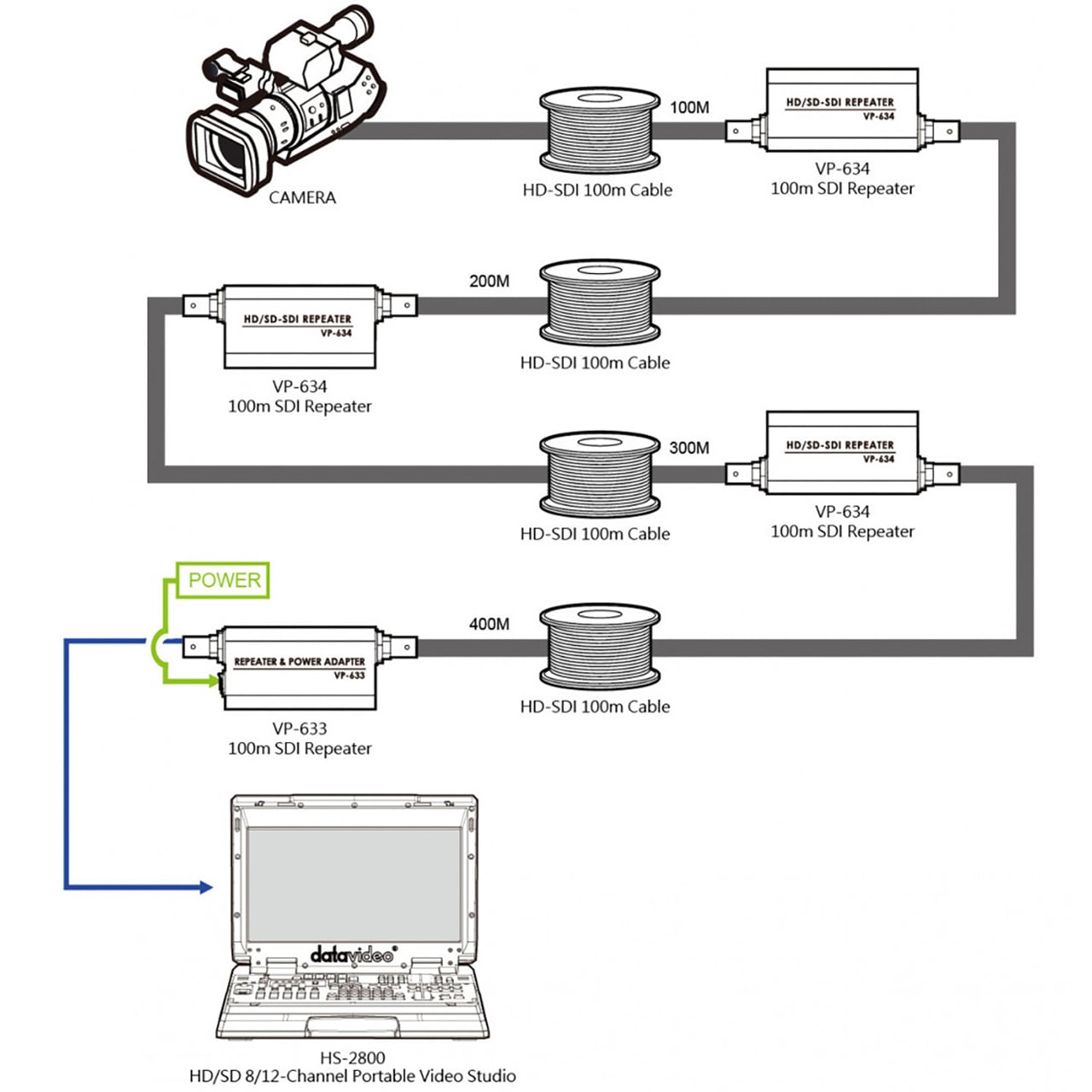

How they work: HD-SDI is not a bi directional format the same way that Firewire is. So, we put the first and only powered repeater close to the recorder or switcher. This is the only one that requires a 12VDC power supply. Every 100meters from that first repeater we add another repeater until the video source is 100 meters or less from the last repeater.
