EAW RS118 1500 Watt Class-D 18 Inch Portable Self Powered Low Frequency Subwoofer

ITEM #: EAW-RS118 MFG #: 2070490-90

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,748.00

Our Price:

$1,582.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


2070490-90 - Overview

The EAW RS118 low frequency, self powered subwoofer delivers EAW signature performance in a portable and lightweight package. Each RS Subwoofer in the series is first designed around the latest powerful transducers with enhanced motor strength that optimize system weight and low frequency output. The RS118 includes an on-board 1500 watt amplified electronics that are engineered to meet the demanding performance needs of professionals.

The RS Subwoofer Series features meticulously tuned vented enclosures, as well as EAW signature DynO algorithms to optimize the power transfer from amplifiers to transducers for improved headroom and integrity of sound at maximum output.

The EAW Resolution software platform is a powerful and easy-to-use simulation tool that accurately predicts the performance of one or multiple RS Series Subwoofers within a venue or performance space.

Applications Include:
- Concerts
- Corporate AV
- Live Clubs
- Concert Halls
- Theaters
- Auditoriums
- Houses of Worship
- Festivals

  • Features:

    • 1500 watts of Class-D Amplification
    • Premium transducers and signature EAW DynO dynamic optimization processing
    • Dual tunings for application specific performance

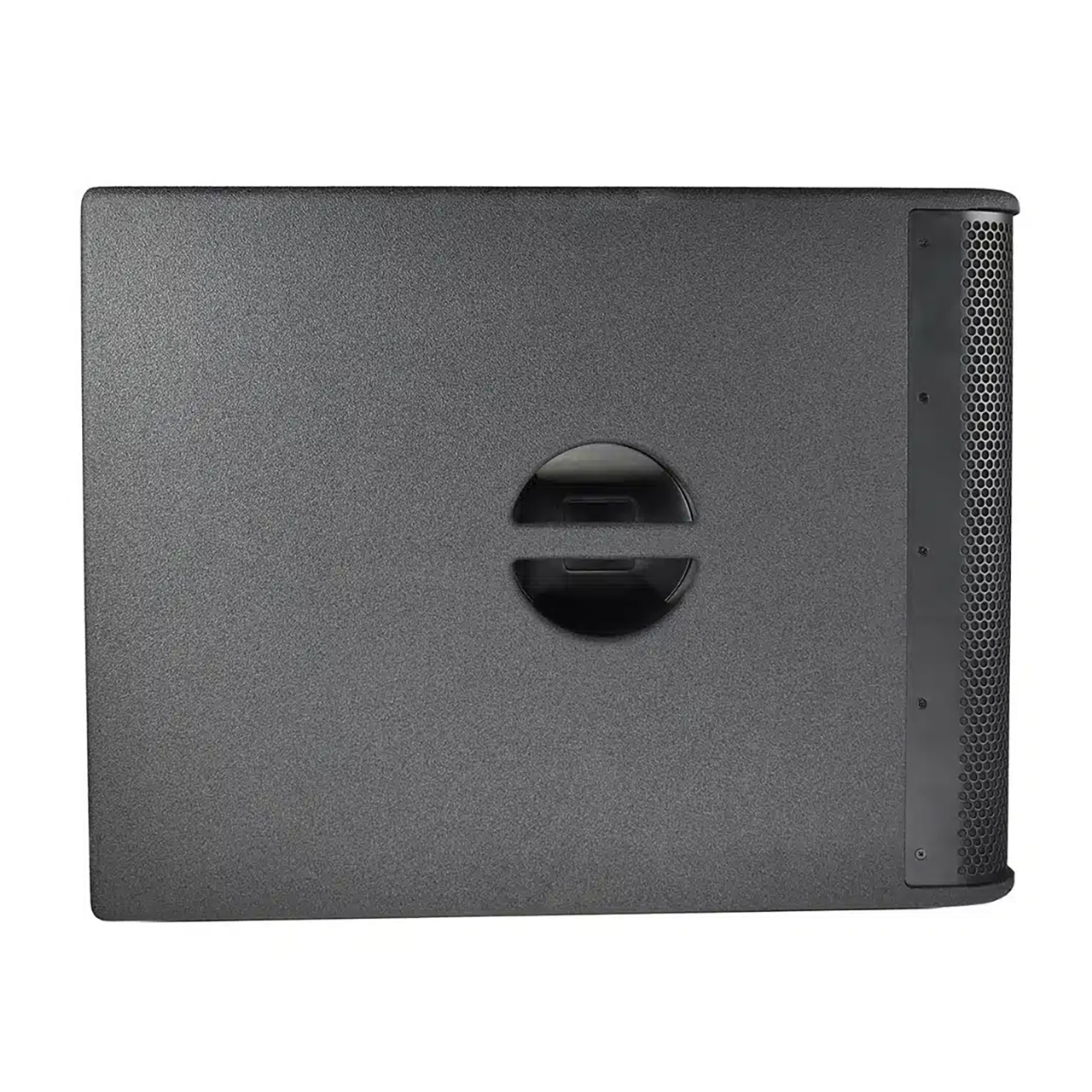

    • Ergonomic handles, rugged grille, RoadCoat enclosure, pole cup, and optional casters

  • Specifications:

      Performance
    • Max SPL: 133dB (peak, half space)
    • Operating Range: 27Hz - 125Hz
    • Nominal Beamwidth: 360° Horizontal x 360° Vertical

      Configuration
    • Subsystem: 18in Cone, 3 in Voice Coil, Vented
    • Operating Modes: Normal/Punch
    • Signal Processing: DSP with DynO
    • Crossover: 80Hz or 110Hz

      Electrical

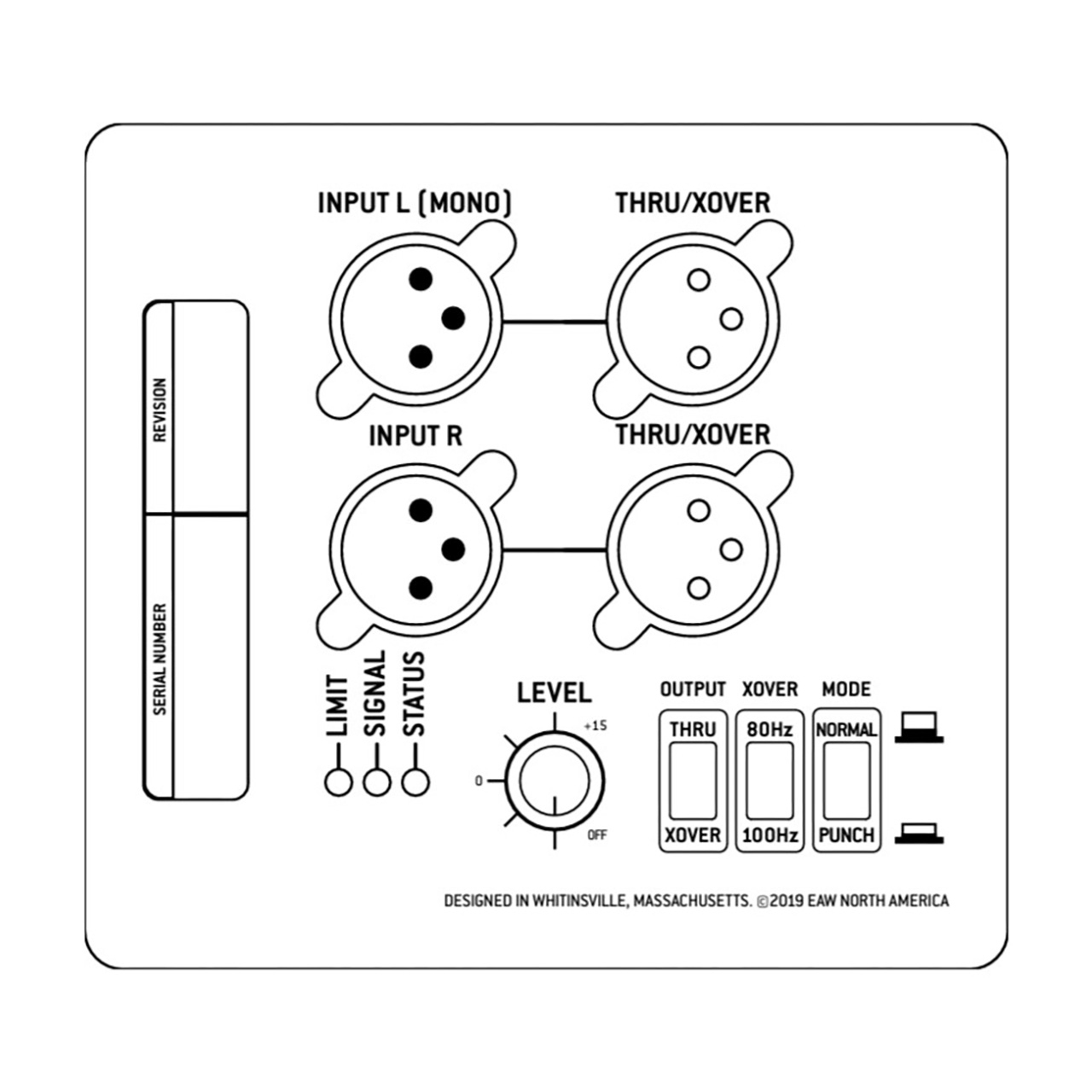

    • Input & Loop Type: Electronically Balanced XLR (stereo)
    • Amplifier:
      - Type: Class D
      - Max Output LF (Peak): 1500W
    • AC Mains (nominal):
      - Connector: IEC Connector
      - Input: 100V - 120V, 50-60Hz

      Current Draw
    • Idle: 50W
    • 1/8th Power: 75W
    • 1/3rd Power: 200W
    • Full Power: 600W

      Physical
    • Physical/Rigging: Vibration Isolation Feet
    • Dimensions (HxWxD): 20.5" x 30" x 26.8" (521mm x 762mm x 681mm)
    • Weight: 88lbs (40kg)

  • Item Includes:

    • 1x EAW RS118 1500 Watt Class-D 18 Inch Portable Self Powered Low Frequency Subwoofer - 230V Model
    • 1x IEC Power Cable
    • 1x Warranty Card

  • Warranty:

    • 5 Year Limited Warranty
