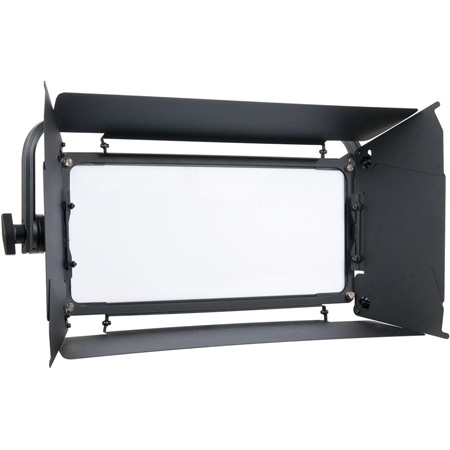

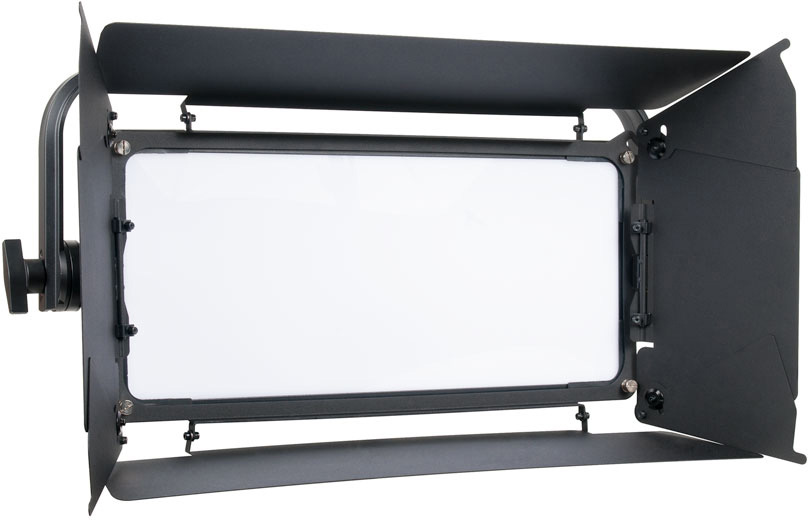

Elation Professional TVL551 TVL SOFTLIGHT DW Dynamic White 115 degrees Beam TVL Panel SoftLight

TVL551 - Overview

• Features:

  • Dynamic White 115° Beam TVL Panel SoftLight
  • Linear White Color Temp Range (3,200K - 5,600K)
  • Smooth 16bit Dimming and Dimming Curve Effects
  • Dimmer and Color Temperature Rotary Control Dials
  • 8-Leaf Adjustable / Removable Barn Doors Included
  • Adjustable LED Refresh Rate and Gamma Brightness
  • Flicker Free Operation for TV and FILM
  • Optional SNAPGRID 40° Light Control Grid Available


• Specifications:

  • Source
  • (240) Cool White and (240) Warm White LEDs
  • 20,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Photometric Data
  • >95CRI | 6,700 Total Lumens
  • 575 LUX 53.4 FC @6.6 ft (2m) Full ON 4,200K >95CRI
  • 580 LUX 53.9 FC @6.6 ft (2m) CW 5,600K >96CRI
  • 564 LUX 52.4 FC @6.6 ft (2m) WW 3,200K >95CRI

    Effects
  • 3,200K - 5,600K Linear Variable Color Temperature
  • Electronic Strobe and Variable Dimming Curve Modes

    Color
  • Cool White / Warm White

    Control / Connections
  • 6 DMX Channel Modes (7 total channels)
  • 4 Button Control Panel

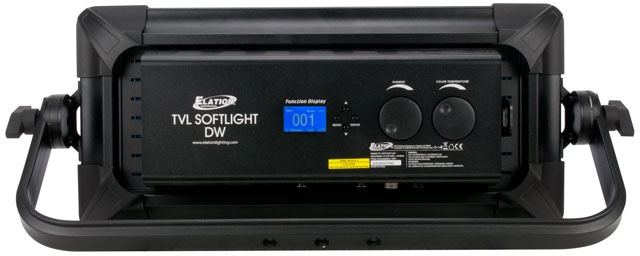

  • 2 Rotary Control Dials (Dimmer and Color Temperature)
  • Adjustable Refresh Rate (900-25,000 Hz)
  • Adjustable Gamma Brightness (2.0-2.8)
  • 180° Reversible LCD Menu Display

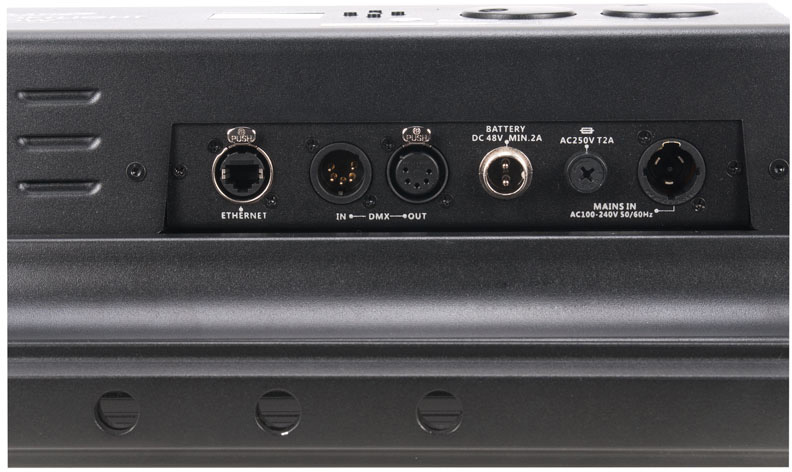

  • 5pin DMX In/Out
  • RJ45 etherCON (Art-NET) In
  • powerCON TRUE1 Power In
  • With Wired Digital Communication Network

    Size / Weight
  • Length: 26.5" (673mm)
  • Width: 12.4" (315mm)
  • Vertical Height: 16.7" (425mm)
  • Weight: 18 lbs. (8.2 kg) (w/barn doors attached)

    Electrical / Thermal
  • AC 100-240V - 50/60Hz
  • 99W Max Power Consumption
  • 5F to 113°F (-15°C to 45°C)

    Approvals / Ratings
  • CE | cETLus | IP20


• Item Includes:

  • 1x Elation Professional TVL SOFTLIGHT DW
  • 1x Power Cable


• Warranty:

  • 2 year


• GTIN:

  0837874001785
