Ensemble Designs BrightEye 10 Optical/SDI - Analog/SDI Conv (Receiver)

ITEM #: ENDE-BE10 MFG #: BE10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ENDE-BE10

BE10 - Overview

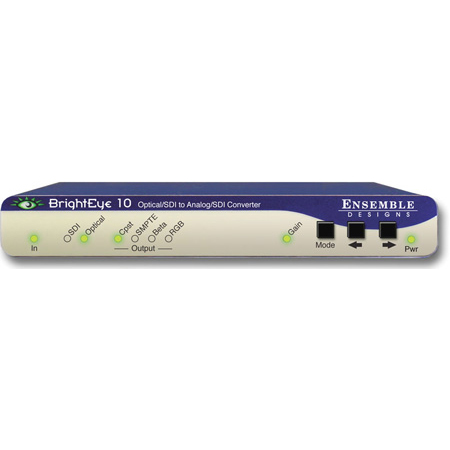

BrightEye 10 is a digital to analog video converter with both SDI (electrical) and fiber optic inputs. Output formats include Beta and SMPTE component, RGB, and composite (with simultaneous Y/C). Video processing, encoding and analog conversion is performed digitally at 12 bits of resolution with 8 times oversampling.

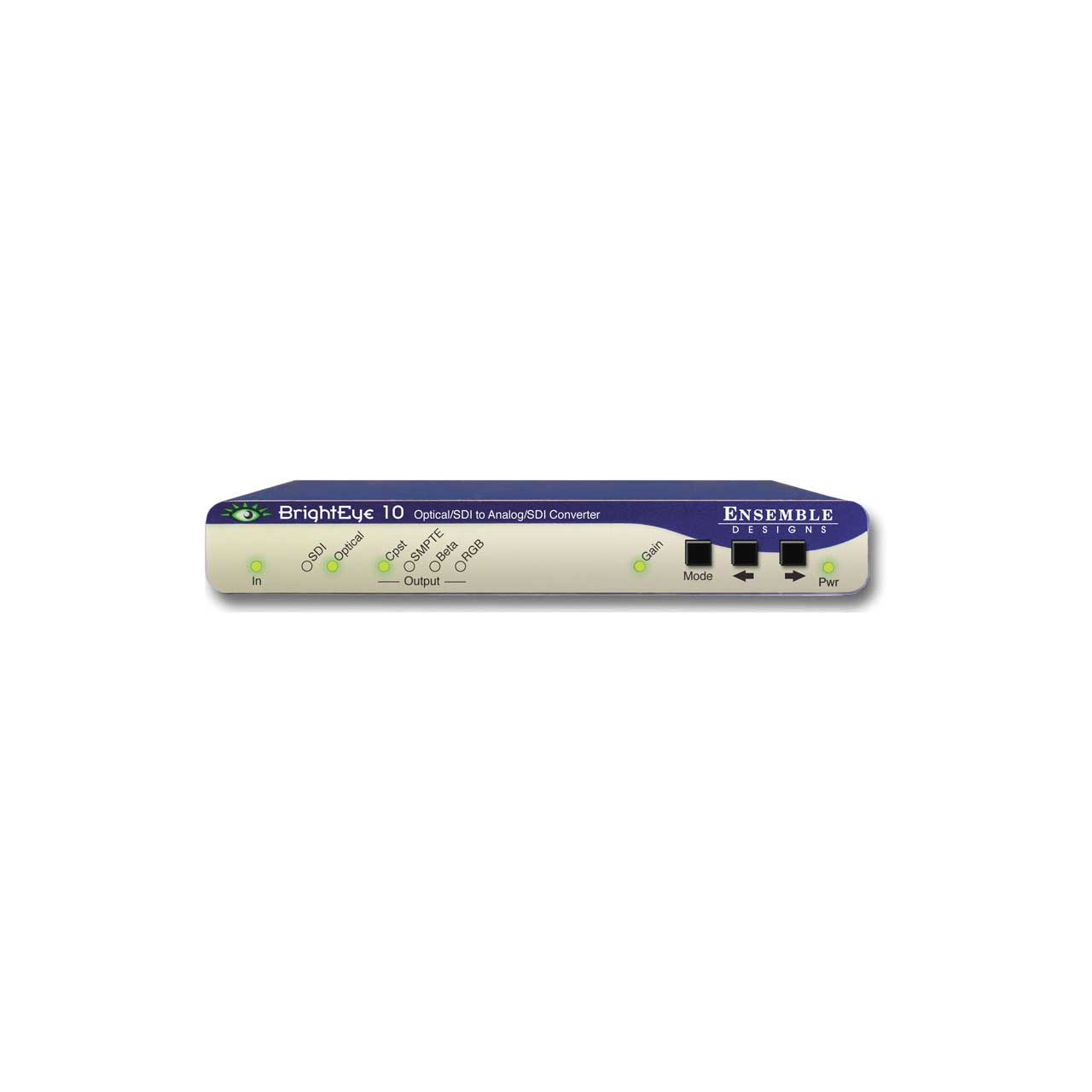

Front panel controls select between the optical and SDI input, choose the analog output format, and adjust gain. Video levels can be adjusted through BrightEye PC.

The reclocked SDI output follows the input selector, thus providing optical to electrical conversion when the optical input is selected. BrightEye 10 combines fiber to SDI conversion and QC monitoring in one compact unit.

Power supply is included.

  • Features:

    • Use with VCRs, cameras, satellite receivers
    • Analog video inputs and outputs
    • TBC and frame sync
    • 12 bit processing
    • Passes embedded audioReclockerDeserializerSD


  • Specifications:

    • Serial Digital Input
    • Number One
    • Signal Type 270 Mb/s SD Serial Digital
    • (SMPTE 259M)
    • Impedance 75 U
    • Return Loss >15 dB
    • Max Cable Length 300 meters
    • Automatic Input Cable Equalization

      Optical Input
    • Number One
    • Type SD
    • (SMPTE 297M, optical equivalent of 259M)
    • Wavelength 830 to 1610 nm
    • Receiver sensitivity -18 dBm
    • Max Cable Length 20 km (For greater distances, or
    • higher power and larger loss budgets,
    • please contact the factory)
    • Fiber Type Single Mode
    • Multi-mode compatible with
    • attenuation at transmit end
    • Connector SC

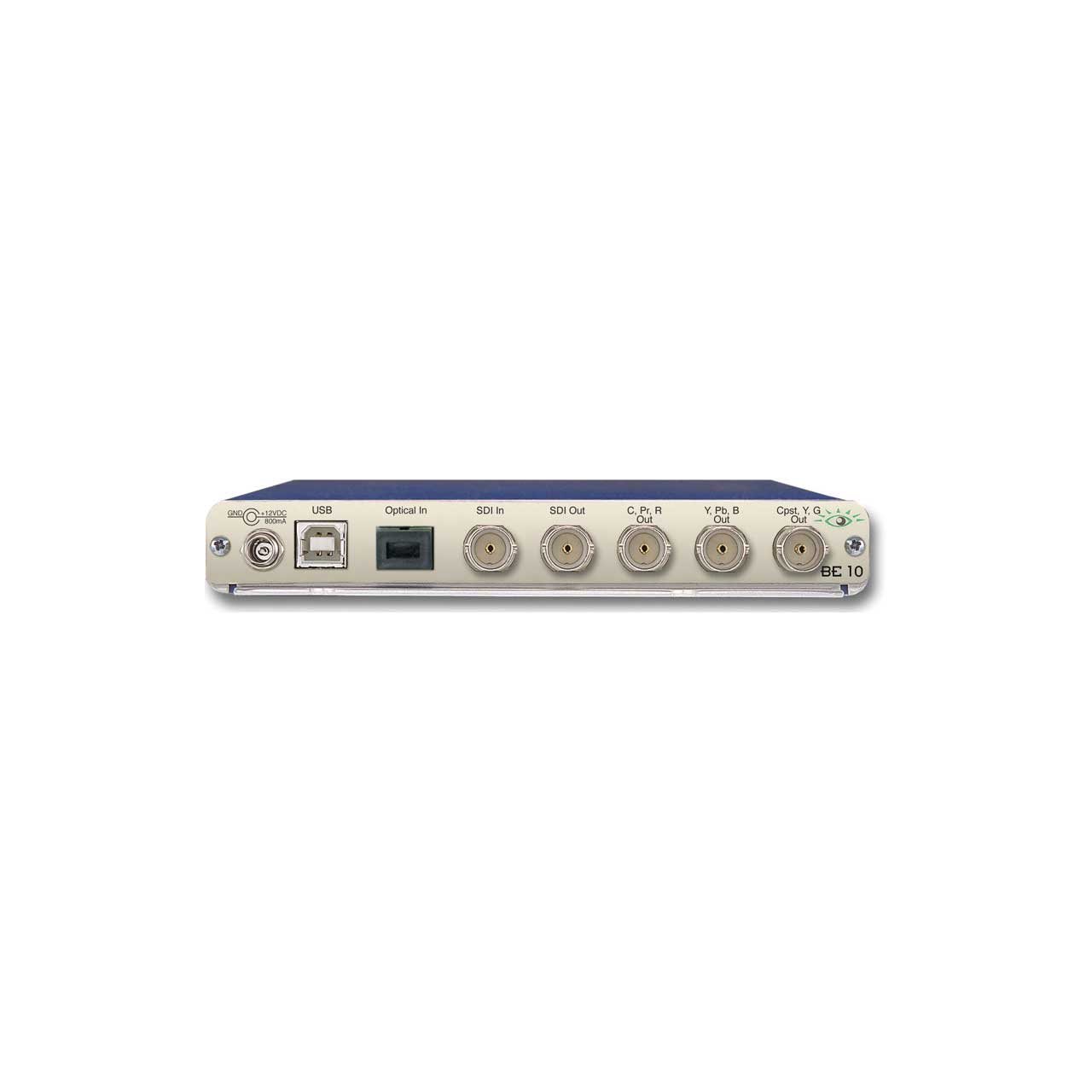

      Analog Output
    • Number One
    • Type Beta/SMPTE, Y, Pr, Pb
    • RGB
    • NTSC, PAL Composite
    • NTSC, PAL S-Video
    • Return Loss >40 dB
    • Output DC None (AC coupled)

      Serial Digital Output
    • Number One
    • Type 270 Mb/s SD Serial Digital
    • (SMPTE 259M)
    • Impedance 75 U
    • Return Loss >15 dB
    • Output DC <50 mV

      SDI to Analog Performance
    • Bit Resolution 12 bit output reconstruction
    • 8 x oversampling
    • Signal to Noise >65 dB
    • Frequency Response ±0.1 dB, 0 to 5.5 MHz
    • K Factor <1%
    • ScH Phase Error <±2 degrees
    • Differential Phase <1 degree
    • Differential Gain <1%

      General Specifications
    • Size 5.63" W x 0.8" H x 5.98" D
    • (143 mm x 21 mm x 152 mm)
    • including connectors and flange
    • Weight 15 oz
    • Power 12 volts, 4 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95%, non-condensing
    • Altitude 0 to 10,000 ft.


Required Accessories

BE10 - Required Accessories

    Recommended Accessories

    Similar Products
