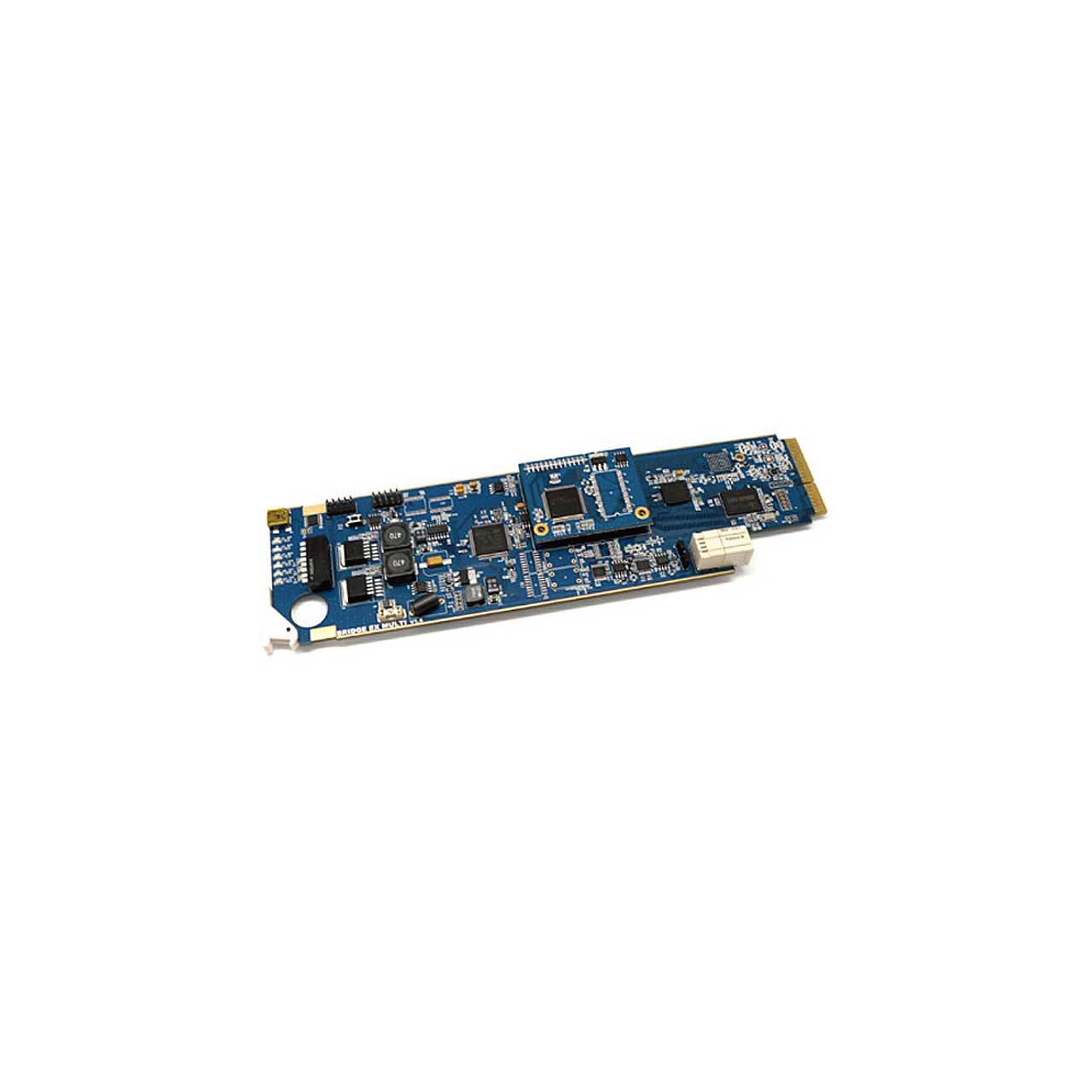

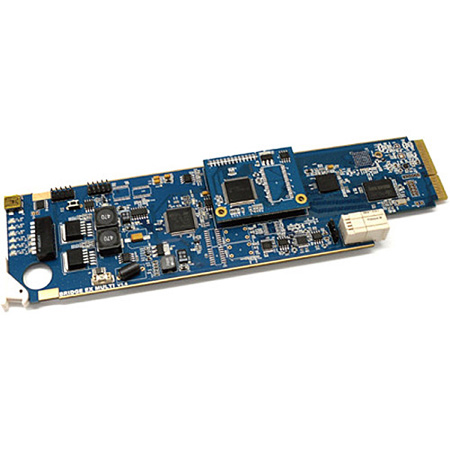

Digital Forecast BRIDGE EX AH Analog to HD/SD SDI Up Converter Module

ITEM #: DF-BRIDGE-EXAH MFG #: BRIDGE EX AH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
DIGITAL FORECAST
Free Shipping with $49 Minimum Order

List Price:

$520.00

Our Price:

$494.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BRIDGE EX AH - Overview

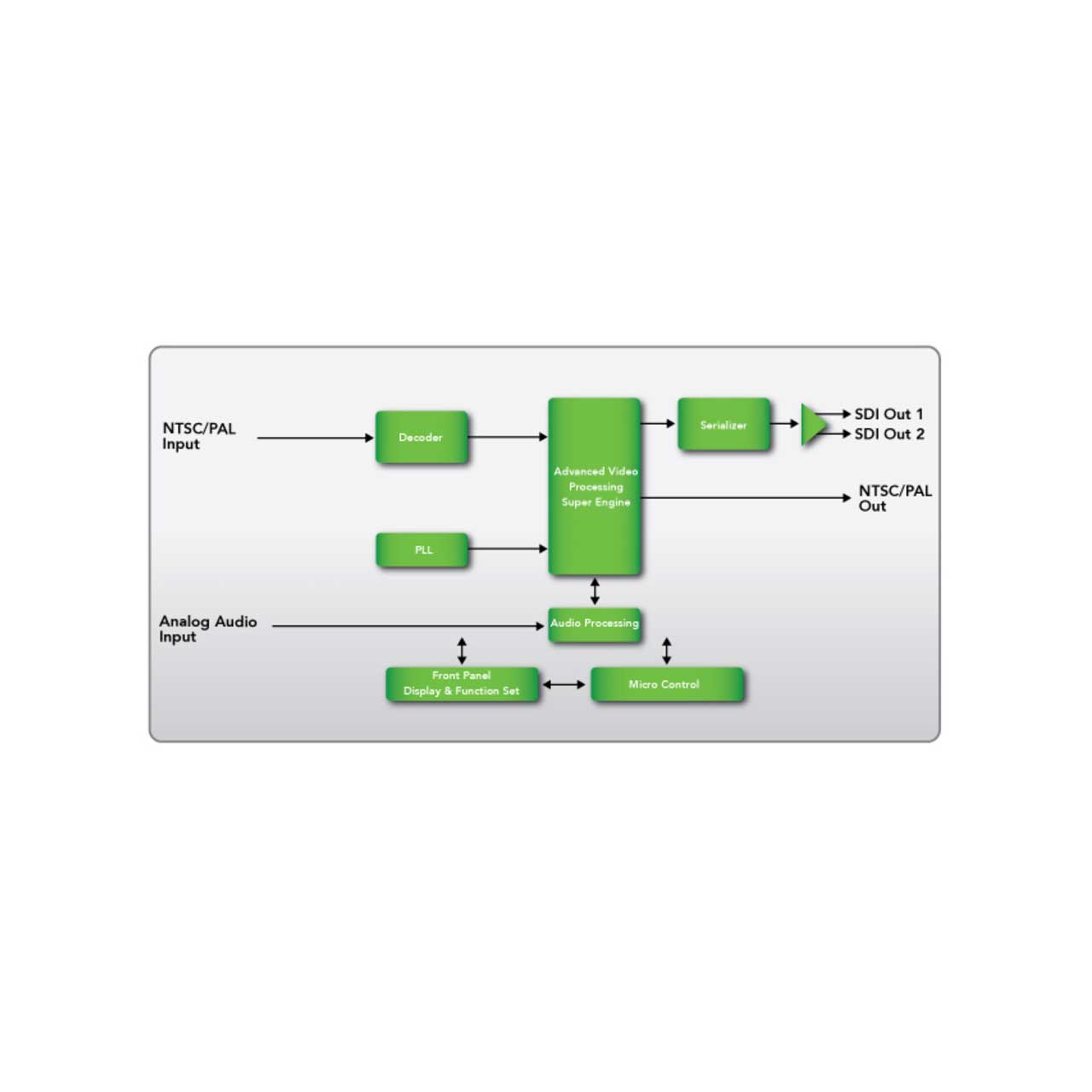

The Digital Forecast BRIDGE EX AH is an analog to HD/SD SDI up converter module that will convert your component/analog video in (CVBS) signals to SMPTE standard SDI. This module has one CVBS input and two SDI outputs, one CVBS output and also supports analog L/R audio in.

  • Features:

    • Composite Analog Input
    • Input Number: 1
    • Input Standard: NTSC/PAL
    • Connector: BNC 75 Ohm Impedance
    • Signal Level: 1Vp-p ± 10%
    • SDI Output
    • Outputs: 2
    • Output Standard: SMPTE 292M : 1.485G, SMPTE259M-C
    • Output Formats: 1080i/59.94,525i/625i
    • Connector: BNC 75 Ohm Impedance
    • Signal Level: 800mV ± 10%
    • Rise & fall time: < 270ps(HD), 400-800ps(SD)
    • Overshoot: 10% of amplitude
    • Jitter: 1UI (HD), <0.2 UI (SD)
    • Composite Analog Output
    • Output: 1
    • Output Standards: NTSC/PAL
    • Connector: BNC 75 Ohm Impedance
    • Signal level: 1Vp-p ± 10%
    • Analog Audio Input
    • Input: Stereo
    • Input Standard: Analog Audio
    • Connector: RCA
    • Electrical
    • Voltage: +12V DC
    • Power Dissipation: < 7W
    • Temperature: 0 ~ 40°C


  • Warranty:

    • 2 Years
