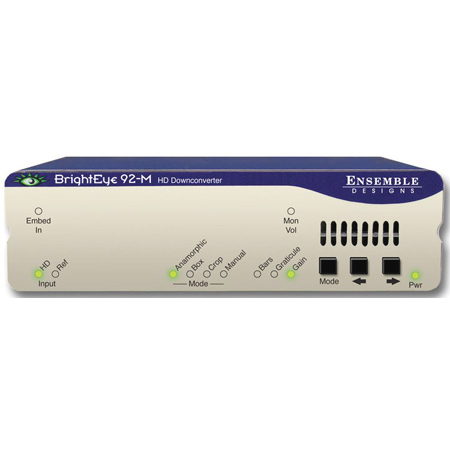

Ensemble Designs BrightEye 92-M HD Downconverter

ITEM #: ENDE-BE92M MFG #: BE92M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ENDE-BE92M

BE92M - Overview

BrightEye 92-M will downconvert any type of HD signal and provides both an SD SDI output and an analog composite output that are suitable for broadcast or monitoring. The built-in Frame Synchronizer allows you to feed asynchronous signals to the BrightEye 92-M. An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed.

Audio monitoring is easy with BrightEye 92-M's convenient 3.5mm mini jack. Just select the audio channels you want to monitor from the front panel and plug in a headset.

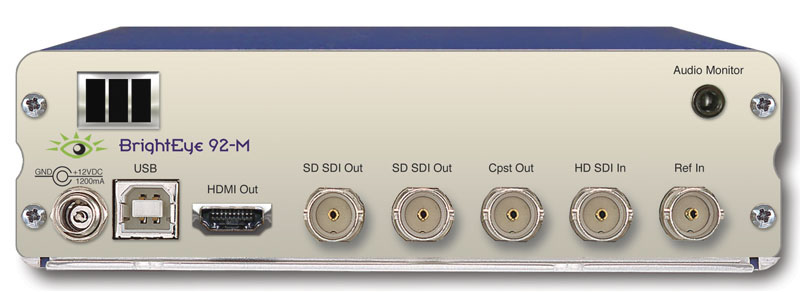

The HDMI connector on the rear of the unit provides a future proof monitoring interface. Plug it into most computer monitors for confidence monitoring of your feed.

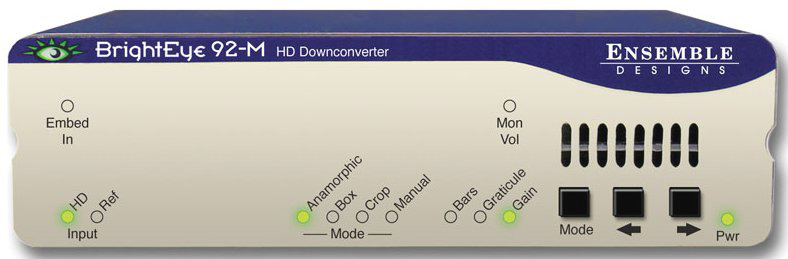

Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected. Controls for crop, letterbox and pillarbox are accessed from the front panel or BrightEye Mac or PC software.

Power supply is included.

  • Features:

    • Downconversion for monitoring or broadcast
    • SD SDI, HDMI, analog composite video outputs
    • Analog audio monitor output
    • Mirror output mode for on-camera talent
    • Graticule and Safe Title generator
    • Frame sync
    • 12 and 16 bit processing
    • Passes embedded audio


  • Specifications:

    • Serial Digital Input
    • Number One
    • Signal Type 1.485 Gb/s HD Serial Digital
    • (SMPTE 274M, 292M or 296M)
    • Impedance 75 U
    • Return Loss >15 dB
    • Max Cable Length 100 meters for 1.485 Gb/s
    • Automatic Input Cable Equalization

      Reference Input
    • Number One
    • Type 1 V P-P Composite Video, PAL or NTSC or
    • or Tri-Level Sync
    • Impedance 75 U
    • Return Loss >40 dB

      Analog Video Output
    • Number One
    • Type Composite PAL or NTSC
    • Delay Adjustable from 1 field to 1 frame
    • Return Loss >40 dB
    • Output DC < 100 mV

      Serial Digital Output
    • Number Two
    • Type SD Serial Digital
    • 270 Mb/s SMPTE 259M
    • Delay Adjustable from 1 field to 1 frame
    • Processing 12 and 16 bit
    • Impedance 75 U
    • Return Loss >15 dB
    • Max Cable Length 300 meters

      HD Standards Supported
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz

      HDMI Output
    • Number One
    • Connector HDMI
    • Type Follows SDI out

      Audio Monitoring Output
    • Number One (select from sixteen channels)
    • Connector 3.5 mm stereo mini jack

      General Specifications
    • Size 5.63" W x 1.65" H x 5.98" D
    • (143 mm x 42 mm x 152 mm)
    • including connectors and flange
    • Weight 1 lb 7 oz
    • Power 12 volts, 10 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95%, non-condensing
    • Altitude 0 to 10,000 ft.
