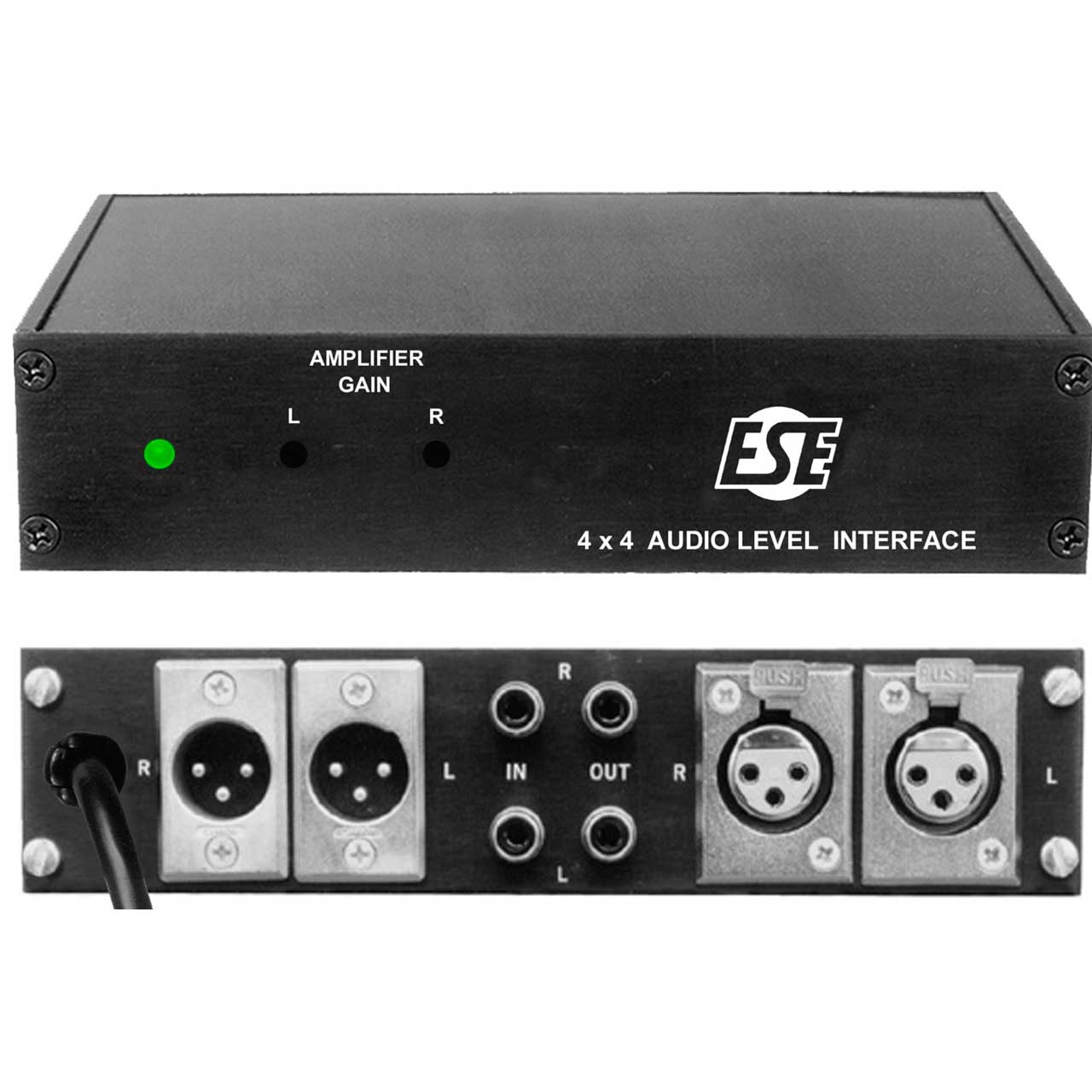

The ESE ES-244 is a stereo, bi-directional coupling unit. Provides and easy means of connecting equipment with balanced, +4 or +8dBm inputs/outputs. Housed in a rugged, black anodized aluminum enclosure measuring 7"W x 1.6"H x 5"D. The amplifier section receives the unbalanced audio via the two RCA connectors & converts it to balanced, accessible on the two male XLR connectors. Adjustable gain from +6 to +20dB on each channel.
Applications Include:
Unbalanced Computer Sound Cards to Pro Audio
Convert Unbalanced to Balanced and Vice-Versa
Perfect for DAT, CD Recorders, and Tape Decks
Product Options:
J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
P 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
P2 Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
