ESE DV-230 Genlockable HD/SD SDI Pattern Generator

Name: ESE DV-230 Genlockable HD/SD SDI Pattern Generator
Brand: ESE
SKU: ESE-DV-230
Price: 1705.49 USD
Availability: InStock

ITEM #: ESE-DV-230 MFG #: DV-230

ESE

List Price:

$1,795.00

Our Price:

$1,705.49

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DV-230 - Overview

Genlockable HD/SD SDI Pattern Generator

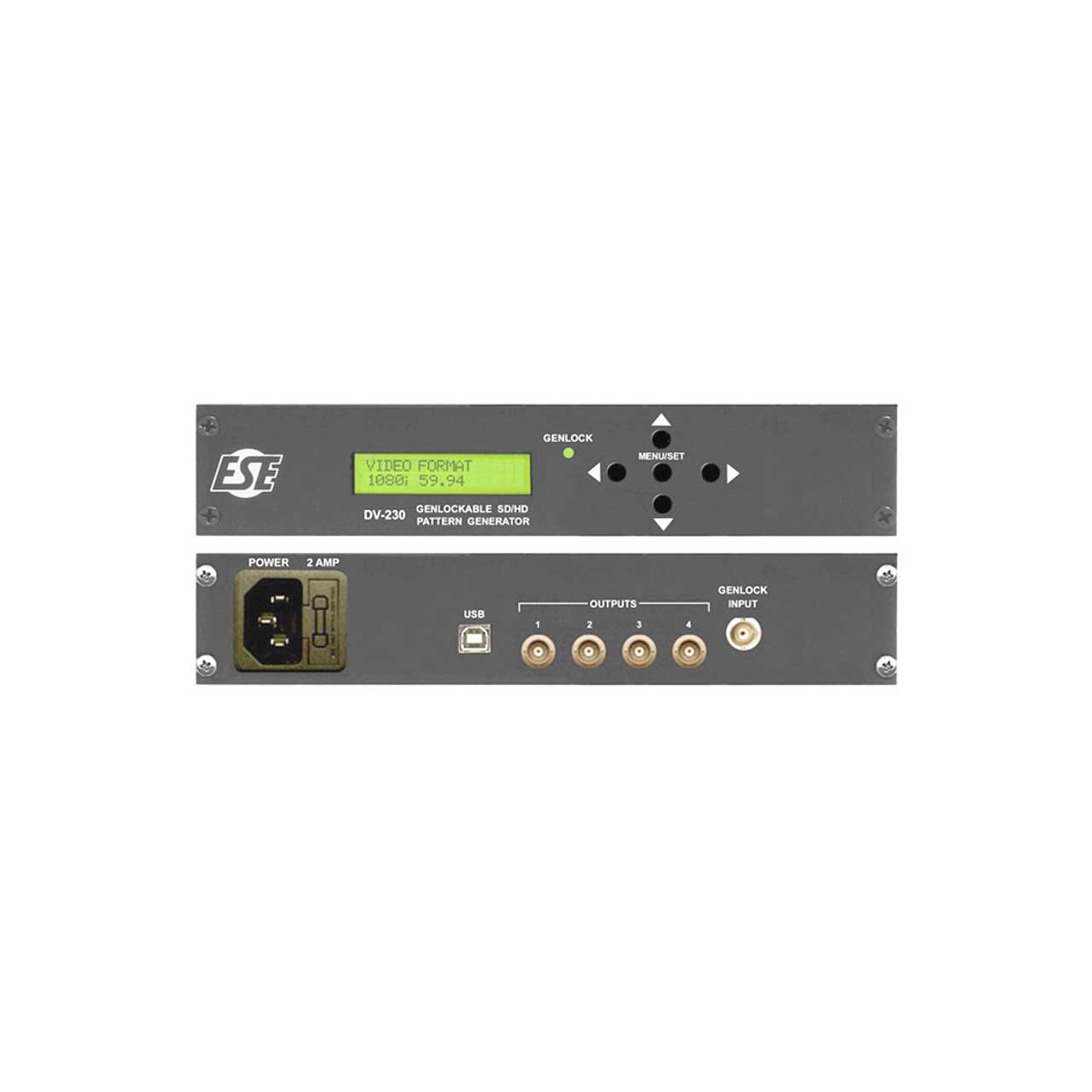

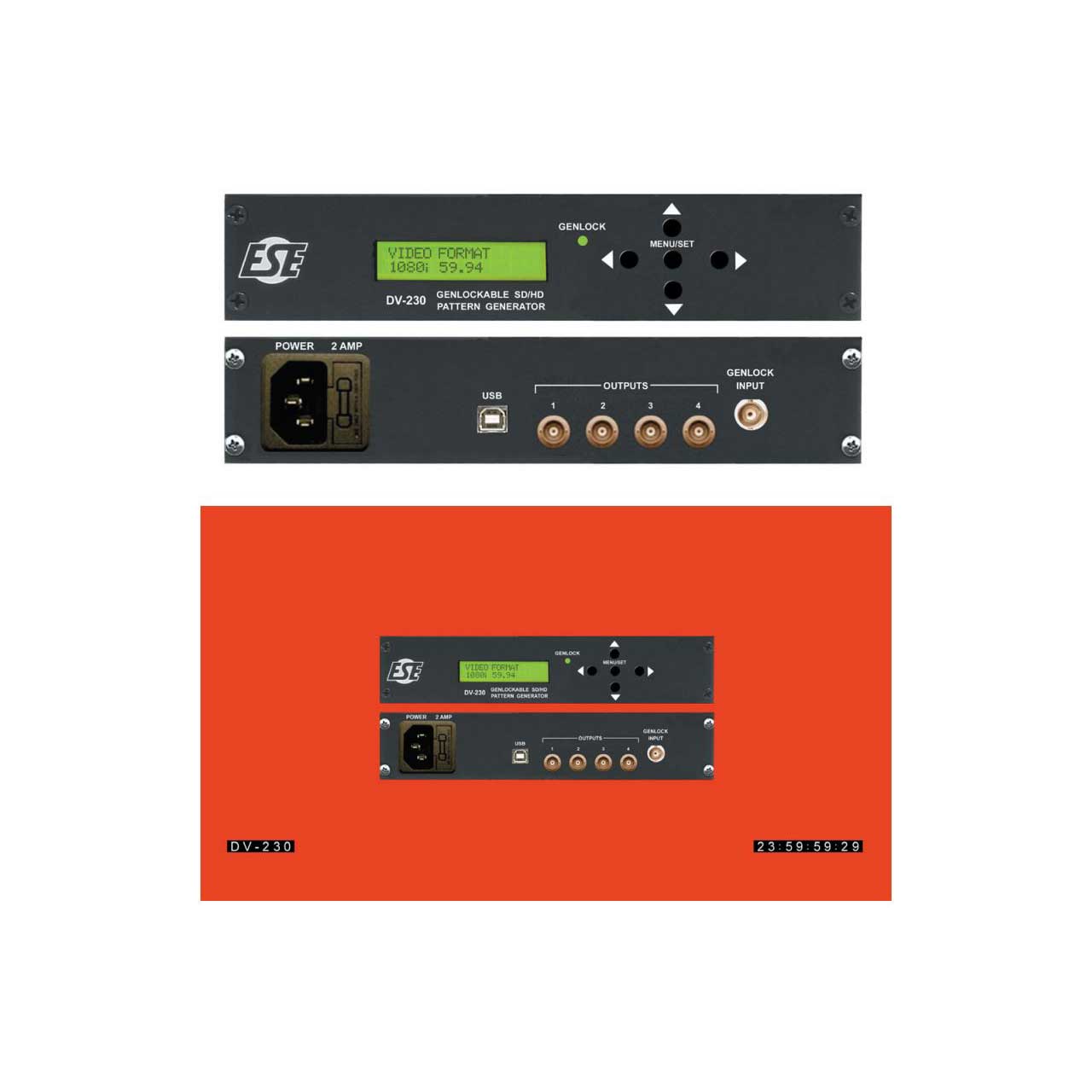

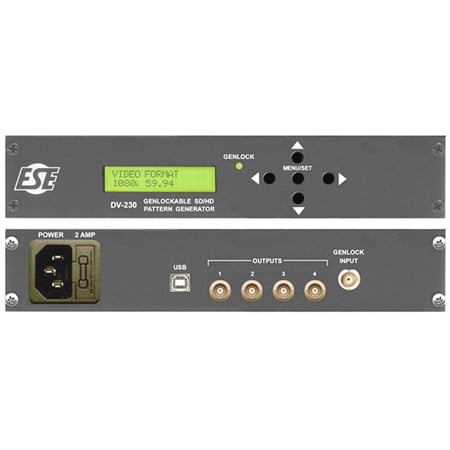

The DV-230 is an HD/SD SDI Pattern Generator. The DV-230 offers four identical rear-mounted BNC outputs, plus a Genlock input which receives Tri-level or Bi-level sync. A front panel LCD and pushbuttons allow for quick and easy setup. Alternatively, a software control panel and USB port may be used to configure the unit. Color bars as well as many other patterns are supplied. RP-188 and Closed Caption insertion, Embedded Audio Tones and onscreen Time Code/User Text insertion are also supported.

Features:
- 4 SDI Outputs (BNC)
- Genlock Input (BNC)
- Multiple Test Patterns
- Embedded Audio Tone
- Closed Caption Insertion
- RP-188 Time Code Insertion
- Onscreen Time Code & User Text Insertion
- Multiple SDI Formats (HD & SD)
- Various Options available
- DV-230 Options
- DC DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
- P 19 Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8 clear or black anodized Aluminum and chassis is 5 - 10 deep.
- P2 Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
- UL UL Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
Specifications:
- POWER: 85 - 264 VAC, 47 - 63 Hz, 20 Watts maximum
- MECHANICAL: Black anodized aluminum enclosure 1.6" H x 8" W x 7.3" D
- TIME & SETUP/STATUS DISPLAY: 16 x 2 character LCD
- SD SDI OUTPUT: SMPTE 259M-C (270Mb/s)
- SD SDI OUTPUT SWING: 800 mV typical
- SD SDI OUTPUT RISE/FALL TIME: 660 ps typical
- GENLOCK INPUT (DV-230): Bi-level or Tri-level, 75 Ohm
- OPTIONS: DC, P, P2, UL
