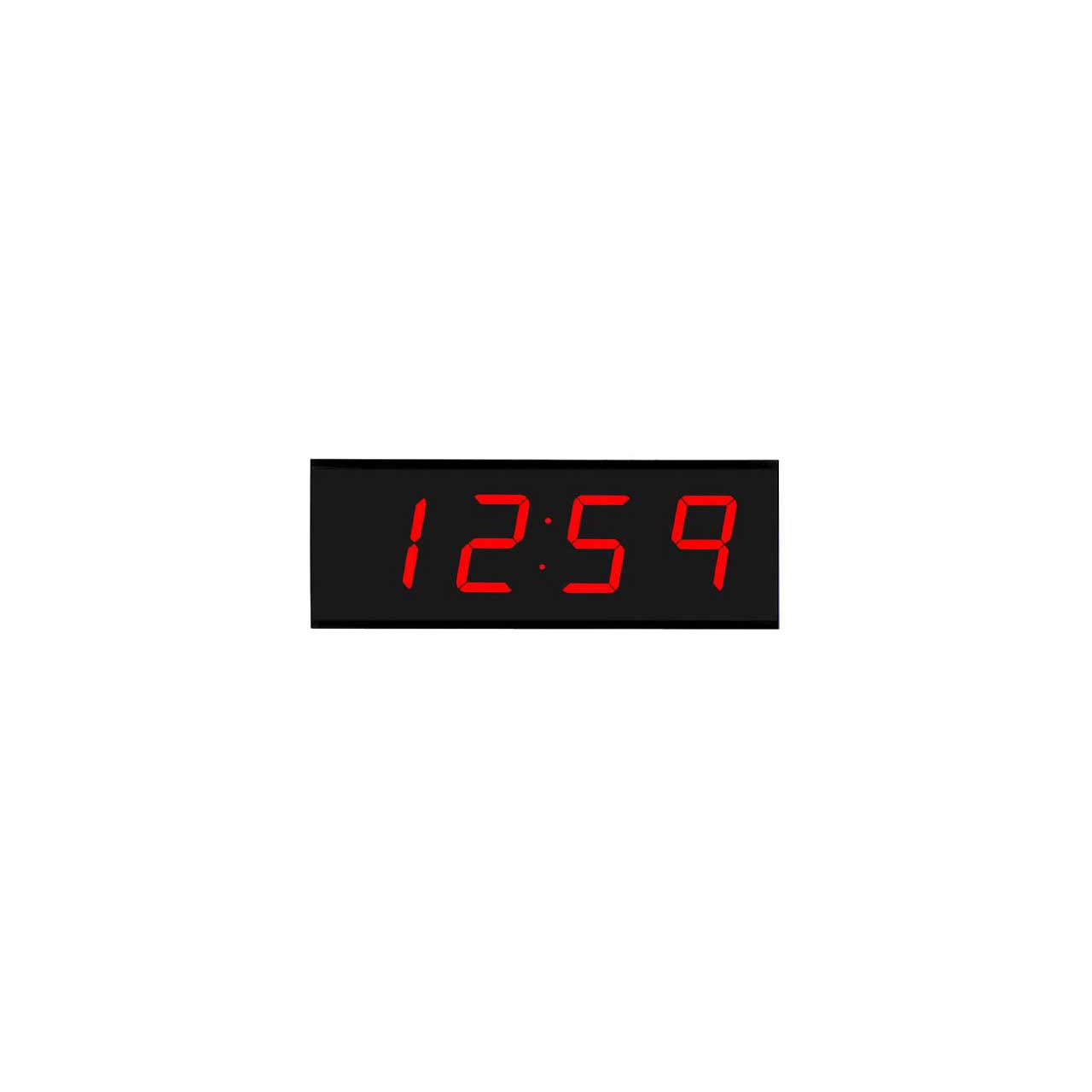

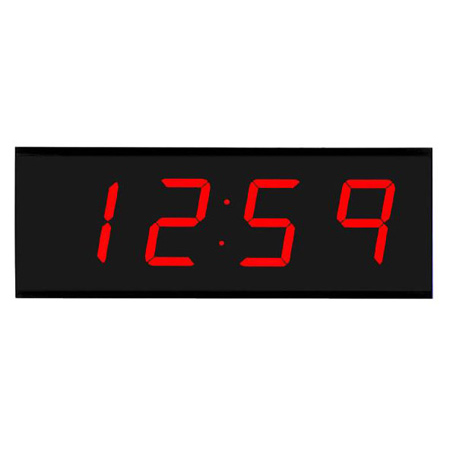

The ES-941U is a Time Code display featuring 4.0" bright red LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure (7" H x 19" W x 3.5" D). The unit accepts, via the rear-mounted terminal block, either ESE Time Code (TC76, TC89, or TC90) or SMPTE/EBU Time Code. RS-232C ASCII Time Code (format 0, 1 or A at 9600 baud) may be input via the rear-mounted 9-pin connector.
The ES-941U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats 1 or A). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code from a timer, the unit will display Minutes & Seconds.
The PoE option Receives 48V operating power via Ethernet cable.
