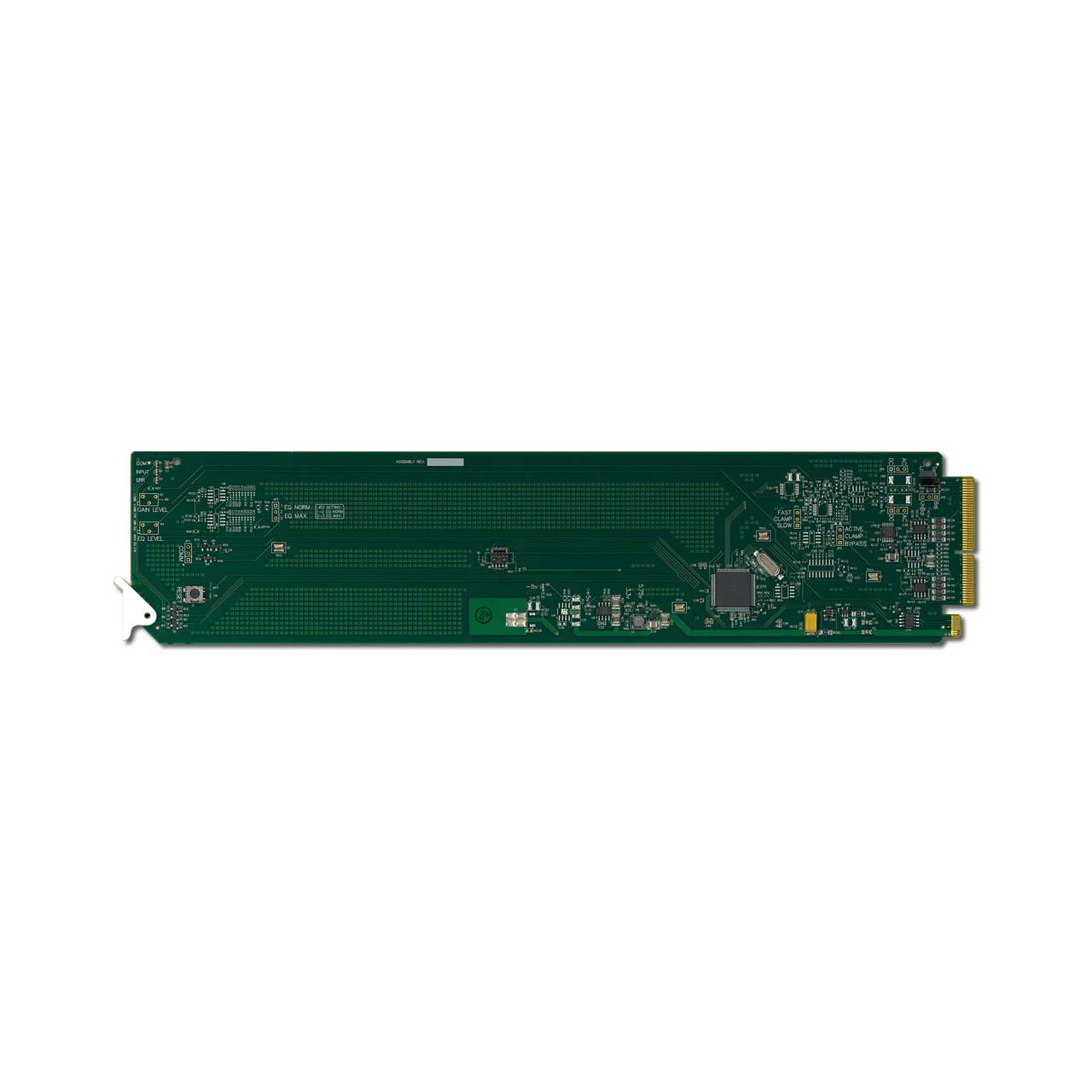

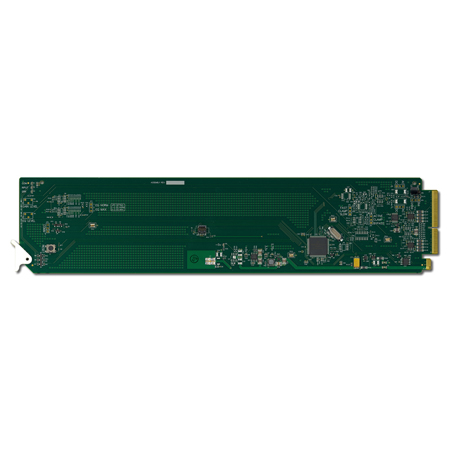

Ross WDA-8409 1x8 openGear Word Clock Distribution Amplifier Card

WDA-8409 - Overview

• Features:

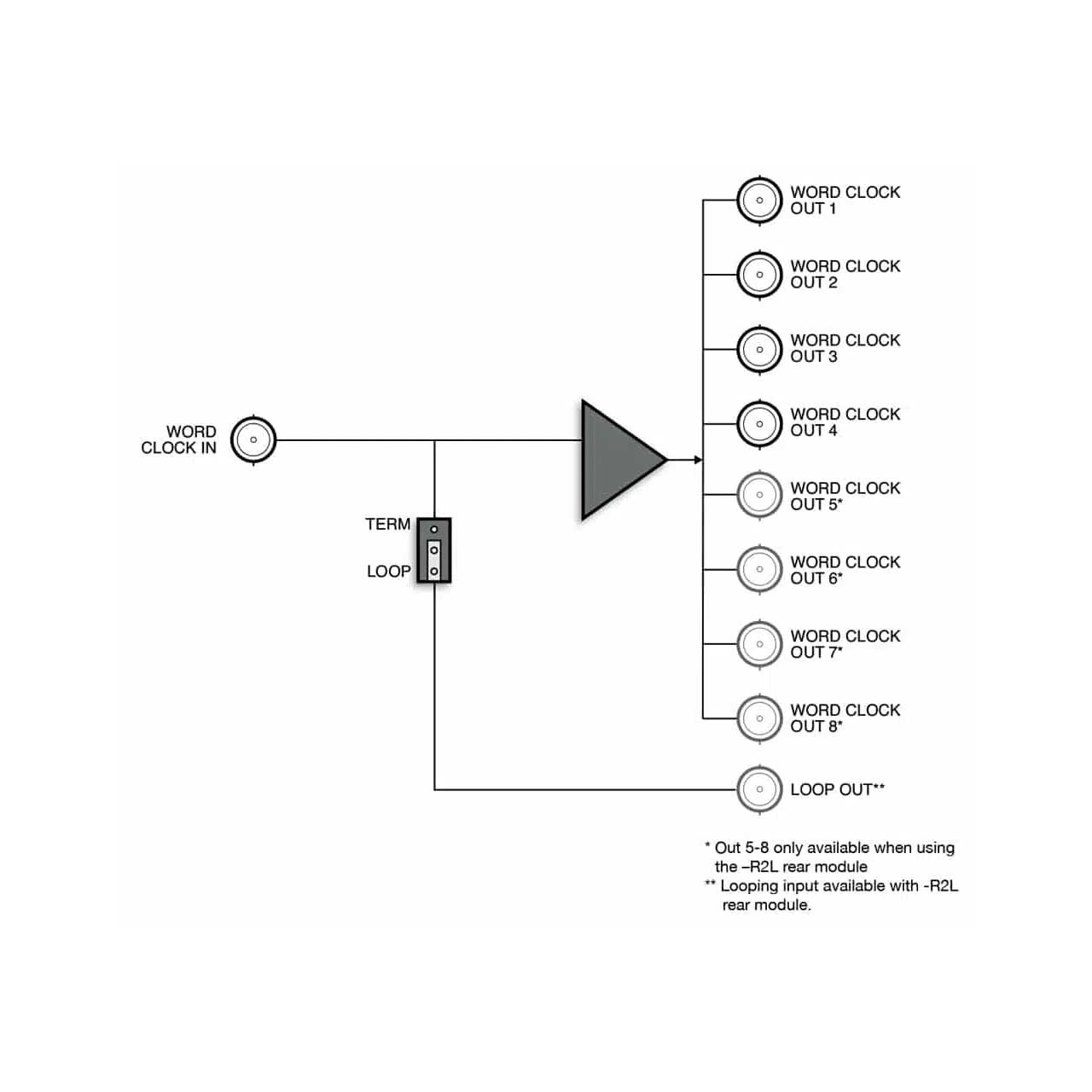

  • 1x8 Word Clock Distribution
  • Provides 5Vpp clock output into a 75-ohm terminated load.
  • Requires R2-8409 (non-looping) or R2L-8409 Rear Module.
  • Sensitivity: 200mV
  • Selectable terminating or high-impedance input
  • 2 rear module configurations available: 1x8 full rear module with looping input. 10 cards per frame, 1x4 split rear module. 20 cards per frame


• Specifications:

  • Sensitivity: 200mV
  • 2 rear module configurations available: 1x8 full rear module with looping input. 10 cards per frame, 1x4 split rear module. 20 cards per frame
  • Sampling Frequency: up to 192kHz
  • Output Impedance: 75Ω
  • Output level: 10 Vp-p square wave (unterminated), 5 Vp-p square wave (terminated into 75Ω)
  • Power Consumption: 2 Watts


• Warranty:

  • 5 Years
