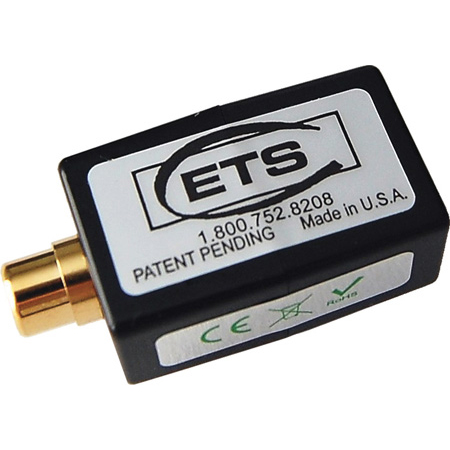

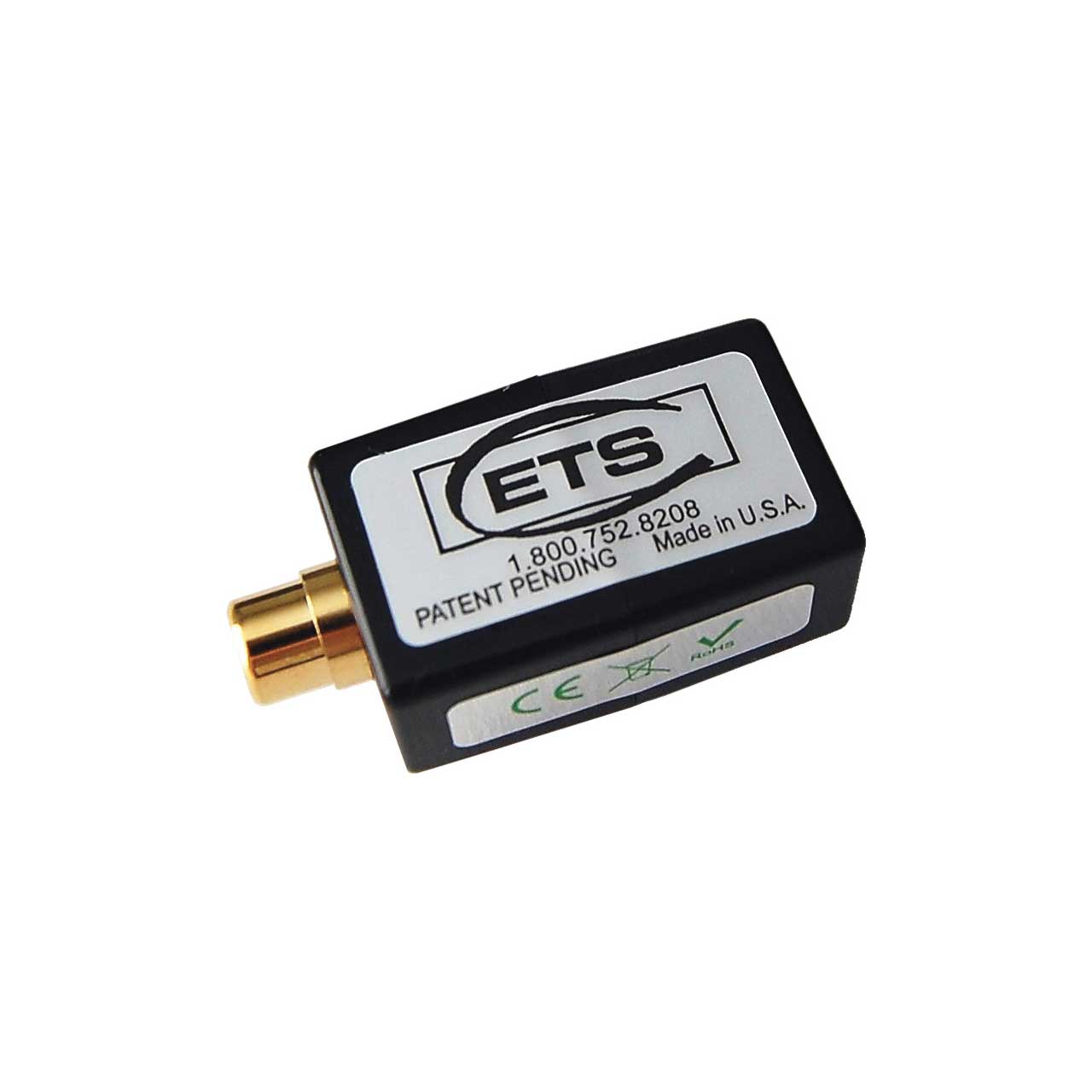

ETS PA881 S/PDIF Digital Audio Balun - Female RCA to RJ45

ITEM #: ETS-PA881 MFG #: PA881

Primary Image
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


PA881 - Overview

The ETS PA881 S/PDIF digital audio converter takes signals from Unshielded Twisted Pair (UTP) cable and converts them to coax. Used for temporary setups, as well as in permanent locations where coax is already in place, it's less costly than pulling fresh UTP.

These baluns perform precise impedance-matching and signal balancing, enabling S/PDIP signals to be transmitted with greater signal integrity and longer runs over coaxial cable than can be achieved with UTP wiring.

  • Features:

    • Converts S/PDIF digital audio between balanced 100 ohm UTP and unbalanced 75 ohm BNC
    • Isolated signals ease routing signals via video patch bays, eliminating ground loops
    • Compact, rugged case
    • 100% tested
    • Made in USA

  • Specifications:

    • Bandwidth: 20kHz - 60MHz (1dB)
    • Connectors: RCA to RJ45 jack
    • Insertion Loss: < 0.15 dB
    • Minimum Signal: 0.50 V
    • Impedance Match: 75 ohm - 100 ohm
    • Comm Mode Reject: > 40dB up to 40MHz
    • Distance: 330ft - UTP; Up to 2500ft 75 ohm coax
    • Dimensions: 1.81" x 0.98" x 0.75" (46mm x 25mm x 19mm)
    • Net Weight: 1.06oz (0.03kg)

  • Applications

    :

    • Broadcast Control Rooms
    • Recording Studios
    • Post Production Facilities
