Focusrite RedNet MP8R 8-Channel Remote-Controlled Mic Pre and A/D for Dante Networks

REDNET-MP8R - Overview

• Features:

  • Built-in redundancy with dual power and network connections
  • Rugged roadworthy all-metal construction, high build quality, locking power and etherCON Ethernet connectors
  • Eight Focusrite remote-controlled preamps with enhanced input level capability, and dual input impedance to deliver maximum performance when one mic feeds single or multiple pres
  • Two outputs from each preamp: one direct and the other automatically gain-compensated to deliver a constant level
  • 20dB pad, HPF and polarity inversion per input
  • Operate locally, or remotely via RedNet Control software, Pro Tools, MIDI or OCA (Open Control Architecture - available 2015 via firrmware update)
  • Precision low-latency conversion at up to 24-bit/192kHz, with best-in-class dynamic range and overall audio quality
  • 6-segment LED level meters; OLED display indicates input gain and system information
  • Compact 1U form factor
  • Total interoperability with other Dante products and networks


• Specifications:

  • Microphone Inputs
  • Gain Range: 10dB to 65dB in 1dB steps
  • Type: Electronically Balanced, Zin = 2.4kΩ/10kΩ (Switchable); Inputs default to 2.4kΩ when unit is unpowered.
  • Max. Input Level: 29dBu ±0.5; min gain with pad for 0dBFS, Rs = 150Ω
  • Min. Input Level: -46dBu ±0.5; max gain without pad for 0dBFS, Rs = 150Ω
  • Frequency Response: 20Hz - 40kHz ±0.1dB
  • THD + N: -98dB (0.0012%) @ -1dBFS, Rs = 150Ω
  • EIN: -129dBu `A'-Weighted (typical), Rs = 150Ω
  • Signal-to-Noise Ratio: 118dB 'A'-Weighted (typical), Rs = 150Ω
  • Phantom Power: +48V, independently switchable per channel.
  • Pad: -20dB, independently switchable per channel.
  • HPF: -6dB @ 65 ± 3Hz, 12dB/Octave, independently switchable per channel.

    Crosstalk
  • Input to Input: <-100dB 20Hz - 20kHz; minimum input gain.

    Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
  • Clock Sources: Internal or from Dante Network Master.

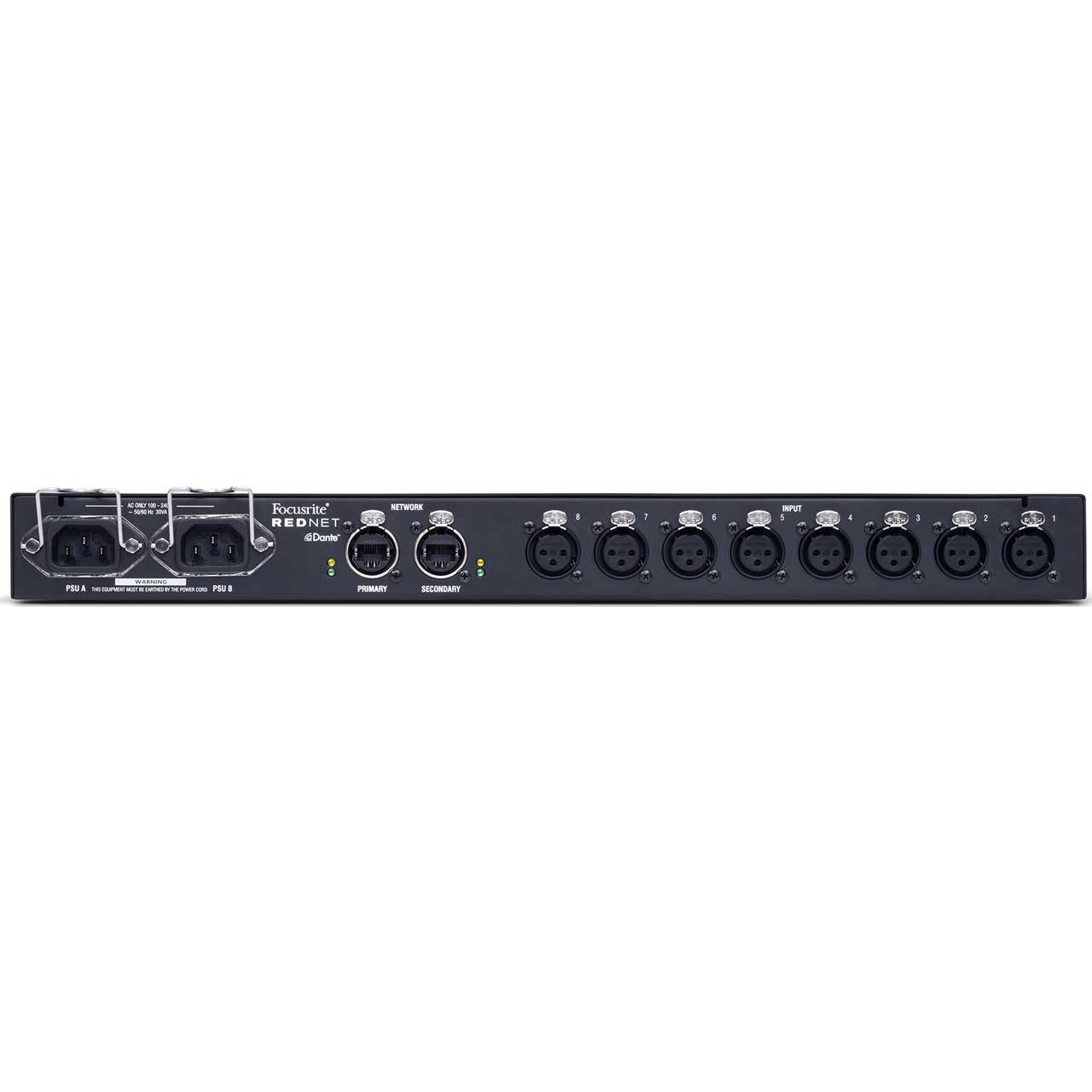

    Rear Panel Connectivity
  • Mic Inputs: 8 x Female XLR
  • PSU: 2 x IEC Inputs with retaining clips.
  • Network: 2 x etherCON connectors, also compatible with standard RJ45 connectors.

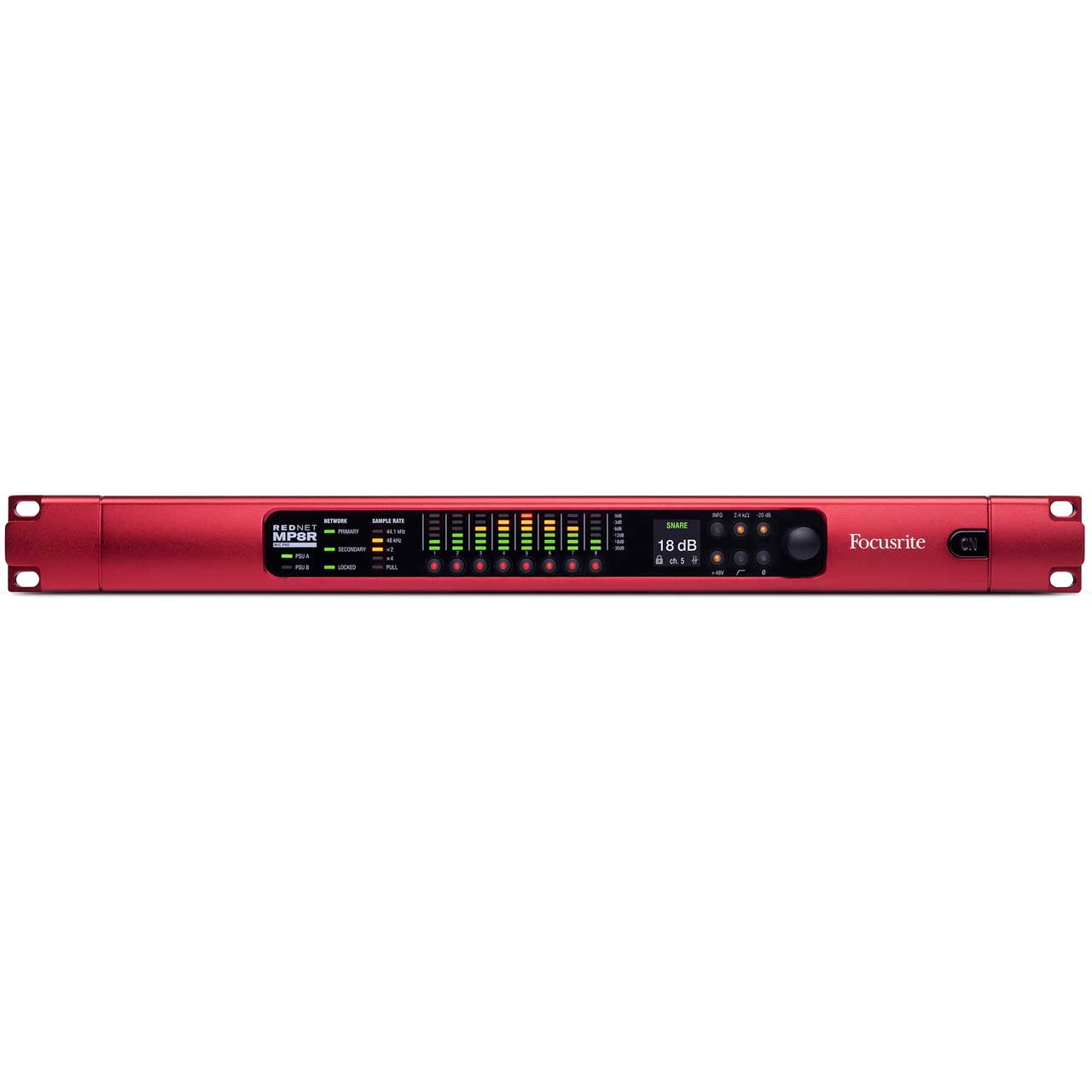

    Front Panel Indicators
  • Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
  • Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
  • Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate.
  • Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.
  • Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to internal clock.
  • Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
  • Pull Up/Down: Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domain.
  • Channel Signal Level: 6 level indicator LEDs for each channel. 3 Green LEDs, (-30dB, -18dB, -12dB); 2 orange LEDs (-6dB, -3dB); red LED (0dB/onset of clipping).
  • Channel Select Buttons: 8
  • Channel Function Controls: Info, Impedance, Pad, Phantom Power, HPF, Phase, Gain Encoder.
  • Channel Display: Colour OLED. Displays Channel Name, Gain, Lock status (When on), Channel Number, Gain Compensation status (When on).

    Network Modes
  • Redundant: Allows unit to connect to two independent networks.
  • Switched: Connects both ports to integrated network switch allowing daisy-chaining of devices.

    Dimensions
  • Height: 44.5mm/ 1.75"
  • Width: 482.6mm/ 19"
  • Depth: 394mm/ 15.51"
  • Weight: 5.75kg
  • Power: PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA.


• Warranty:

  • 2 Year


• GTIN:

  0815301013099
