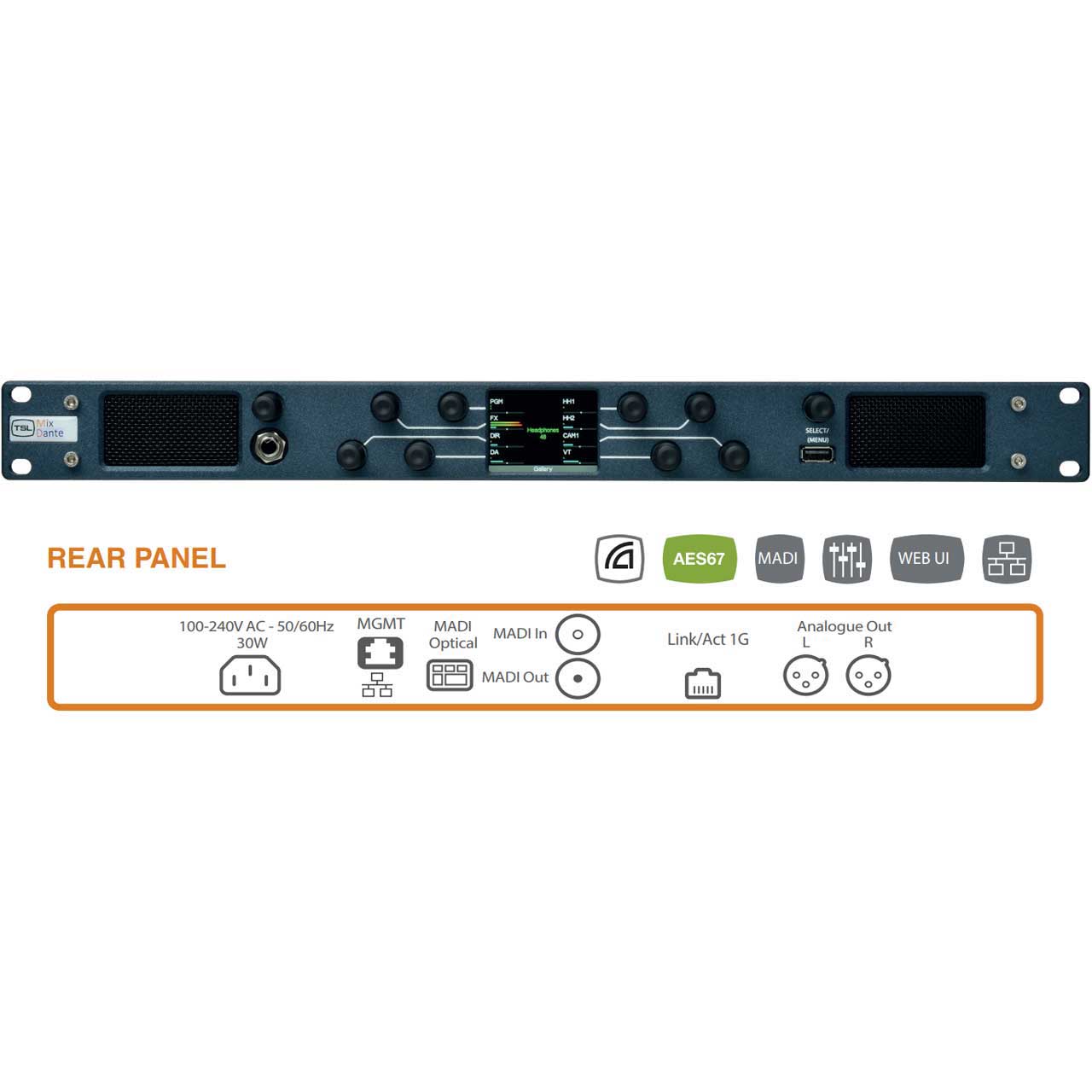

TSL MPA1-MIX-DANTE-V-1 1RU Dante/AES67 and MADI Audio Mixing Monitor with Front Panel Display

ITEM #: FG-MPA1MIXDANTEV MFG #: FG-MPA1-MIX-DANTE-V-1

Primary Image
TSL Products
Free Shipping with $49 Minimum Order

List Price:

$4,871.59

Our Price:

$4,628.01

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    FG-MPA1-MIX-DANTE-V-1 - Overview

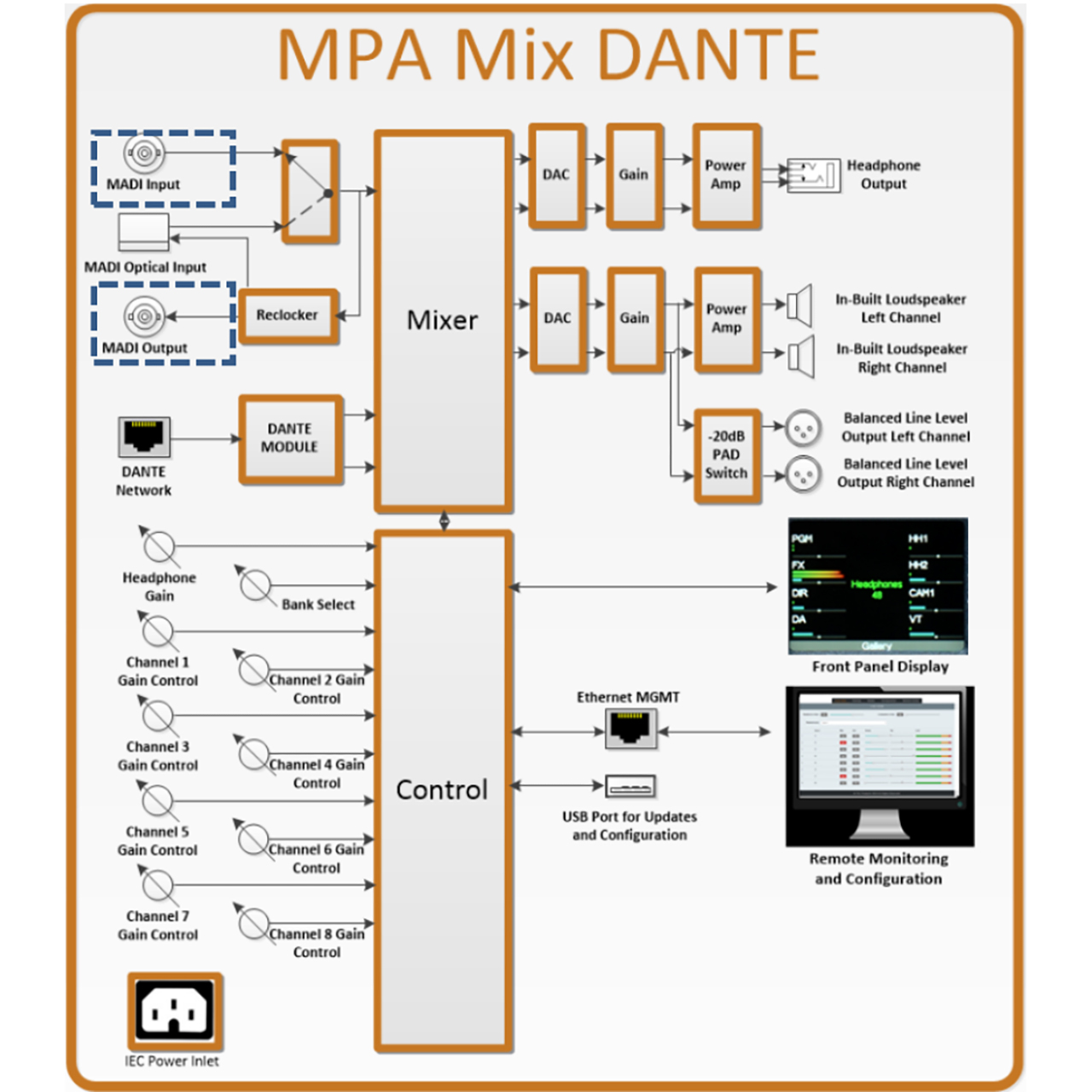

    The MPA1 range of audio monitors from TSL Products is trusted by operators and engineers worldwide. The MPA1-MIX-DANTE-V provides simultaneous audio monitoring of 64 Dante audio channels and a MADI stream comprising a further 64 channels, with an intuitive interface and easy to use controls.

    Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-MIX-DANTE-V presents users with instant 'at a glance' monitoring of 64 DANTE/AES67 audio channels as well as 64 MADI channels.

    With 8 dedicated rotary controls, users can quickly create their preferred monitoring mix. With a total of 128 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function.

    As a member of the MPA1 range of audio monitors, the MPA1-MIX-DANTE-V comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control.

    • Features:

      • Available in SOLO: Simple, intuitive scroll to listen. Designed for use at an outside broadcast or headend where fast audio QC is needed.
      • Available in MIX: Enables the creation of a custom mix on the fly from any of the sources available regardless of I/O type.
      • Web Server - Configuration: Built in web server specifically designed to enable remote configuration and monitoring of networked units.
      • 'Scroll to Hear' - top level bar graph navigation using rotary encoder
      • High quality internal full range loudspeaker system
      • Compact, lightweightdeep
      • Headphone output with selectable loudspeaker muting behaviour
      • 1 x Ethernet connection for Network connectivity allowing software updates, monitoring and control via a web browser
      • 1 x front panel USB connector for system updates
      • 1.5Kg. 1RU case, 100mm
      • 90-240V 50/60Hz mains input on IEC connection
      • 16 channel Bargraph Meter
      • 1 x Dante / AES67 input
      • MADI I/O


    • Specifications:

      • Height: 1RU
      • Dimensions: 483mm x 45mm x 100mm
      • Display: 1.4 kg
      • Audio Channels: Audio Metering
      • Signal To Noise Ratio: 16
      • Peak Acoustic Output: TBA
      • Frequency Response: 90dB @ 1foot
      • Weight: TBA
      • Power: 85-264V ~ 50Hz/60Hz, 0.75A - 0.5A Max 30W
      • Unit Control: SNMP, Webpage
      • Inputs: 1 x Dante/AES67 + 1x MADI Coax
      • Balanced Analogue Inputs: >60k Ohms
      • SFP Cages: 1 x MADI Optical
      • Upgrades: Via USB
      • Balanced Analogue Outputs: Fixed or Variable


    • Item Includes:

      • 1x TSL FG-MPA1-MIX-DANTE-V-1 1RU Dante/AES67 and MADI Audio Mixing Monitor with Front Panel Display
