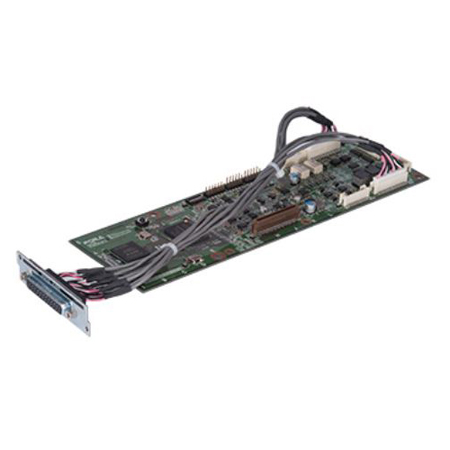

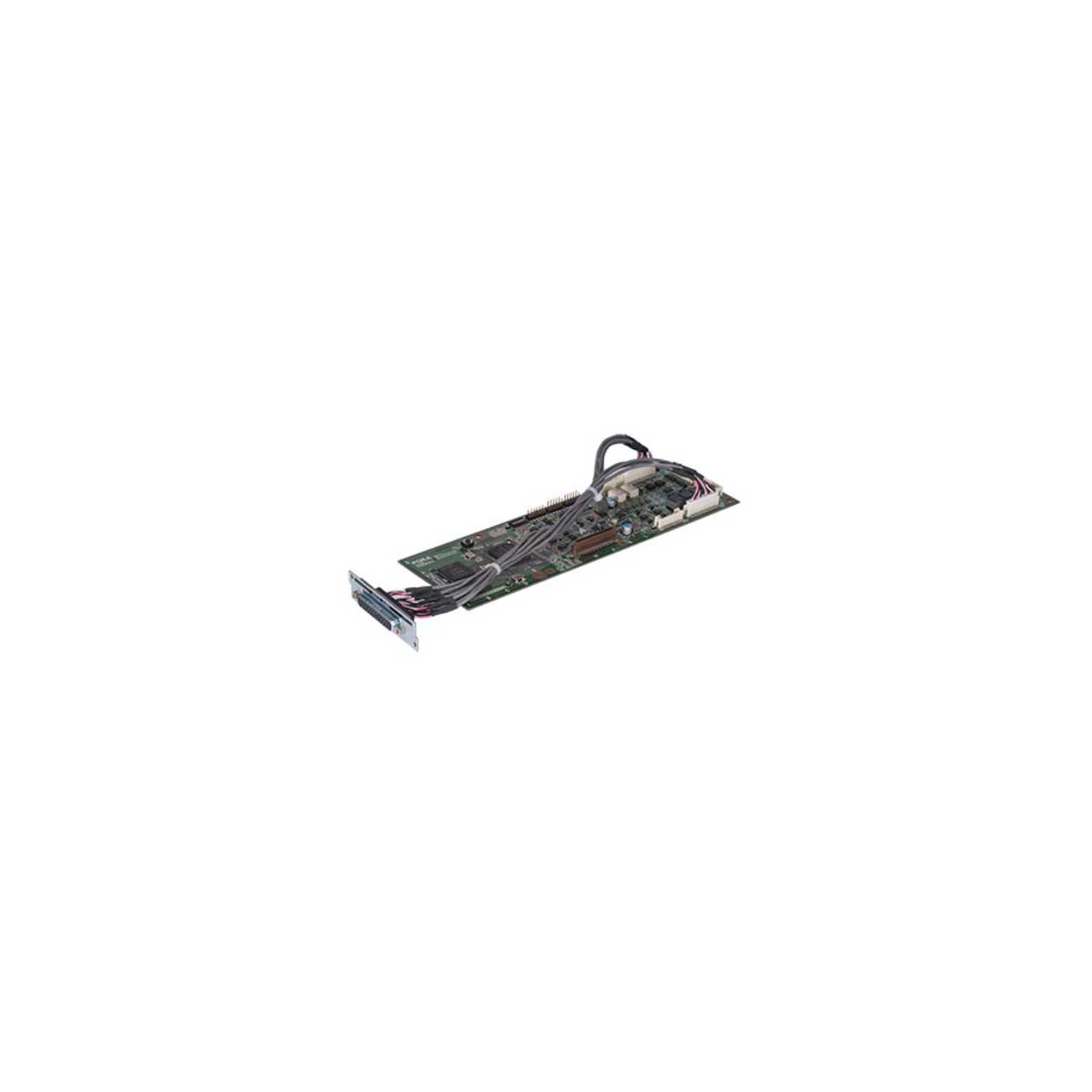

FOR-A FA-10AES-BL Optional Balanced Digital Audio I/O Expansion Card for FA-505 or FA-1010

Name: FOR-A FA-10AES-BL Optional Balanced Digital Audio I/O Expansion Card for FA-505 or FA-1010
Brand: FOR-A
SKU: FORA-FA-10AES-BL
Price: 1059.00 USD
Availability: PreSale

ITEM #: FORA-FA-10AES-BL MFG #: FA-10AES-BL

FOR-A

List Price:

$1,100.00

Our Price:

$1,059.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FA-10AES-BL - Overview

Optional digital audio I/O expansion card for the FA-1010 or the FA-505. Enables 4 lines (8 channels) of balanced digital audio input and output on a single card. Can be inserted in up to 4 slots.

Specifications:
- Audio Input: Balanced, 0.2 Vp-p to 7 Vp-p, 110Ω, 25-pin D-sub (female) x 1 (input/output), 4 pairs of stereo channels, 32/44.1/48 kHz, 16-bit to 24-bit.
- Audio Output: Balanced, 3.3 Vp-p, 110Ω, 25-pin D-sub (female) x 1, input/output, 4 pairs of stereo channels, 48 kHz, 16/20/24-bit.
- Audio Delay: 5 ms to 1,000 ms (adjustable in 1 ms steps).
- Power Consumption: 4.3 VA (4.2 W) (100 V AC to 120 V AC).
- Weight: 0.2 kg
