FOR-A HVS-490 Hanabi Type A Six M/E 3G/HD Switcher Package

HVS490-2M-E - Overview

• Features:

  • Supports four lines (eight channels) of balanced or unbalanced audio input and output
  • For noiseless transitions, audio is muted when video is switched
  • A macro function enables operators to store and register a series of operations and then perform complicated operations with one push of a button
  • Up to 100 registers of control panel configurations can be stored as events
  • One (in 4K(UHD) mode) and four (in HD mode) sill/clip stores are equipped
  • One color corrector (in 4K(UHD) mode) and four color corrector (in HD mode) are available per M/E
  • 2 channels of multi viewer or 4 channels of DSK
  • Built-in Web server enables settings from a PC or tablet device


• Specifications:

  • M/E Buses: 2 M/E (HD/SD)
  • HVS-492OU: 2 M/E 18 buttons
  • Video Formats HD-SDI: 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/29.97p, 1080/25PsF, 1080/25p, 1080/24PsF, 1080/24p, 1080/23.98PsF, 1080/23.98p, 720/59.94p, 720/50p; 3G-SDI: 1080/59.94p, 1080/50p (Level-A)
  • Video Inputs HD-SDI: 1.5 Gbps, BNC x 16, 75Ω (frame synchronizer x 16, re-sizing engine x 4); 3G-SDI: 3 Gbps
  • Number of Video Input Standard: 16 (SDI only), Max.: 40 (varies depending on optional configuration)
  • Video Outputs HD-SDI: 1.5 Gbps, BNC x 8, 75Ω (PGM x 2, AUX x 6) 3G-SDI: 3 Gbps, HDMI (AUX) x 1 (HDCP-incompatible. AUDIO support)
  • Number of Video Outputs Standard: 9 (SDI x 8 + HDMI x 1) / Max.: 22 (varies depending on optional configuration)
  • AUX Standard: 6, Max.: 12 * Effect transitions available for all AUX signal changes
  • Processing: 4:2:2, digital component
  • Quantization: 3G/HD/SD-SDI: 10-bit
  • Multi Viewer Output Channels: 3, Split display: 2/4/5/7/9/10/11/14/15/16 (Max. 49 via HDMI 2.0 Level B), Display: Title, tally, audio level meter
  • Process: Amplifier Equipped with all inputs
  • Still/clip Store: 4-channels (stores up to 1796 frames (60 seconds) at 1080i)
  • 2.5D DVE Standard: 16 (1080/59.94p, 50p: Standard: 8, Max.: 16)
  • Transitions Available Controller: Fader controller, AUTO button, CUT button, Type: MIX or WIPE (DVE included)
  • Genlock Input BB: 0.429 Vp-p (NTSC)/0.45 Vp-p (PAL) or Tri-level sync: 0.6 Vp-p, 75Ω, BNC x 1, loop-through (to be terminated with 75Ω terminator, if unused)
  • Genlock Output BB: 0.429 Vp-p (NTSC)/0.45 Vp-p (PAL) or Tri-sync: 0.6 Vp-p, 75Ω, BNC x 1
  • System Phase Adjustment Horizontal: -1/2H to +1/2H
  • Video I/O Delay: Minimum Delay: approx. 1.4 H, approx. 1.7 H at 720/59.94p, approx. 1.8 H at 720/50p; 0 to 1 frames + Minimum Delay (when FS or input re-sizing engine used) 1 to 2 frames + Minimum Delay (when FS or input re-sizing engine plus DVE used) 2 to 3 frames + Minimum Delay (when FS or input re-sizing engine plus output re-sizing engine plus DVE used)
  • External Memory: SD-CARD slot

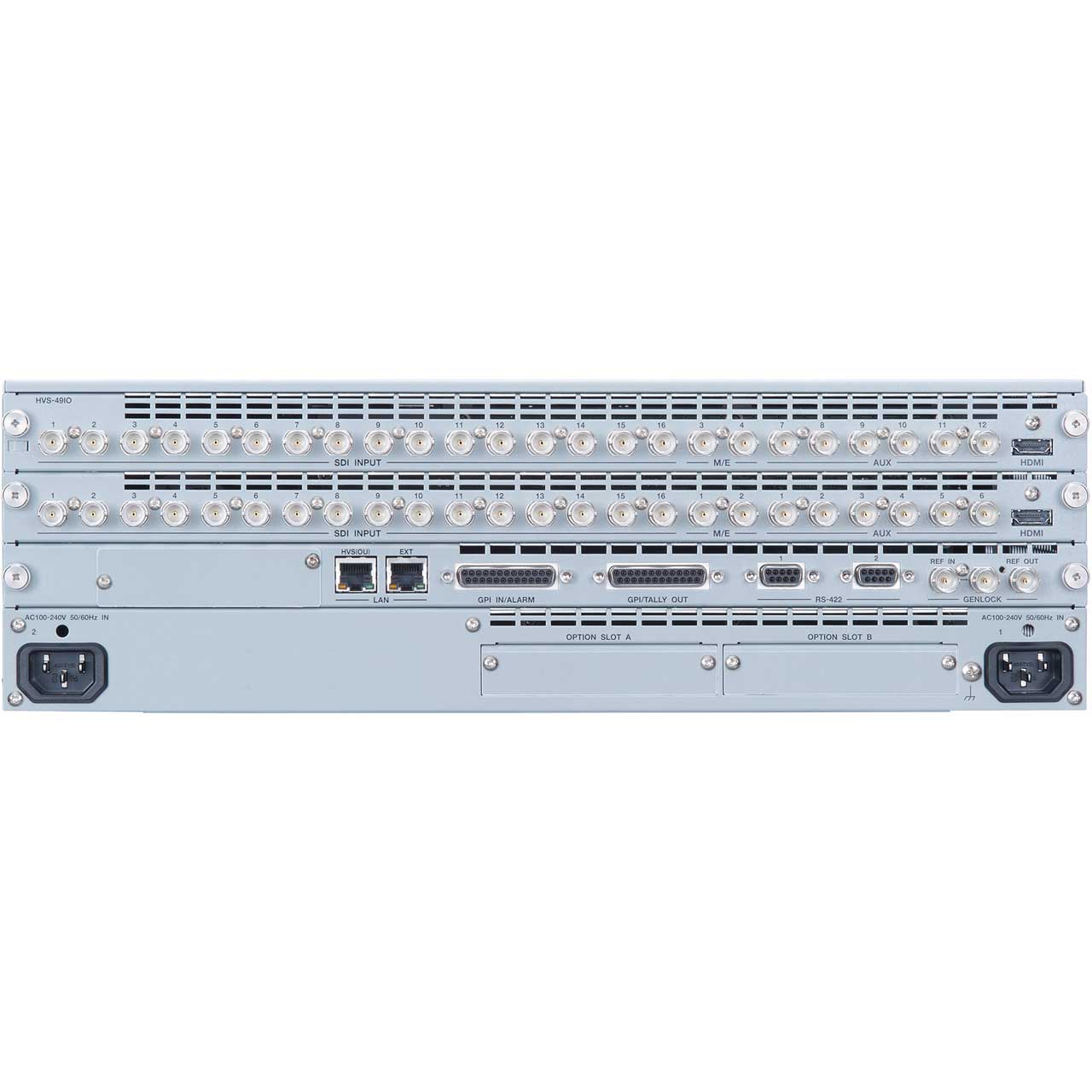

  • Interface: RS-422: 9-pin D-sub (female) x 2; GPI IN: 25-pin D-sub (female) for 19 inputs; GPI/TALLY OUT: 25-pin D-sub (female) for 22 outputs; Ethernet: RJ-45 x 2, HVS-LAN (for OU connection), PC-LAN (for computer and peripheral device connection)
  • Temperature/Humidity: 32° to 104°F (0°C to 40°C) / 10 to 90% (non-condensing)
  • Power: AC 100 V to 240 V ±10%, 50/60 Hz
  • Consumption: 16W (100-120V), 16W (220-240V)
  • Dimensions (WxHxD): 16.93 x 5.19 x 14.82" (430 x 132 x 376.4mm)
  • Weight: 15Lbs (6kg) (with redundant power supply: approx. 16Lbs (7kg))
  • Consumables/Replacement Timing: (constant use at room temperature): HVS-490: Power unit/approx. 5 years, Redundant power supply unit/approx. 5 years, Cooling fan/approx. 4 years; HVS-491OU/492ROU/492OU/492WOU: Power unit/approx. 5 years, Redundant power supply unit/approx. 5 years


• Item Includes:

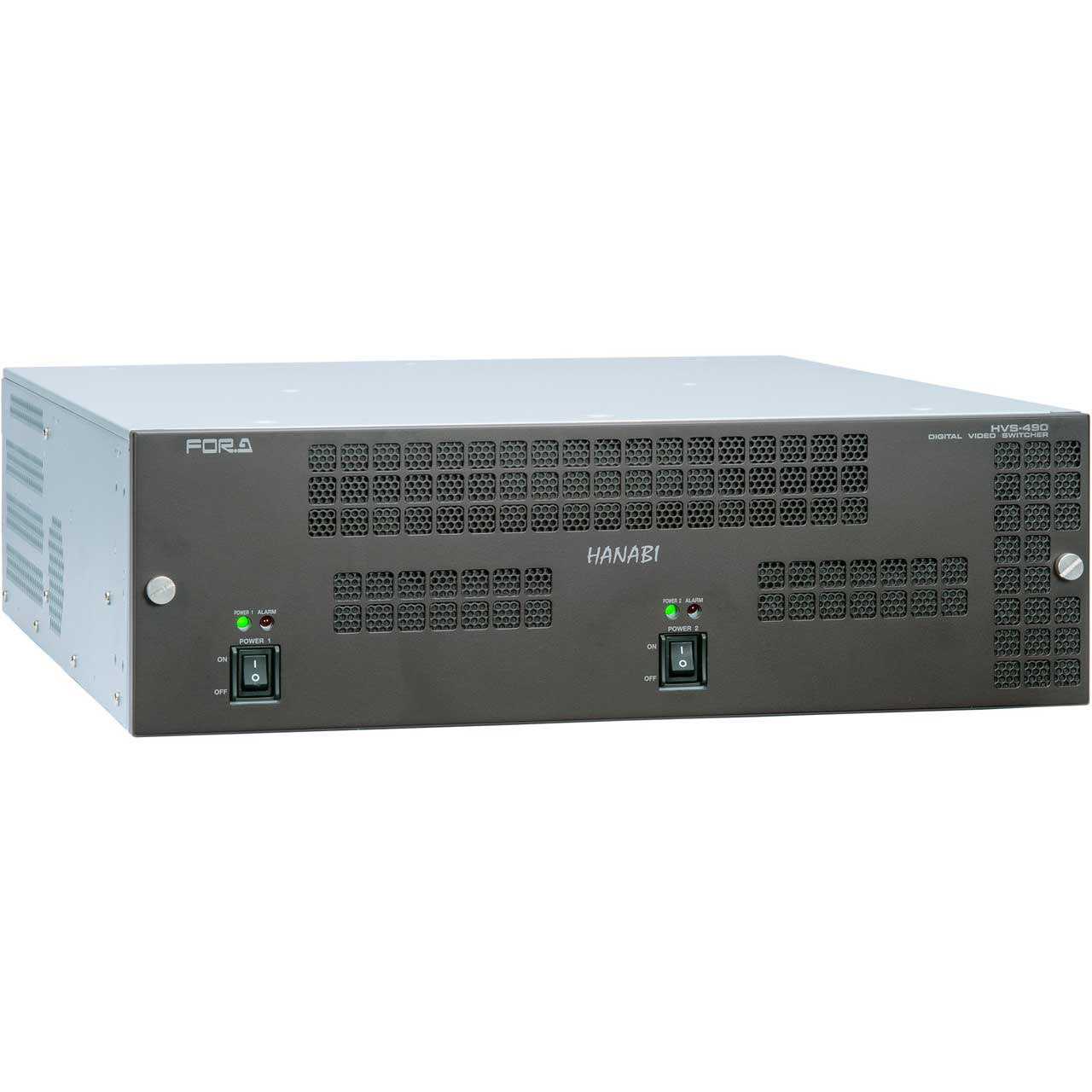

  • 1x HVS-490-2M/E main unit

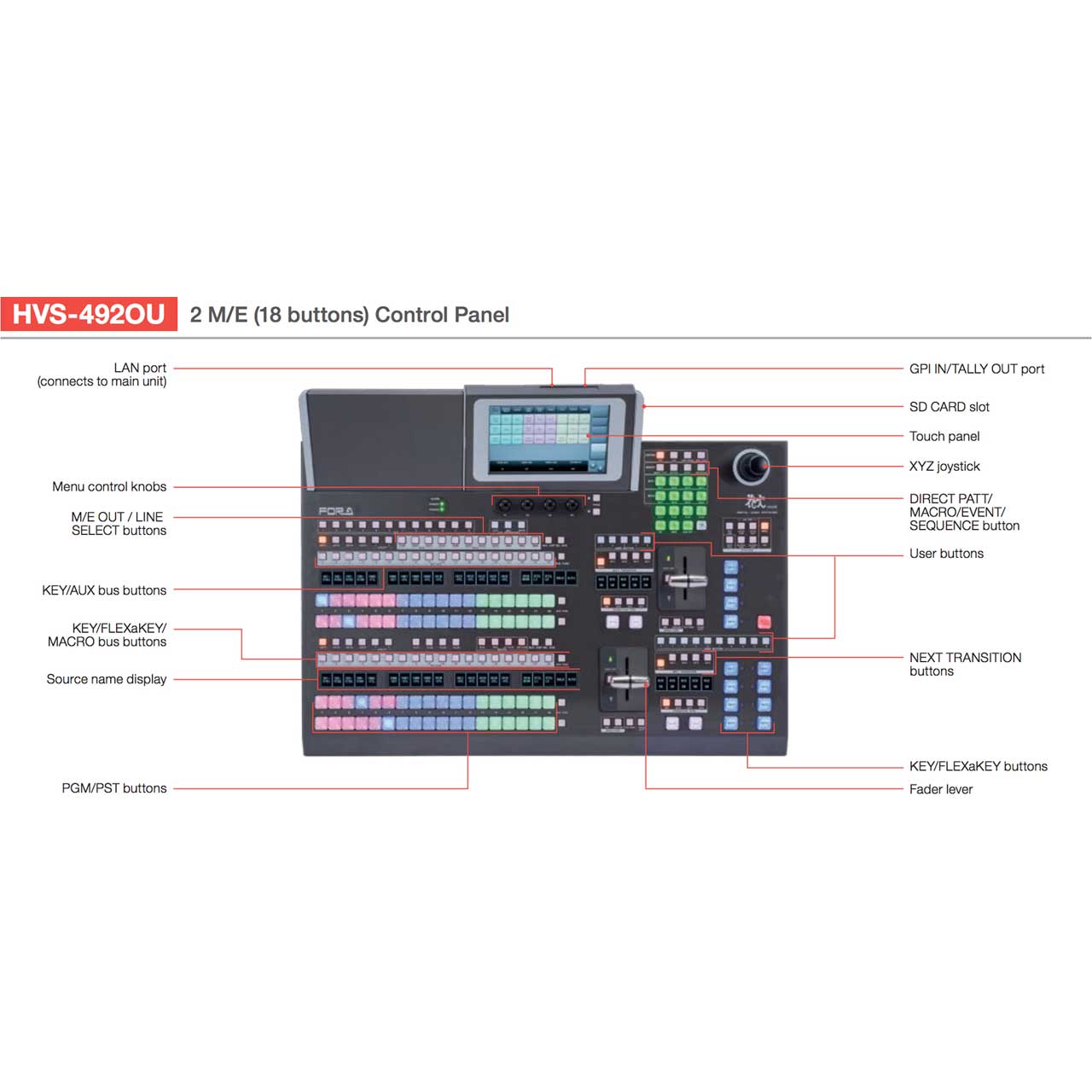

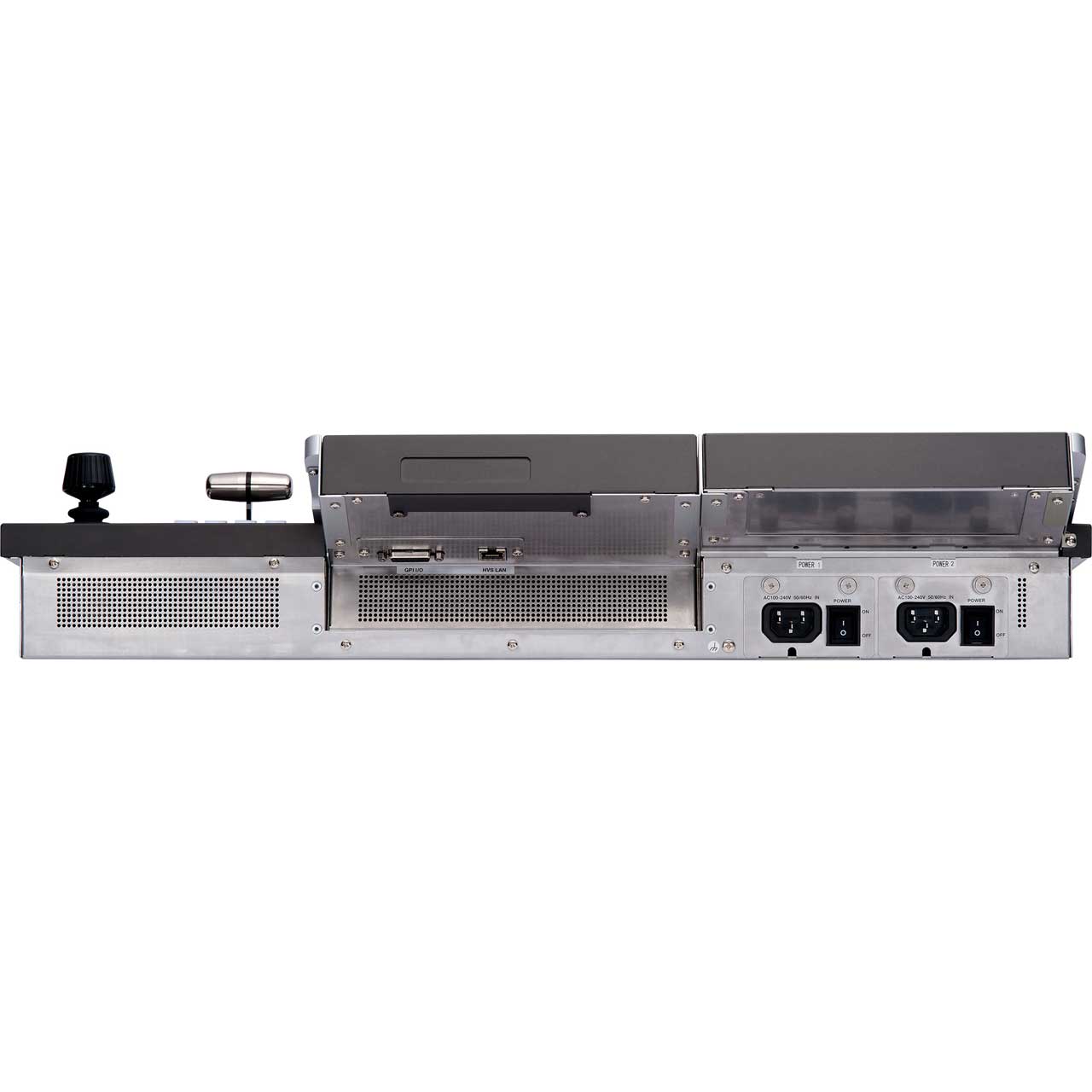

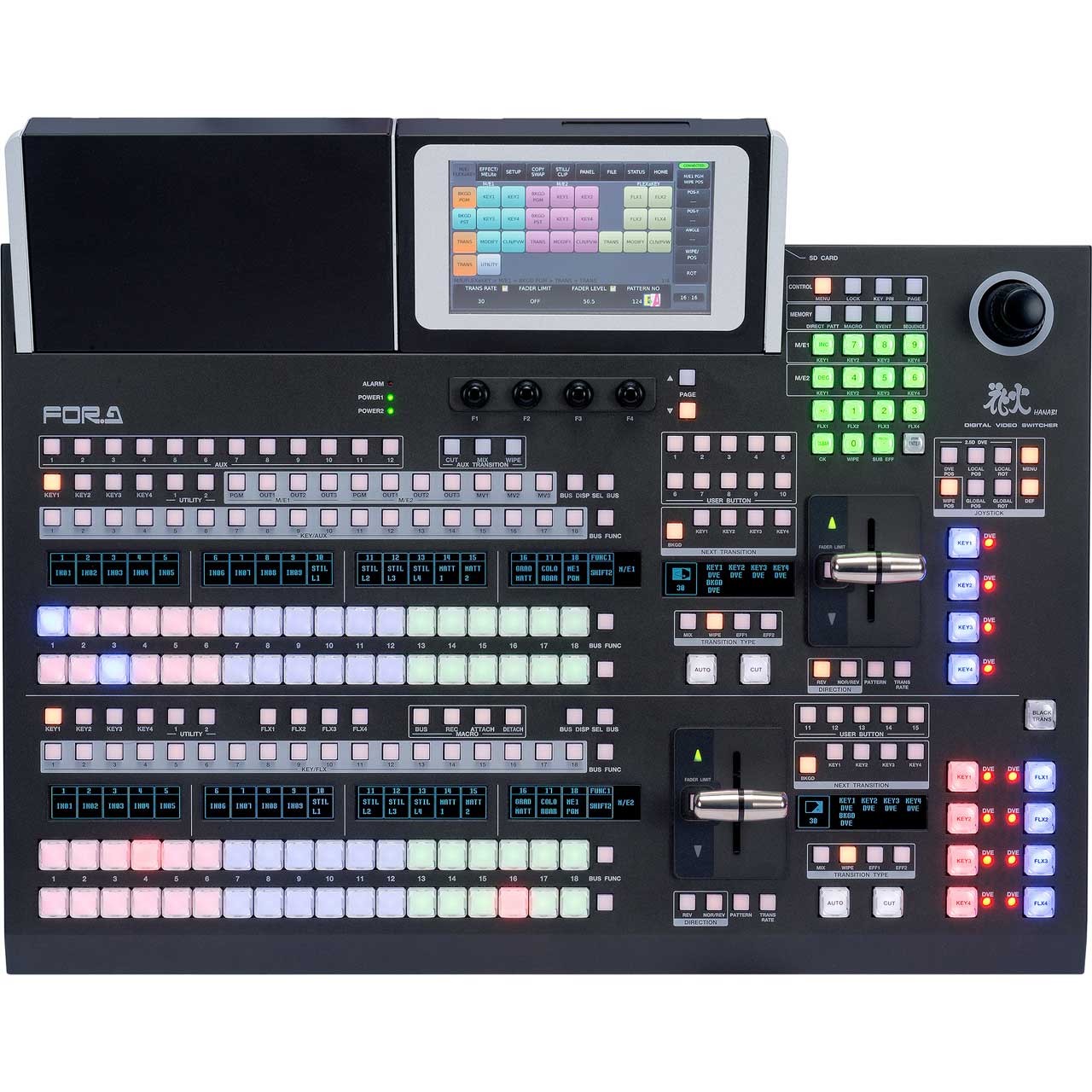

  • 1x HVS-492OU 18 button operation unit
  • 1x HVS-49ED Editor Control Software
  • 1x HVS-49PSO Redundant Power Supply
  • 1x CD-ROM (Operation manual)
  • 1x Quick Setup Guide
  • 1x AC cord
  • 1x Rack mount bracket
  • 1x OU connecting cable: 32.81 feet (10m)
