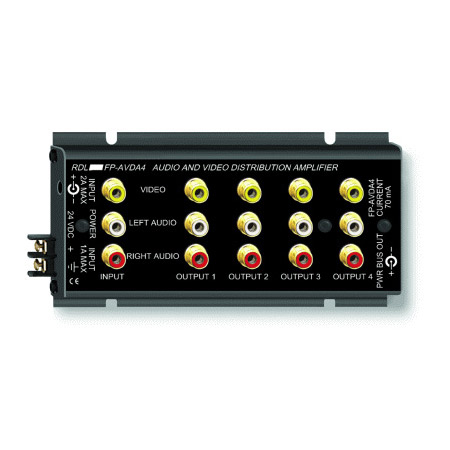

RDL FP-AVDA4 Stereo Audio/Video Distribution Amp - 1x4 - RCA Jacks

FP-AVDA4 - Overview

• Features:

  • Consumer Audio/Video Distribution
  • Four Outputs (Video + Stereo Audio)
  • Professional Quality Performance
  • 75 Ω Video Input/Outputs
  • Unbalanced Audio Input/Outputs
  • Wideband Video − Flat to 10 MHz
  • Ultra‑Compact All Metal Construction


• Specifications:

  • Video
  • Input: Phono jack, 1 V p‑p
  • Input Impedance: 75 Ω
  • Gain: Unity
  • Outputs (4): Phono jack
  • Output Level: 1 V p‑p (into 75 Ω)
  • Frequency Response: 10 Hz to 10 MHz (+/‑ 0.2 dB)
  • Noise: < ‑75 dB (below 1 V p‑p)
  • Output Isolation: > 45 dB
  • Differential Gain: 0.1%
  • Differential Phase: 0.1 degree (measured at 10% and 90% APL)

    Audio
  • Inputs (2): Phono jacks (stereo), ‑10 dBV Unbalanced
  • Input Impedance: 10 kΩ, bridging
  • Gain: Unity
  • Outputs (8): Phono jacks (4 stereo)
  • Output Impedance: 150 Ω drives 10 kΩ lines
  • Frequency Response: 20 Hz to 40 kHz (+/‑ 0.25 dB)
  • THD+N: < 0.05%; typ. 0.01% (1 kHz)
  • IMD: < 0.02%
  • Output Level: ‑10 dBV
  • Headroom: > 18 dB
  • Noise: < −85 dB below −10 dBV
  • Crosstalk: Better than 75 dB (20 Hz to 20 kHz);, typ < ‑90 dB (1 kHz)


  • Power Requirement: GROUND‑REFERENCED, 24 Vdc @ 60 mA
  • Dimensions: Height: 1.20 in. 3.05 cm
  • Width: 3.25 in. 8.26 cm
  • Length: 6.41 in. 16.28 cm
  • Ambient Operating Environment: 0° C to 55° C


• GTIN:

  0813721012388
