The Patton FP2008E is an industrial-grade, 10-port 10/100/1000 Ethernet switch ideally suited for Industrial Ethernet communications over a moderate bandwidth Gigabit fiber trunk. Layer 2 management enables this switch to provide reliable redundant connectivity throughout your network.

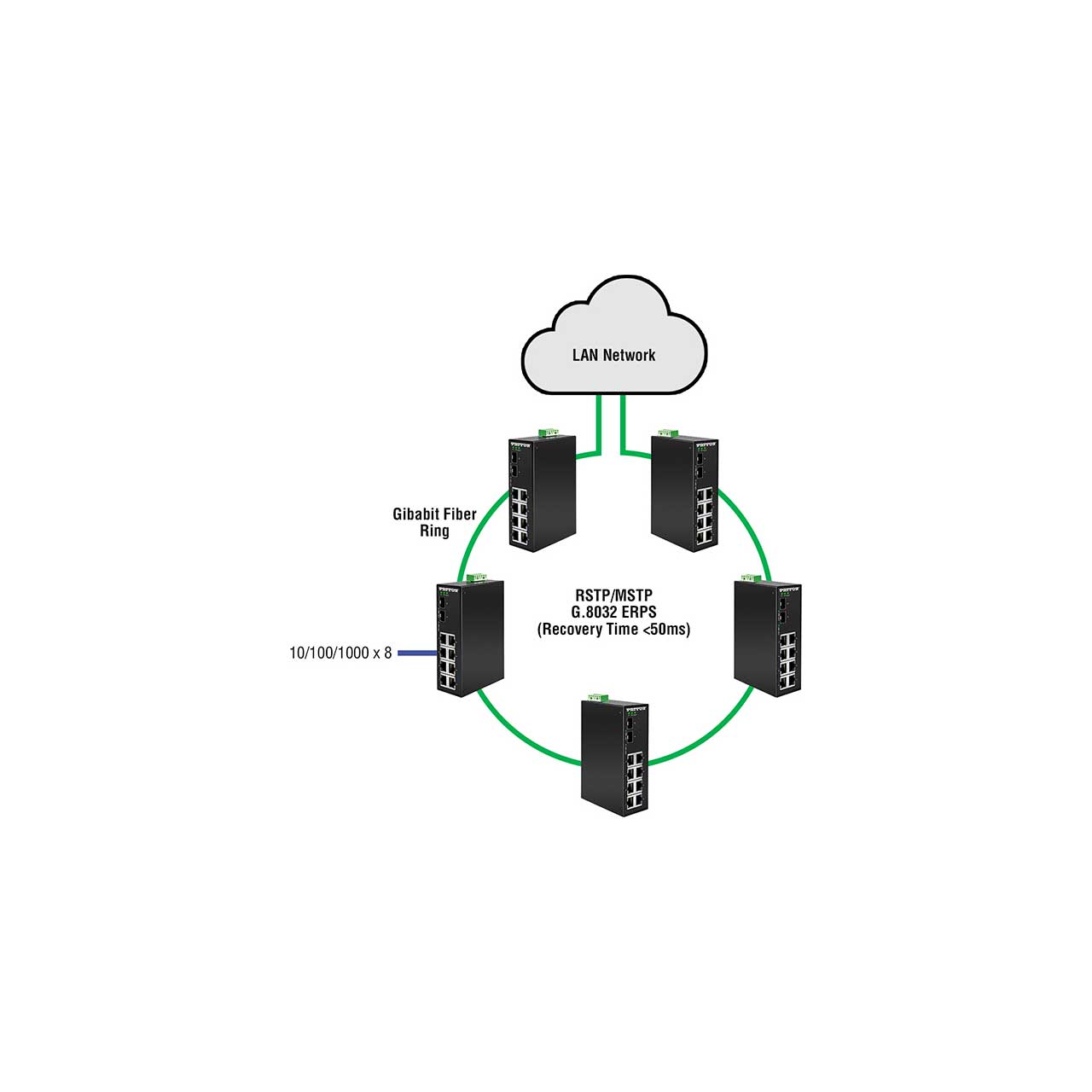

Patton's FP2008E Managed Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections. The FP2008E is a fully manageable Layer 2 Ethernet switch, pre-loaded with a user-friendly web management console design. Ring network redundancy is provided by MSTP/RSTP and open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol which has a < 50ms network recovery time. Advanced L2 network filtering and prioritization include IGMP, VLAN, QoS/CoS/ToS. Efficient monitoring and security can be achieved through SNMPv1/v2/v3, RMON, port mirroring, 802.1x, HTTPS, SSH/SSL.

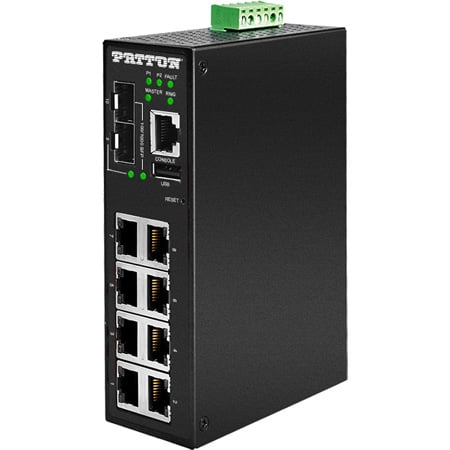

The FP2008E is housed in a sturdy IP30-rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 RJ45 10/100/1000 Ethernet ports and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP2008E provides additional EFT and ESD protection that prevent unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 167°F (-40 to 75°C).
