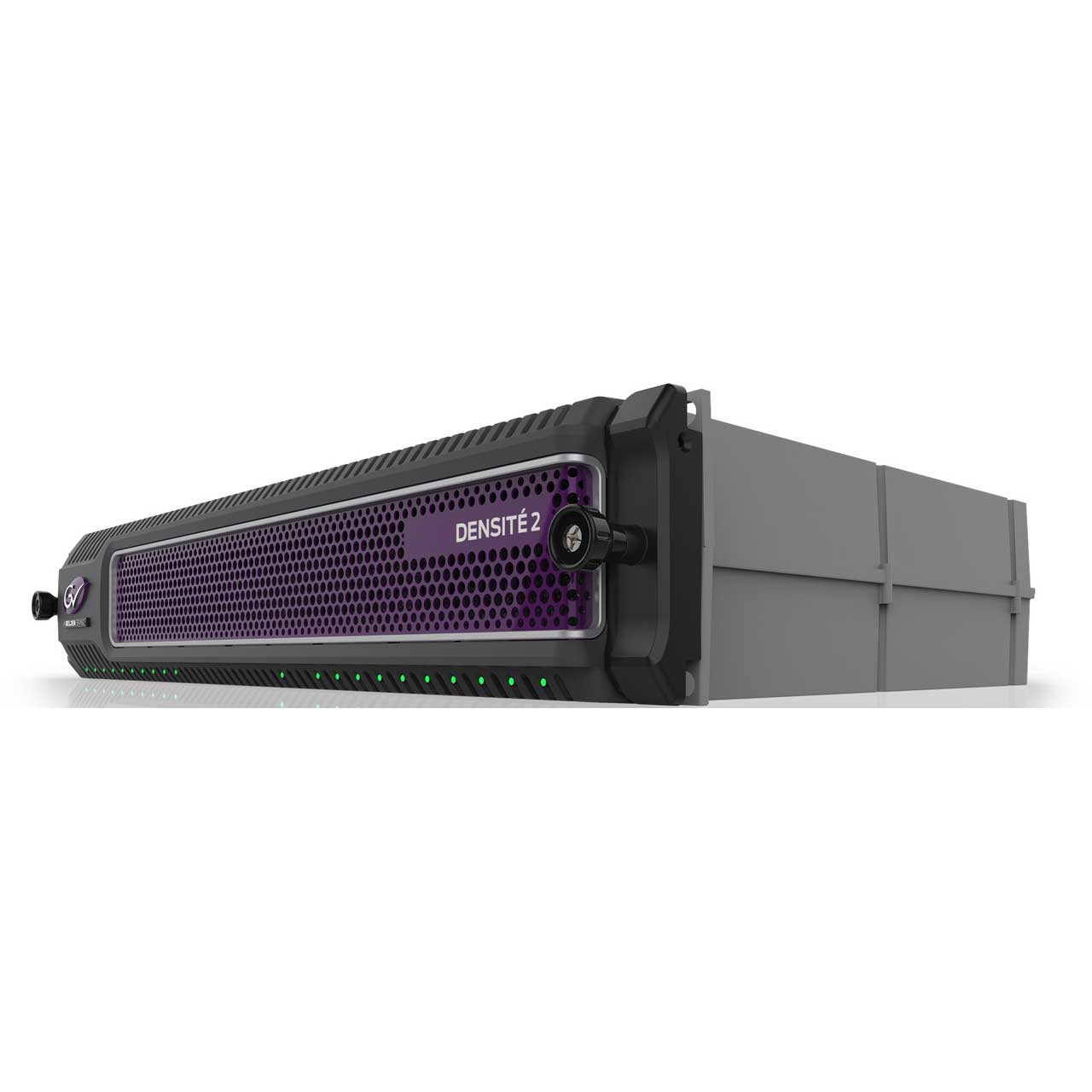

Grass Valley DENSITE 2 Housing/Frame/Controller/PS

Name: Grass Valley DENSITE 2 Housing/Frame/Controller/PS
Brand: Grass Valley
SKU: GVLY-DENSITE-2
Price: 2900.00 USD
Availability: PreSale

ITEM #: GVLY-DENSITE-2 MFG #: DENSITE 2

Grass Valley

List Price:

$3,052.50

Our Price:

$2,900.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DENSITE 2 - Overview

The 2 RU Densité 2 Frame can simultaneously process 3G, HD, SD and analog video, as well as AES and analog audio. Its front-opening frame features dual hot-swappable power supplies (PSUs) and fans. Modules for the air-cooled frame are also hot swappable, and replacement modules can be configured automatically. All modules, redundant PSUs and fans are monitored to deliver status via GPI or an Ethernet port. Front panel multicolor LEDs provide status reporting, while a controller card allows card adjustments from the front panel.

Please note!Frame Only! Cards and rear modules sold separately.

Features:
- Multiple video and audio formats can be fitted in a single chassis
- Up to 20 cards in a single 2 RU frame
- Easy configuration by front panel or remotely via Ethernet
- Remote control by RCP-200 advanced control panel and by PC-based iControl Solo GUI (requires CPU-ETH2 option)
- Hot swappable power supply, with optional redundant power supply
- Can be stacked without additional cooling spaces
- Full network link redundancy using Channel bonding, with DENSITE-CPU-ETH2-OPT-LNK option
Specifications:
- Mechanical
- Dimensions: 2 RU x 19" (W) x 11.25" (D) with connectors
- Weight: 7 lbs. 1 PSU , with no modules installed

  Power
- Input range: AC 96-264V, 50-60 Hz
- Rating: 150W max

  Control and Monitoring
- Communications ports: 2x Ethernet 10/100 Base-T
- Alarm: GPI contact

  Cooling
- Fans: 2 on frame, 1 on each PSU
- Sound pressure level: 8.9 dBA (1m in front of unit)
- Operating temp. range: 32°F - 104°F

DENSITE 2 - Required Accessories

Grass Valley ADA-1023 Dual Stereo Analog DA
GVLY-ADA-1023
Our Price: $466.00
Grass Valey DDA-1113 75 Ohm AES DA - for Densite 2 Frame
MIR-DDA-1113
Our Price: $509.00
Grass Valley VDA-1002 SYNC Dist Amp
GVLY-VDA-1002
Our Price: $282.00

DENSITE 2 - Recommended Accessories

Canare L-2T2S Audio Cable Black per foot
L-2T2S BK
Our Price: $0.49
Canare L-4E6S Star-Quad Microphone Cable by the Foot - Black
L-4E6S BK
Our Price: $0.59
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $50.49
West Penn 454 1-Pair 22Awg CM Miniature Line Level Audio Cable - Black - 500 Feet
WP-454-500BK
Our Price: $73.25
Connectronics CRSX-2 5-Channel Cable Ramp Crossover & Cable Protector - Black with Yellow Lid
CRSX-2
Our Price: $129.95
Digital Forecast Bridge X-TS PACK V3 Video and Audio Troubleshooter and Cross Converter Hard Case Bundle
DF-X-TS-PACK-V3
Our Price: $1,424.00
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
LaserLine 21010-9 Pull String Shooter Cable Installation Kit
WI-D21010-9
Our Price: $299.99
SoundTools SSXLR Sniffer/Sender 3-Pin XLR/Phantom Power Test Set - DMX Compatible
ST-XLR-SS
Our Price: $60.00
Tenma 72-6948 Audio Impedance Meter & Tester
TEN-72-6948
Our Price: $192.95
10 Space Slim 2M Desktop Turret Rack
2-10M
Our Price: $384.30
Middle Atlantic RK Series 8RU Rack - Black Laminate
RK-8
Our Price: $223.20
Middle Atlantic Cable Management Straps - 12 Pack
TW12
Our Price: $22.50
Rip-Tie H-06-10 CableWrap 1x6 Black - 10 Pack
RT6-10
Our Price: $28.56
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Remote Audio APPKITPRO Adapt-a-Pak Pro Kit Featuring 55 Adapters of 30 Types
REM-APPKITPRO
Our Price: $240.00
XLR Male to Screw Down Interconnect
PNX-106M
Our Price: $13.95
XLR Female to Screw Down Interconnect
PNX-106F
Our Price: $13.95
RDL ST-CL2 Compressor/Limiter - Line Level
ST-CL2
Our Price: $208.80
Whirlwind Inline XLR Barrel Ground Lifter
LIFTER
Our Price: $25.00
My Custom Shop 12-Port XLR & 1/4-TRS Combo Feed-Through Patchbay w/ Neutrik NCJ6FI-S - 1RU
PBXLR-12COMBO
Our Price: $456.95

DENSITE 2 - Reviews

DENSITE 2 - Attachments

See GrassValley DENSITE 2 Specifications (PDF)

Overview

DENSITE 2 - Overview

Please note!Frame Only! Cards and rear modules sold separately.

Features:
- Multiple video and audio formats can be fitted in a single chassis
- Up to 20 cards in a single 2 RU frame
- Easy configuration by front panel or remotely via Ethernet
- Remote control by RCP-200 advanced control panel and by PC-based iControl Solo GUI (requires CPU-ETH2 option)
- Hot swappable power supply, with optional redundant power supply
- Can be stacked without additional cooling spaces
- Full network link redundancy using Channel bonding, with DENSITE-CPU-ETH2-OPT-LNK option
Specifications:
- Mechanical
- Dimensions: 2 RU x 19" (W) x 11.25" (D) with connectors
- Weight: 7 lbs. 1 PSU , with no modules installed

  Power
- Input range: AC 96-264V, 50-60 Hz
- Rating: 150W max

  Control and Monitoring
- Communications ports: 2x Ethernet 10/100 Base-T
- Alarm: GPI contact

  Cooling
- Fans: 2 on frame, 1 on each PSU
- Sound pressure level: 8.9 dBA (1m in front of unit)
- Operating temp. range: 32°F - 104°F
