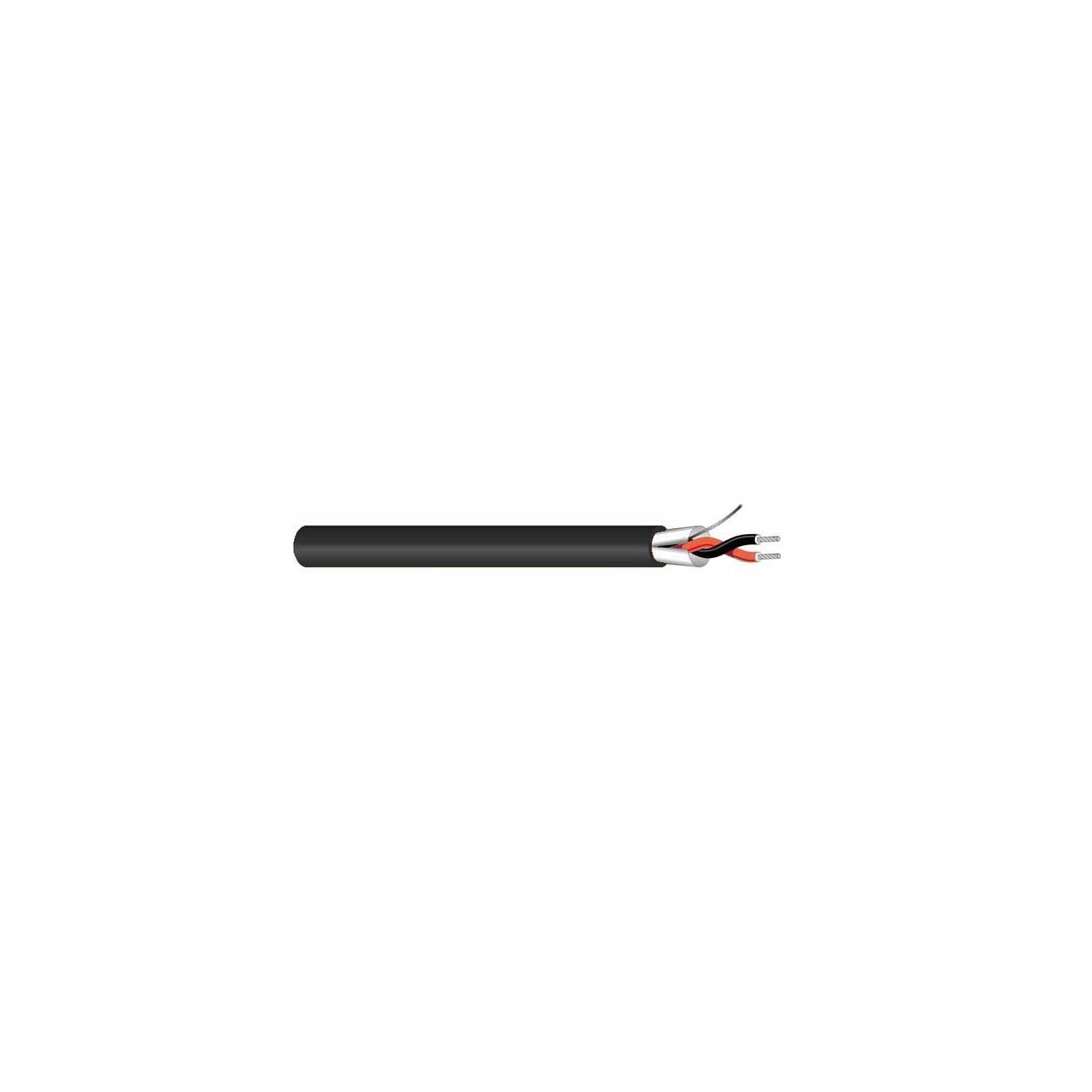

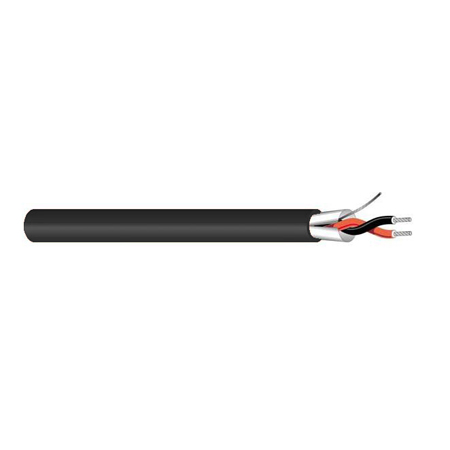

West Penn 454 1-Pair 22Awg CM Miniature Line Level Audio Cable - Black - 500 Feet

454-500BK - Overview

• Specifications:

  • Conductor Parameter
  • Number of Pairs: 1
  • AWG Size: 22
  • Conductor Stranding: 7x30
  • Conductor Type: Tinned Copper
  • Nominal DCR: 17 Ohm/1000ft

    Overall Construction Parameters
  • Jacket Type: PVC
  • Jacket Thickness: 0.02"
  • Nominal Cable O.D.: 0.135"
  • Plenum: No
  • NEC UL Rating: CMR
  • RoHS Compliant: Yes
  • Pull Tension: 28Lbs
  • Bend Radius: 1.215"
  • Cable Weight: 15Lbs

    Insulation Parameter
  • Insulation Type: Polypropylene - PP
  • Insulation Thickness: 0.008"
  • Insulation Color Code: 1. Black 2.Red

    Shielding Parameter
  • Shield Type: Bonded Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 22 AWG

    Electrical Characteristics
  • Nominal Impedance: 45 Ohm
  • Nom. Cap. Between Conductors: 34 pF/ft
  • Nom. Cap. Conductor to Shield: 67 pF/ft

    Overall Electrical/Optical Characteristics
  • Nominal Velocity of Propagation (VP): 66 %
  • UL Flammability: UL1666 Vertical Shaft
  • CSA Flammability: FT4
  • Operating Range: -4° to 140°F (-20 to 60°C)
  • UL Voltage Rating: 300
  • Color: Black
  • Length: 500'


• GTIN:

  0612825054726
