Rean NYS231BG 3.5MM TRS Plug Black/Gold

Name: Rean NYS231BG 3.5MM TRS Plug Black/Gold
Brand: Rean
SKU: NYS-231BG
Price: 1.69 USD
Availability: InStock

ITEM #: NYS-231BG MFG #: NYS231BG

Rean

List Price:

$2.83

Our Price:

$1.69

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NYS231BG - Overview

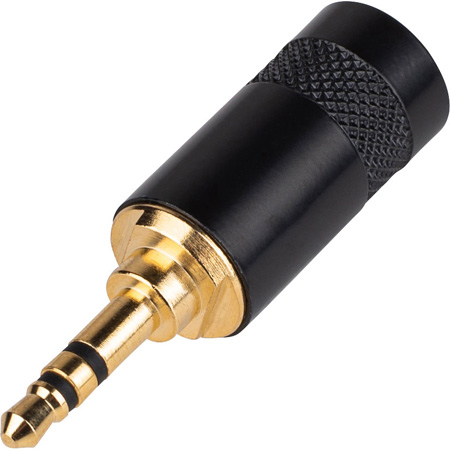

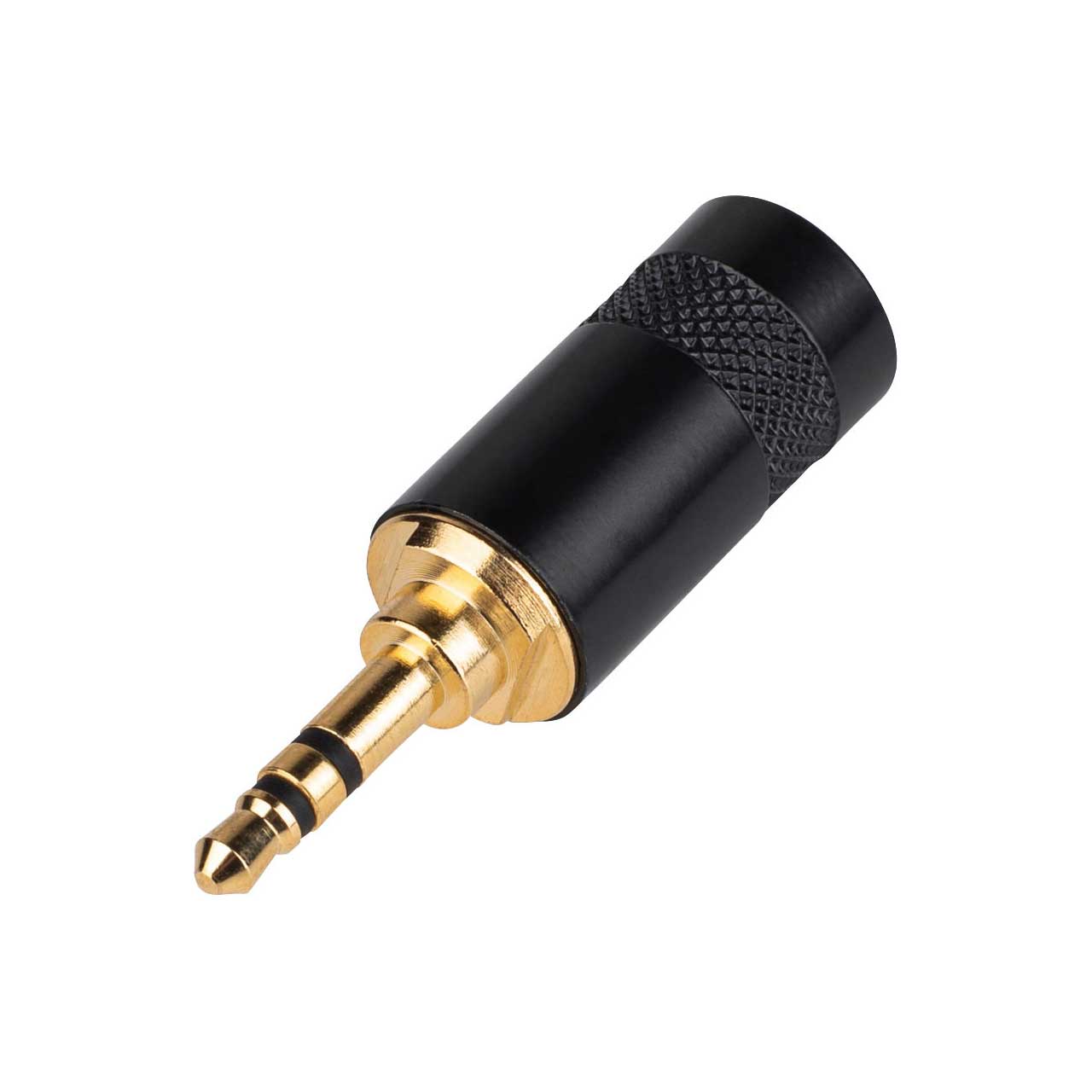

The Rean NYS231BG is a 3.5mm 3-Pole Plug that features Gold Plated Contacts & a Black Metal Handle.

Specifications:
- Electrical
- Contact Resistance: ≤ 10 mΩ
- Insulation Resistance: ≥ 200 MO(Initial)
- Dielectric Strength 0.5 KVdc 50HZ

  Mechanical
- Lifetime: > 5,000 Mating Cycles
- Insertion and Withdrawal Force: 5 - 40 N
- Cable O.D.:
  - max 4.5 mm for standard outlet
  - max 6.4 mm for large outlet (* L)
  - max 8.5 mm for large outlet (* LL)

  Material
- Plug Finger: Brass
- Sleeve: Zinc
- Retainer Ring: PA66+30%GF
- Soldering Contact: Phosphor Bronze
- Cable Clamp: Steel
- Insulation: PP
- Housing: Zinc
- Plug Finger Plating: Nickel
- Sleeve Plating: Nickel
- Soldering Contact Plating: Tin
- Cable Clamp Plating: Tin
- Housing Plating: Nickel
