Rean NYS240L 3.5mm Metal Handle Jack

ITEM #: NYS240L MFG #: NYS240L

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$2.20

Our Price:

$1.32

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS240L - Overview

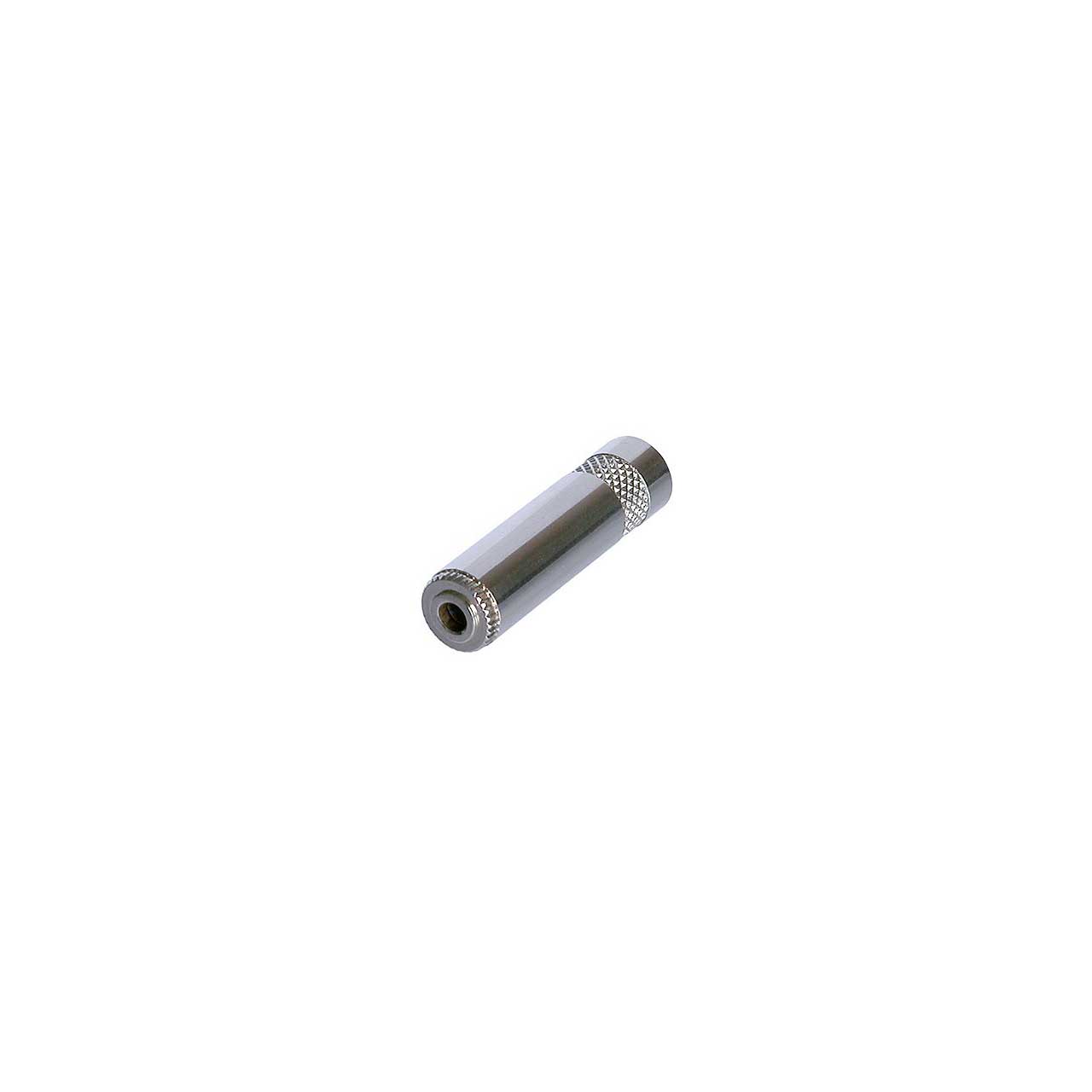

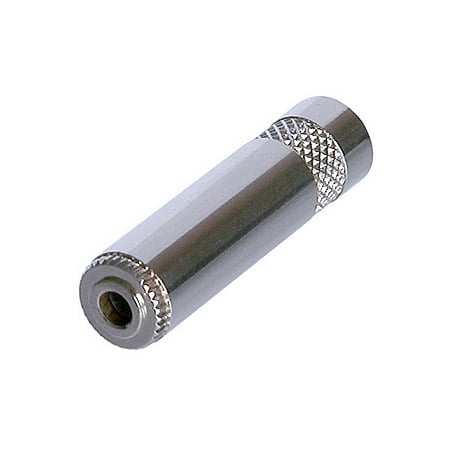

The Rean NYS240L is a 3 pole 3.5 mm cable jack with a metal handle and a maximum cable O.D. of 6 mm.

  • Specifications:

    • Product
    • Title: NYS240
    • Connection Type: Jack

      Electrical
    • Contact Resistance: ≤10 mΩ
    • Insulation Resistance: >200 MΩ(Initial)
    • Rated Voltage: 500 VAC

      Mechanical
    • Insertion and Withdrawal Force: ≤60N
    • Lifetime: >1,000 Mating Cycles

      Material
    • Housing: Brass
    • Ground Contact: Bronze
    • Housing: Zinc
    • Contact: Bronze
    • Contact: Bronze
    • Bushing: PP
    • Insulation: PA66+30%GF
    • Clamping: Steel
    • Insulated Pipe: Steel
    • Housing: Nickel Plating
    • Contact: Tin and Cer
    • Contact: Tin and Cer
