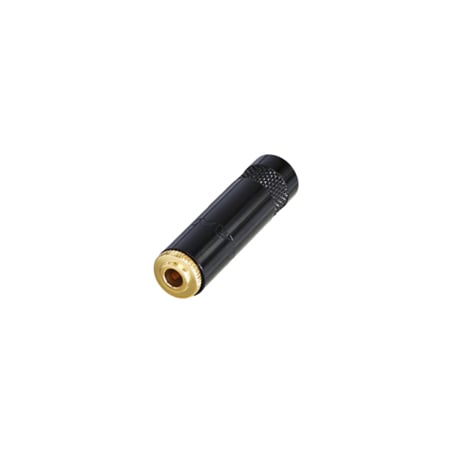

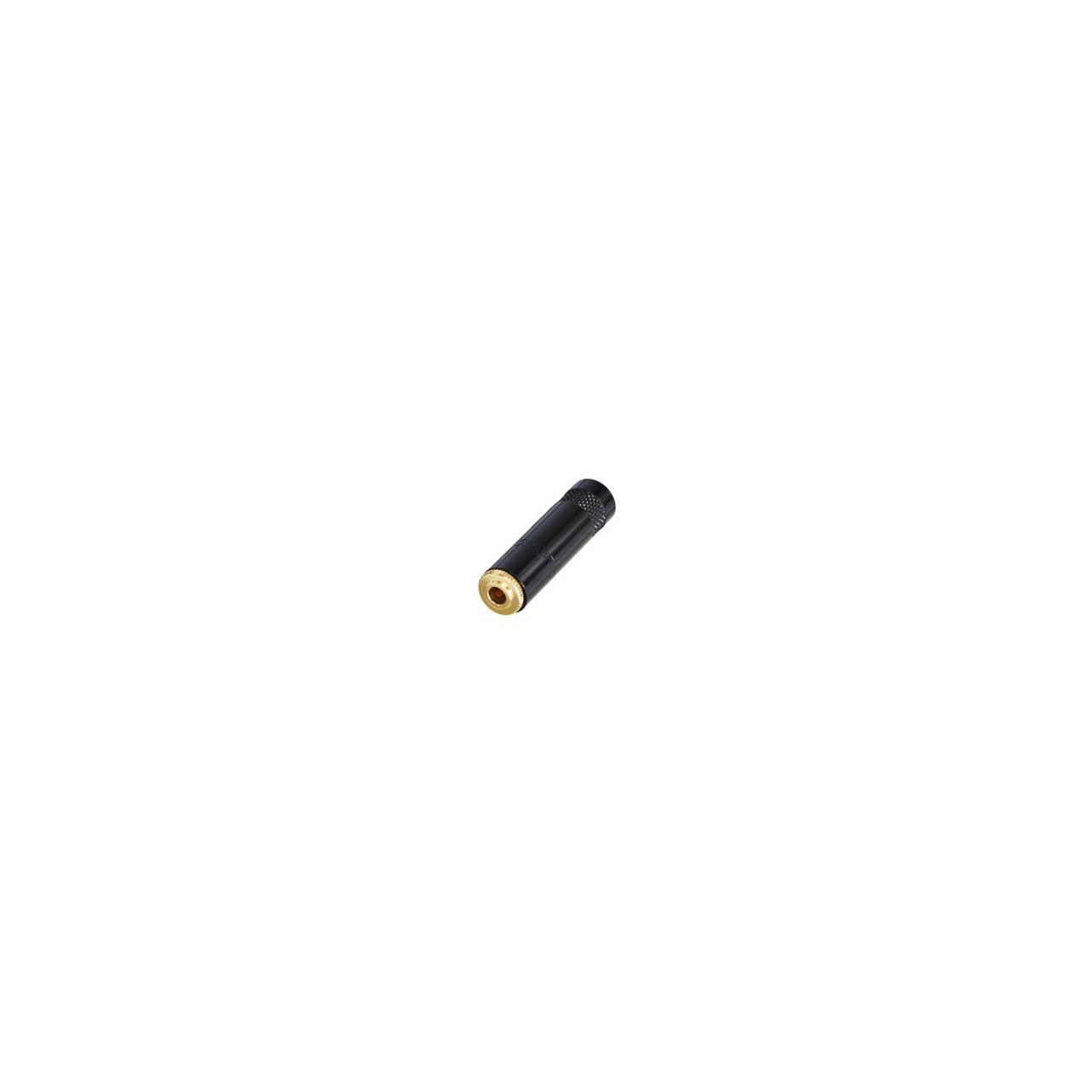

Rean NYS240BG 3.5mm Cable Jack Black with Metal Handle and Gold Contacts

NYS240BG - Overview

• Specifications:

  • Electrical
  • Contact Resistance: ≤10mΩ
  • Insulation Resistance: =200 MΩ(Initial)
  • Dielectric Strength: 0.5 KVdc 50HZ

    Mechanical
  • Insertion and Withdrawal Force: ≤60N
  • Lifetime: >1,000 Mating Cycles

    Material
  • Inner: Steel
  • Tip: Brass
  • Bushing: PA66+30%GF
  • Insulation: PVC
  • Front Shell: Zinc
  • Insulation: PA66+30%GF
  • Soldering Contact: Brass
  • Cover(Black): PA6+30%GF
  • Bushing(Black): POM
  • Inner: Brass
  • Bushing: PA66+30%GF
  • Sleeve: Brass
  • Insulation: PVC
  • Cable Clamp Steel
  • Tip: Nickel Plating
  • Front Shell: Nickel Plating
  • Sleeve:Nickel Plating
  • Inner: Nickel Plating
  • Soldering Contact: Tin and Cer
  • Cable Clamp: Tin and Cer
