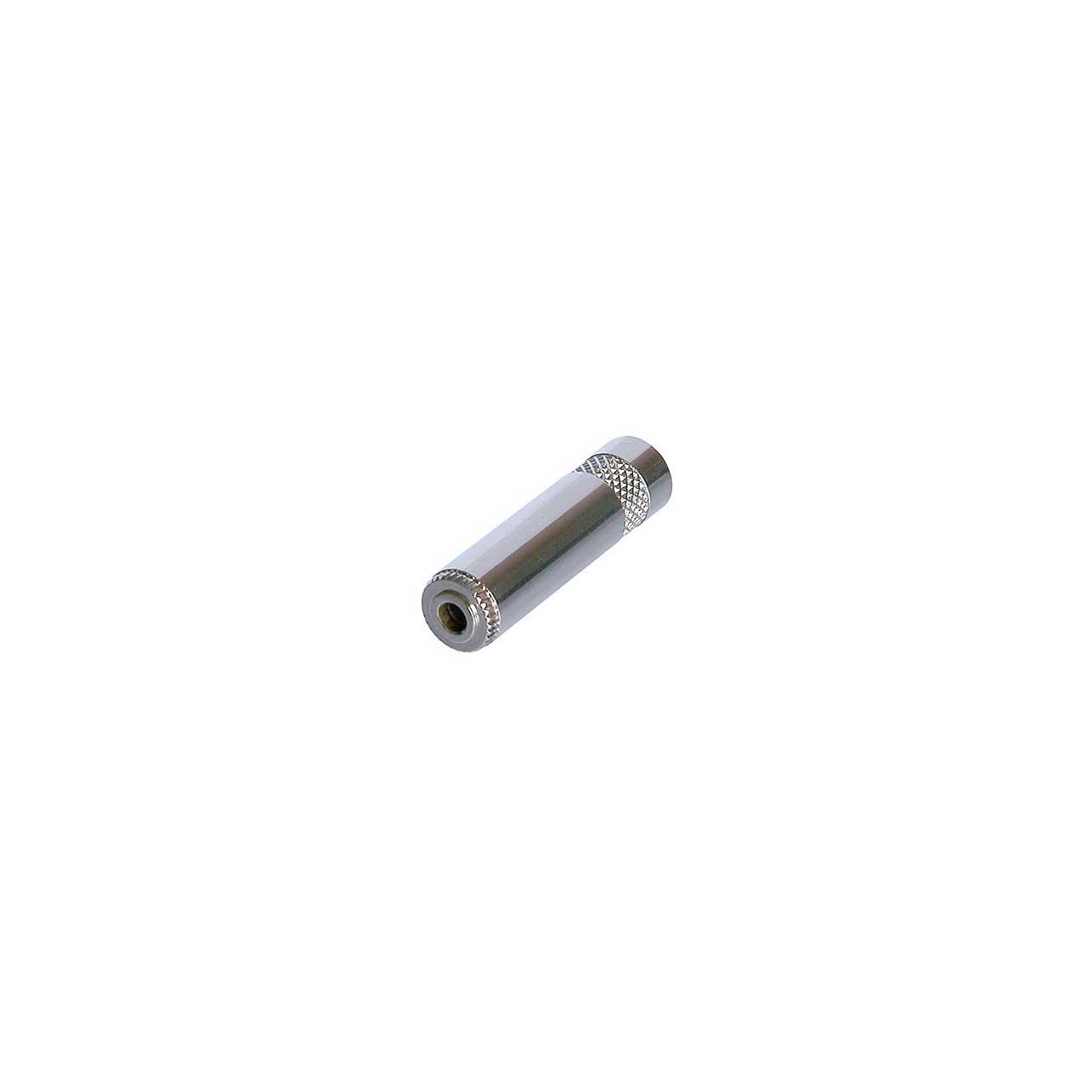

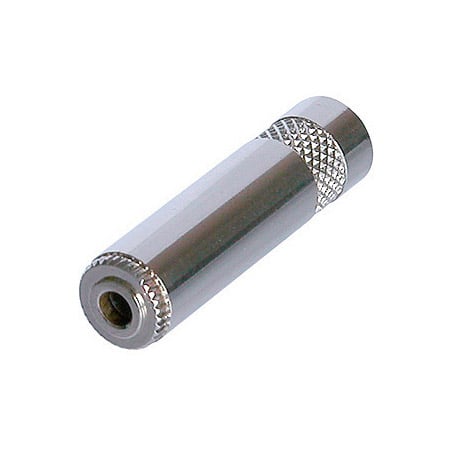

Rean NYS240 3.5mm (1/8In) Cable Jack Nickel/Silver w/Solder Terminals

Name: Rean NYS240 3.5mm (1/8In) Cable Jack Nickel/Silver w/Solder Terminals
Brand: Rean
SKU: NYS-240
Price: 1.53 USD
Availability: InStock

ITEM #: NYS-240 MFG #: NYS240

Rean

List Price:

$2.55

Our Price:

$1.53

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NYS240 - Overview

The Rean NYS240 is a 3 pole 3.5 mm cable jack with a metal handle and a max cable O.D. of 4 mm.

Specifications:
- Electrical
- Contact Resistance: ≤10 mΩ
- Insulation Resistance: >200 MΩ(Initial)
- Rated Voltage: 500 VAC

  Mechanical
- Insertion and Withdrawal Force: ≤60N
- Lifetime: >1,000 Mating Cycles

  Material
- Housing: Brass
- Ground Contact: Bronze
- Housing: Zinc
- Contact: Bronze
- Contact: Bronze
- Bushing: PP
- Insulation: PA66+30%GF
- Clamping: Steel
- Insulated Pipe: Steel
- Housing: Nickel Plating
- Contact: Tin and Cer
- Contact: Tin and Cer
