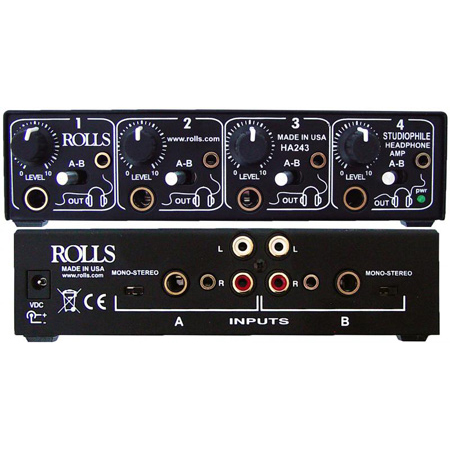

Rolls HA243 4 Channel Studiophile Headphone Amp

HA-243 - Overview

• Features:

  • 4: 1/4" TRS Headphone Outputs with Level Control.
  • With the new JRC3414 I.C.'s it has plenty of gain!!!
  • 1/4" , 3.5mm and RCA A and B Inputs.
  • Switchable mono or stereo for both A and B inputs


• Specifications:

  • Input Impedance: 10K Ohms unbalanced
  • Max Input Level: +26 dBV
  • Input Connectors: RCA, 1/4" and 3.5mm for both A and B inputs
  • Outputs: 4: 1/4" TRS Stereo jacks; 4: 1/8" (3.5 mm) TRS Stereo jacks
  • Max Gain: 20 dB/Channel
  • Output Power: 326 mW/side, 652 mW/Channel ( @ 62 Ohms )
  • Frequency Response: 20 Hz - 20 kHz +/- 3 db
  • S/N Ratio: 92 dB
  • THD: <.008%
  • IMD: <.008%
  • Phase Shift (In to Out): less than 10 deg.
  • Slew Rate: 2 V per microsecond
  • Crosstalk: - 65 dB
  • Power VDC
  • Weight: 1.6 lbs
  • Size: 6.75" x 1.75" x 4.75"
  • Headphone impedance: 8 Ohms to 1000 Ohms


• GTIN:

  0675889024302
