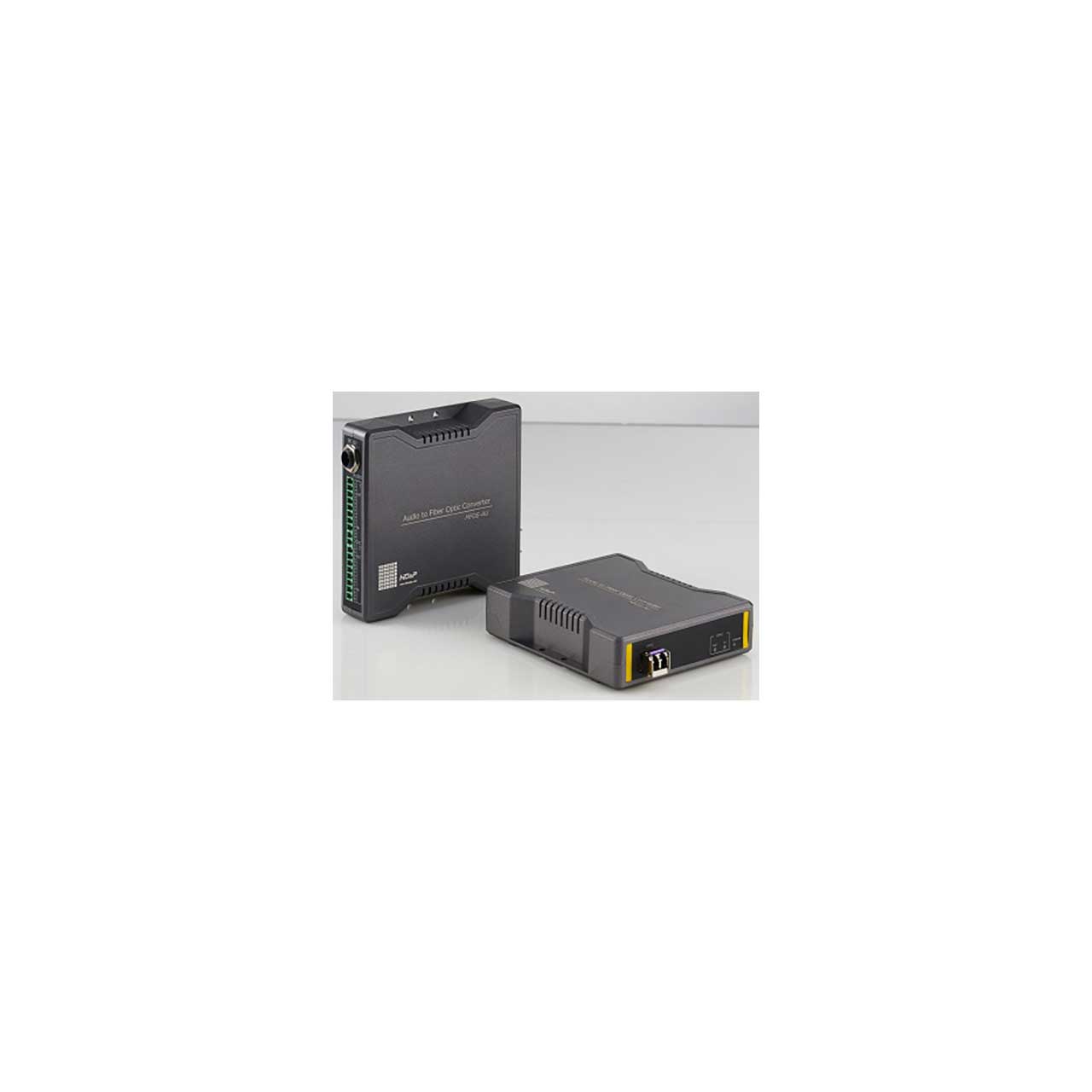

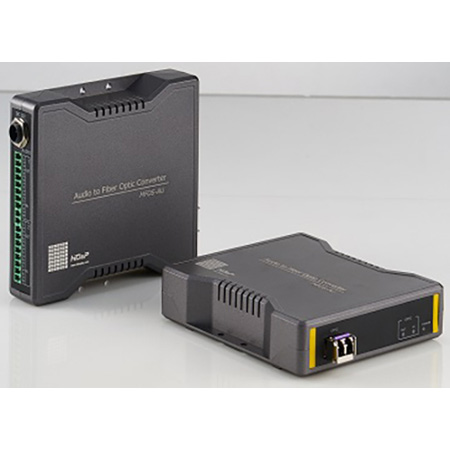

HDnP MFOS-AU 2-Channel Balanced Audio Single Mode Simplex LC Fiber Optic Converter - Single End Set

Name: HDnP MFOS-AU 2-Channel Balanced Audio Single Mode Simplex LC Fiber Optic Converter - Single End Set
Brand: HDnP
SKU: HDP-MFOS-AU
Price: 872.00 USD
Availability: PreSale

ITEM #: HDP-MFOS-AU MFG #: MFOS-AU

HDnP

List Price:

$878.00

Our Price:

$872.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MFOS-AU - Overview

HDnP MFOS-AU makes it possible to convert analog audio to digital signals over fiber. THe model is compatible with all the existing sports/concert/outdoor broadcasting equipments.

HD&P audio converter is part of a MFOS family, where video, data, and Ethernet converters can be mounted together in 19" 3RU rack and used in theme park, stadiums, live event stage and CCTV audio.

Applications:
Audio transmission
Studio Broadcasting, Outdoor Broadcasting and Concert Broadcasting system

Features:
- Supports 2 channel 3G-SDI Single Mode Simplex LC Fiber Video Extender
- LC optical connector(customizable)
- Latch locking power connector
- 12VDC, 1A (supports 7-16VDC input range)
Specifications:
- Audio
- Bandwidth 20Hz to 20kHz
- Sample rate 24bit / 48KHz
- Electrical Connector:
  2x Audio input: 5P terminal block
  2x Audio output: 5P terminal block
- Optical
- Wavelength: 1470 / 1490nm
- Distance (Typ.): 20km(Single mode fiber)
- Fiber Type: Single mode
- Optical Connector: 1x SFP: 2 x LC/PC Connector

  General
- Power Supply: DC 12V, 1A (supports 7 - 16VDC input rage)
- Electrical Connector: Mini XLR 4pin, male
- Operating Temperature: 32° to 122°F (0° to 50°C)
- Storage Temperature: -4° to 158°F (-20° to 70°C)
- Humidity: 0 to 95% RH, non-condensing
- Dimensions (WxDxH): 4.92 x 4.33 x 1.16" (125 x 110 x 29.5mm)
Item Includes:
- 2x MFOS-AU
- 2x DC12V Power supply, 1A Adapters
- 2x Mounting flanges
Warranty:
- 3 year warranty
